USA Lab UL Listed 5.6CFM UVP-5 Corrosion Resistant 2-Stage Vacuum Pump




Brand :

$1,549.00
SKU:
UVP-5
UPC:
840215200211
Condition:
New
Displacement @ 60Hz:
5.6 CFM
Pressure: Gas ballast closed:
0.3 Micron
Pressure: Gas ballast fully open:
6 Micron
Power supply:
1 Phase (110V, 60Hz) 0.4KW
Weight(kg):
21
External Dimensions:
17.3x5.6x8.5"
Certification:
UL
Our new line of Corrosion Resistant UVP-5 Vacuum Pump 5 cfm provides superior quality that compliment multiple applications. This UL listed pump is designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 5 cfm. Each pump comes standard with an exhaust Oil Mist Filter and all parts needed to connect to any system for immediate use. Our UVP-5 Pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels
• Corrosion-resistant vanes for premium reliability
• Low noise level and noise-dampening rubber feet
• Internal check-valve, preventing accidental back-flow
• Easy to change oil mist filter
• Large oil reservoir



SPECIFICATIONS
Model UVP-5 UVP-11 UVP-21
Pumping Speed (60Hz) 5.5 cfm 11 cfm 21 cfm
Ultimate Total Pressure Gas Ballast Close 4x10-2 Pa
 (3.0x10-4 torr) 0.3 Micron
Ultimate Total Pressure Gas Ballast Open 8x10-1 Pa
 (6x10-3 torr) 6 Micron
Power Supply 1 Phase (110V, 60Hz)
Power Rating(kW) 0.4 0.75 1.1
Inlet/Exhaust Flange KF 25
Oil Capacity (L) 0.6~1.0 0.9~1.5 1.3~2.0
Ambient Temperature (℃) 10~40℃
Noise Level (dB) ≤56 ≤60 ≤60
Weight (kg) 21 30 43

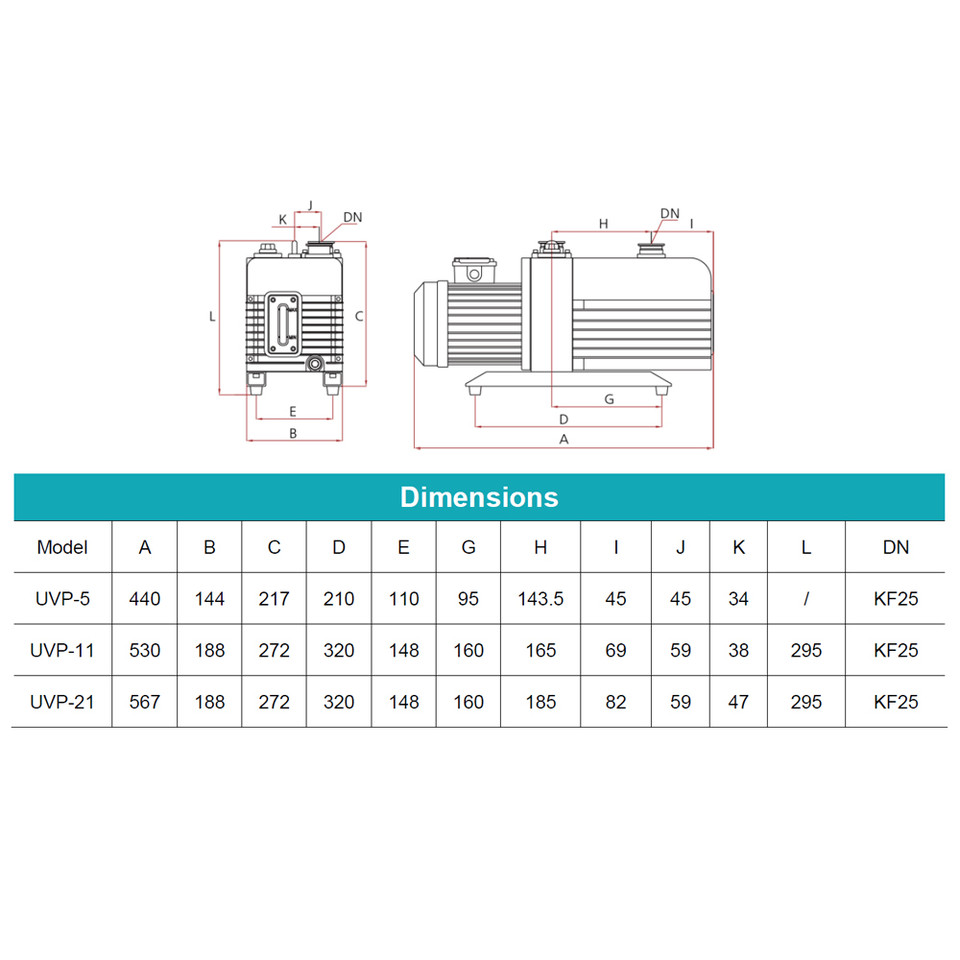

External Dimensions 440x144x217MM
 17.3x5.6x8.5"
530x188x272MM
 20.8x7.4x10.7"
567x188x272MM
 22.3x7.4x10.7"
Certification UL
Warranty 2 Year

PACKING LIST
Model UVP-5 UVP-11 UVP-21
Main Vacuum Pump 1 1 1
KF25 x 3/8" Barb 1 1 1
KF25 Clamp 2 2 2
KF25 O-Ring 2 2 2
Oil Mist Trap 1 1 1
Quart of Oil 1 1 1
Manual 1 1 1




For Technical Support, Questions, or Other Issues Please Email or Call Us!


Displacement @ 60Hz:
5.6 CFM
Pressure: Gas ballast closed:
0.3 Micron
Pressure: Gas ballast fully open:
6 Micron
Power supply:
1 Phase (110V, 60Hz) 0.4KW
Weight(kg):
21
External Dimensions:
17.3x5.6x8.5"
Certification:
UL
Warranty Policy

Vacuum Pump: 2 years
