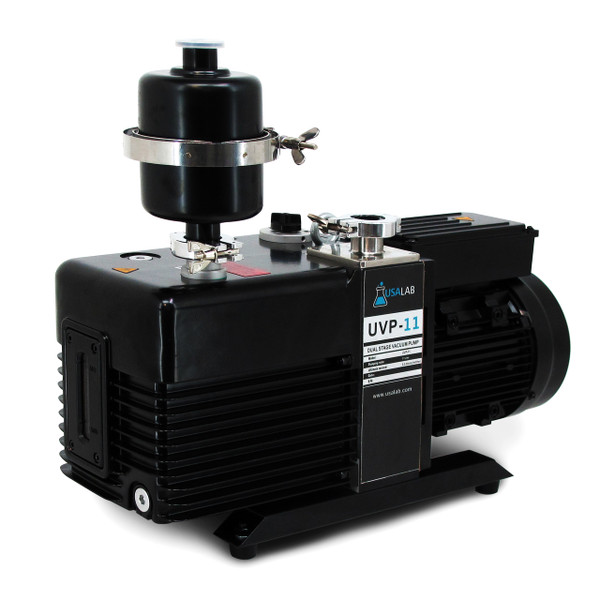

USA Lab UVP Vacuum Pump Rebuild kits




Brand :

$329.00 - $449.00
SKU:
UVP-RBK
Condition:
New
This is a vacuum pump rebuild kit for the USA Lab UVP Vacuum Pumps.

Click here for exploded view of parts (21, 34, 45)





Packing List

ITEM

QTY

Part Number

Displacement valve

1

PN 320240101

Back vane

2

PN 320100204

Gas ball valve head

1

PN 311150103

Anti-suckback plate

1

PN 320510101

Exhaust port paper board

1

PN 320200101

Coupling element

1

PN 320050103

Fore rotary vane

2

PN 320100121

Matke filter

1

PN 320340101

Oil sight

1

 PN 320170101

Sight glass washer

1

PN 320190101

Motor paper washer

1

PN 320220101

Front gasket

1

PN 320230101

Front gasket

1

PN 320210101

Seal

1

PN 300280602

Seal

1

PN 300280902

Seal

1

PN 300281601

Spring

1

PN 320110302

Spring

1

PN 320110205

Spring

1

PN 310080301

Rotary vane spring

5

PN 320110104

O-ring

2

PN 300310070

O-ring

1

 PN 300310072

O-ring

1

PN 300310073

O-ring

1

PN 300310074

O-ring

1

PN 320160101

O-ring

2

PN 300310081

O-ring

1

PN 300310137

Housing O-ring

1

PN 300310079







For Technical Support, Questions, or Other Issues Please Email or Call Us!



No Warranty - Consumable Item
