SPECIFICATIONS |
||
Model |
UVP-34 |
UVP-45 |
Pumping Speed (60Hz) |
34 cfm |
45 cfm |
Ultimate Total Pressure Gas Ballast Close |
4x10-2 Pa |
|
(3.0x10-4 torr) 0.3 Micron |
||
Ultimate Total Pressure Gas Ballast Open |
8x10-1 Pa |
|
(6x10-3 torr) 6 Micron |
||
Power Supply |
3 Phase (240V, 60Hz) |
|
Power Rating(kW) |
1.5 |
2.2 |
Inlet/Exhaust Flange |
KF40 |
|
Oil Capacity (L) |
3.3~4.5 |
|
Ambient Temperature (℃) |
10~40(℃) |
|
Noise Level (dB) |
62 |
65 |
Weight (kg) |
21 |
30 |
External Dimensions |
724x241x317MM |
750x241x317MM |
28.5x9.5x12.5" |
29.5x9.5x12.5" |
|
Certification |
CE |
|
Warranty |
2 Year |
PACKING LIST |
||
Model |
UVP-34 |
UVP-54 |
Main Vacuum Pump |
1 |
1 |
KF40 x 3/8" Barb |
1 |
1 |
KF40 Clamp |
2 |
2 |
KF40 O-Ring |
2 |
2 |
Oil Mist Trap |
1 |
1 |
Quart of Oil |
1 |
1 |
Manual |
1 |
1 |

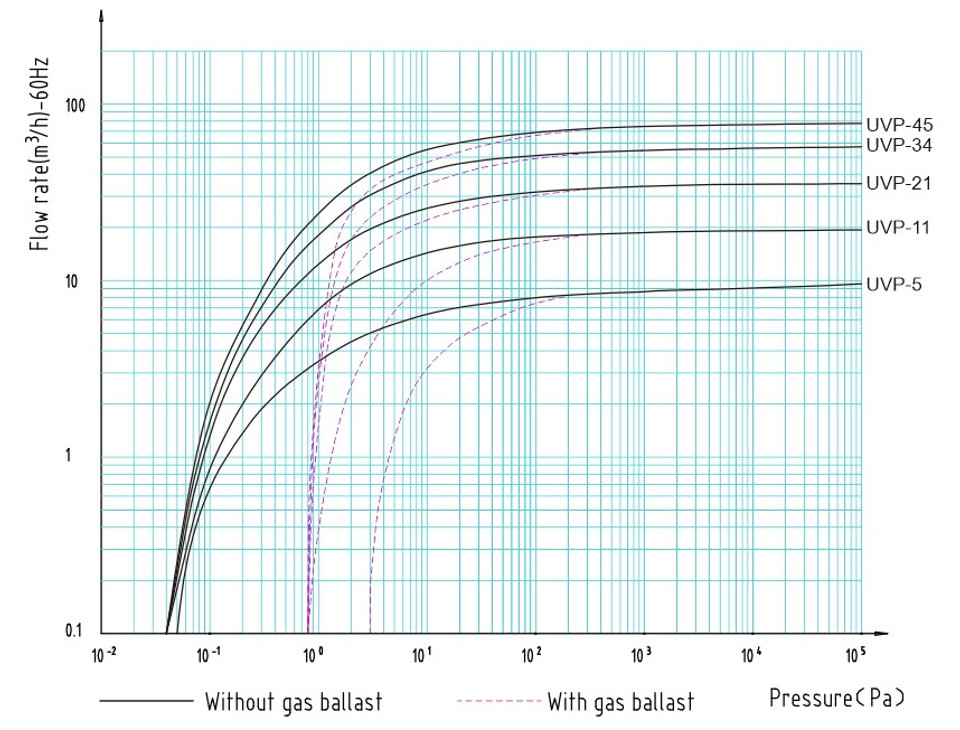

![uvp-chart.jpg uvp-chart.jpg](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/uvp-chart.jpg)
![](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/uvp-diagram-small.jpg?t=1606856931)
![](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/uvp-part-diagram-small.jpg?t=1606856932)
![](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/uvp-packing-list-small.jpg?t=1606856931)
![](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/uvp-21-oil-level-small-2.jpg?t=1606856953)
