USA Lab -35°C Scientific Freeze Dryer 1-2 Gallons Per Batch / 4L Ice Capacity / 3 Year Warranty
USA LabUSA-SFD-4-TK$2,950.00The USA Lab Scientific Freeze Dryer is not just a regular lab freeze dryer. This unit is equipped with a LCD Touchscreen Display and customizable recipe control. The controller allows you to quick -
-
-
-
Description
USA Lab Scientific Freeze Dryer | 8 Shelves | 2-3 Gallons Per Batch | 6L Ice Capacity | 3 Year Warranty

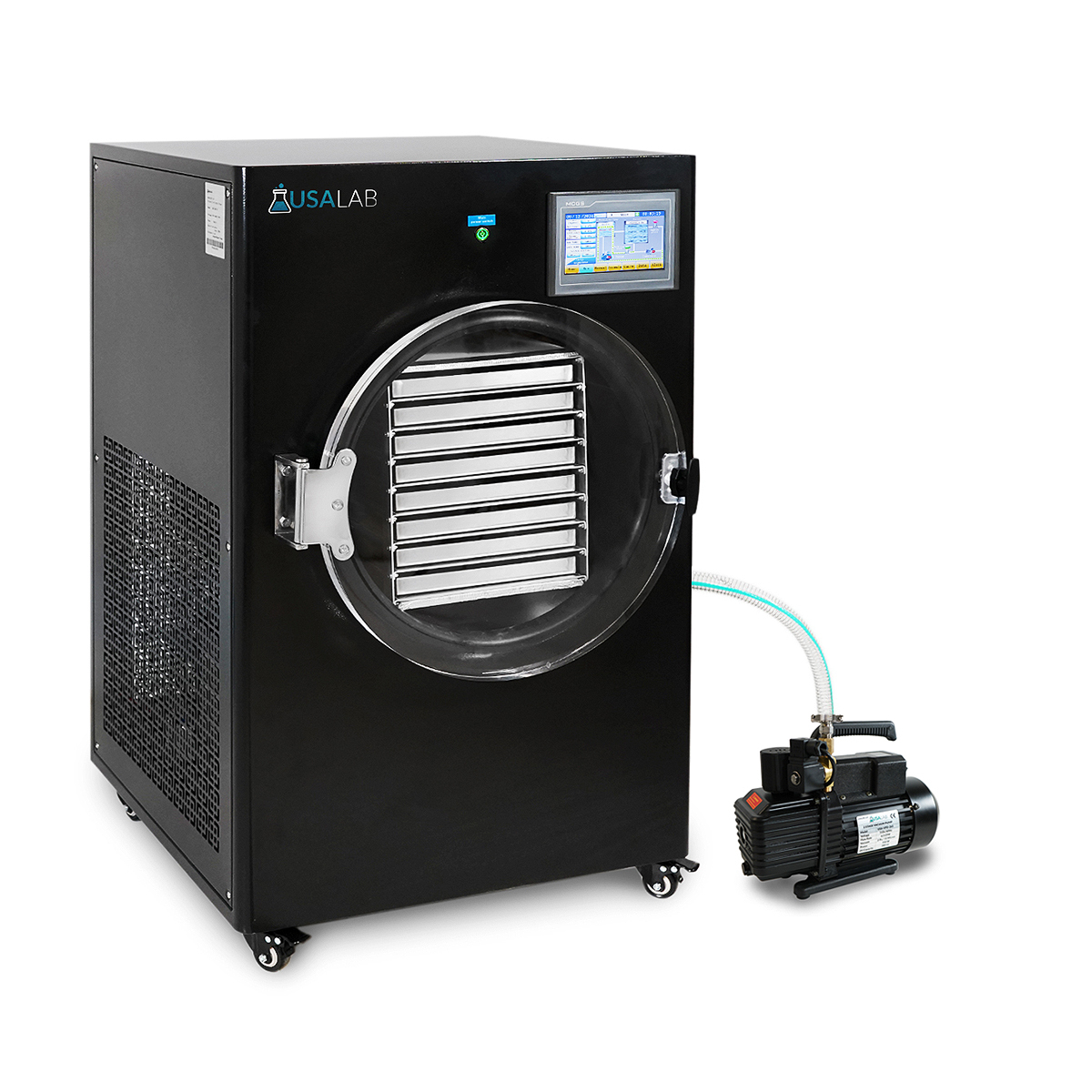

The USA Lab Scientific Freeze Dryer is a laboratory-scale freeze drying system designed for controlled and repeatable drying applications. The USA-SFD-8 features eight stainless steel shelves, a powerful cold trap capable of reaching -35°C, and a 6-liter ice holding capacity for batch processing up to 2-3 gallons.
An LCD touchscreen controller provides convenient operation with customizable recipes, controllable freezing temperature and freezing rate, and adjustable shelf temperature during the drying cycle. Shelf heaters can also be controlled to help manage the sublimation rate for different laboratory drying requirements.

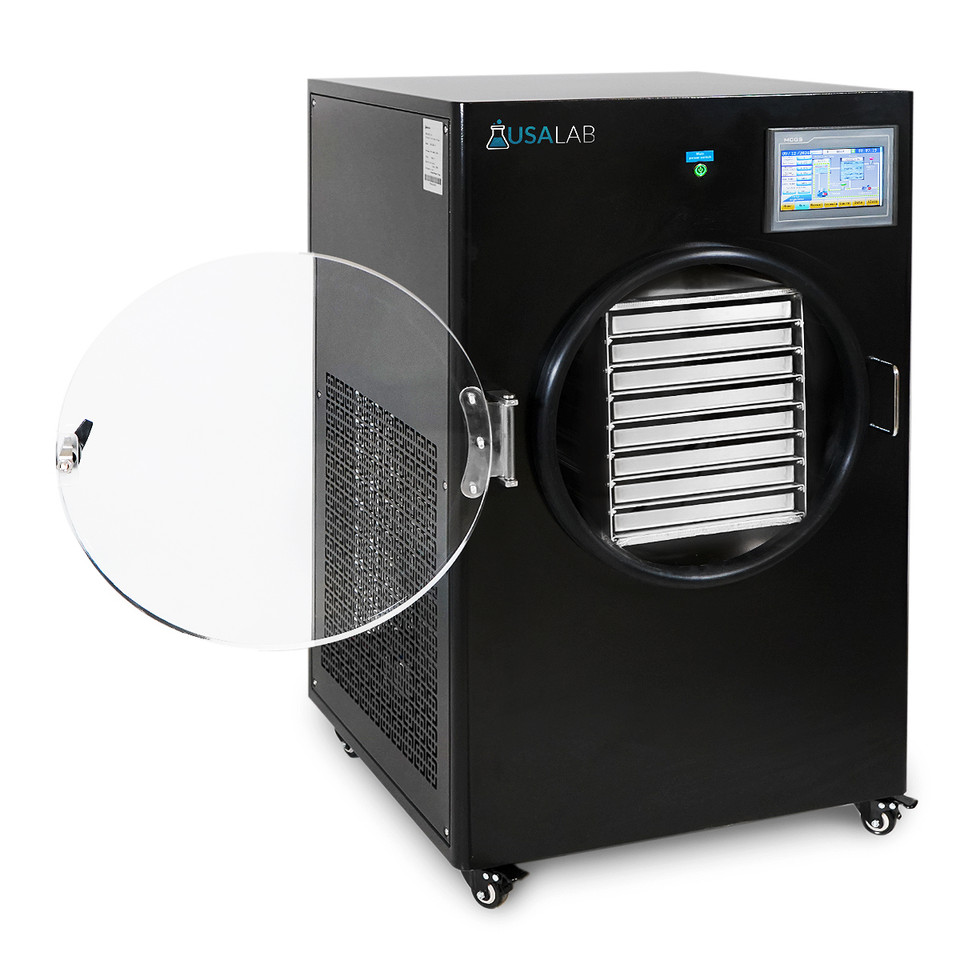

The USA-SFD-8 includes the USA-VPD-280 vacuum pump, KF25 vacuum connection hardware, and eight stainless steel shelves. Its transparent polycarbonate construction provides easy viewing of the process, while the UL Listed SECOP compressor supports stable and reliable operation.
8 Stainless Steel Shelves 2-3 Gallons Per Batch -35°C Cold Trap LCD Touchscreen Control
Batch Capacity: 2-3 gallons per batch — supports laboratory freeze drying of larger sample volumes.
Cold Trap: -35°C / -31°F with 6-liter ice capacity — supports efficient capture of sublimated moisture during freeze drying.
Process Control: LCD touchscreen with recipe customization — provides control over freezing rate, freezing temperature, shelf temperature, and shelf heating.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this USA Lab Scientific Freeze Dryer?
- Eight stainless steel shelves — provides a total shelf volume of 0.852 ft³ (1,468.8 in³) for laboratory freeze drying applications.
- 2-3 gallon batch capacity — supports larger sample batches while maintaining controlled freeze drying operation.
- -35°C cold trap — provides a low-temperature collection environment with 6 liters of holding ice capacity.
- Customizable process control — allows users to control freezing rate, freezing temperature, shelf temperature, and shelf heaters through the LCD touchscreen controller.
- Complete vacuum package — includes the USA-VPD-280 vacuum pump, KF25 vacuum line, clamps, and O-rings for system setup.
Talk to an expert
Get product guidance, application support, and compatibility information for your laboratory freeze drying workflow. The USA-SFD-8 includes the USA-VPD-280 vacuum pump as part of the supplied package.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA-SFD-8 |
| Product Type | Scientific Freeze Dryer |
| Shelves | 8 stainless steel shelves |
| Batch Amount | 2-3 gallons |
| Holding Ice Capacity | 6 liters |
| Cold Trap Temperature | -35°C / -31°F |
| Per Shelf Volume | 0.142 ft³ (244.8 in³) |
| Total Shelf Volume | 0.852 ft³ (1,468.8 in³) |
| Power Requirements | 110-120V, 2,500W, 20A, 1P / 5-20P plug installed |
| Optimal Operating Conditions | 10-25°C / 50-77°F |
| Relative Humidity | ≤70% |
| Compressor Type | UL Listed SECOP |
| Collector Material | Stainless Steel |
| Shelving Material | Stainless Steel |
| Chamber Material | Stainless Steel |
| Controller Type | LCD Touch Screen |
| Vacuum Connection | KF25 |
| Shelving Dimensions | 17"L x 10.5"W x 1"H, 8 included |
| External Dimensions | 25"L x 27"W x 44"H |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right equipment for your laboratory freeze drying workflow.
FAQ
What is the batch capacity of the USA Lab USA-SFD-8 Scientific Freeze Dryer?
The USA Lab USA-SFD-8 Scientific Freeze Dryer supports a batch amount of approximately 2-3 gallons and includes eight stainless steel shelves with a total shelf volume of 0.852 ft³ (1,468.8 in³).
What is the cold trap temperature and ice capacity of the USA Lab USA-SFD-8?
The USA Lab USA-SFD-8 has a cold trap temperature of -35°C / -31°F and a holding ice capacity of 6 liters.
What vacuum pump is included with the USA Lab USA-SFD-8 Freeze Dryer?

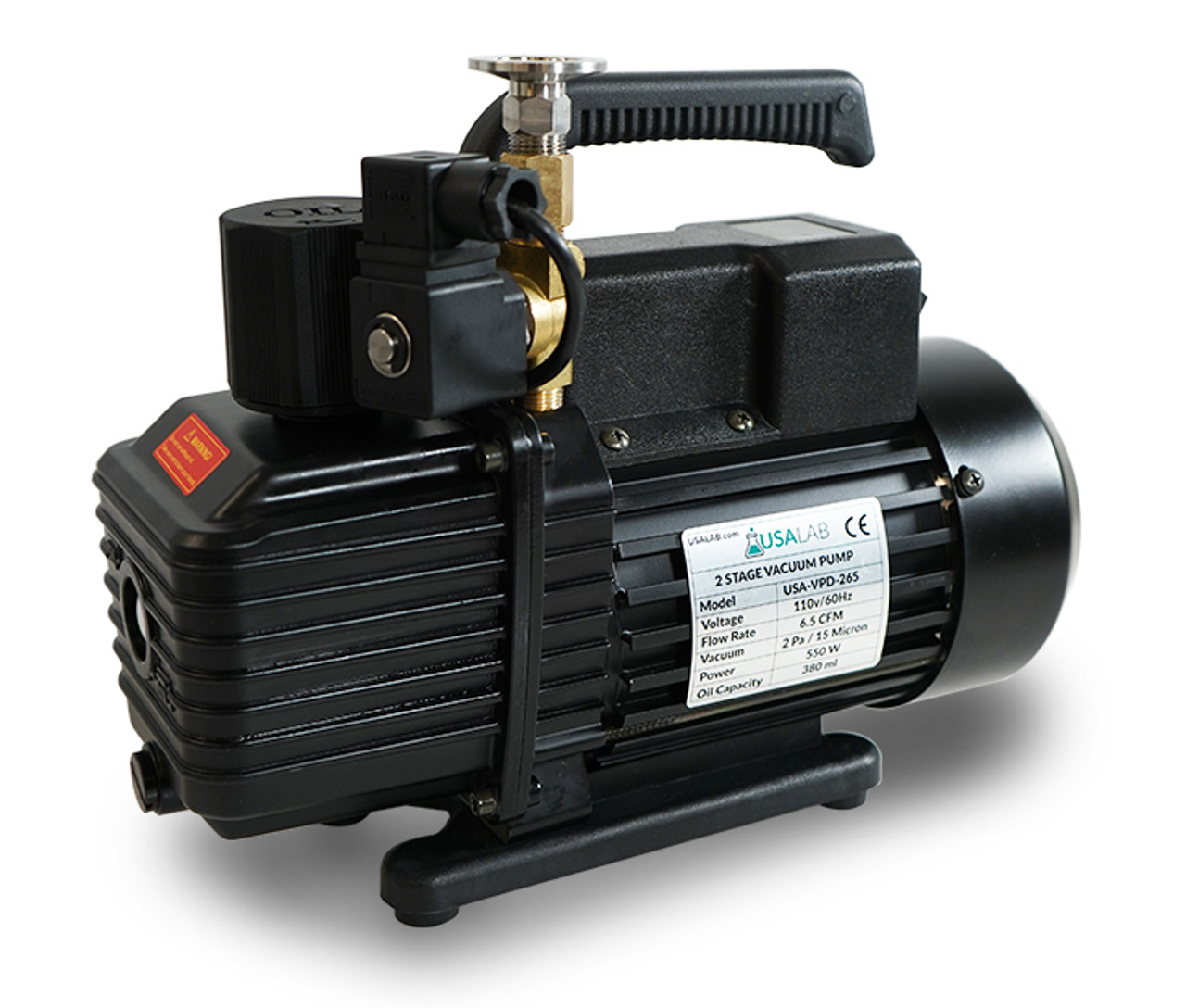

The USA Lab USA-SFD-8 package includes one USA-VPD-280 vacuum pump. The pump is rated at 8.0 CFM with an ultimate vacuum of 2 Pa / 15 micron and includes two 16 oz bottles of oil.
What controls are available on the USA Lab USA-SFD-8 Scientific Freeze Dryer?
The USA Lab USA-SFD-8 features an LCD touchscreen controller with customizable recipes, controllable freezing rate, controllable freeze temperature, controllable shelf temperature during the drying cycle, and controllable shelf heaters for managing the sublimation rate.
