USA Lab -35°C Scientific Freeze Dryer 1-2 Gallons Per Batch / 4L Ice Capacity / 3 Year Warranty




Brand :

$4,499.00
SKU:
USA-SFD-4-TK
UPC:
840215211200
Shipping:
Calculated at Checkout
Power Requirements:
110-120V 1900W 16.5A(20A Required) 1P / 5-20P Plug installed
Cold Trap Temperature:
-35°C / -31°F
Holding Ice Capacity:
4 Liters
Batch Amount:
1-2 Gallons
Compressor Type:
UL Listed SECOP
Controller Type:
LCD Touch Screen
Vacuum Pump:
VPD-265 Included
Vacuum Connection:
KF25
Shelving Dimensions:
7.8" x 17.7" (4 included)
External Dimensions:
35" x 25" x 29"
Weight:
248lbs
Warranty:
3 Years

The USA Lab Scientific Freeze Dryer is not just a regular lab freeze dryer. This unit is equipped with a LCD Touchscreen Display and customizable recipe control. The controller allows you to monitor and allows for controllable shelf temperature during the drying cycle. This Lab Freeze Dryer can be used in many applications. This unit comes with a 3-year warranty!

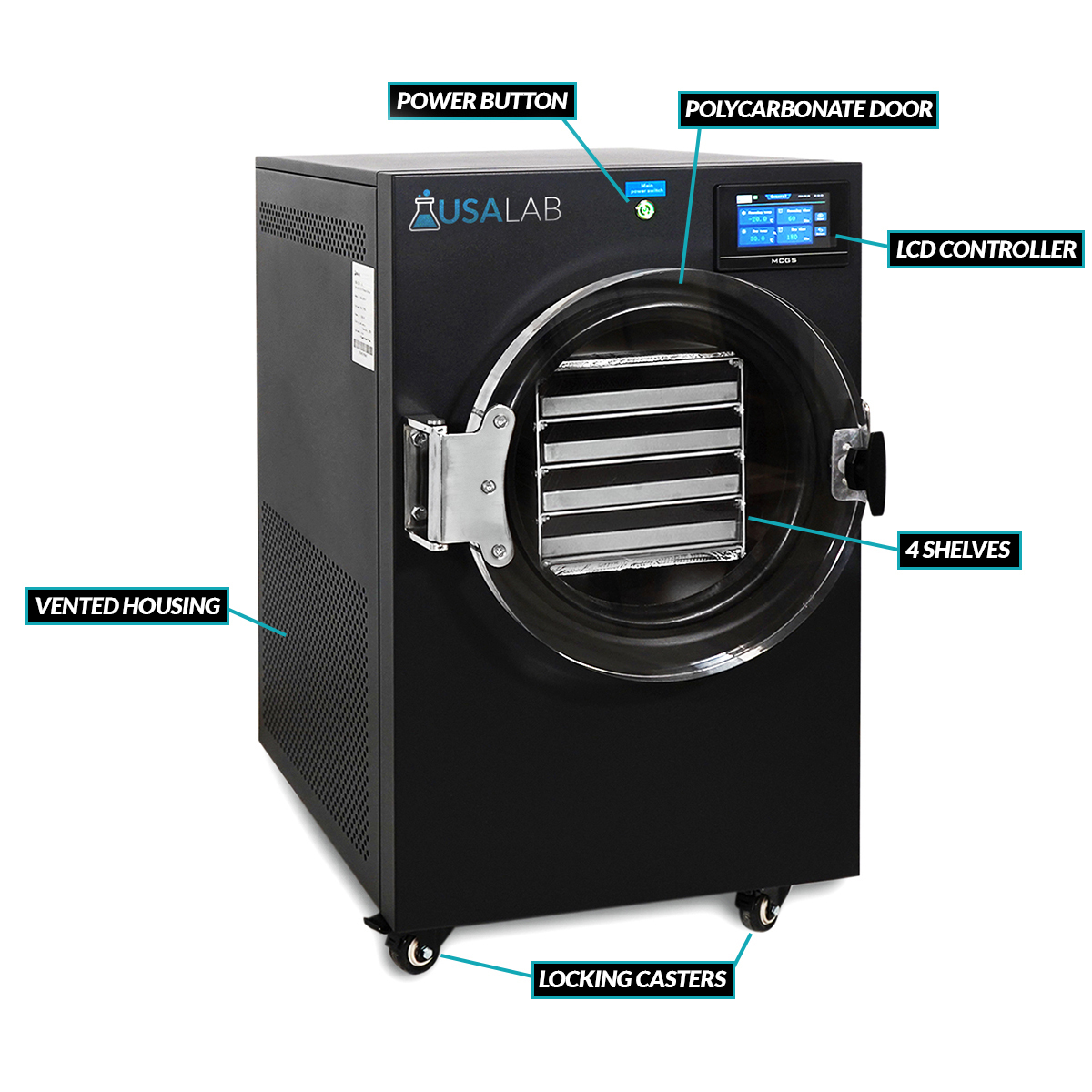

USA-SFD-4 FEATURES

• Powerful and fast cooling speed down to -35°C.

• 1-2 Gallons per batch

• High quality UL Listed SECOP compressor.

• Recipe Customization.

• Controllable rate of freezing.

• Controllable freeze temperature.

• Controllable shelf temperature during the drying cycle.

• Controllable shelf heaters for sublimation rate.

• LCD touchscreen controller for easy operation.

• Organic transparent polycarbonate for easy viewing of the process.

• 3 Year warranty with US base parts and support.

• Simple and reliable KF25 connection.

• Stable performance, simple operation, and low noise.



SPECIFICATIONS

Model

USA-SFD-4

Power Requirements

110-120V 1900W 16.5A(20A Required) 1P / 5-20P Plug installed

Cold Trap Temperature

-35°C / -31°F

Optimal Operating Conditions

10-25°C / 50-77°F

Relative Humidity

≤70%

Holding Ice Capacity

4 Liters

Batch Amount

1-2 Gallons

Per shelf = 0.12ft3 (207.09in3)

Total = 0.48ft3 (828.36in3)



Compressor Type

UL Listed SECOP

Collector Material

Stainless Steel

Shelving Material

Stainless Steel

Chamber Material

Stainless Steel

Controller Type

LCD Touch Screen

Vacuum Connection

KF25

Purge Valve

Included - 3/8" Outlet

Exterior Finish

Powder Coated Black Aluminum

Shelving Dimensions

17.7"L x 7.8"W x 1.5"H (4 included)

External Dimensions

35" x 25" x 29"

Weight

248lbs

Shipping Weight

~370lbs

Warranty

3 Years



PACKING LIST

Model

Quantity

USA Lab USA-SFD-4 Freeze Dryer

1

7.8" x 17.7" Shelf

4

24" KF25 Vacuum Line

1

KF25 Clamp

2

KF25 O-ring

2

KF25 to 1/4" JIC Female

1

Male 1/4" JIC Union

1

 Manual

1



Pump Specs:

Model

VPD-265

Power

110-120V | 60hz | 4.6A | 5-15 Plug

Motor Wattage

550W

Flow Rate

6.5CFM

Ultimate Vacuum

2pa - 15 Microns

Oil Capacity

380mL

Exterior Dimensions

13"L x 6"W x 13"H

Weight

23lbs



VPD-265 PACKING LIST

USA Lab VPD-265 Vacuum Pump

1 pc

16oz. Vacuum Pump Oil

2 pcs

USA Lab VPD-Filter

1 pc

KF25 Centering Ring

1 pc

KF25 Clamp

1 pc

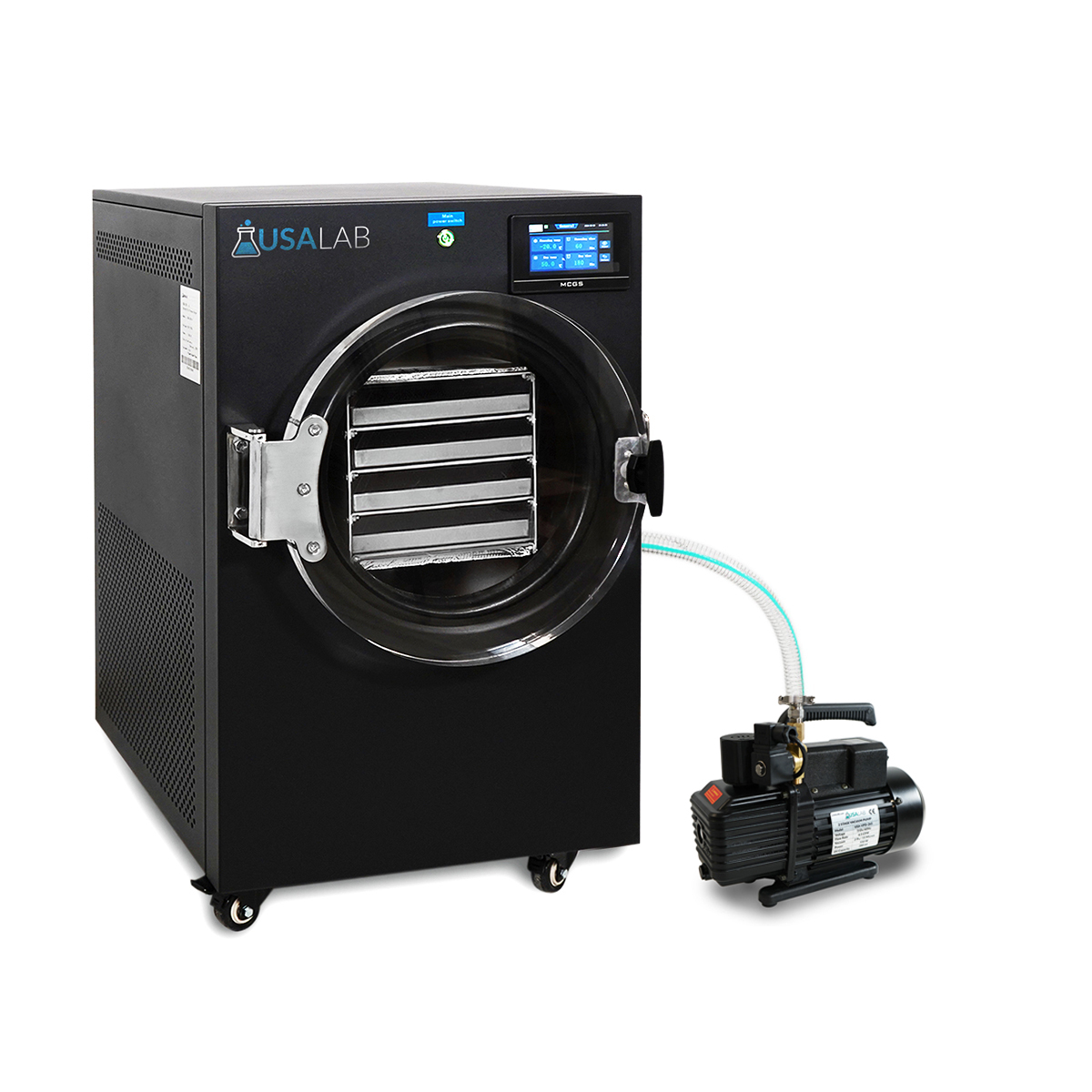

(VPD-265 Vacuum Pump Included)
Note: We recommend the following pumps for this scientific freeze dryer
Recommended: UVP-5 | VPD-230 | VPD-265
Other Options (not recommended due to low CFM): MZ-2C-NT | MD-4C-NT
Using a larger pump would have to be done separately, not though using the units rear receptacle.


For Technical Support, Questions, or Other Issues Please Email or Call Us!
