Description

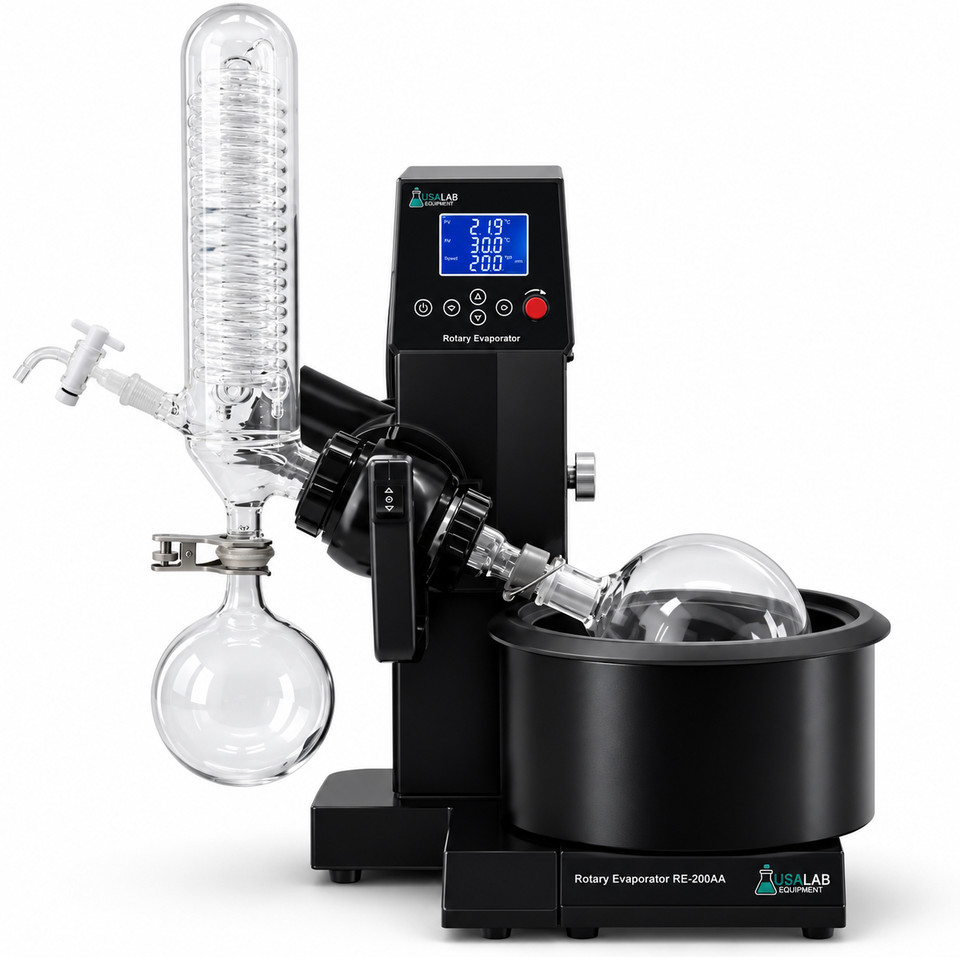

USA Lab RE-200A 2L Rotary Evaporator - GG-17 Borosilicate Glass - 0-180 RPM - 110V
The USA Lab RE-200A 2L Rotary Evaporator recovers solvents efficiently and fast, delivering consistent, repeatable results at an affordable price. Every glass component is made from GG-17 high borosilicate glass and designed for efficient use of surface area, which means faster solvent recovery without compromising quality. High efficiency valves and ports allow a continuous feed of material, so you can keep running without breaking vacuum.
With a 2L evaporation flask, 1L collection flask, digital step-less speed control from 0 to 180 RPM, automatic lift, and a water bath that heats from room temperature to 100°C with 1°C accuracy, the RE-200A is a complete benchtop rotovap for solvent recovery, distillation, extraction, and concentration work.
It runs on a standard 110V outlet with a 5-15P plug, evaporates alcohol at 1L per hour or more, and pulls down to 25 Torr. Each unit is backed by fantastic customer service, US-based product support, and a 1 year parts and labor warranty.
2L Evaporation Flask GG-17 Borosilicate Glass 0-180 RPM Digital Control Automatic Lift Standard 110V Outlet 1 Year Warranty
Fast Solvent Recovery: Evaporates alcohol at 1L/H or more with 5,100 BTU of bath heating and vacuum down to 25 Torr.
Continuous Feed: High efficiency valves, ports, and included glass feeding tube let you add material without breaking vacuum.
Plug and Run: Standard 110V 5-15P plug, automatic lift, and digital step-less speed control make setup and operation simple.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why choose the RE-200A Rotary Evaporator?
- GG-17 high borosilicate glass: every piece is designed for efficient surface area use, delivering faster recovery without sacrificing quality.
- Precise control: digital step-less speed regulation from 0 to 180 RPM and bath temperature accuracy of 1°C keep runs repeatable.
- Automatic lift: raise and lower the flask assembly at the push of a button.
- No special wiring: runs on a standard 110-120V 15A outlet, unlike larger rotovaps that need dedicated circuits.
- Backed by USA Lab: 1 year parts and labor warranty with US-based support and replacement parts in Livonia, MI.
Talk to an expert
Need help pairing the RE-200A with the right vacuum pump and chiller, or sizing a rotovap for your throughput? Our technicians will spec the full setup before you order.
Technical Specifications
| Model | USA Lab RE-200A 2L Rotary Evaporator |
|---|---|
| Glass Material | GG-17 High Borosilicate Glass |
| Evaporation Flask Capacity | 2L |
| Collection Flask Capacity | 1L |
| Rotary Speed | 0-180 RPM |
| Speed Regulation | Digital Step-Less |
| Bath Temperature Range | Room Temp to 100°C / 212°F |
| Temperature Control Accuracy | +/- 1°C |
| Lifting Mechanism | Automatic |
| Motor Wattage | 40W |
| Heater BTUs | 5,100 BTU |
| Maximum Vacuum | 0.0033 MPa | 25 Torr | 25,000 Micron |
| Evaporating Capacity | Alcohol ≥ 1L/H |
| Vacuum Barb | 1/2" Outside Diameter |
| Condenser Barb | 1/2" Outside Diameter |
| Power Requirements | 110-120V 50-60Hz 15A Single Phase (Standard 5-15P Plug) |
| Dimensions (LxWxH) | 25.3" x 16.5" x 32.6" |
What's in the Box
| Item | Quantity |
|---|---|
| USA Lab RE-200A Base | 1 Set |
| USA Lab RE-200A Water Bath | 1 Set |
| Main Condenser | 1 PC |
| 2L Boiling Flask | 1 PC |
| 1L Receiving Flask | 1 PC |
| Vapor Duct with Seal (Pre-Installed) | 1 Set |
| PTFE Vacuum Sealing Kit (Pre-Installed) | 1 Set |
| Glass Feeding Tube with PTFE Valve | 1 Set |
| PTFE Feeding Tube Extension Hose | 1 PC |
| 5-15P Plug | 1 PC |
| 15A Fuse | 1 PC |
| S35 Clamp | 1 PC |
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help with product availability and bulk order support.
FAQ
What is the USA Lab RE-200A 2L Rotary Evaporator?
The RE-200A is a compact benchtop rotary evaporator with a 2L evaporation flask, 1L collection flask, automatic lift, and digital step-less speed control from 0 to 180 RPM. It is built for efficient solvent recovery, distillation, and concentration at an affordable price.
How fast does the RE-200A evaporate?
The RE-200A evaporates alcohol at 1L per hour or more, driven by a 5,100 BTU water bath that heats from room temperature to 100°C and vacuum performance down to 25 Torr (25,000 micron).
Does the RE-200A require a special outlet?
No. The RE-200A runs on a standard 110-120V 15A outlet with a common 5-15P plug, the same outlet found in any home or lab. No dedicated circuit or special wiring is required.
Does the RE-200A come with a vacuum pump and chiller?
The RE-200A includes the rotovap base, water bath, and complete glassware kit. A vacuum pump and recirculating chiller are sold separately, and both connect via the 1/2" OD vacuum and condenser barbs. Contact our team and we will spec a complete pump and chiller package for your setup.
What warranty comes with the RE-200A?
Every RE-200A includes a 1 year parts and labor warranty with US-based support. The warranty does not cover glassware.
Important Glassware Shipping Notice!
DISCLAIMER:
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receipt and we will either send you a brand new piece or issue a refund.
Any glassware broken after delivery is not covered under warranty. Thank you for understanding!
×
