RE501 Specifications |
|
Glass Material |
3.3 Borosilicate Glass |
Evaporation Flask Capacity |
5L |
Collection Flask Capacity |
3L |
Rotary Speed |
0-120RPM |
Bath Temperature Range |
Room Temp to 198°C (388°F) |
Lifting Mechanism |
Manual |
Power Requirements |
110V 60Hz 20A Single Phase |
Temperature Control Accuracy |
+/ 1°C |
Motor Wattage |
40W |
Heater BTUs |
6,800BTU |
Maximum Vacuum |
-29.8inHg |
Evaporating Capability |
Water≥1.5L/H; Alcohol≥4L/H |
Dimensions |
18"L x 30"W x 44"H |
Speed Regulation |
Digital Stepless |
Vacuum Barb |
1/2" |
Condenser Barb |
1/2" |
![](https://cdn7.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/n117-diagram-small.jpg?t=1527188885&_ga=2.7141682.101439603.1527086722-262557846.1515005507)
![](https://cdn11.bigcommerce.com/s-rwpmfh/product_images/uploaded_images/5-15p.png?t=1547826859&_ga=2.113064644.1554368428.1547590924-1541650103.1547590924)

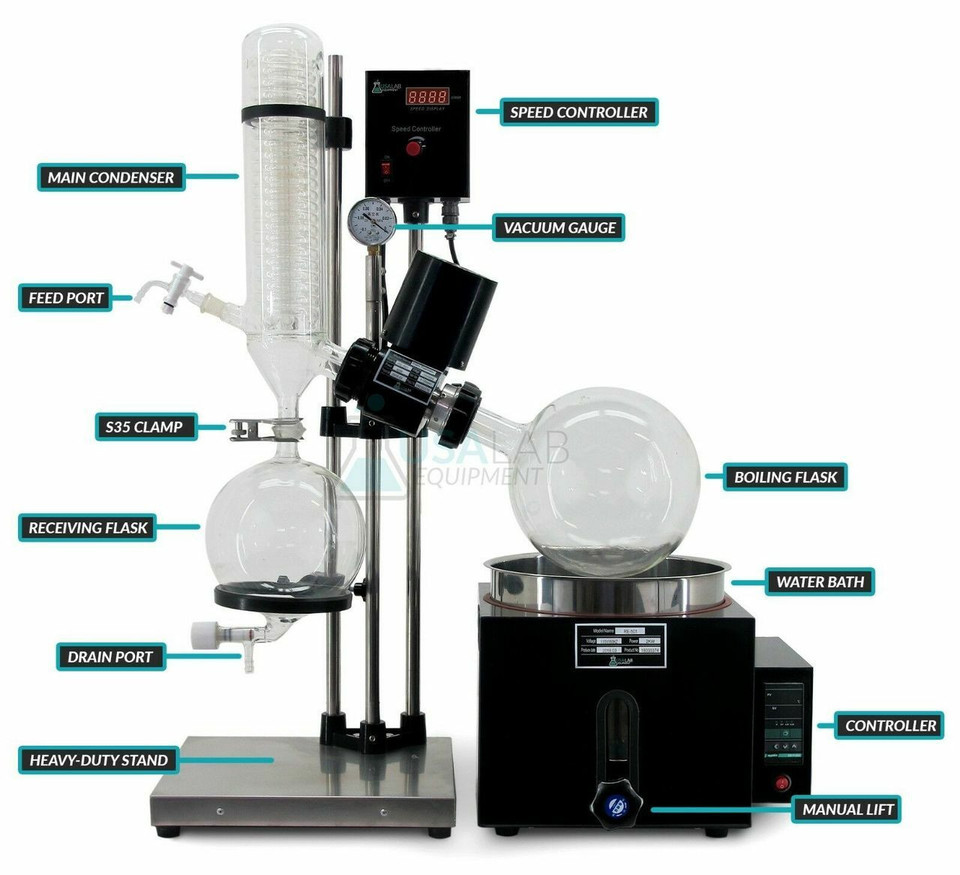

RE-501 PACKING LIST |
|
Stainless Steel, 3 Bar Stand |
1 set |
USA Lab Water Bath |
1 set |
USA Lab RE-501 Motor |
1 set |

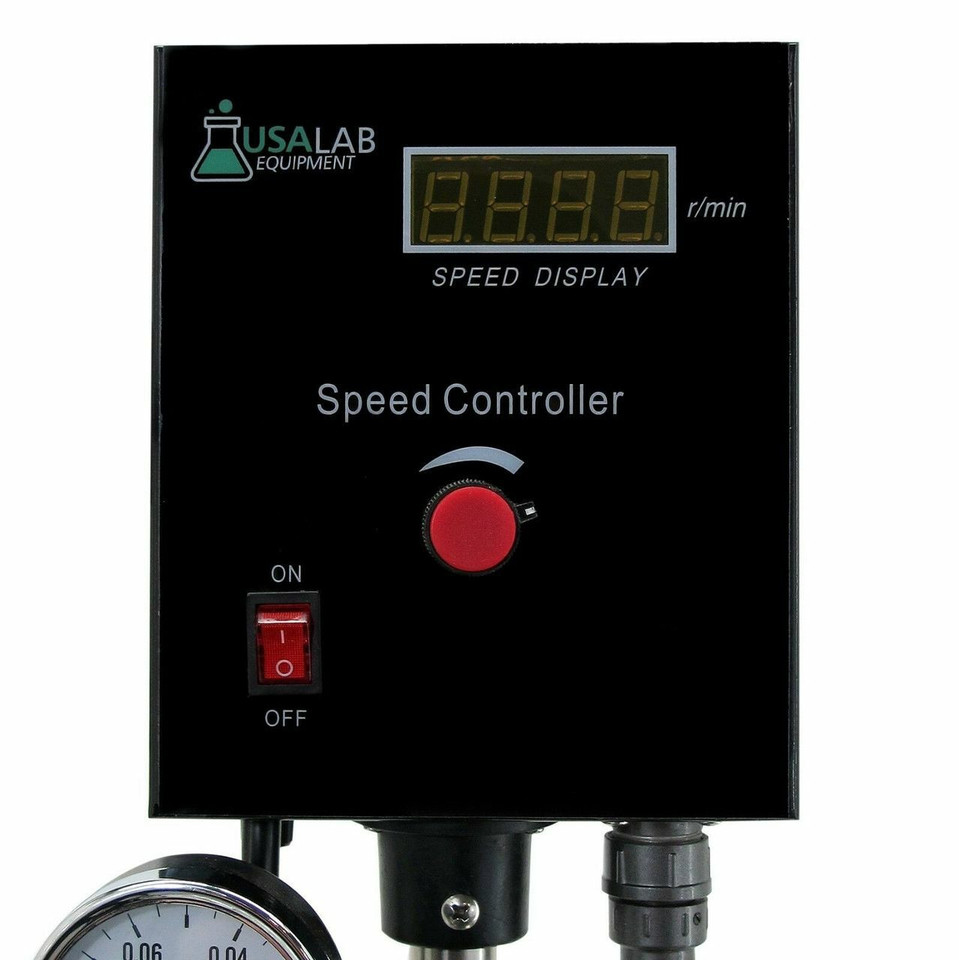

USA Lab Speed Controller |
1 set |
Main Condenser |
1 pc |
5L Boiling Flask |
1 pc |
3L Receiving Flask |
1 pc |
Vapor Duct with Seal (Pre-Installed) |
1 set |
PTFE Vacuum Sealing Kit (Pre-Installed) |
1 set |
Glass Feed Port with PTFE Valve |
1 set |
PTFE Feeding Tube Extension Hose |
1 pc |
Vacuum Gauge |
1 pc |
Support Ring |
1 pc |
Rubber Strap for Condenser |
1 pc |
32A Fuse |
1 pc |
15A Fuse |
1 pc |
Set Screw |
3 pcs |
Allen Key |
1 pc |
S35 Clamp |
1 pc |
Vacuum Hose |
3ft |
