The USA Lab RE-501 Series 5l rotary evaporator Turn-Key kit recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price.With 3.3 High Borosilicate Glass, all pieces have been designed for efficient use of surface area. This means faster recovery without compromising quality. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum. This kit includes a Vacuubrand MZ 2C NT 1.2CFM Diaphragm pump that is rated for 15,000 Hours of use before maintenance. This pump is made from the highest quality parts and will work great with a USA Lab 2L rotary evaporator system.
|
RE501 Specifications |
|
|
Glass Material |
3.3 Borosilicate Glass |
|
Evaporation Flask Capacity |
5L |
|
Collection Flask Capacity |
3L |
|
Rotary Speed |
0-120RPM |
|
Bath Temperature Range |
Room Temp to 198°C (388°F) |
|
Lifting Mechanism |
Manual |
|
Power Requirements |
110V 60Hz 20A Single Phase |
|
Temperature Control Accuracy |
+/ 1°C |
|
Motor Wattage |
40W |
|
Heater BTUs |
6,800BTU |
|
Maximum Vacuum |
-29.8inHg |
|
Evaporating Capability |
Water≥1.5L/H; Alcohol≥4L/H |
|
Dimensions |
18"L x 30"W x 44"H |
|
Speed Regulation |
Digital Stepless |
|
Vacuum Barb |
1/2" |
|
Condenser Barb |
1/2" |
|
RE-501 PACKING LIST |
|
|
Stainless Steel, 3-Bar Stand |
1 set |
|
USA Lab Water Bath |
1 set |
|
USA Lab RE-501 Motor |
1 set |
|
USA Lab Speed Controller |
1 set |
|
Main Condenser |
1 pc |
|
5L Boiling Flask |
1 pc |
|
3L Receiving Flask |
1 pc |
|
Vapor Duct with Seal (Pre-Installed) |
1 set |
|
PTFE Vacuum Sealing Kit (Pre-Installed) |
1 set |
|
Glass Feed Port with PTFE Valve |
1 set |
|
PTFE Feeding Tube Extension Hose |
1 pc |
|
Vacuum Gauge |
1 pc |
|
Support Ring |
1 pc |
|
Rubber Strap for Condenser |
1 pc |
|
32A Fuse |
1 pc |
|
15A Fuse |
1 pc |
|
Set Screw |
3 pcs |
|
Allen Key |
1 pc |
|
S35 Clamp |
1 pc |
|
Vacuum Hose |
3ft |
|
UC-5/10 SPECIFICATIONS |
|
|
Model |
UC-510 |
|
Reservoir Capacity |
5L |
|
Reservoir Dimensions |
8" x 8" |
|
Temperature Range |
Room Temperature to -10°C / 14°F |
|
Power Requirements |
110-120V 60Hz 20A 1800W Single Phase |
|
Refrigerating BTUs |
4,500BTU - 1,000BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
30L/Min |
|
Pump Pressure |
2.2bar |
|
Barb Size |
5/8" |
|
Refrigerant |
R404 |
|
Dimensions |
19" x 14" x 29" |
|
Weight |
100lbs |
|
UC-5/10 Packing List |
|
|
USA Lab UC-510 Chiller |
1 pc |
|
1/2" Insulated Tubing |
11ft |
|
1/2" Barbed Valve |
1 pc |
|
PTFE Sealing Tape |
1 pc |
MZ 2C NT
Chemistry-Design Diaphragm Pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The pump MZ 2C NT is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. This pump is our most popular chemistry diaphragm pump, and is the heart of a family of VACUUBRAND pumping systems. The NT-series features further improved performance data and superior vapor tolerance.
Performance Features
- Outstanding chemical resistance and superior vapor tolerance
- High performance even at low vacuum levels
- Optimized vacuum even with gas ballast for condensate purge
- Whisper quiet and low vibration
- Long diaphragm life, maintenance-free drive system
-
Technical Data
|
Technical data |
MZ 2C NT |
|
Number Of Heads / Stages |
2 / 2 |
|
Max. Pumping Speed at 50/60 Hz |
2.0 / 2.3 m3/h |
|
Max. Pumping Speed at 50/60 Hz |
1.2 / 1.4 cfm |
|
Ultimate Vacuum (Abs.) |
7 / 5 mbar/torr |
|
Ultim. Vac. (Abs.) with Gas Ballast |
12 / 9 mbar/torr |
|
Ambient Temperature Range (Operation) |
(10°C) - (40°C) |
|
Ambient Temperature Range (Storage) |
(-10°C) - (60°C) |
|
Max. Back Pressure (Abs.) |
1.1 bar |
|
Inlet Connection |
Hose nozzle DN 8-10 mm |
|
Outlet Connection |
Hose nozzle DN 8-10 mm |
|
Rated Motor Power |
0.18 kW |
|
Rated Motor Speed At 50/60 Hz |
1500/1800 min-1 |
|
Degree Of Protection |
IP 40 |
|
Dimensions (L X W X H) |
243 x 243 x 198 mm |
|
Weight |
11.1 kg |
|
Noise Level At 50 Hz, Typ. |
45 dBA |
|
NRTL Certification |
Canada and the USA |
|
Atex Conformity (Only 230V) |
II 3/- G IIC T3 X Internal Atm. only |
|
Items Supplied |
Pump completely mounted, ready for use, with manual |
|
Accessories |
Rubber vacuum tubing DN 8 mm (20686001) |
-
MZ 2C NT - Pumping Speed Graph at 50 Hz
MZ 2C NT - Pump Down Graph at 50 Hz (10L volume)
-
MZ 2C NT - Pumping Speed Graph at 60 Hz
-
MZ 2C NT - Pump Down Graph at 60 Hz (10L volume)
-
-
-Technical data are subject to change without notice-

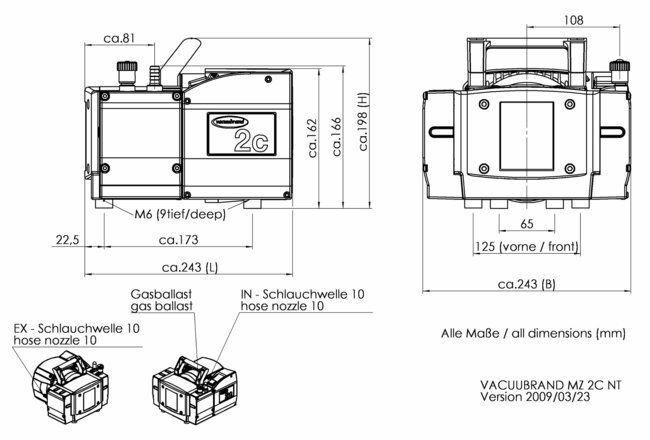

- MZ 2C NT - Dimension Sheet
-
|
Extra Packing List |
|
|
USA Lab Propylene Glycol |
1 Gallon |
|
3/8" Vacuum Hose |
10ft |
