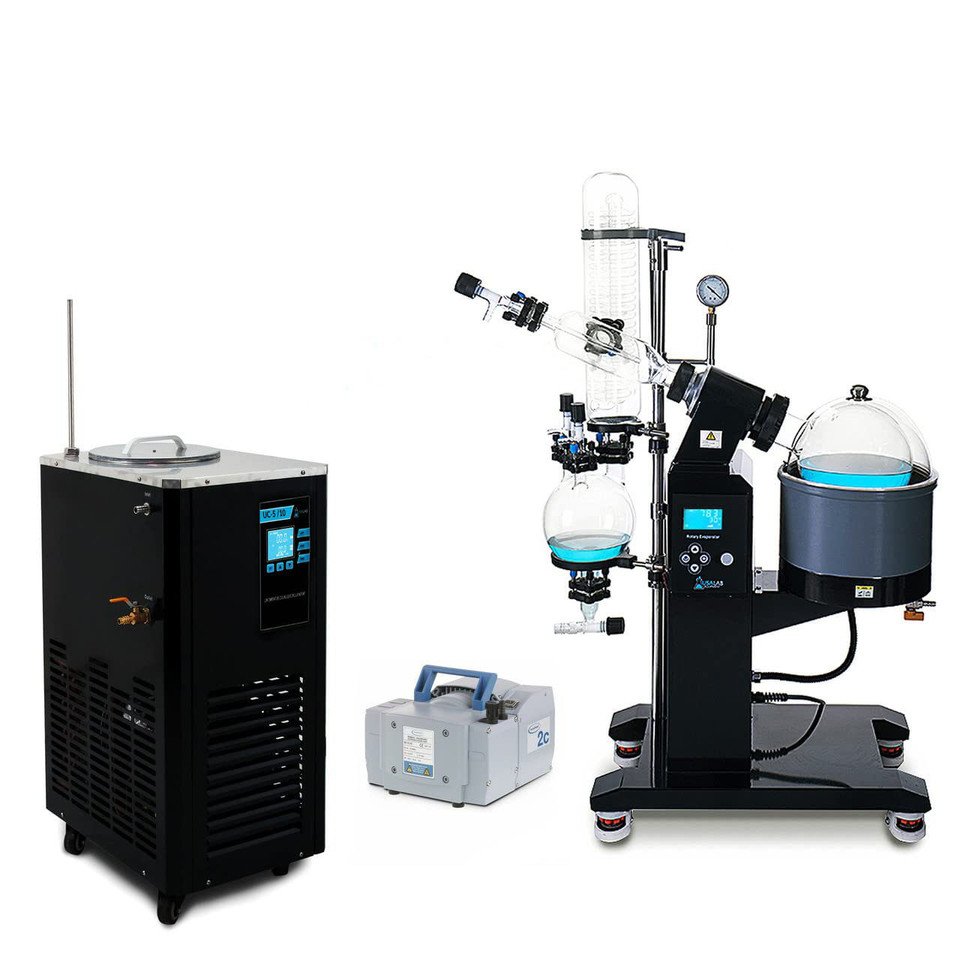

USA Lab 5L Rotary Evaporator Turnkey Setup Rotovap RE-1005 w/ Vacuubrand MZ 2C NT

Brand :

1 Year

The USA Lab 5L RE-1005 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.

The RE-1005 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.
No expense has been spared with these 5l rotary evaporator setup parts, yet we crush the market on pricing to provide great value at a low cost. Our Vacuubrand evaporators are the best value on the market and each one comes with fantastic customer servicelocal product support and a 1 year warranty.


Glass Material: GG-17 Borosilicate Glass

Evaporation Flask Capacity: 5L

Collection Flask Capacity: 3L

Rotary Speed: 10-120RPM

Bath Temperature Range: Room Temp to 180°C /356°F

Lifting Mechanism: Electric

Power Requirements: 110V 60Hz 20A Single Phase

Temperature Control Accuracy: +/-1°C

Motor Wattage: 40W

Heater BTUs: 6,800BTU

Achievable Vacuum: 399.9Pa

Evaporating Capability: Water≥2L/H; Alcohol≥4L/H

Water Bath Volume: 12L

Dimensions: 35"L x 19"W x 53"H

Condensing Glass Surface Area: Main: 0.27

Speed Regulation: Digital Step-Less

Vacuum Barb: 13.3MM

Condenser Barb: 15.5MM





Reservoir Capacity


Reservoir Dimensions

8" x 8"

Temperature Range

Room Temperature to -10°C / 14°F

Power Requirements

220-240V 60Hz 20A 1800W Single Phase

Refrigerating BTUs

4,500BTU - 1,000BTU

Circulating Pump Wattage


Temperature Accuracy

+/- 0.5°C

Pump Flow


Pump Pressure


Barb Size





19" x 14" x 29"




UC-5/10 Packing List

USA Lab UC-510 Chiller

1 PC

1/2" Insulated Tubing


1/2" Barbed Valve

1 PC

PTFE Sealing Tape

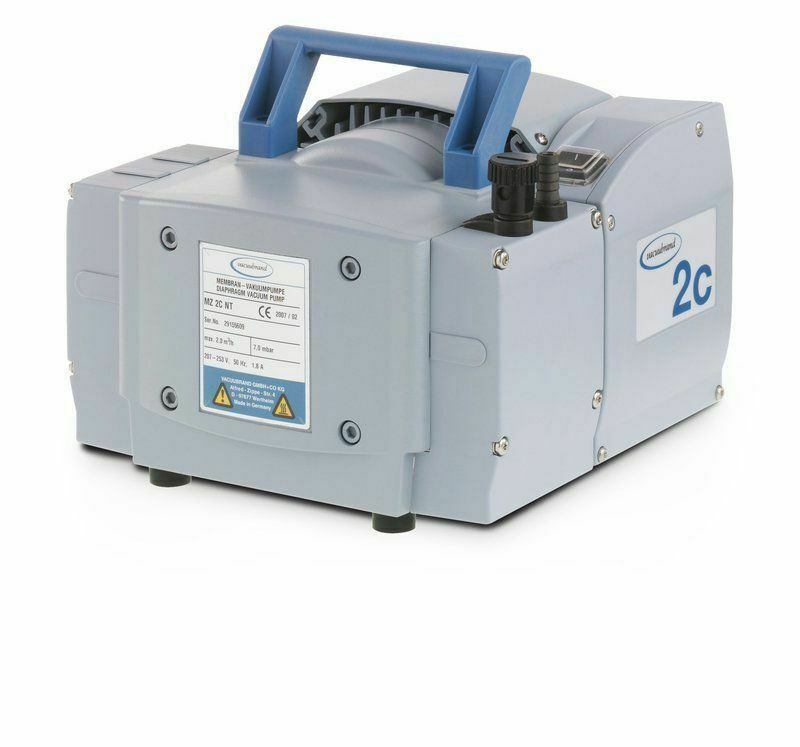

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The pump MZ 2C NT is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. This pump is our most popular chemistry diaphragm pump, and is the heart of a family of VACUUBRAND pumping systems. The NT-series features further improved performance data and superior vapor tolerance.


Performance features

  • • outstanding chemical resistance and superior vapor tolerance
  • • high performance even at low vacuum levels
  • • optimized vacuum even with gas ballast for condensate purge
  • • whisper quiet and low vibration
  • • long diaphragm life, maintenance-free drive system
  • Technical data

    Technical data Unit MZ 2C NT
    Number of heads / stages   2 / 2
    Max. pumping speed at 50/60 Hz m3/h 2.0 / 2.3
    Max. pumping speed at 50/60 Hz cfm 1.2 / 1.4
    Ultimate vacuum (abs.) mbar/torr 7 / 5
    Ultim. vac. (abs.) with gas ballast mbar/torr 12 / 9
    Ambient temperature range (operation) °C 10 - 40
    Ambient temperature range (storage) °C -10 - 60
    Max. back pressure (abs.) bar 1.1
    Inlet connection   Hose nozzle DN 8-10 mm
    Outlet connection   Hose nozzle DN 8-10 mm
    Rated motor power kW 0.18
    Rated motor speed at 50/60 Hz min-1 1500/1800
    Degree of protection   IP 40
    Dimensions (L x W x H) mm 243 x 243 x 198
    Weight kg 11.1
    Noise level at 50 Hz, typ. dBA 45
    NRTL certification   Canada and the USA
    ATEX conformity (only 230V)   II 3/- G IIC T3 X Internal Atm. only
    Items supplied   Pump completely mounted, ready for use, with manual.
    Accessories   Rubber vacuum tubing DN 8 mm (20686001)

  • MZ 2C NT - Pumping speed graph at 50 Hz

    MZ 2C NT - Pumping speed graph at 50 Hz

    MZ 2C NT - Pump down graph at 50 Hz (10 l volume)

    MZ 2C NT - Pump down graph at 50 Hz
(10 l volume)
  • MZ 2C NT - Pumping speed graph at 60 Hz

    MZ 2C NT - Pumping speed graph at 60 Hz
  • MZ 2C NT - Pump down graph at 60 Hz (10 l volume)

    MZ 2C NT - Pump down graph at 60 Hz
(10 l volume)
  • -Technical data are subject to change without notice-

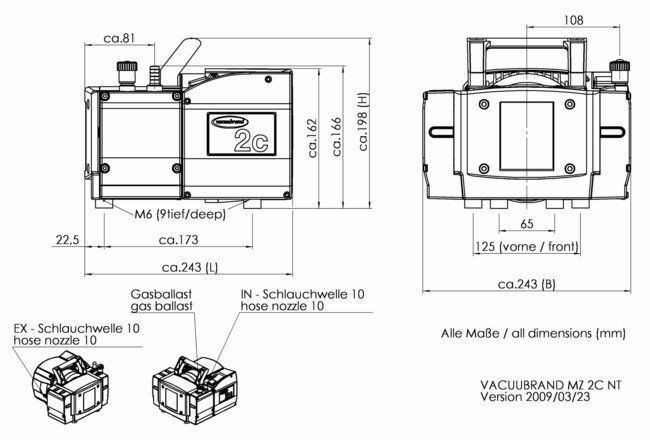

    MZ 2C NT - Dimension sheet

    MZ 2C NT - Dimension sheet

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!

For Technical Support, Questions, or Other Issues Please Email or Call Us!
