USA Lab Dual 6" Falling Film Evaporator Turnkey System | Compact C1D1 Pumps

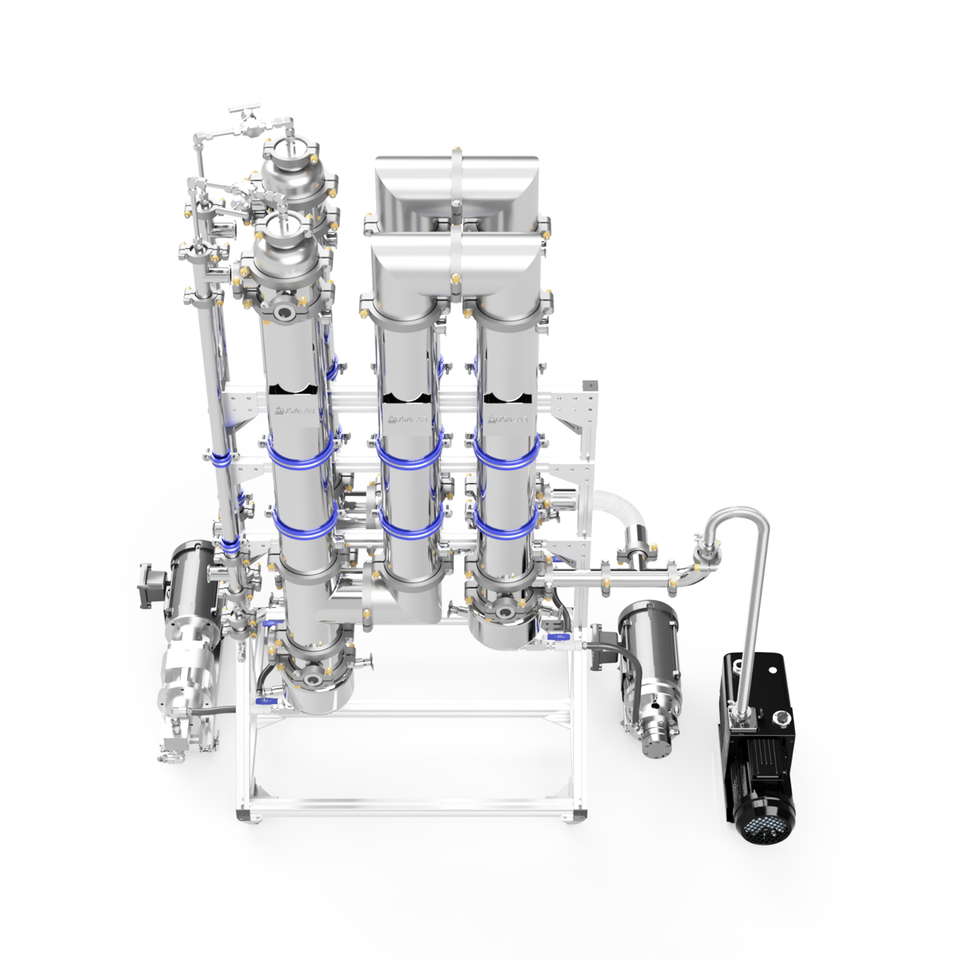

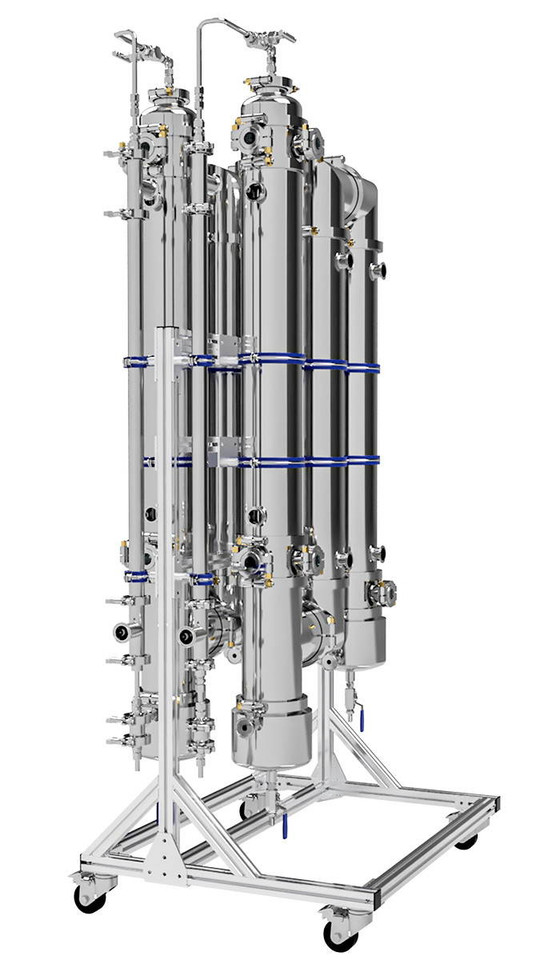

The USA Lab Dual 6" Falling Film Evaporator Turnkey System is designed to increase solvent recovery throughput while maintaining a compact footprint. Two mirrored 6" falling film evaporator columns are integrated onto a single mobile frame, providing a space-efficient configuration for high-volume processing.

The turnkey system includes a USA Lab C1D1-certified Crude Oil Pump rated at 60 L/hr for continuous feed and a C1D1-certified Solvent Recovery Pump rated at 150 L/hr for continuous recovery under vacuum. Jacketed lines, cold traps, and right-angle glassware help optimize thermal control and system layout.

With typical ethanol throughput options of 79, 93, 116, and 158 LPH depending on system configuration and available utilities, the Dual 6" Falling Film Evaporator is suited for botanical extraction, pharmaceutical processing, chemical applications, and other continuous solvent-recovery workflows.

Dual 6" Columns Compact Single-Frame Design C1D1 Certified Pumps Continuous Operation

Dual-Column Throughput: Two 6" falling film columns provide increased processing capacity within a compact single-frame configuration.

Integrated Pumping: Includes a C1D1 crude feed pump rated at 60 L/hr and a C1D1 solvent recovery pump rated at 150 L/hr.

Thermal Control: Jacketed lines, cold traps, and right-angle glassware support efficient evaporation and optimized system layout.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Dual 6" Falling Film Evaporator?

Compact dual-column configuration — two mirrored 6" evaporator columns are mounted on one mobile frame to maximize processing capacity while conserving floor space.

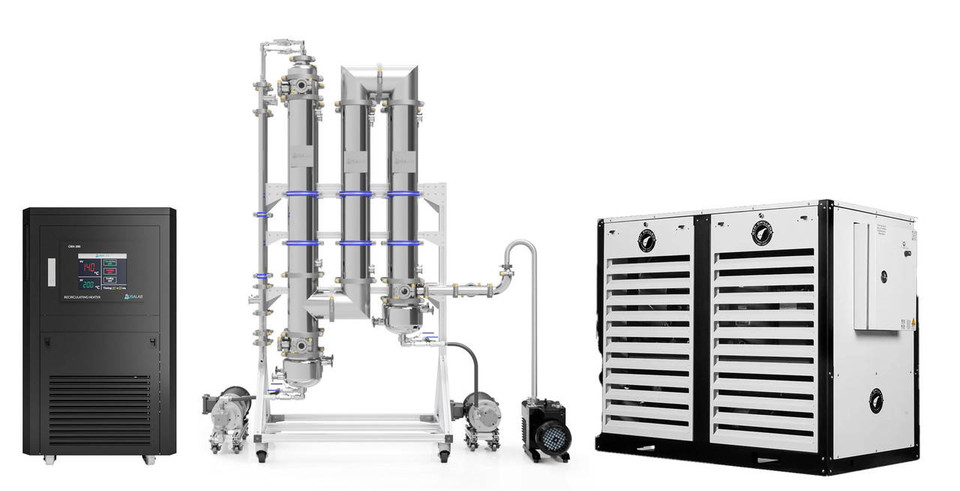

Turnkey system integration — designed around matched heating, chilling, vacuum, and pumping components for a streamlined processing setup.
Continuous falling film evaporation — thin-film processing promotes efficient solvent evaporation and continuous recovery.
C1D1-certified pumping — includes dedicated crude feed and solvent recovery pumps for continuous system operation.
Optimized thermal layout — jacketed lines, cold traps, and right-angle glassware help support thermal management and efficient system arrangement.

Talk to an expert

Get sizing guidance, utility requirements, throughput information, and integration support for your falling film evaporation system.

Call 734-855-4890

Technical Specifications

Specification	Details
Model	USA Lab Dual 6" Falling Film Evaporator Turnkey System
System Type	Turnkey Falling Film Evaporator System
Evaporator Configuration	Dual 6" falling film evaporator columns
Frame Configuration	Single mobile frame
Feed Pump	USA Lab C1D1 Crude Oil Pump
Crude Feed Pump Capacity	60 L/hr
Solvent Recovery Pump	USA Lab C1D1 Solvent Recovery Pump
Solvent Recovery Pump Capacity	150 L/hr
Typical Solvent	Ethanol
Ethanol Throughput	79 / 93 / 116 / 158 LPH
Ethanol Throughput GPH	20.8 / 24.5 / 30.5 / 41.6 GPH
Heater	USA Lab CRH-300L Closed Loop Heater
Chiller	G&D Multi Stage Chiller 5x5H
Thermal Control	Jacketed lines, cold traps, and right-angle glassware
Vacuum Pump	USA Lab UL Listed 21 CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump
Solvent Evaporation Efficiency	Up to 98% depending on configuration
Operation	Continuous processing; designed for 24/7 capable operation with proper utilities and maintenance
Primary Applications	Botanical extraction, pharmaceutical processing, chemical processing, food & flavor
System Integration	Dual FFE, crude pump, solvent recovery pump, vacuum, heater, and chiller integration

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput and processing requirements.

Call 734-855-4890 Email Sales/Support

FAQ

What is the configuration of the USA Lab Dual 6" Falling Film Evaporator Turnkey System?

The USA Lab Dual 6" Falling Film Evaporator Turnkey System uses two mirrored 6" falling film evaporator columns mounted on a single mobile frame to provide increased processing capacity in a compact footprint.

What pumps are included with the Dual 6" Falling Film Evaporator?

The turnkey configuration includes a USA Lab C1D1-certified Crude Oil Pump rated at 60 L/hr and a USA Lab C1D1-certified Solvent Recovery Pump rated at 150 L/hr.

What ethanol throughput can the Dual 6" Falling Film Evaporator provide?

Typical ethanol throughput options are 79, 93, 116, and 158 LPH, equivalent to approximately 20.8, 24.5, 30.5, and 41.6 GPH. Actual performance depends on system configuration and available utilities.

Is the USA Lab Dual 6" Falling Film Evaporator suitable for continuous operation?

Yes. The system is designed for continuous processing and can support 24/7-capable operation when properly configured with the required utilities and maintained according to operating requirements.
