USA Lab 50L Dual Setup Explosion Proof Rotary Evaporator Turnkey System




Brand :

$24,597.00
SKU:
EXRDS-1050-VB-TK
UPC:
810047122418
Condition:
New
Model:
EXRDS-1050-VB-TK
Brand:
USA Lab
The USA Lab 50L EXRDS Series Rotary Evaporator Turnkey System recovers solvents efficiently and fast with two times the surface area for condensing and twice the recovery volumeOur EXRDS series evaporator is an explosion proof evaporator with brush-less motors and enclosed internals to prevent any flammable / explosive material from touching the internals via seals.

This explosion proof rotary evaporator provides consistent and repeatable results at an affordable price. With dual condensers and dual receiving flasks made of GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of surface area, higher capacity's and higher recovery rates. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

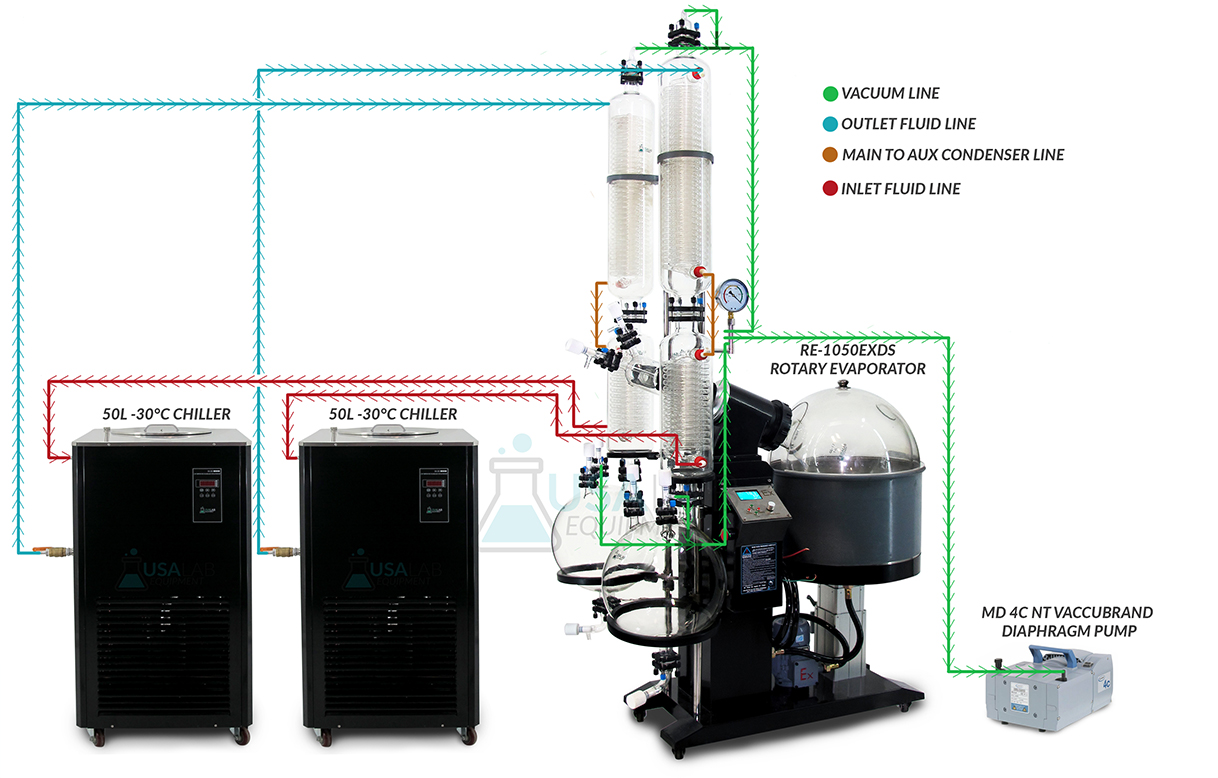

This 50l rotary evaporator system comes equipped with two of our 50L UC-50/30 -30°C chillers, providing low temperatures and high flow rates for each condensing set-up. This allows for higher recovery rates than a single condenser set-up or using one chiller on two condensers. Our turnkey set-up also comes equipped with one of the highest quality diaphragm pumps made by Vacuubrand. The MD 4C NT 2.2CFM pump is rated for 15,000 hours maintenance free and provides a superior vacuum with an oil-free, corrosion resistant system.

No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer servicelocal product support and a 1 year warranty.

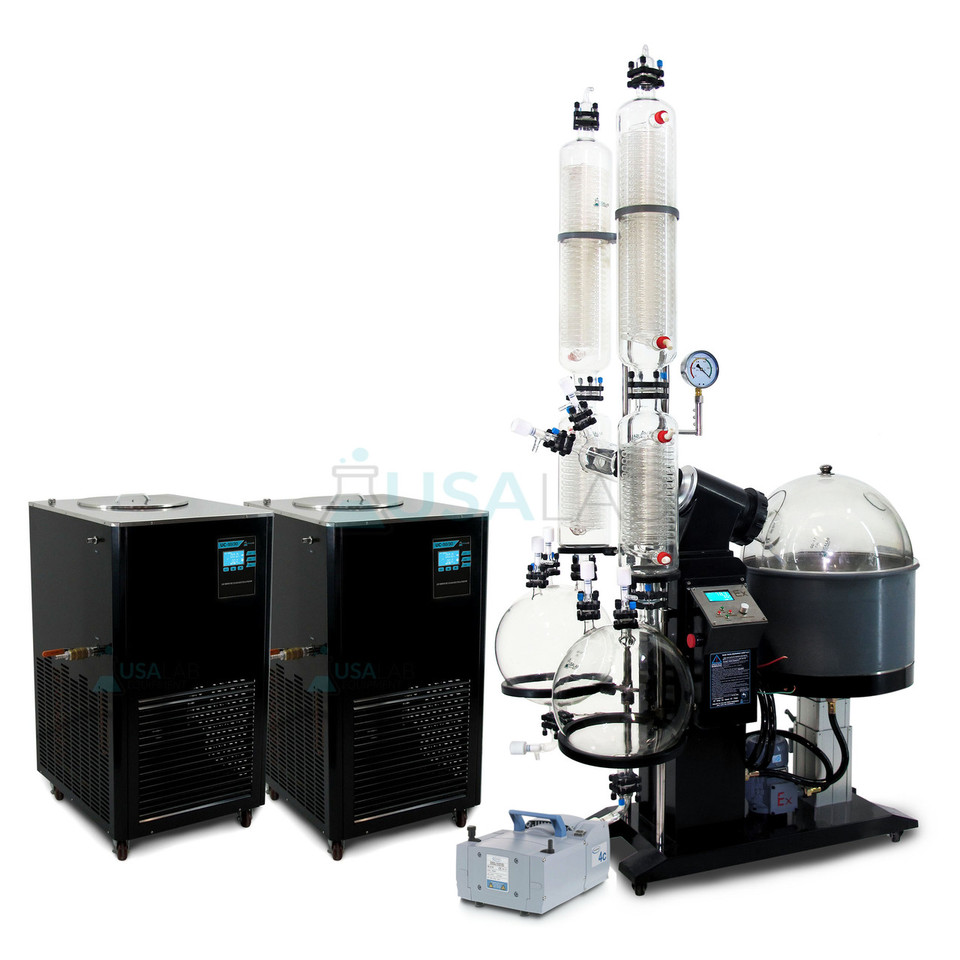

This Kit Includes the Following:

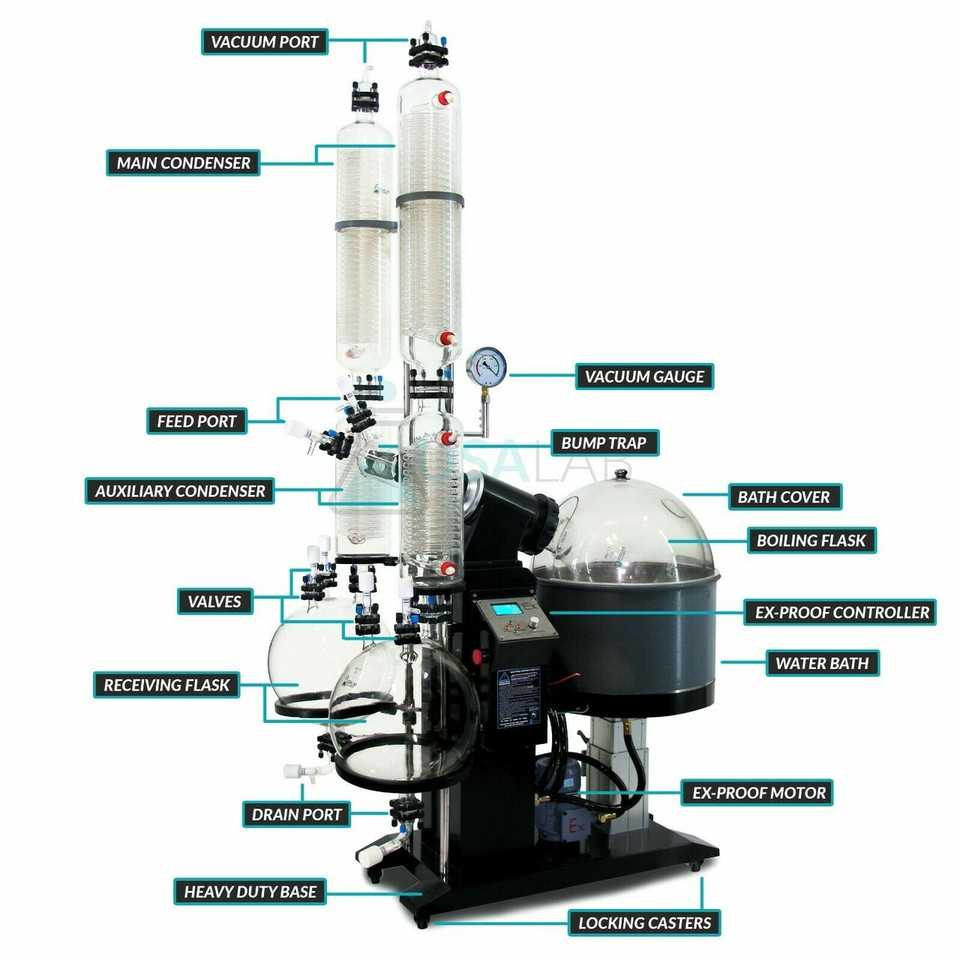

EXRDS-1050 50L Explosion Proof Rotary Evaporator with Dual Condenser Set-up

1 unit

-30°C 50L Recirculating Chiller UC-50/30

2 units

Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Vacuum Pump 110V

1 unit

5 Gallons of Propylene Glycol USP

2 pcs

10ft Vacuum Hose

2 pcs

11ft Insulated Chiller Line

2 pcs




EXR-1050 DUAL SETUP Specifications

Glass Material

GG-17 Borosilicate Glass

Evaporation Flask Capacity

50L

Collection Flask Capacity

20L

Rotary Speed

20-120RPM

Bath Temperature Range

Room Temp to 180°C /356°F

Lifting Mechanism

Electric

Power Requirements

220V 60Hz 30A Single Phase

Power Requirements

HARD WIRED ONLY

Temperature Control Accuracy

+/-1°C

Motor Wattage

250W

Heater BTUs

22,000BTU

Achievable Vacuum

399.9Pa

Evaporating Capability

Water≥13L/H; Alcohol≥27L/H

Water Bath Volume

77L

Dimensions

52"L x 45"W x 84"H

Condensing Surface Area: Main

0.91m² x2

Condensing Surface Area: Aux

0.52m² x2

Speed Regulation

Digital Step-Less

Vacuum Barb

13.3mm

Condenser Barb

15.5mm











PACKING LIST

USA Lab 50L EXR-1050 Rotary Evaporator Base

1 set

50L Bath Cover

1 pc

Main Condenser

2 pcs

Auxiliary Condenser

2 pcs

50L Boiling Flask

1 pc

20L Receiving Flask

2 pcs

50L Flask Cover

1 pc

Four-Way Bump Trap

1 pc

Vapor Duct with Seal (Pre-Installed)

1 set

PTFE Vacuum Sealing Kit (Pre-Installed)

1 set

Glass Vacuum Port with PTFE Valve

6 sets

Glass Feeding Tube with PTFE Valve

2 sets

PTFE Feeding Tube Extension Hose

1 pc

Vertical Stand

2 pcs

Vacuum Gauge

1 pc

Support Ring

4 pcs

Rubber Strap for Condenser

2 pc

Clamp with PTFE Gasket

16 sets

Evaporating Flask Screw Aid

1 pc

Allen Key

2 pcs

63A Fuse

1 pc

Screw Nuts for Clamps

2 pcs

Springs for Clamps

2 pcs

Gasket for Clamps

4 sets

DuPont Molykote High Vacuum Grease

1 pc

Vacuum Hose

10ft

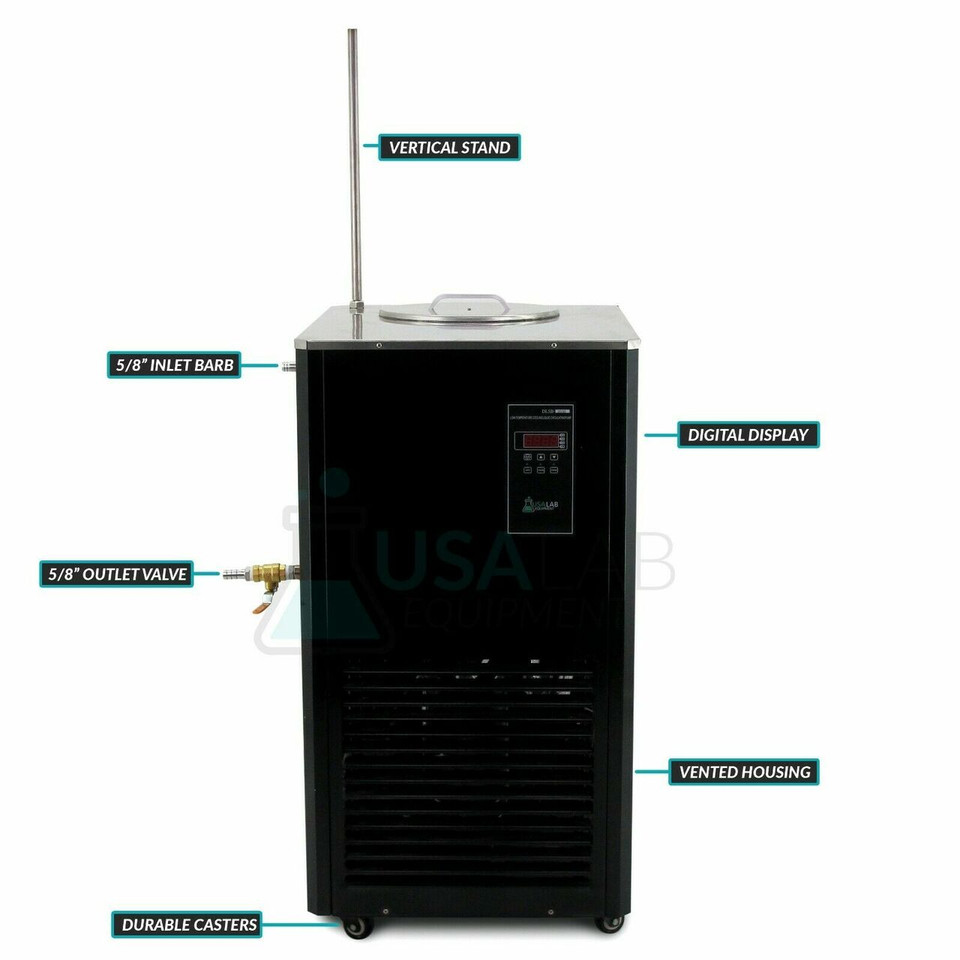

UC-50/30 SPECIFICATIONS

Model

UC-5030

Reservoir Capacity

50L

Reservoir Dimensions

17.8" x 13.7"

Temperature Range

Room Temperature to -30°C / -22°F

Power Requirements

220-240V 60Hz 20A 1800W Single Phase

Refrigerating BTUs

12,000BTU - 25,500BTU

Circulating Pump Wattage

100W

Temperature Accuracy

+/- 0.5°C

Pump Flow

30L/Min

Pump Pressure

2.2bar

Barb Size

5/8"

Refrigerant

R404

Dimensions

31" x 26" x 46"

Weight

174lbs




UC-5030 Packing List

USA Lab UC-5030 Chiller

1 pc

5/8" Insulated Tubing

11ft

5/8" Barbed Valve

1 pc

PTFE Sealing Tape

1 pc




MD 4C NT

Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.



Performance Features

  • Outstanding chemical resistance and superior vapor tolerance; exceptionally high performance even at low vacuum; excellent ultimate vacuum even with gas ballast; whisper quiet and very low vibration; long diaphragm life, maintenance-free drive system

  •
    •
    •
    •
    • Technical Data

Technical Data

MD 4C NT

Number of Heads / Stages

4 / 3

Max. Pumping Speed at 50/60 Hz

3.4 / 3.8 m3/h

Max. Pumping Speed at 50/60 Hz

2.0 / 2.2 cfm

Ultimate Vacuum (abs.)

1.5 / 1.1 mbar/torr

Ultimate Vacuum (abs.) with Gas Ballast

3 / 2.2 mbar/torr

Ambient Temperature Range (Operation)

(10°C) - (40°C)

Ambient Temperature Range (Storage)

(-10°C) - (60°C)

Max. Back Pressure (abs.)

1.1 bar

Inlet Connection

Hose nozzle DN 8-10 mm

Outlet Connection

Hose nozzle DN 8-10 mm

Rated Motor Power

0.25kW

Rated Motor Speed at 50/60 Hz

1500/1800 min-1

Degree of Protection

IP 40

Dimensions (L x W x H)

325mm x 243mm x 198mm

Weight

14.3 kg

Noise Level at 50 Hz, typ.

45 dBA

NRTL Certification

Canada and the USA

ATEX Conformity (only 230V)

II 3/- G IIC T3 X Internal Atm. only

Items Supplied

Pump completely mounted, ready for use, with manual

Accessories

Rubber Vacuum Tubing DN 8 mm (20686001)

  •
  •
  •
  •

  • MD 4C NT - Pumping Speed Graph at 50 Hz

    MD 4C NT - Pumping speed graph at 50 Hz

    MD 4C NT - Pump Down Graph at 50 Hz (10L volume)

    MD 4C NT - Pump down graph at 50 Hz
(10 l volume)

  • MD 4C NT - Pumping Speed Graph at 60 Hz

  • MD 4C NT - Pumping speed graph at 60 Hz

  • MD 4C NT - Pump Down Graph at 60 Hz (10L volume)

  • MD 4C NT - Pump down graph at 60 Hz
(10 l volume)

  •
  •
  •

  • -Technical data are subject to change without notice-


  • MD 4C NT - Dimension Sheet

    MD 4C NT - Dimension sheet




  •
  •
