Name: Beaker & Wrench 12" Wiped Film Evaporator
Brand: Beaker & Wrench
SKU: BW-12WFE
Price: 475000.0 USD
Availability: InStock

Description

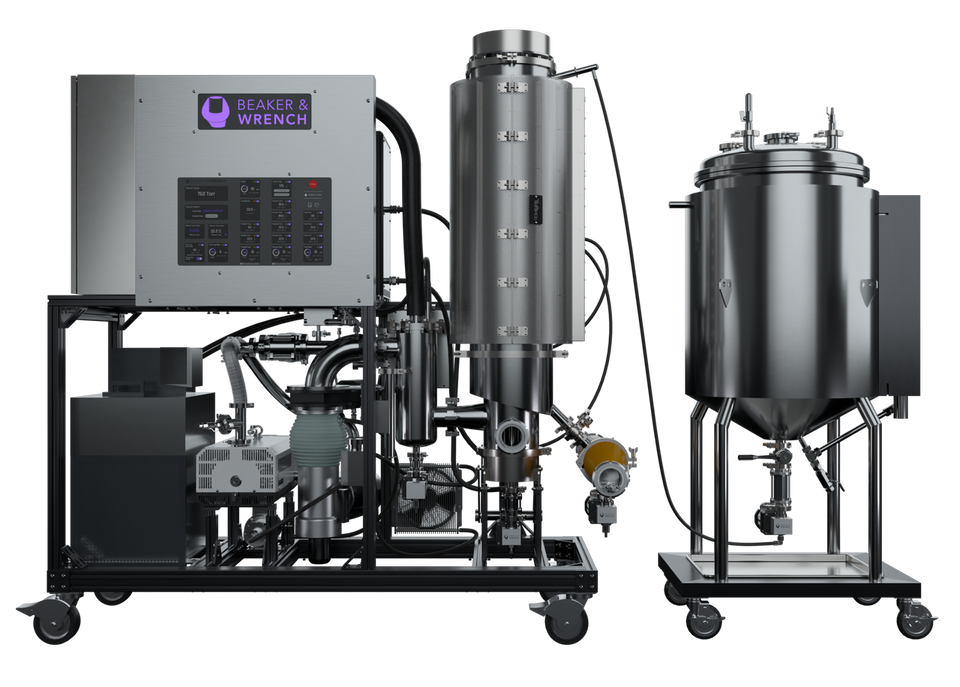

Beaker & Wrench 12" Wiped Film Evaporator

The Beaker & Wrench 12" Wiped Film Evaporator is a turnkey system designed for large-scale cannabis oil distillation, combining automated process control with a high-capacity wiped-film evaporation platform. The system arrives ready to use, helping reduce setup complexity and training requirements.

Built around a 12" wiped-film evaporator with a six-zone evaporator body, the system provides a substantial 1.1m² evaporative area and supports continuous processing at output rates of approximately 15–30 liters per hour. Automated flow management helps maintain consistent process conditions during operation.

The system integrates a 23" touchscreen control interface, 200L feed tank, ACS 100 60 CFM dry screw vacuum pump, dual-stage cold trap, inlet and outlet gear pumps, and single-plug 240V three-phase power. NRTL-certified components and CE certification support a professional equipment platform for demanding processing environments.

12" Wiped Film 200L Feed Tank 60 CFM Vacuum 1.1m² Evaporative Area

Advanced Control: Integrated 23" touchscreen control provides an intuitive interface for monitoring and adjusting system parameters.

High-Capacity Feed: A 200L feed tank supports continuous large-scale operation while reducing the need for frequent refilling.

Continuous Processing: Automated gear pumps and a six-zone evaporator body support dependable flow management and production efficiency.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Beaker & Wrench 12" Wiped Film Evaporator?

Turnkey operation — arrives ready to use, reducing setup complexity and minimizing the need for extensive training.
Advanced touchscreen control — integrated 23" touchscreen interface provides centralized monitoring and adjustment of system parameters.
Large-scale feed capacity — 200L feed tank supports continuous operation and reduces refill frequency.
Integrated vacuum and cooling — ACS 100 60 CFM dry screw vacuum pump and dual-stage cold trap support the required vacuum environment and vapor capture.
Large evaporative area — six-zone evaporator body provides 1.1m² of evaporative area for high-throughput processing.

Talk to an expert

Get product guidance, application support, and system information for your processing workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	Beaker & Wrench 12" Wiped Film Evaporator
Evaporator Type	12" Wiped Film Evaporator Turn-Key System
Evaporative Area	Six-Zone Evaporator Body, 1.1m²
Control Interface	Integrated 23" Touch-Screen Control
Feed Tank Capacity	200L
Vacuum Pump	ACS 100 60 CFM Dry Screw Vacuum Pump
Cold Trap	Dual Stage, -50°C / -100°C
Flow Control	Inlet and Outlet Gear Pumps
Flow Operation	Continuous Flow
Typical Output	15–30 Liters per Hour
Power Requirements	Single-Plug 240V Three Phase
Dimensions (W × D × H)	76" W × 30" D × 85" H (1.9m W × 0.762m D × 2.16m H)
System Type	Turn-Key Processing System
Installation	Ready to Use Upon Delivery
Certification	NRTL Certified Components; CE Certified
Wiper System	Wiped-Film Evaporation
Primary Application	Large-Scale Cannabis Oil Distillation
Feed System	200L Continuous Feed System
Lead Time	0–4 Weeks

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your processing workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is included with the Beaker & Wrench 12" Wiped Film Evaporator?

The turnkey system includes the 12" wiped-film evaporator, integrated 23" touchscreen control, 200L feed tank, ACS 100 60 CFM dry screw vacuum pump, dual-stage cold trap, inlet and outlet gear pumps, and the associated integrated system components.

What are the power requirements for the Beaker & Wrench 12" Wiped Film Evaporator?

The system operates from a single 240V three-phase plug, simplifying the primary electrical connection requirement for the turnkey system.

What is the feed tank capacity of the Beaker & Wrench 12" Wiped Film Evaporator?

The integrated feed system includes a 200L feed tank designed to support continuous operation and reduce the frequency of refilling during large-scale processing.

What type of vacuum pump is used with the Beaker & Wrench 12" Wiped Film Evaporator?

The system uses an ACS 100 60 CFM dry screw vacuum pump to provide a robust and consistent vacuum environment for the wiped-film evaporation system.

Important Shipping Notice!

DISCLAIMER:

This is a large turnkey processing system. Please confirm available installation space, access dimensions, electrical requirements, and site conditions before ordering. The listed system dimensions are 76" W × 30" D × 85" H. Please contact USA Lab if you need assistance confirming delivery and installation requirements.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	Beaker & Wrench
Material:	316SS
Throughput:	35L -50L /hr
Power Requirements:	Single-Plug 240V Three-Phase
Lead Time:	1–3 Days
Return Window:	30 days
Warranty Term:	1 Year
