Name: Beaker & Wrench 6" Wiped Film Evaporator
Brand: Beaker & Wrench
SKU: BW-6WFE
Price: 195000.0 USD
Availability: InStock

Description

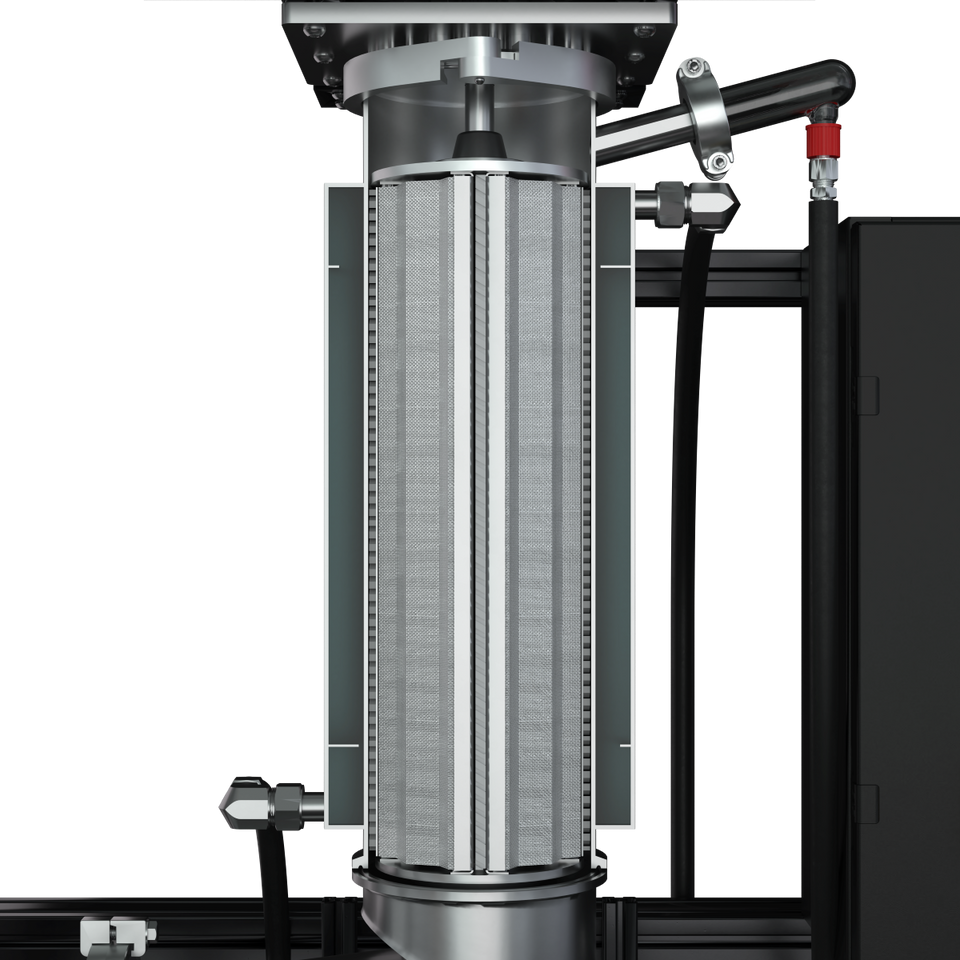

Beaker & Wrench 6" Wiped Film Evaporator

The Beaker & Wrench 6" Wiped Film Evaporator Turn-Key System combines advanced process control, continuous flow operation, and high-performance vacuum technology for large-scale cannabis oil distillation. The fully functional system is designed to simplify installation and help operators achieve consistent productivity, purity, and process control.

This automated 6" wiped-film evaporation system features an 8-channel UL-Listed PID temperature controller, a 40L feed tank, a 36 CFM rotary vane vacuum pump, and a -90°C immersion probe that eliminates the need for dry ice. Inlet and outlet gear pumps provide controlled continuous material flow throughout the process.

Designed for straightforward deployment, the system operates from a single NEMA 14-50 single-phase 240V plug and incorporates a 0.25m² evaporative area. CE certification supports dependable use in demanding processing environments, while the turn-key configuration reduces the need for complex installation and additional training.

6" Wiped Film Evaporator 40L Feed Tank 36 CFM Vacuum Pump 0.25m² Evaporative Area

Precision Temperature Control: 8-channel UL-Listed PID controller — supports accurate and consistent temperature management across the process.

Continuous Feed System: 40L feed tank with inlet and outlet gear pumps — supports controlled, continuous material flow and efficient operation.

High-Performance Vacuum & Cooling: 36 CFM rotary vane pump and -90°C immersion probe — provides the vacuum and cooling capabilities required for wiped-film processing without dry ice.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Beaker & Wrench 6" Wiped Film Evaporator?

Turn-key configuration — arrives fully functional to simplify deployment and reduce the need for complex installation and additional training.
Precision process control — the 8-channel UL-Listed PID temperature controller provides consistent temperature management for controlled processing.
Continuous material flow — inlet and outlet gear pumps support automated and controlled feed through the system.
Integrated vacuum and cooling — combines a 36 CFM rotary vane vacuum pump with a -90°C immersion probe for efficient system operation without dry ice.
Simple electrical setup — the complete system uses a single NEMA 14-50 single-phase 240V plug and is CE certified.

Talk to an expert

Get product guidance, application support, and compatibility information for your processing workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	Beaker & Wrench 6" Wiped Film Evaporator
Evaporator Type	6" Wiped Film Evaporation Turn-Key System
Evaporative Area	0.25m² Evaporative Area
Temperature Control	8-channel UL-Listed PID Temperature Controller
Feed Tank Capacity	40L
Vacuum Pump	36 CFM Rotary Vane Vacuum Pump
Cooling	-90°C Immersion Probe; no dry ice needed
Flow Control	Inlet and Outlet Gear Pumps
Flow Operation	Continuous Flow
Power Requirements	One NEMA 14-50 Single-Phase 240V Plug
Dimensions (W × D × H)	75" W x 30" D x 86" H
Reduced Height	Can be reduced to 80" H to fit through doors
Certification	CE Certified
System Type	Turn-Key System
Installation	Plug-and-Play / Ready to Use
Control System	Automated Temperature and Flow Control
Feed System	40L Feed Tank with Gear Pump System
Primary Application	Large-Scale Cannabis Oil Distillation
Lead Time	0-4 Weeks

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Processing Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your processing workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the Beaker & Wrench 6" Wiped Film Evaporator designed for?

The Beaker & Wrench 6" Wiped Film Evaporator is a turn-key system designed for large-scale cannabis oil distillation and continuous wiped-film evaporation applications requiring controlled temperature, vacuum, cooling, and material flow.

What feed tank capacity does the Beaker & Wrench 6" Wiped Film Evaporator have?

The Beaker & Wrench 6" Wiped Film Evaporator includes a 40L feed tank designed to support continuous operation with controlled material flow through the system.

What vacuum pump is included with the Beaker & Wrench 6" Wiped Film Evaporator?

The Beaker & Wrench 6" Wiped Film Evaporator includes a 36 CFM rotary vane vacuum pump for maintaining the vacuum environment required for the evaporation process.

What are the power requirements for the Beaker & Wrench 6" Wiped Film Evaporator?

The Beaker & Wrench 6" Wiped Film Evaporator operates using one NEMA 14-50 single-phase 240V plug, providing a simplified single-source electrical connection for the complete system.

Important Shipping Notice!

DISCLAIMER:

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	Beaker & Wrench
Material:	316SS
Max Through Put:	Up to 7.0 L/hr
Average Throughput:	3.0-5.0 L/hr
Feed Rates:	Adjustable from 10mL to 10L/hr
Certifications:	CE
Lead Time:	1–3 Days
Return Window:	30 days
Warranty Term:	1 Year
