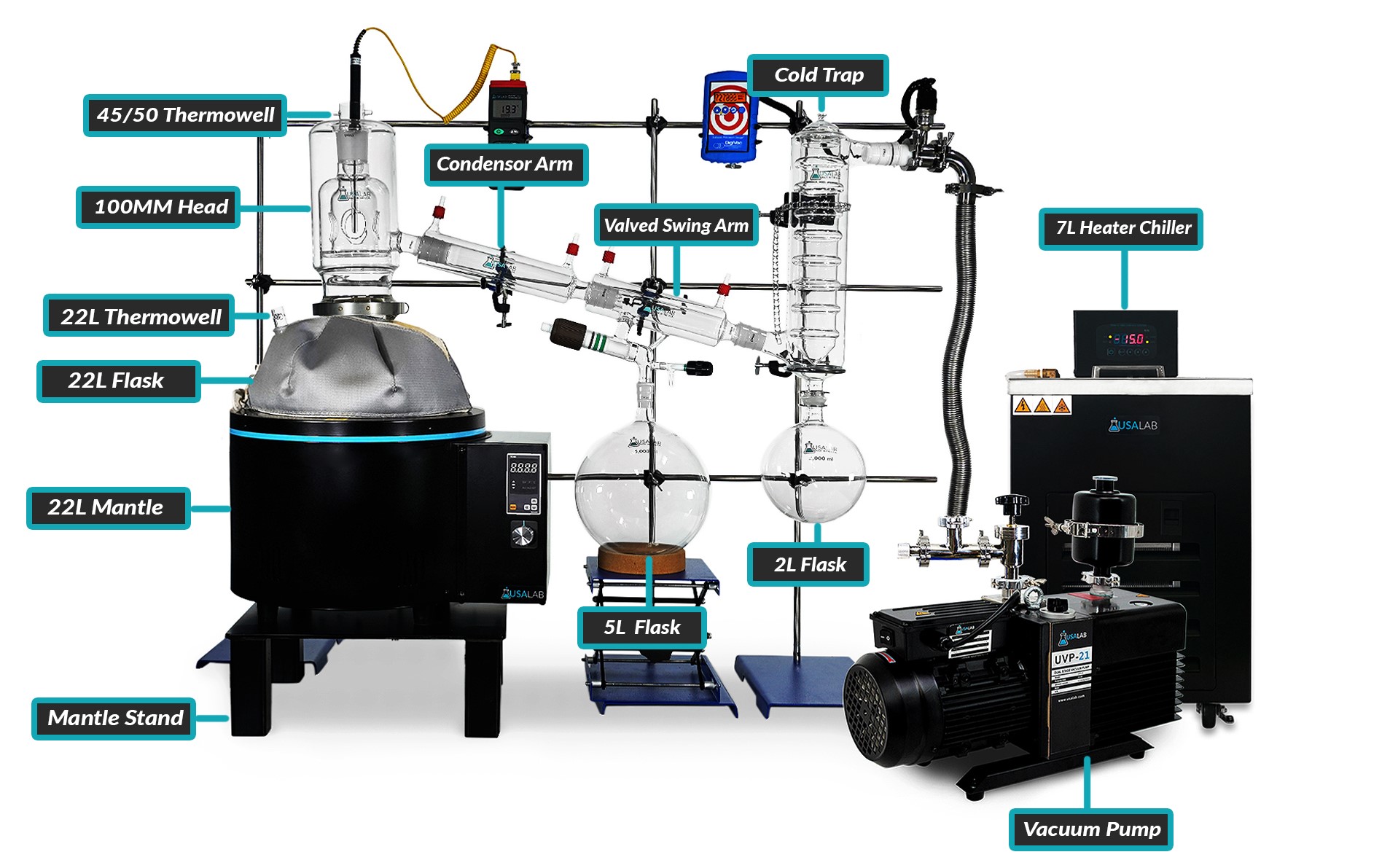

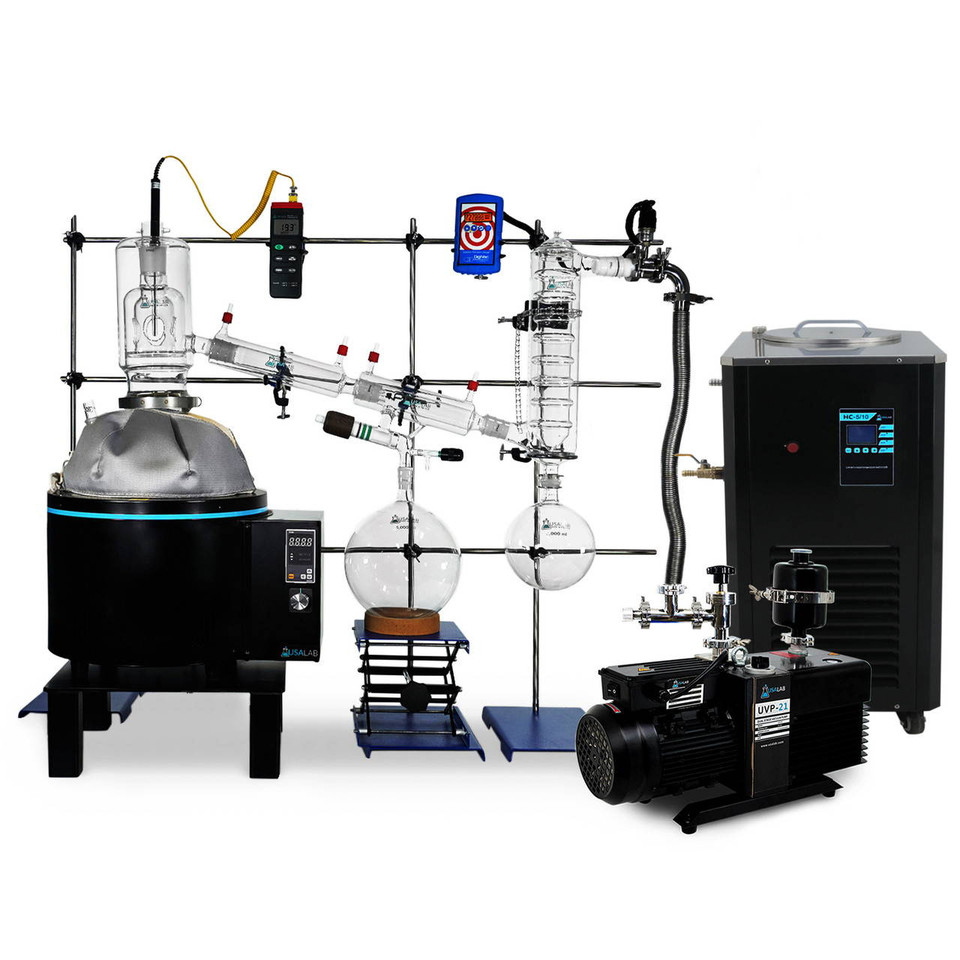

USA Lab N4 22L Full Bore Short Path Distillation Turnkey Kit with 100mm Head - USA Made Glass

SPECIFICATIONS

Model

A-SD22L-N4TK

Flask Size

22L / 22000ML

Flask Joint Sizes

100MM Flange Main | 24/40F Side

Distillation Head Joint Sizes

100MM Flange Bottom | 45/50F Top | 34/45M Side

Condenser Joint Sizes

34/45F Inlet | 34/45M Outlet

Isolation Adapter Joint Sizes

34/45F Inlet | 34/45M Outlet | 24/40M Bottom Discharge

Cold Trap Joint Sizes

34/45F Inlet | 34/45F Outlet

Optimal Capacity

7,000-12,000mL

Batch Time

4-10 Hours

Main Body Flow Rate

2,000-4,000 grams/hour

Foot Print

80x24x40(inch) Including Pump / Chiller

USA-HM-12L Heating Mantle Specs

300°C | 3000RPM | 1400W

 USA-RHC-7L Heater Chiller Specs

-20°C to 150°C | 6.8L | 1.5Kw Heat

UVP-21 Vacuum Pump Specs

21CFM | 0.3 Micron | UL Recognized

Heating Mantle Power

220-240V 50/60Hz 15A

Heater Chiller Requirements

110-120V 50/60Hz 15A

Vacuum Pump Requirements

110-120V 50/60Hz 15A

Warranty

1 Year (Pump holds a 2 Year Warranty)

PACKING LIST

Name

SKU

Quantity

USA Lab 22L Digital Heating Mantle With Insulating Top USA-HM-22L

USA-HM-22L

1

20mm x 64mm Rare Earth Magnet

REE-20x64

1

USA Lab Black Powder Coated Mantle Stand - 16" x 14" x 6" - Made in the USA

M-STAND-16X14X6

1

USA Made N 22L 2 Neck Round Bottom Flask - 100MM Center - 24/40 Side

N-22LRBF-100MM-2440-2N

1

USA Made 22L 24/40 Thermowell

N-22L-2440-THERMO

1

Chemglass 100MM FEP-Silicone O-ring

CG-147-41

1

Chemglass 100MM Stainless Steel Duran Flange

CG-141-02

1

USA Made N4 100MM Jacketed Distillation Head - 45/50 Top - 34/45 Side

N4-100MM-HEAD

1

USA Made N4 Single Jacketed Swing Arm Isolation Adapter w/ Valves 34/45 Sides - 24/40 Bottom

N-3445-2P-SWING

1

USA Made Two Port Jacketed Swing Arm Adapter Cow - 34/45 (Optional)

N4-3445-ISO

1

USA Made N4 Angled Cold Trap - 34/45

N4-3445-CT

1

USA Made N Cold Trap Lid

N-COLDTRAP-LID

1

USA Made N 12L Short Path Condenser 34/45

N-12L-3445-CONDENSER

1

USA Made Short 45/50 Thermowell for Distillation Heads

N-12-22L-4550-THERMO

1

USA Made 5L 1 Neck Round bottom Flask - 24/40

N-5LRBF-2440-1N

1

USA Made 2L 1 Neck Round bottom Flask - 24/40

N-2LRBF-2440-1N

2

USA Made 1L 1 Neck Round bottom Flask - S35/20

N-1LRBF-S3520-1N

1

DigiVac Bullseye Precision Vacuum Gauge

BPG

1

USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe

USA-TM

1

USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump

UVP-21

1

USA Lab -20°C to 150°C 7L Compact Recirculating Heater Chiller 110V USA-RHC-7L

USA-RHC-7L

1

KF-25 to KF-25 x 1/8" FNPT Adapter

KF25X238

1

USA LAB KF25 90 Degrees

KF2590

1

USA Lab KF25 3-Way Tee

KF25-3WAY

1

KF25 Pressure Release Valve Stainless Steel

KF25PRV

1

USA LAB KF25 Right Angle Valve

KF25RAV

1

Aluminum KF25 Vacuum Pump Flange Centering Ring

KF25RING

6

Vacuum Pump Clamp KF25

VPCKF25

6

KF25 Bellow Hose 36"

KF25BELLOW36

1

Eisco Jack Laboratory, plate size 20x20cm.

CH0642B

1

Eisco Extra Large Laboratory Stand Kit 12.4" X 8" w/ 39.5" Rod

CH0652DKIT

3

Stainless Steel Rod for Lattice Supports

6FT-SSROD

3

Premium Boss Head Clamp

P-BHC

15

Eisco Blue Large Clamp Retort 3 Prong

PRCMP07

4

Eisco 8" Chain Clamp for Lab Stand

PRCMP21

1

4" Diameter Extension Support Ring

SUPPORTRING

1

Lab Cork Stand Ring

CORK2L

3

Chemglass GL-14 Cap with Aperture

CG-195-01

4

Chemglass Removable GL-14 Straight Hose Connectors

CG-198-02

4

Inland 19 Vacuum Pump Oil 1 Gallon

INLAND191GAL

1

USA Lab Propylene Glycol USP Kosher 100% Concentrate - 5 Gallons

PG5GAL

1

USA Lab KF25 to 34/45 PTFE Adapter

KF25TO3445

1

USA Lab Stainless Steel S35 Pinch Clamp

S35-CLAMP

1

Heating Mantle Manual

1

Heater Chiller Manual

1

Vacuum Pump Manual

1
