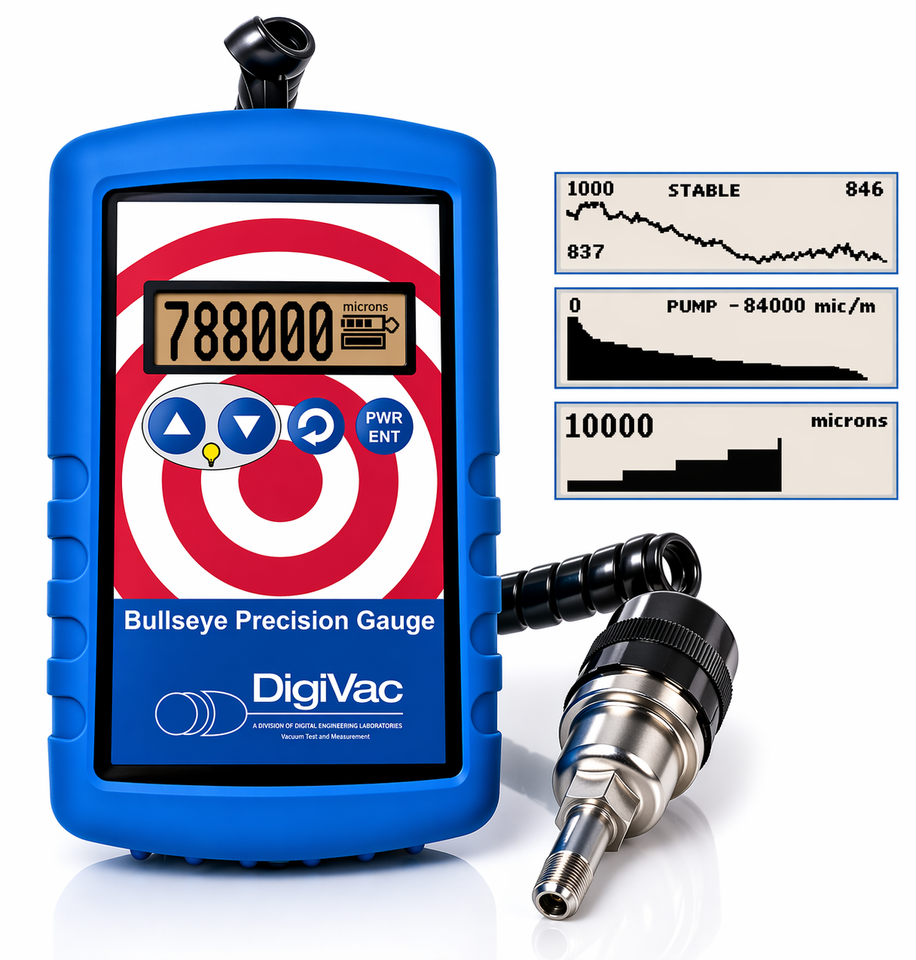

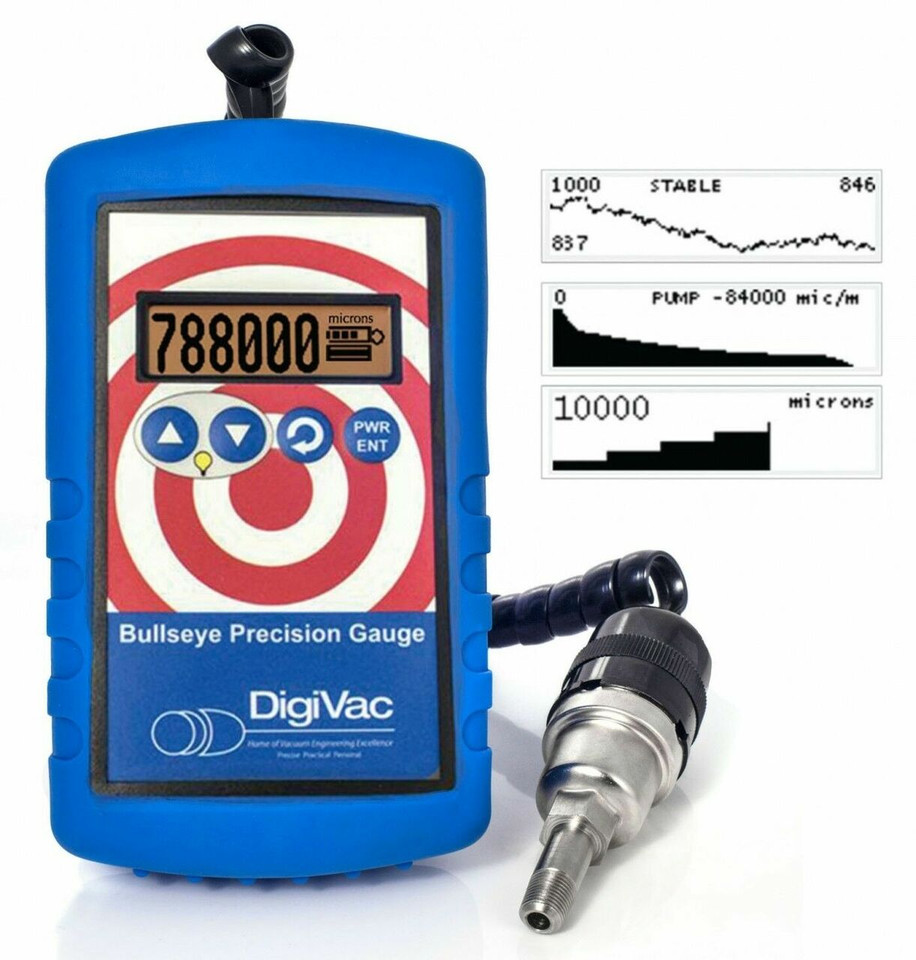

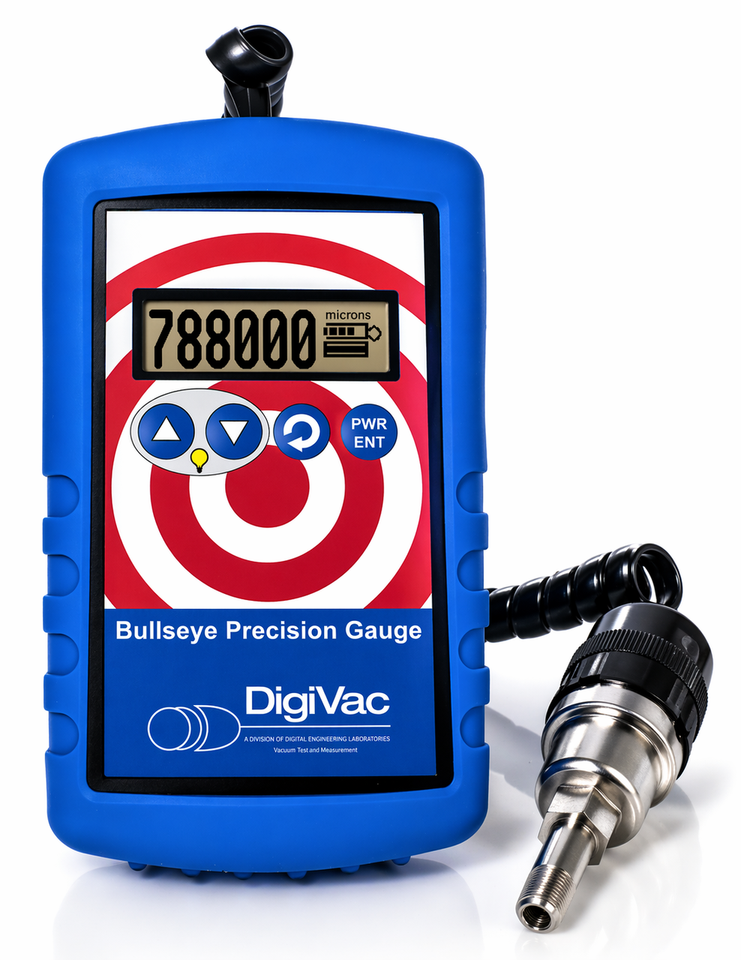

The Digivac Bullseye Precision Gauge is the ideal portable vacuum gauge to serve many applications. This patented vacuum gauge offers Graphical Displays and graphics supporting real-time analytics (Leak, Pump, Outgas, Stable)
Visual graphing feature right on the display
Display pinpoints the root of the problem, so you get it right the first time
Put it anywhere with its magnet and kickstand
|
Technical Specifications |
|
|
Units |
Torr, mbar, bar, kPa, inHg, mmHgA, PSI, millitorr, microns, inH2O, Pa |
|
Control Range |
1E-4 – 1000 Torr |
|
Range with Accuracy |
.001 – 5 Torr |
|
Sensor Type |
SEN-VGT500, Thermocouple Plus |
|
Dimensions LxWxH |
3.7” x 1.3” x 6.2” |
|
Certifications |
ROHS and CE |
|
Power |
4 AA Batteries |
|
Vacuum Interface |
1/8” Male NPT |
Numeric & Graphical Displays
See vacuum readings in either numbers or easy-to-read graphs.
Calibrated & Precise
Delivered pretested and calibrated with thermocouple sensor under actual vacuum against a NIST standard (NIST certification and documentation is available for an additional fee).
Extended Battery Lifespan
Solid state electronics are built into the Bullseye Precision Gauge. The portable vacuum gauge operates using AA batteries and lasts 70 hours.
Applications
Vacuum pump monitoring, vacuum pump testing, baseline vacuum pump performance, & transformer dry-out, distillation monitoring
Bullseye Precision Gauge Accuracy
This Bullseye comes with a thermocouple sensor, which has better accuracy in the millitorr up to 6 Torr.
|
Accuracy |
|
|
1 to 99 millitorr |
+/- 2 millitorr or 20% |
|
100 to 2000 millitorr |
+/- 10% |
|
2 to 6 Torr |
+/- 25% |
|
Above 6 Torr |
Continuous and monotonic (increasing reading indicates increasing pressure) |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
Every gauge that leaves DigiVac is tested under actual vacuum and calibrated against a NIST standard. We warranty all gauges for workmanship and function for 1 year.* Each vacuum instrument has a serial number, which allows us to track the age of the gauge. Any gauge will be repaired and returned free of charge for any defects in workmanship or function, FOB Morganville, NJ.
Any gauge that becomes damaged (for example: tube contaminated, flashback or physical damaged) may be returned to DigiVac for repair at a time and materials rate. Please contact Digivac with a request for Return and an RMA number will be issued. A decontamination form will also need to be filled out.
Note: Sensors (also known as tubes or probes) are not covered under this manufactures warranty. These are classified as consumables.
Customers are responsible for handling shipping charges to and from our facility in New Jersey.
