20L Full Bore 110mm Short Path Distillation Head – EZ Path | USA Lab

Maximize throughput and simplify your distillation workflow with the USA Lab 20L Full Bore 110mm Short Path Distillation Head featuring EZ Path technology. The wide 110mm full-bore pathway minimizes flow resistance and pressure drop for faster vapor transport, efficient separation, and high collection rates in large-scale short path distillation applications.

Engineered from high-quality borosilicate glass, the EZ Path design reduces the number of glass components required for setup while providing a streamlined vapor path. Designed for 20L boiling flasks with an optimal batch capacity of 7,000–12,000mL, this system is well suited for botanical extraction labs, research facilities, and industrial users requiring scalable processing.

The complete workflow bundle includes a compatible heating mantle, recirculating heater chiller, UL-recognized high-capacity vacuum pump, gauges, thermowells, flasks, isolation adapter, cold trap, and KF25 vacuum hardware to support high-volume operation. Typical batch times range from 4–10 hours depending on feed characteristics, process conditions, and utilities.

110mm Full Bore EZ Path Technology 20L Flask Capacity 2,000–4,000 g/hr

High Throughput: 110mm full-bore pathway — supports main-body flow rates of approximately 2,000–4,000 g/hr with appropriate process conditions.

Simplified Setup: EZ Path design — uses fewer glass connections to streamline assembly, reduce potential leak points, and simplify maintenance.

Built for Scale: 20L boiling flask — supports an optimal batch capacity of 7,000–12,000mL for larger-volume short path distillation workflows.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this 20L EZ Path Short Path Distillation Head?

110mm full-bore pathway — minimizes flow resistance and pressure drop to promote efficient vapor transport and high-throughput distillation.
EZ Path construction — reduces the number of glass components and connections for easier assembly, maintenance, and system integration.
High-quality borosilicate glass — provides a durable, heat-resistant material suitable for demanding laboratory and production workflows.
Optimized for 20L processing — supports 7–12L optimal batch capacity with typical batch times of approximately 4–10 hours depending on process conditions.
Complete workflow package — includes the major heating, cooling, vacuum, collection, measurement, support, and KF25 hardware required for a complete distillation setup.

Talk to an expert

Get sizing help, system integration guidance, utility planning, and application support for your 20L short path distillation workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	20L Full Bore 110mm Short Path Distillation Head – EZ Path
Flask Size	20L (20,000mL)
Flask Joint Sizes	110mm Flange (main) \| 24/40F (side)
Distillation Head Joint Sizes	110mm Flange (bottom) \| 45/50F (top) \| 34/45M (side)
Condenser Joint Sizes	34/45F inlet \| 34/45M outlet
Isolation Adapter Joint Sizes	34/45F inlet \| 34/45M outlet \| 24/40M bottom discharge
Cold Trap Joint Sizes	34/45F inlet \| 34/45F outlet
Optimal Capacity	7,000–12,000mL
Batch Time	4–10 hours (process dependent)
Main Body Flow Rate	2,000–4,000 grams/hour
Footprint (including pump/chiller)	80 × 24 × 40 in
USA-XHM-20L Heating Mantle	300°C \| 2,500 RPM \| 3,000W

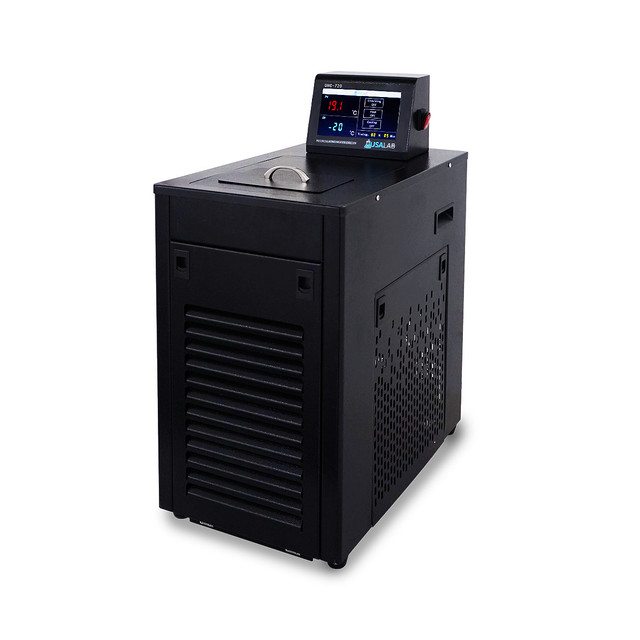

UHC-720 Heater Chiller	−20°C to 180°C \| 7L \| 450W heat
UVP-21 Vacuum Pump	21 CFM \| 0.3 Micron \| UL Recognized
Heating Mantle Power	220–240V, 50/60Hz, 15A
Heater Chiller Requirements	220V, 50/60Hz, 15A
Vacuum Pump Requirements	110–120V, 50/60Hz, 15A
Construction	Borosilicate Glass
Warranty	1 Year

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your throughput and processing requirements.

Call 734-855-4890 Email Sales/Support

FAQ

What makes the 20L EZ Path distillation head faster?

The 110mm full-bore pathway minimizes flow resistance and pressure drop, promoting faster vapor transport and supporting main-body flow rates of approximately 2,000–4,000 g/hr with suitable process conditions and utilities.

What is the optimal batch size for the 20L EZ Path system?

The 20L system is optimized for approximately 7,000–12,000mL batch volumes. Typical batch times range from 4–10 hours depending on feed characteristics, operating conditions, and processing targets.

What utilities are required for the 20L EZ Path system?

The heating mantle requires 220–240V, 50/60Hz, 15A; the UHC-720 heater chiller requires 220V, 50/60Hz, 15A; and the UVP-21 vacuum pump requires 110–120V, 50/60Hz, 15A. Confirm available utilities, power, cooling requirements, ventilation, and vacuum connections before installation.

What is included with the 20L EZ Path distillation system?

The bundle includes the 20L heating mantle and stand, 20L round-bottom flask, thermowells, 110mm flange components, jacketed distillation head, isolation adapter with valves, angled cold trap and lid, 5L and 1L flasks, DigiVac Bullseye vacuum gauge, USA-TM thermometer, UVP-21 vacuum pump, UHC-720 heater chiller, KF25 adapters and valves, vacuum hardware, stands, clamps, support components, pump oil, and related accessories.
