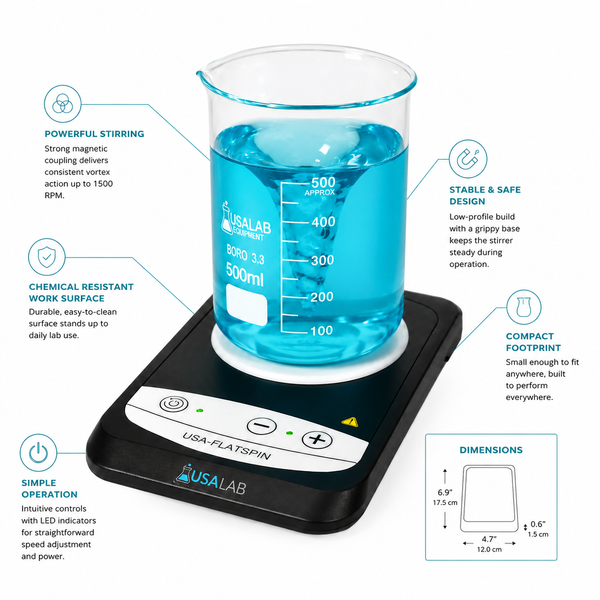

USA Lab FlatSpin Stirrer - TUV Certified
USA LabUSA-FLATSPIN$179.99The USA Lab Flat Spin Lab Stirrer is an ultra-flat compact stirrer ideal for stirring applications. Its space saving design minimizes bench space and portable due to its light weight. With excellent... -
-
- 22%- 22%USA LAB Mechanical Stirrer DJQ-90
USA LabDJQ90Sale $999.00$1,279.00Our USA Lab DJQ Series are used for stirring large volume and high viscosity items.
Description
H280 LED Digital Hotplate Stirrer | 5" Plate, 280°C Max | USA Lab
The USA Lab H280 is a compact, economically priced hotplate-stirrer designed for everyday heating and mixing below 280°C. It features LED digital readouts for temperature and speed, PID-style control accuracy to ±1°C (with PT1000 feedback to ±0.5°C), and a maintenance-free brushless DC motor for reliable performance in teaching labs, QA/QC, and bench chemistry.
A stainless-steel work plate with a durable ceramic coating (5"×5") offers excellent chemical resistance and fast heat transfer. Digital speed regulation delivers smooth stirring up to 1,500 rpm for volumes to 3 L (H2O). A persistent “HOT” indicator warns above 50°C even after power-down.
Certified by TÜV to UL standards for safety and compliance.
5" Ceramic-Coated Plate 280°C Max Temp Up to 1,500 rpm PT1000 External Sensor Brushless DC Motor TÜV Certified to UL
Performance: Brushless DC drive delivers stable torque to 1,500 rpm for up to 3 L H2O; smooth starts and accurate speed holding.
Precision: LED digital control with ±1°C plate accuracy (<100°C) and optional PT1000 feedback to ±0.5°C.
Safety: 320°C over-temperature protection and persistent “HOT” 50°C warning; TÜV certified to UL standards.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why the USA Lab H280 Hotplate Stirrer?
- Everyday heating & mixing — Ideal for routine prep and teaching labs with 280°C max temperature and up to 1,500 rpm.
- Accurate digital control — LED displays for set/actual values; plate accuracy ±1°C (PT1000 option ±0.5°C).
- Chemical-resistant surface — 5"×5" stainless plate with ceramic coating for durability and fast heat transfer.
- Compact footprint — 150 × 260 × 80 mm saves bench space; lightweight for portable setups.
- Built-in safety — 320°C over-heat protection and persistent 50°C HOT warning; TÜV certified to UL.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | USA Lab H280 LED Digital Hotplate Stirrer |
|---|---|
| Work plate dimensions | 135 × 135 mm | 5" × 5" |
| Work plate material | Stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor |
| Power input | 515 W |
| Heating output | 500 W |
| Voltage | 100–120 V, 60 Hz |
| Stirring positions | 1 |
| Max. stirring quantity [H2O] | 3 L |
| Max. magnetic bar [length] | 50 mm |
| Speed range | 200–1500 rpm (resolution ±1 rpm) |
| Display type | LED |
| Heating temperature range | Ambient – 280°C | Increment 1°C |
| Control accuracy of work plate | ±1°C (<100°C) | ±1% (>100°C) |
| Over heat protection | 320°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.5°C) |
| "Hot" warning | 50°C |
| Protection class | IP21 |
| Dimension [W x D x H] | 150 × 260 × 80 mm | 6 × 10.2 × 3.14" |
| Weight | 1.8 kg | 4 lb |
| Permissible ambient temperature | 5 – 40°C |
| Certifications | TÜV certified to UL |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the USA Lab H280 hotplate stirrer designed for?
The USA Lab H280 is built for routine heating and magnetic stirring up to 280°C and 1,500 rpm, ideal for sample prep, titrations, and teaching labs (to 3 L H2O).
Does the USA Lab H280 support external temperature sensing?
Yes. The USA Lab H280 accepts a PT1000 probe for closed-loop control with accuracy to ±0.5°C.
What is the plate size and material on the USA Lab H280?
The USA Lab H280 uses a 5"×5" stainless-steel plate with a ceramic coating for chemical resistance and efficient heat transfer.
What safety and certifications does the USA Lab H280 include?
The USA Lab H280 features a persistent HOT warning at 50°C, 320°C over-temperature protection, and TÜV certification to UL standards.
