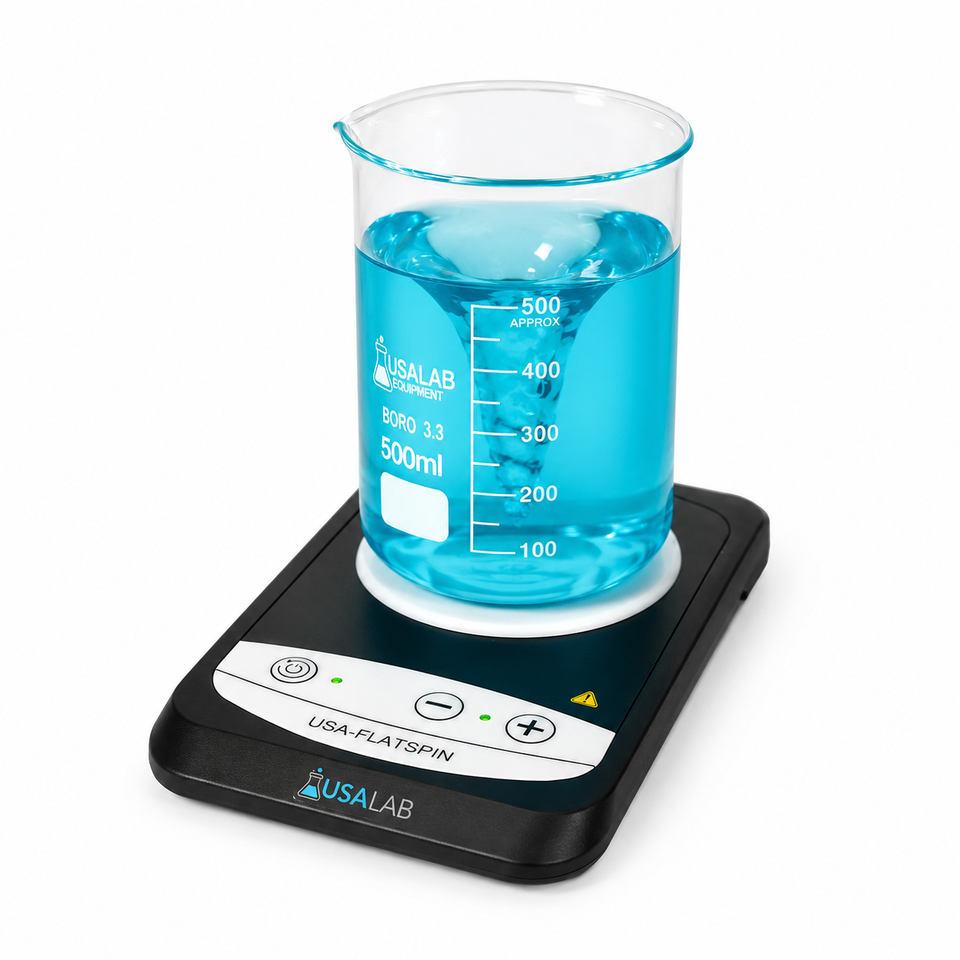

USA Lab FlatSpin Ultra-Flat Compact Magnetic Stirrer - 15 to 1500 RPM - TUV Certified
The USA Lab FlatSpin is an ultra-flat, compact magnetic stirrer that delivers full-size stirring performance in a footprint just 15mm tall. With a speed range of 15 to 1500 RPM, automatic reverse rotation, and quiet, vibration-free operation, the FlatSpin provides reliable mixing for applications up to 0.8L while taking up minimal bench space.
Its motorless inductive drive has no rotating motor parts to wear out, helping provide silent operation with reduced mechanical wear. The chemical-resistant PET work plate and IP65 protection are designed to withstand spills and splashes encountered in everyday laboratory environments.
At just 0.3kg, the USA Lab FlatSpin is easy to move and store. TUV certified to UL standards, it is a compact and reliable choice for laboratories, classrooms, quality control benches, and other space-conscious laboratory applications.
15–1500 RPM 15mm Ultra-Flat Design Automatic Reverse Rotation IP65 Protection TUV Certified to UL Standards
Ultra-Flat Design: Just 15mm tall and 0.3kg — saves valuable bench space and stores easily when not in use.
Motorless Inductive Drive: No rotating motor parts — provides quiet, vibration-free operation with reduced mechanical wear.
Lab-Ready Protection: Chemical-resistant PET work plate with IP65 protection — helps withstand everyday laboratory spills and splashes.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why choose the USA Lab FlatSpin Magnetic Stirrer?
- Wide speed range — 15 to 1500 RPM provides adjustable stirring control for gentle mixing through more vigorous applications.
- Automatic reverse rotation — alternating spin direction promotes thorough mixing without requiring constant operator intervention.
- Silent, vibration-free operation — the motorless inductive drive operates without rotating motor components.
- Compact footprint — the ultra-flat 15mm profile and 0.3kg weight make the FlatSpin easy to position, move, and store.
- Laboratory-ready construction — the chemical-resistant PET work plate and IP65 protection help protect the unit during routine laboratory use.
- Certified safety — TUV certified to UL standards for dependable laboratory operation.
Talk to an expert
Questions about stirring volume, stir bar compatibility, speed requirements, or whether the FlatSpin fits your application? Our team can help before you order.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA Lab FlatSpin (USA-FLATSPIN) |
| Product Type | Compact Magnetic Stirrer |
| Work Plate Dimension | 90mm |
| Work Plate Material | PET (Chemical Resistant) |
| Drive Type | Motorless Inductive Drive |
| Motor Output Power | 3W |
| Total Power | 5W |
| Voltage | 100 - 120V / 60Hz |
| Stirring Positions | 1 |
| Maximum Stirring Volume | 0.8L (H2O) |
| Maximum Stir Bar Length | 40mm |
| Speed Range | 15 - 1500 RPM |
| Speed Setting | Button |
| Automatic Reverse Rotation | Yes |
| Protection Class | IP65 |
| Certification | TUV Certified to UL Standards |
| Dimensions (W × D × H) | 175 × 120 × 15mm | 6.9" × 4.7" × 0.6" |
| Weight | 0.3kg | 0.66 lbs |
| Permissible Ambient Temperature | 5 - 40°C |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right equipment for your laboratory workflow.
FAQ
What is the speed range of the USA Lab FlatSpin Ultra-Flat Compact Magnetic Stirrer?
The USA Lab FlatSpin operates from 15 to 1500 RPM, providing adjustable stirring control for a wide range of laboratory mixing applications.
How much liquid can the USA Lab FlatSpin stir?
The FlatSpin is designed for stirring volumes up to 0.8L of water-like liquids and supports magnetic stir bars up to 40mm in length.
What makes the FlatSpin magnetic stirrer quiet and vibration-free?
The FlatSpin uses a motorless inductive drive without rotating motor components. This design provides quiet, vibration-free operation while eliminating rotating motor parts that can wear out.
Is the USA Lab FlatSpin protected against spills?
Yes. The FlatSpin has IP65 protection and a chemical-resistant PET work plate, helping it withstand routine spills and splashes encountered in laboratory environments.
Is the USA Lab FlatSpin safety certified?
Yes. The USA Lab FlatSpin is TUV certified to UL standards for laboratory use.
