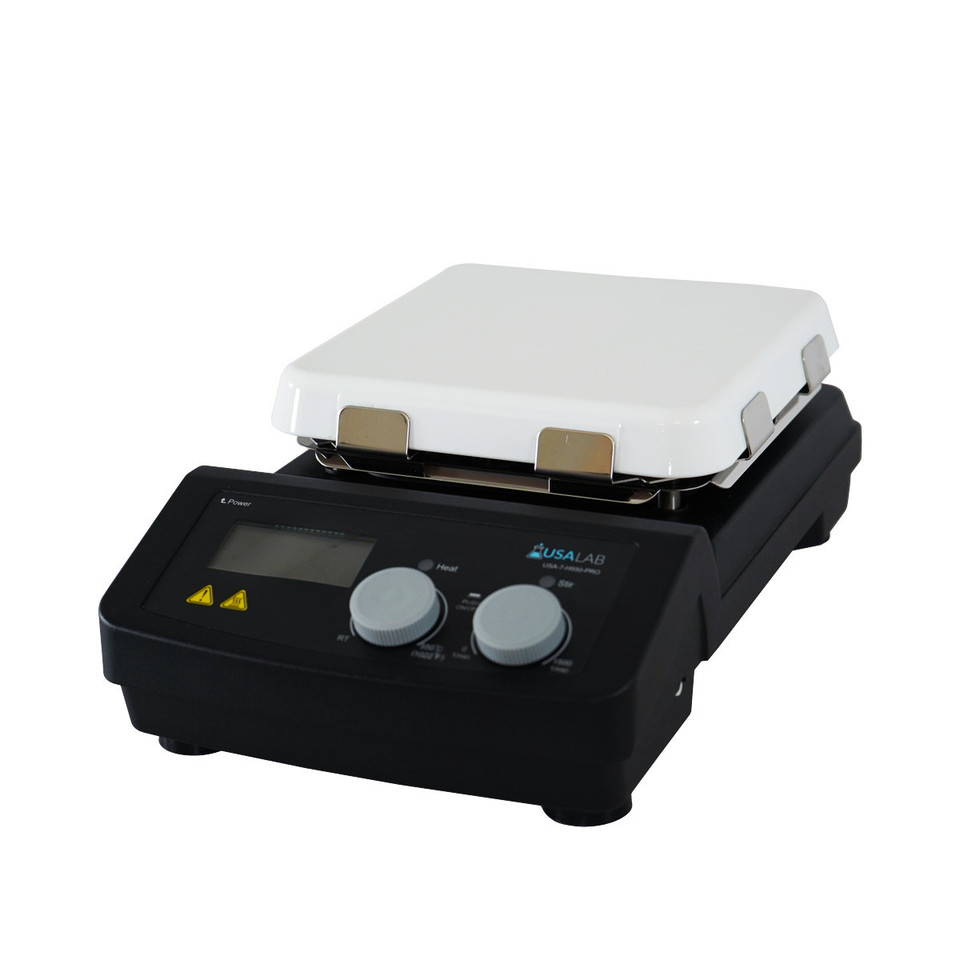

USA Lab Hotplate Stirrer - 7x7 - TUV Certified




Brand :

$649.99
SKU:
USA-7-H550-PRO
UPC:
840215211026
Brand:
USA Lab
Work Plate Dimensions:
184x184mm | 7" x 7"
Max. Stirring Volume:
20L
Speed Range:
0-1500rpm
Voltage:
100 - 120V 60Hz
Dimension [W x D x H]:
215x360x112mm | 8.5x14x4.4"

The USA Lab 7-H550-PRO is the most technically advanced lab hotplate stirrer in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology and controls temperature at +/- 1ºC; and is TUV certified. It also incorporates a DC brushless motor for extremely long life and excellent performance. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.



Features

LCD display for precise monitoring of speed and temperature

Built-in PID controller ensures safe heating of the medium with overheating protection

Maximum heating plate temperature 550°C

Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C

Digital speed regulation, maximum speed at 1500rpm

Outstanding brushless DC motor enables more stirring power

Two rotating knobs enable easy adjustment of speed and temperature

The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off

Remote function provides PC control and data transmission



Specifications

Work plate Dimension [W x D]

184x184mm | 7" x 7"

Work plate material

Glass ceramic

Motor type

Brushless DC motor

Motor rating input / output

18W / 10W

Power

1050W

Heating output

1000W

Power input

100-120 / 200-240V  50/60Hz

Stirring positions

1

Max. stirring quantity [H2O]

20L

Max. magnetic bar [length]

80mm

Speed range

100 - 1500rpm

resolution ±1rpm

Display type

LCD

Heating temperature range

Ambient - 550°C | increment 1°C

Temperature control accuracy

±1 °C (<100°C) | ±1%(>100°C)

Overheating protection

580°C

Temperature display accuracy

±0.1°C

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" warning

50°C

Data connector

RS232

Protection class

IP21

Dimension [WxDxH]

215x360x112mm | 8.5x14x4.4"

Weight

5.3kg | 12lbs

Permissible Ambient Temperature

5 - 40°C

For Technical Support, Questions, or Other Issues Please Email or Call Us!




Brand:
USA Lab
Work Plate Dimensions:
184x184mm | 7" x 7"
Max. Stirring Volume:
20L
Speed Range:
0-1500rpm
Voltage:
100 - 120V 60Hz
Dimension [W x D x H]:
215x360x112mm | 8.5x14x4.4"
Warranty Policy

Hotplate: 1 Year
