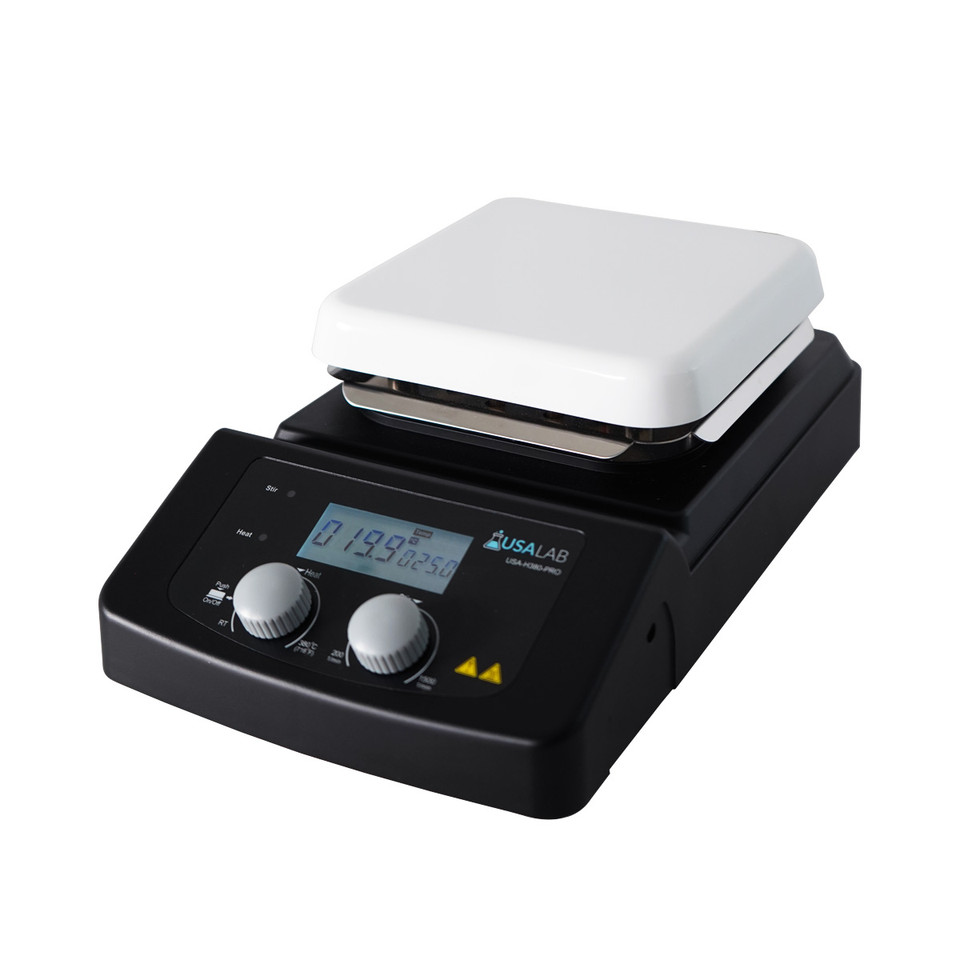

H380 Digital Magnetic Hotplate Stirrer | 5.5" Plate, 380°C Max | USA Lab
The USA Lab H380 is a technically advanced hotplate-stirrer with independent back-lit LCDs for heat and stir functions, PID temperature control to ±1°C, and a maintenance-free brushless DC motor for long life and smooth torque. Designed for chemical synthesis, analytical labs, and biopharma workflows, it pairs precise heating with reliable mixing performance.
A glass-ceramic work surface (5.5"×5.5") provides excellent chemical resistance and rapid heat transfer to 380°C. External PT1000 feedback (accuracy ±0.5°C) enables tighter control, while digital speed regulation delivers up to 1,500 rpm for volumes to 5 L (H2O).
Safety features include over-temperature protection (420°C limit) and a persistent “HOT” indicator above 50°C. Probe and stand included.
5.5" Glass-Ceramic Plate 380°C Max Temp Up to 1,500 rpm PID Control & LCD PT1000 External Sensor Probe & Stand Included
Performance: Brushless DC motor delivers stable torque and up to 1,500 rpm for efficient vortex and dispersion up to 5 L.
Precision: PID regulation to ±1°C with PT1000 closed-loop option (accuracy ±0.5°C) and high-resolution LCDs.
Safety: 380°C max with 420°C overheat protection and persistent “HOT” 50°C warning indicator.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why the USA Lab H380 Hotplate Stirrer?
- Precise LCD control — Independent back-lit displays show setpoint and actual temperature/speed for fast checks.
- PID temperature stability — Holds to ±1°C; supports PT1000 feedback to ±0.5°C for sensitive media.
- Robust mixing — Digital speed up to 1,500 rpm for everyday synthesis, sample prep, and titrations (5 L H2O).
- Glass-ceramic plate — 5.5"×5.5" surface offers top chemical resistance and efficient heat transfer to 380°C.
- Built-in safety — Over-temperature protection and a persistent 50°C HOT warning; probe & stand included.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | USA Lab H380 Digital Magnetic Hotplate Stirrer |
|---|---|
| Work plate Dimension | 140 mm × 140 mm | 5.5" × 5.5" |
| Work plate material | Glass Ceramic (aluminum cover base) |
| Motor type | Brushless DC motor |
| Power | 510 W |
| Heating output | 500 W |
| Voltage | 100–120 V / 60 Hz |
| Stirring positions | 1 |
| Max. stirring volume [H2O] | 5 L |
| Max. magnetic bar [length] | 50 mm |
| Speed range | 200–1500 rpm |
| Display Type | LCD |
| Heating temperature range | Ambient +5°C – 380°C |
| Over heat Protection | 420°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.5°C) |
| Control accuracy of sensor | ±20 rpm |
| Dimension [W x D x H] | 320 × 180 × 108 mm | 12.6 × 7 × 4.25" |
| Permissible ambient temperature | 5 – 40°C |
| Certifications | TUV Certified |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the USA Lab H380 hotplate stirrer designed for?
The USA Lab H380 combines PID heating (to 380°C) and magnetic stirring (up to 1,500 rpm) for routine synthesis, sample prep, titrations, and general lab mixing up to 5 L.
Does the USA Lab H380 support external temperature sensing?
Yes. The USA Lab H380 accepts a PT1000 probe for closed-loop control with an accuracy of ±0.5°C.
What is the plate size and material on the USA Lab H380?
The USA Lab H380 features a 5.5"×5.5" glass-ceramic surface for excellent chemical resistance and fast heat transfer.
What safety features are included on the USA Lab H380?
The USA Lab H380 offers over-temperature protection (420°C limit) and a persistent HOT indicator above 50°C even when powered off.
