Description

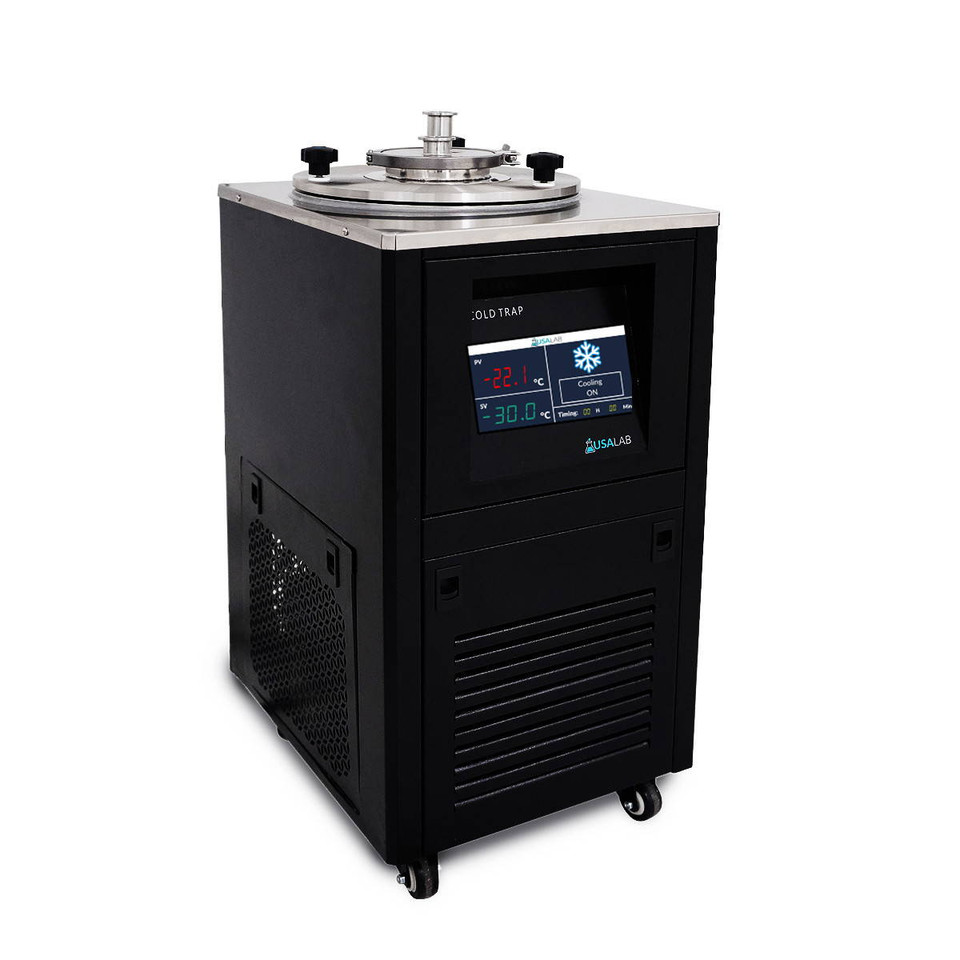

USA Lab ChillTrap™ Mechanical Cold Trap – −30°C, 3× Glass Inserts or KF25 Steel Insert
The ChillTrap™ mechanical cold trap captures and removes condensable vapors, solvents, and impurities to protect your vacuum pumps and preserve sample integrity. With a powerful −30°C setpoint and precision control, it maintains a highly effective cold zone for reliable trapping across diverse workflows.
Choose between three openable glass traps with 3/8″ barbed connections or a sealed stainless insert with dual KF25 ports. Built with a stainless-steel interior and powder-coated steel exterior, ChillTrap™ delivers durability, easy cleaning, and consistent performance.
Ideal for short-path distillation, rotary evaporation, freeze drying support, solvent recovery, and analytical sample prep where pump protection and contamination control are critical.
Operate in a well-ventilated area and follow vacuum glassware safety best practices. Verify electrical requirements before installation. Inspect inserts and seals before each run; replace any damaged components promptly.
−30°C Mechanical Trapping Pump Protection Glass or KF25 Insert Stainless Interior
Deep trapping: −30°C cold zone efficiently condenses volatile solvents and vapors before the pump.
Flexible connectivity: Run 3 × glass traps with 3/8″ barbs or a sealed stainless insert with dual KF25 ports.
Built to last: Stainless-steel interior, powder-coated exterior, and LCD touchscreen control for dependable operation.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this ChillTrap™ cold trap?
- Superior vapor capture — −30°C trapping protects pumps, boosts vacuum stability, and reduces backstreaming.
- Configurable inserts — choose 3 × glass traps (3/8″ barbs) or a sealed stainless insert with KF25 ports.
- Robust construction — stainless interior and powder-coated exterior withstand demanding lab environments.
- Simple controls — LCD touchscreen controller for quick setpoints and at-a-glance monitoring.
- Broad applications — ideal companion to short-path, rotary evaporation, solvent recovery, and analytical prep.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | USA Lab ChillTrap™ Mechanical Cold Trap (USA-MCT-40) |
|---|---|

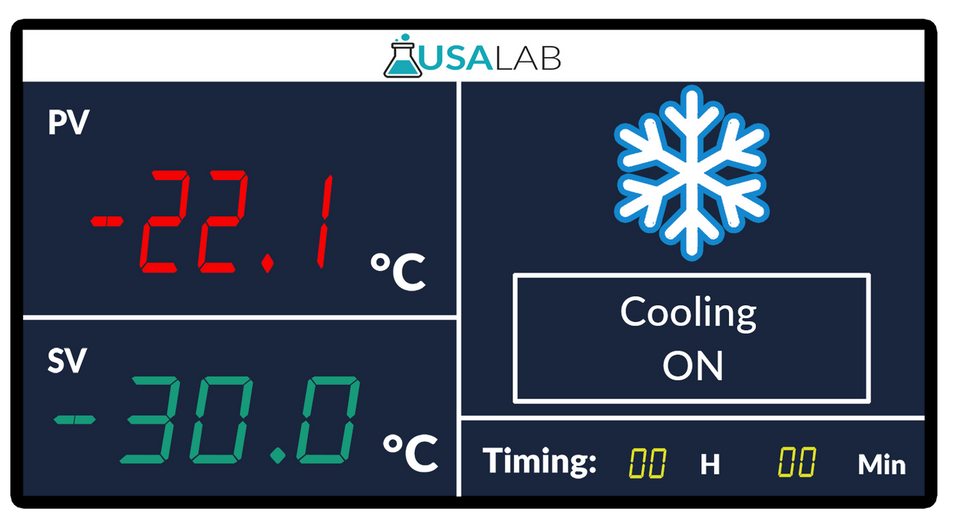

| Temperature Controller | LCD Touch Screen |
| Temperature Range | Ambient to −30°C (−22°F) |
| Dimensions (L×W×H) | 18.18″ × 22.04″ × 27.95″ (465×560×710 mm) |
| Weight | 106 lb (48 kg) |
| Internal Material | Stainless Steel |
| External Material | Steel Plate, Powder-Coated |

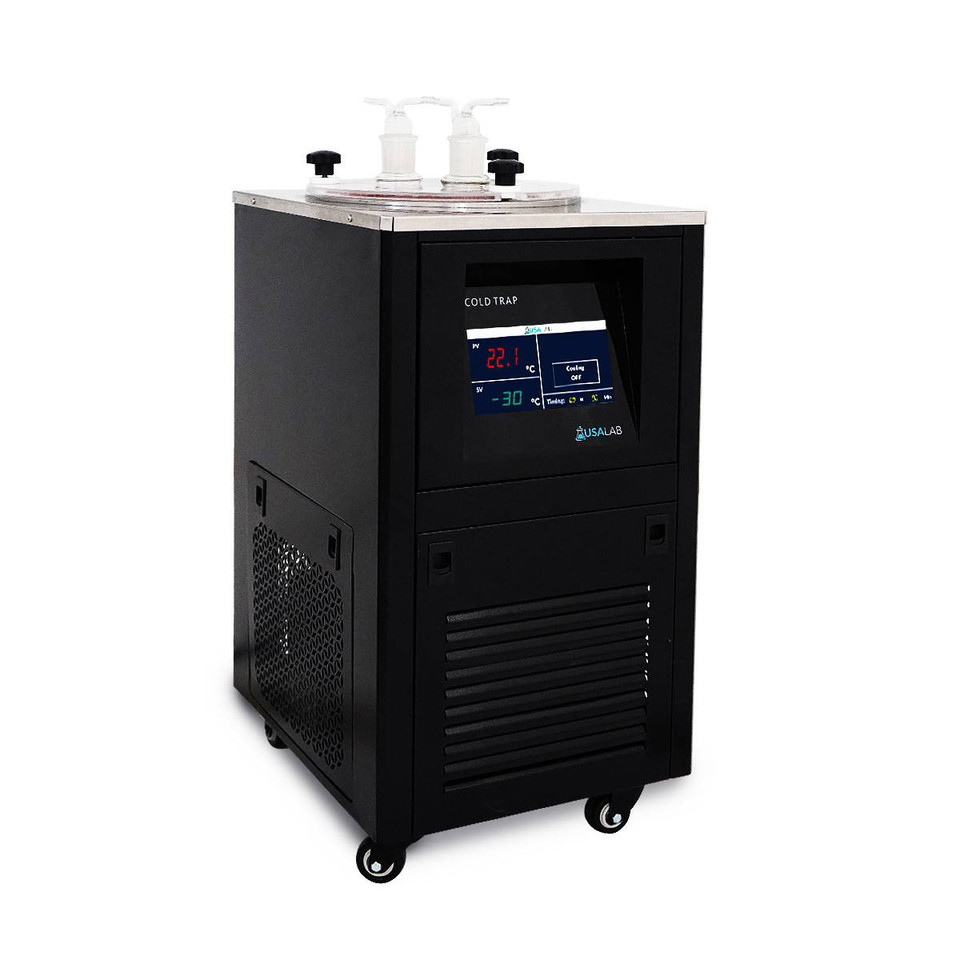

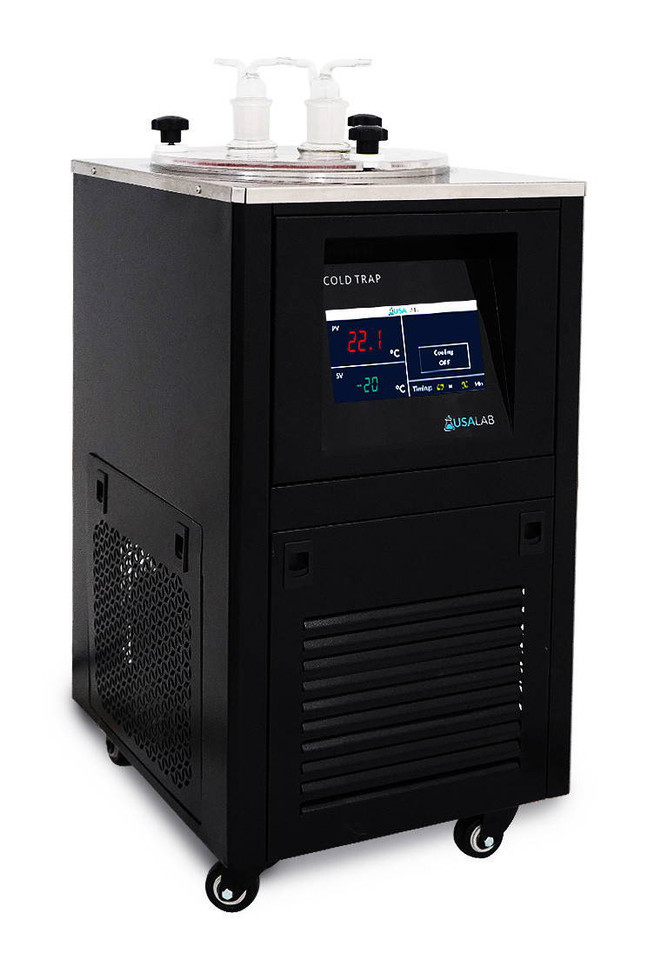

| Glass Trap Option | 3 × Openable Glass Traps (3/8″ barbs) |

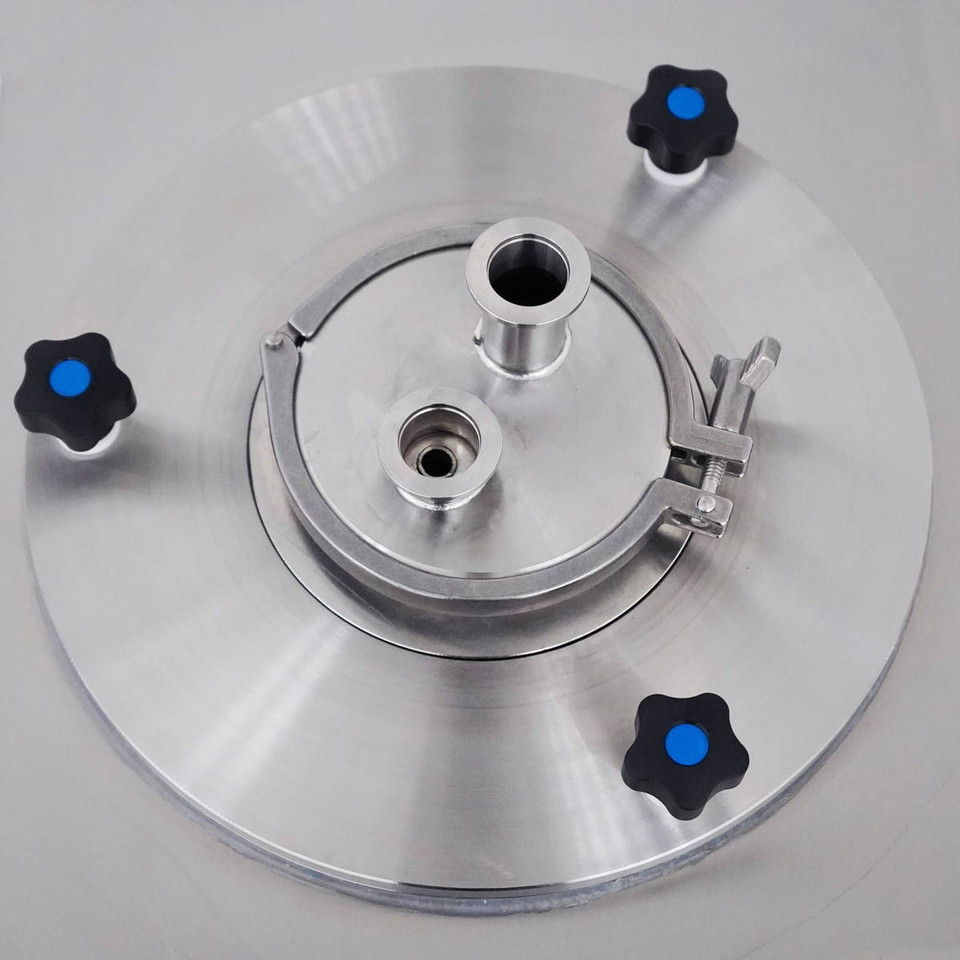

| Steel Trap Option | Sealed Stainless Insert with 2 × KF25 Ports |
| Power | 110 V, 60 Hz |
| SKU / Model | USA-MCT-40 |
| Display & Alarms | LCD status display; basic alerts |
| Cooling Method | Mechanical Refrigeration |
| Operating Mode | Continuous Duty |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
How does ChillTrap™ protect my vacuum pump?
By condensing and capturing vapors at −30°C before they reach the pump, ChillTrap™ reduces contamination, extends oil life, and stabilizes vacuum levels.
What insert options are available?
Use 3 openable glass traps with 3/8″ barbs for quick visual checks, or switch to the sealed stainless insert with dual KF25 ports for high-integrity, high-vacuum connections.
What are the electrical requirements?
ChillTrap™ operates on 110 V, 60 Hz. Verify that your circuit can support the load and provide proper grounding.
Is maintenance complicated?
Routine upkeep includes defrosting, cleaning the trap inserts, and inspecting gaskets and barb/KF connections. The stainless interior simplifies wipe-downs and sanitation.
