Description

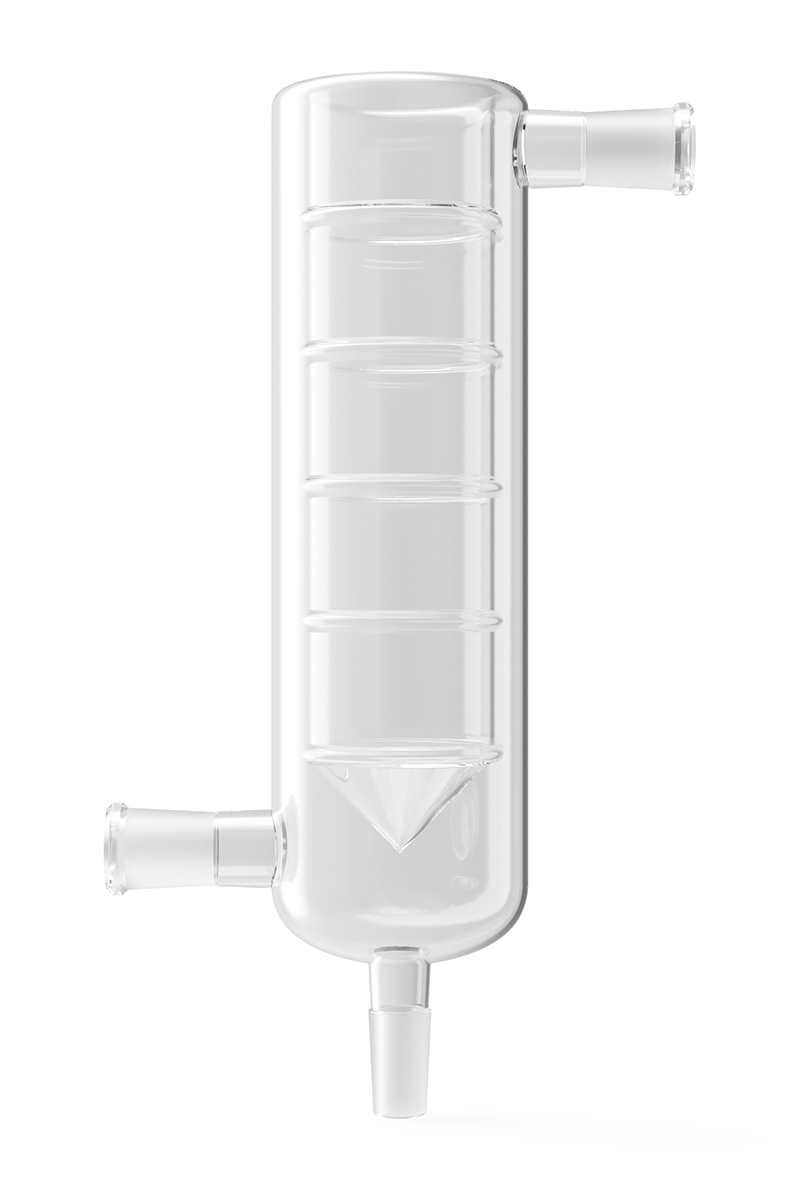

USA Lab Glass Cold Trap - 24/40

The USA Lab Glass Cold Trap - 24/40 is designed to condense vapors that reach the end of the distillation process before they can travel toward the vacuum pump. By providing a dedicated condensation stage, the cold trap helps protect downstream vacuum equipment while supporting cleaner and more reliable vacuum distillation workflows.

The cold trap is designed for use with dry ice to rapidly cool and condense residual vapors. This helps capture condensable material before it reaches the vacuum pump, reducing the potential for vapor exposure and supporting efficient operation of laboratory and short path distillation systems.

With a 24/40 glass joint configuration, the USA Lab Glass Cold Trap - 24/40 provides a practical solution for integrating vapor condensation into compatible distillation and vacuum systems. Its glass construction makes it well suited for laboratory applications where direct visual monitoring of the trap and captured condensate is beneficial.

24/40 Joint Dry Ice Compatible Vapor Condensation Vacuum Pump Protection

Vapor Condensation: captures condensable vapors at the end of the distillation process before they reach downstream equipment.

Dry Ice Cooling: designed to be filled with dry ice for effective low-temperature vapor condensation.

Vacuum Pump Protection: helps prevent residual vapors from reaching and contaminating the vacuum pump.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab Glass Cold Trap?

Condenses residual vapors — captures vapors remaining at the end of the distillation process before they travel downstream.
Supports vacuum pump protection — helps prevent condensable vapors from reaching the vacuum pump during operation.
Dry ice compatible — designed to use dry ice as the cooling medium for low-temperature condensation.
24/40 glass joint — provides a standard connection configuration for compatible laboratory and distillation equipment.
Visual glass construction — allows users to monitor the cold trap and collected condensate during operation.

Talk to an expert

Get product guidance, application support, and compatibility information for your laboratory or vacuum distillation setup.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab Glass Cold Trap - 24/40
Product Type	Glass Cold Trap
Primary Function	Condensation of residual distillation vapors
Joint Size	24/40
Construction	Glass
Cooling Method	Dry Ice
Cooling Medium	Dry Ice
Vapor Handling	Condensable vapors from distillation
System Position	Downstream of the distillation process
Vacuum System Use	Vacuum distillation systems
Pump Protection	Helps prevent vapors from reaching the vacuum pump
Application	Vapor capture and condensation
Equipment Compatibility	Compatible equipment using a 24/40 connection
Laboratory Use	Distillation and vacuum processing
Operating Principle	Low-temperature condensation
Cooling Purpose	Condenses vapors before downstream vacuum equipment
Material Benefit	Visual monitoring of trapped condensate
Product Category	Laboratory Glassware
Technical Support	USA Lab email and phone support

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the purpose of the USA Lab Glass Cold Trap - 24/40?

The USA Lab Glass Cold Trap - 24/40 is designed to condense residual vapors at the end of the distillation process before they can reach the vacuum pump.

How does the USA Lab Glass Cold Trap - 24/40 work?

The cold trap is filled with dry ice to provide low-temperature cooling that condenses vapors traveling through the distillation system. The captured material remains in the cold trap instead of continuing toward the vacuum pump.

What cooling medium is used with the USA Lab Glass Cold Trap - 24/40?

The USA Lab Glass Cold Trap - 24/40 is designed to be filled with dry ice for cooling and vapor condensation during compatible vacuum distillation applications.

What connection does the USA Lab Glass Cold Trap - 24/40 use?

The USA Lab Glass Cold Trap - 24/40 uses a 24/40 glass joint configuration for connection with compatible laboratory and distillation equipment.
