Description

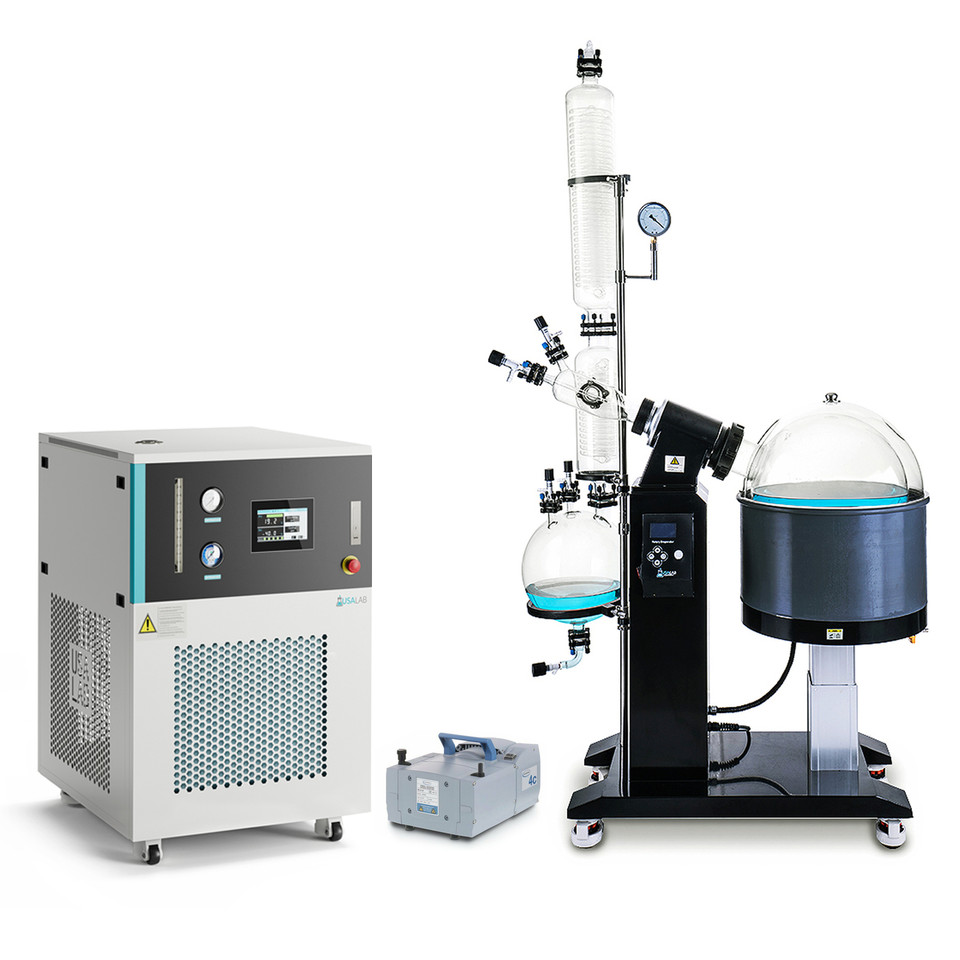

USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit
The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit is designed to recover solvents efficiently and fast while delivering consistent and repeatable results at an affordable price. Built for dependable day-to-day performance, this 50L rotovap kit offers an excellent balance of throughput, value, and reliability for demanding laboratory and processing environments.
The RE-1050 evaporator is made with GG-17 high borosilicate glass and engineered for efficient use of surface area, helping improve recovery speed without compromising quality. Standard safety features include over-temperature shut off and dry-run protection, while high-efficiency valves and ports allow continuous feed of material and draining of the receiving flask without breaking vacuum.
This high-speed rotary evaporator turnkey kit includes a Vacuubrand MD 4C NT 2.2CFM diaphragm pump rated for up to 15,000 hours of use before maintenance. Built from high quality, corrosion-resistant components, it provides stable, oil-free vacuum performance for the USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit. The system is also ETL certified to UL and CSA standards for facilities that require certified equipment.
Notice: NOT Compatible With 208V Power Input (acceptable range: 219V–253V). Duty Cycle: NOT intended for 24-hour operation; maximum operation time is 16 hours.
ETL Certified to UL & CSA 50L Rotary Evaporator Kit GG-17 Borosilicate Glass Vacuubrand Pump IncludedOver-Temp Shutoff Dry-Run Protection 20-120 RPM 1 Year Warranty
Certification: ETL certified to UL and CSA standards.
Capacity: 50L evaporation flask with 20L collection flask.
Performance: Up to Water≥7L/H; Alcohol≥15L/H evaporating capability.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit?
- Efficient solvent recovery — designed to recover solvents efficiently and fast with consistent, repeatable results.
- Certified equipment — ETL certification to UL and CSA standards supports facilities that require compliant equipment.
- Built-in safety features — includes over-temperature shut off and dry-run protection for safer operation.
- Process-friendly design — high-efficiency valves and ports support continuous feed and flask draining without breaking vacuum.
- Premium vacuum pump included — the Vacuubrand MD 4C NT 2.2CFM diaphragm pump provides oil-free performance and up to 15,000 hours before maintenance.
Talk to an expert
Get sizing help, operating guidance, and integration tips for your USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit.
Technical Specifications
| Model | USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit |
|---|---|
| Certifications | ETL Certification to UL and CSA Standards |
| Glass Material | GG-17 Borosilicate Glass |
| Evaporation Flask Capacity | 50L |
| Collection Flask Capacity | 20L |
| Rotary Speed | 20-120RPM |
| Bath Temperature Range | Room Temp to 180°C / 356°F |
| Lifting Mechanism | Electric |
| Power Requirements | 220-240V 60Hz 30A Single Phase L6-30P Plug Installed |
| Temperature Control Accuracy | ±1°C |
| Motor Wattage | 250W |
| Heater BTUs | 22,000BTU |
| Achievable Vacuum | 0.0033 Mpa | 25 Torr | 25,000 Micron |
| Evaporating Capability | Water≥7L/H; Alcohol≥15L/H |
| Water Bath Volume | 77L (require about 15 gallons) |
| Dimensions | 52"L x 30"W x 84"H |
| Condensing Glass Surface Area | Main: 0.91㎡ ; Auxiliary: 0.52㎡ |
| Speed Regulation | Digital Step-Less |
| Vacuum Barb | 13.3mm |
| Condenser Barb | 15.5mm |

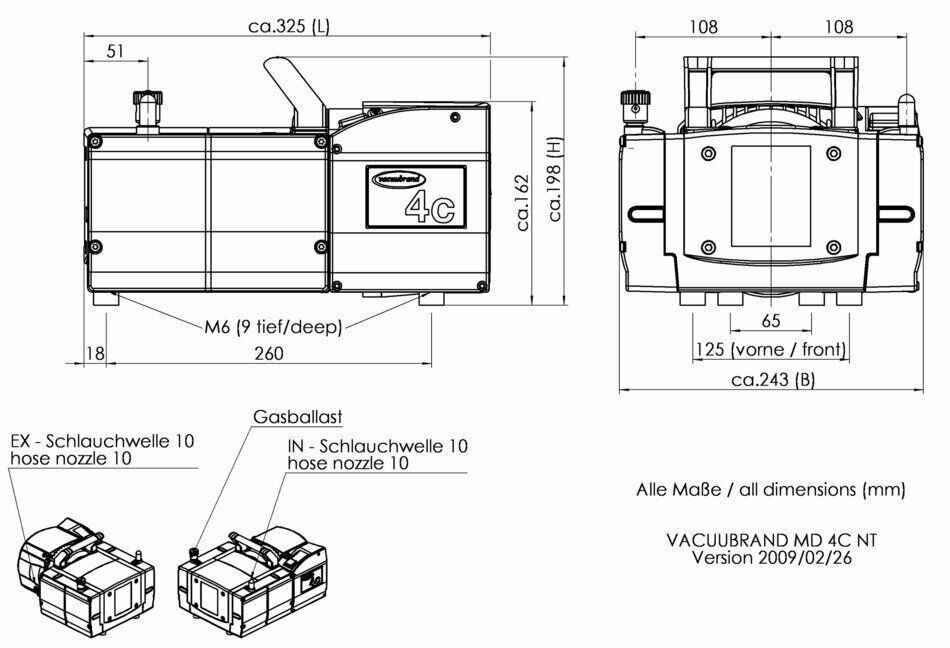

| Pump Included | Vacuubrand MD 4C NT 2.2CFM Diaphragm Pump |
| Pump Maintenance Interval | Rated for up to 15,000 hours of use before maintenance |
| Power Compatibility Notice | Not compatible with 208V power input; acceptable range: 219V - 253V |
| Chiller Operation Notice | Not intended for 24-hour operation; maximum operation time is 16 hours |
| Warranty | 1 Year |
Turnkey Packing List
| Item | Quantity |
|---|---|
| RE-1050 50L Rotary Evaporator | 1 unit |
| Recirculating Chillers CLC-5040-ETL | 1 unit |
| Vacuubrand 4C Diaphragm Vacuum Pump -110V | 1 unit |
| 5 Gallons of Propylene Glycol USP | 1 pcs |
| 10ft Vacuum Hose | 2 pcs |
| 11ft Insulated Chiller Line | 1 pcs |
Rotovap Packing List
| Item | Quantity |
|---|---|

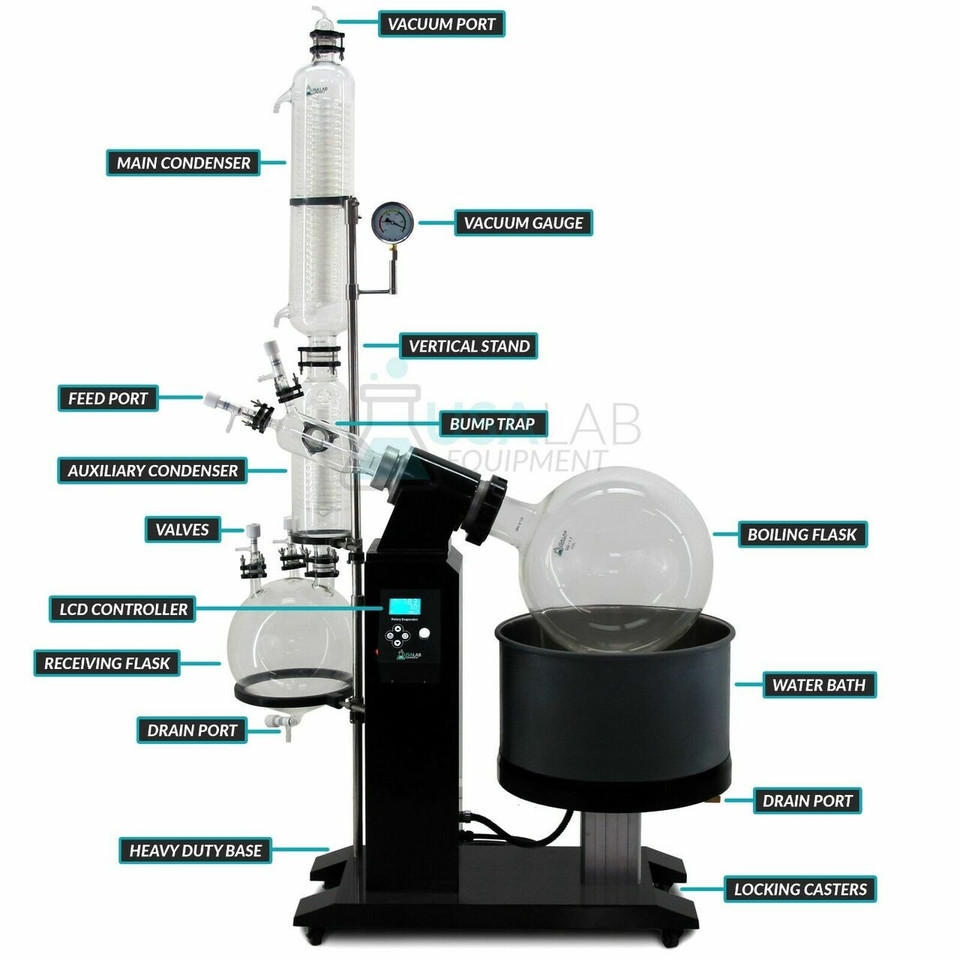

| USA Lab 50L RE-1050 Rotary Evaporator Base | 1 set |
| Main Condenser | 1 pc |
| Auxiliary Condenser | 1 pc |
| 50L Boiling Flask | 1 pc |
| 20L Receiving Flask | 1 pc |
| Three-Way Bump Trap | 1 pc |
| Vapor Duct with Seal (Pre-Installed) | 1 set |
| PTFE Vacuum Sealing Kit (Pre-Installed) | 1 set |
| Glass Vacuum Port with PTFE Valve | 4 sets |
| Glass Feeding Tube with PTFE Valve | 2 sets |
| PTFE Feeding Tube Extension Hose | 1 pc |
| Vertical Stand | 1 pc |
| Vacuum Gauge | 1 pc |
| Support Ring | 2 pcs |
| Rubber Strap for Condenser | 1 pc |
| Clamp with PTFE Gasket | 7 sets |
| Evaporating Flask Screw Aid | 1 pc |
| Allen Key | 2 pcs |
| 63A Fuse | 1 pc |
| Screw Nuts for Clamps | 2 pcs |
| Springs for Clamps | 2 pcs |
| Gasket for Clamps | 4 sets |
| 3oz. Vacuum Grease | 1 pc |
| Vacuum Hose | 10 ft |
Turnkey Packing List Items
| Image | Model |
|---|---|
 |
USA Lab Closed Loop Recirculating Chiller 50/40 - ETL Certified |
 |
Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Pump 110V
|
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit for your throughput.
FAQ
What certifications does the USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit have?
The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit is ETL certified to UL and CSA standards, making it a strong option for facilities that require certified laboratory equipment.
What are the key capacities and performance specs of the USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit?
The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit features a 50L evaporation flask, 20L collection flask, 20-120RPM rotary speed, bath temperature range from room temperature to 180°C, and evaporating capability of Water≥7L/H and Alcohol≥15L/H.
What safety and operating features does the USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit include?
The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit comes standard with over-temperature shut off, dry-run protection, electric lifting, and high-efficiency valves and ports that allow continuous feed and receiving flask draining without breaking vacuum.
What power and operating notices apply to the USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit?
The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit uses 220-240V 60Hz 30A single phase power with an L6-30P plug installed. It is not compatible with 208V power input, requires an acceptable input range of 219V to 253V, and the chiller is not intended for 24-hour operation with a maximum operation time of 16 hours.
