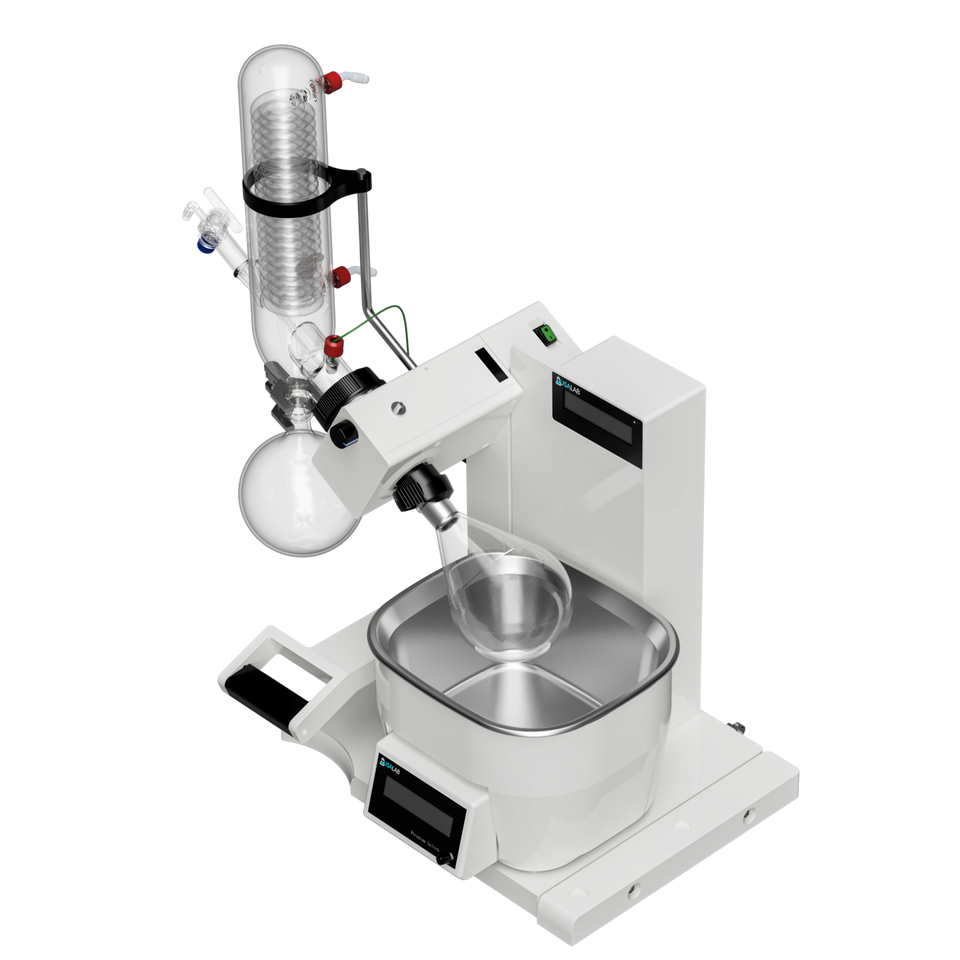

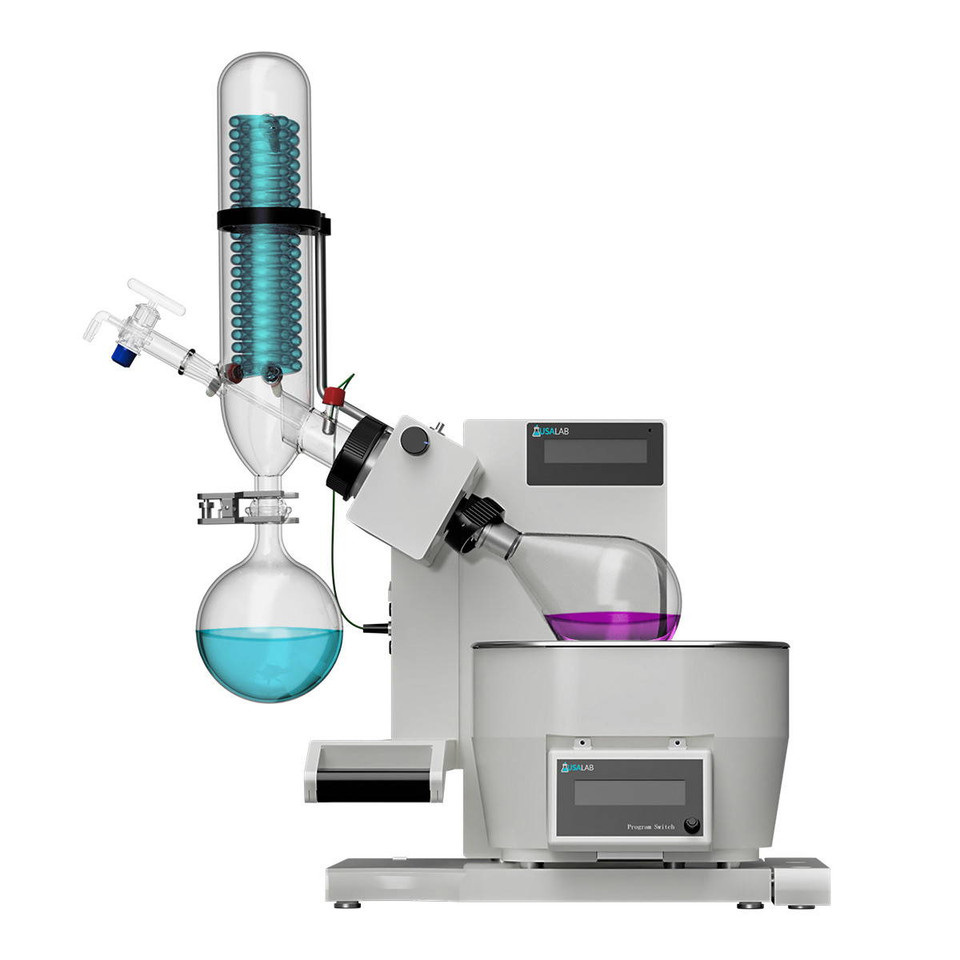

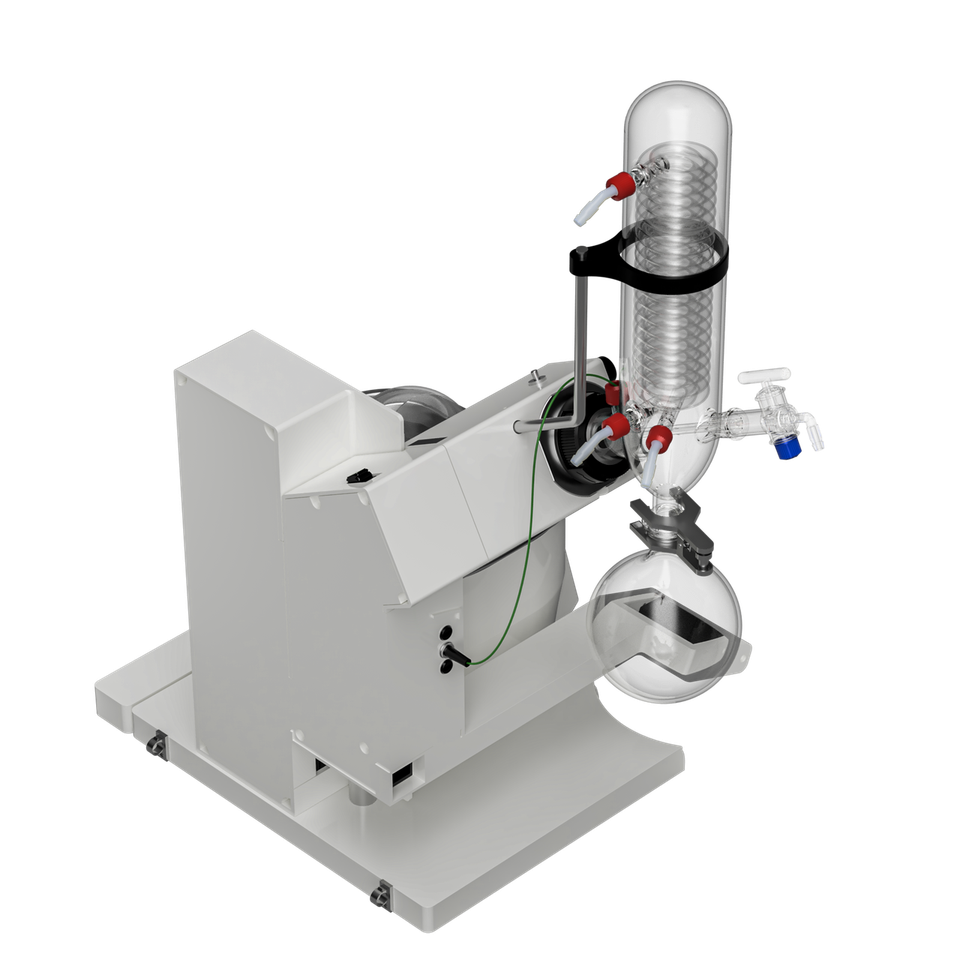

2L Rotary Evaporator with Electric Lift – ULR-200 | USA Lab

Introducing the USA Lab 2L ULR Series Rotary Evaporator (ULR-200)—a compact, powerful solution for efficient solvent recovery. Engineered for consistency and speed, the ULR-200 delivers repeatable results for labs and R&D teams that demand high performance at an affordable price.

GG-17 high borosilicate glass maximizes heat transfer and surface area for faster evaporation without sacrificing product quality. High-efficiency valves and ports support continuous feed for uninterrupted operation, while the electric lift provides precise, safe positioning of the evaporating flask.

An intuitive control panel simplifies temperature and rotation control, and the robust construction ensures long-term reliability in demanding lab environments. Every unit includes US-based support and a 1-year warranty.

Glass components are consumables; inspect before each run and replace if damaged.

2L Capacity Electric Lift GG-17 Glass Continuous Feed

Faster recovery: Optimized condenser & GG-17 glass boost heat transfer and throughput.

Electric lift control: Smooth, accurate height adjustment improves safety and ergonomics.

Continuous operation: High-efficiency feed/valve design supports uninterrupted processing.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

User Manual (PDF)

Why this ULR-200 2L Rotary Evaporator?

Superior glass: GG-17 borosilicate increases surface area and thermal efficiency for faster evaporation.
Electric lift: Precise, push-button height control improves safety and repeatability.
Continuous feed: High-efficiency valves/ports keep your run moving without stoppages.
User-friendly controls: Simple interface for accurate temp and RPM adjustments.
Value & support: Best-in-class price point with local support and 1-year warranty.

Talk to an expert

Need help pairing a chiller, bath fluid, or vacuum pump for the ULR-200? We’ll spec the full stack.

Call 734-855-4890

Technical Specifications

Model	ULR-200 (2L Rotary Evaporator with Electric Lift)
Voltage / Frequency	120V 60Hz \| Single phase \| 15A (12.8A draw)
Total Power	1540 W
Rotary Motor Power	40 W
Heating Power	1500 W
Maximum Vacuum	5 Torr \| −29.8 inHg
Evaporating Flask Capacity	2 L
Collection Flask Capacity	1 L
Rotary Speed	35–200 rpm
Temperature Control Range	Room temp to 95 °C (203 °F)
Temperature Accuracy	±1 °C
Lifting Mechanism	Automatic (Electric Lift)
Lifting Distance	180 mm (7 in)
Condenser Dimensions	Ø85 × 430 H mm (3.3" × 17" H)
Condenser Connection	35/20 S Joint
Evaporating Capacity	Alcohol ≥ 1 L/h
Heater BTUs	5,118 BTU
Condensing Area	0.17 m²
Material Feed Valve	3/8" barb fitting
Vacuum Nozzle	GL-14 connection
Condenser Coil In/Out	GL-14 connection
Bath Capacity	5 L
Overall Dimensions (W×D×H)	650 × 420 × 900 mm (25.6" × 16.5" × 35.4")
Net Weight	20 kg (44 lb)
Packing Weight	23 kg (50 lb)

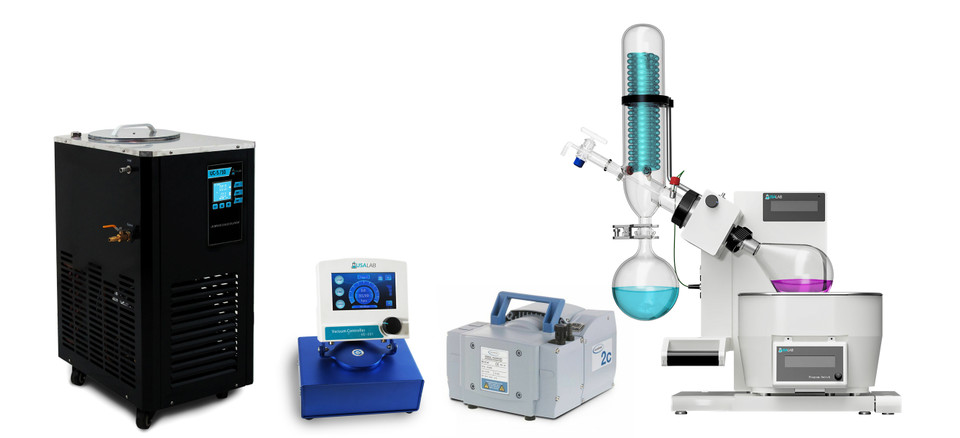

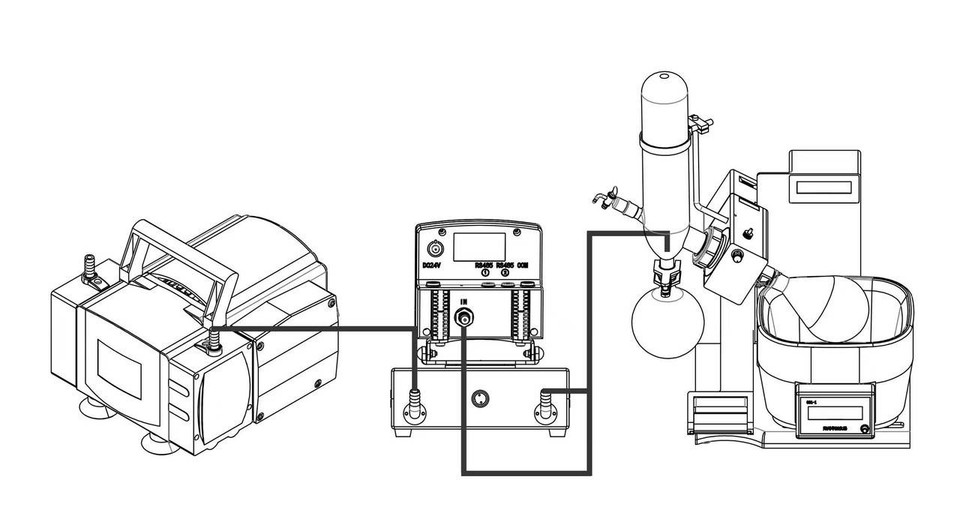

Ancillary Equipment Options

Image	Item
	USA Lab -10°C to 99 °C 5L Recirculating Heater Chiller HC-510-5/10 30L/Min 110V
	USA Lab Diaphragm Pump 1.2CFM - 110V
	Vacuubrand MZ 2C NT 1. 2CFM Chemistry Diaphragm Pump 110V
	USA Lab Vacuum Controller

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is the USA Lab ULR-200 2L Rotary Evaporator with Electric Lift?

The USA Lab ULR-200 2L Rotary Evaporator with Electric Lift is a compact rotovap designed for fast, repeatable solvent recovery with GG-17 glass and precise electric-lift control.

Can the USA Lab ULR-200 2L Rotary Evaporator run continuously?

Yes. The USA Lab ULR-200 2L Rotary Evaporator with Electric Lift features high-efficiency valves and a continuous-feed design to support uninterrupted processing.

What vacuum level can the USA Lab ULR-200 2L Rotary Evaporator achieve?

The USA Lab ULR-200 2L Rotary Evaporator with Electric Lift is rated to 5 Torr (−29.8 inHg) when paired with an appropriate vacuum pump and seals.

What is the temperature range of the USA Lab ULR-200 2L Rotary Evaporator?

The USA Lab ULR-200 2L Rotary Evaporator with Electric Lift controls bath temperature from room temperature up to 95 °C (203 °F) with ±1 °C accuracy.

Important Shipping Notice!

DISCLAIMER:

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	USA Lab
Model:	ULR-200
Evaporator Type:	Rotary Evaporator
Rotovap Power Requirements:	110-120V 60Hz 15A Single Phase
USA Lab Diaphragm Pump Power Requirements:	110-120V 50-60Hz 15A Single Phase
Vaccubrand Diaphragm Pump Power Requirements:	110-120V 50-60Hz 15A Single Phase
Chiller Power Requirements:	110-120V 50-60Hz 20A Single Phase
Vacuum Controller Power Requirements:	110-120V 60Hz
