Description
USA Lab HC-5/10 Recirculating Heater Chiller - -10°C to 99°C - 30L/Min - 110V
The USA Lab HC-5/10 Recirculating Heater Chiller is an ultra quiet, high flow heating and cooling circulator built for demanding laboratory work. With a temperature range of -10°C to 99°C, a powerful 30L per minute circulation pump, and 4,500 BTU of refrigeration capacity, the HC-5/10 handles both chilling and heating duty in a single 110V unit.
A 1000W heating element, 0.5°C temperature accuracy, and a 5L stainless reservoir make the HC-5/10 an ideal recirculating chiller for rotary evaporators, short path distillation systems, jacketed vessels, condensers, and other laboratory equipment that demands stable, consistent temperature control.

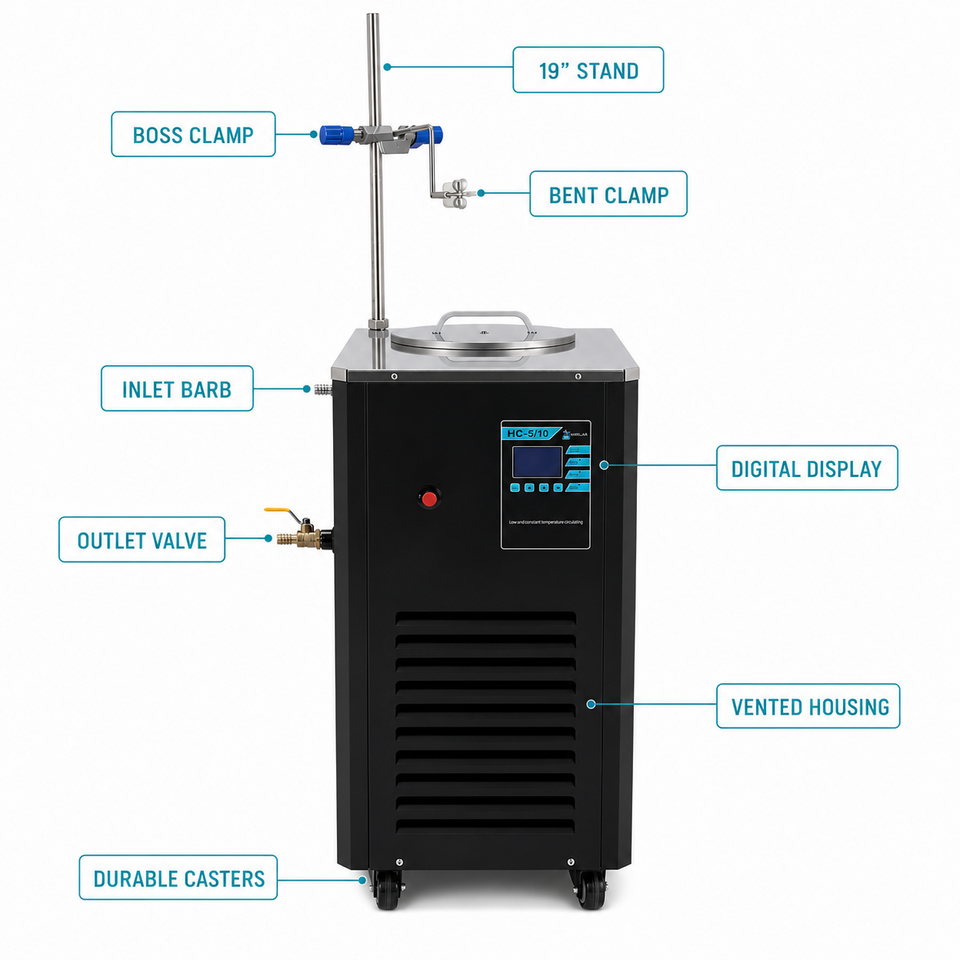

Every HC-5/10 ships with a complete hookup kit including 10ft of insulated tubing, a barbed valve, rod stand, and clamps, so you are ready to circulate right out of the box.
-10°C to 99°C Range 30L/Min Pump Flow 4,500 BTU Cooling 1000W Heating Ultra Quiet Operation 110V Single Phase
Outlet Requirement: This unit requires a dedicated NEMA 5-30 outlet (30A, 110-120V). The factory 5-30P plug cannot be modified. Verify your outlet before ordering.
Duty Cycle: The HC-5/10 is not intended for 24-hour continuous operation. Maximum runtime is 16 hours per session.
Heat and Chill in One Unit: Full -10°C to 99°C range covers condenser cooling and bath heating with a single circulator.
High Flow Pump: 30L/min circulation at 2.2 bar with 12ft of lift keeps even long tubing runs and remote equipment supplied.
Precise and Quiet: 0.5°C temperature accuracy with ultra quiet operation that will not take over your lab.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why choose the HC-5/10 Heater Chiller?
- Dual function circulator: chill condensers down to -10°C or heat jacketed equipment up to 99°C without buying two machines.
- Built for real throughput: the 100W magnetic circulation pump moves 30L per minute, ideal for rotary evaporators and short path condensers that starve on low flow chillers.
- Stable temperature control: 0.5°C accuracy holds your setpoint through long distillation runs.
- Complete hookup kit included: insulated tubing, barbed valve, rod stand, and clamps ship in the box.
- US-based support: manuals, parts, and technicians in Livonia, MI when you need them.
Talk to an expert
Not sure the HC-5/10 is the right chiller for your rotovap, short path, or jacketed vessel? Our technicians will size it for your setup before you order.
Technical Specifications
| Model | USA Lab HC-5/10 Recirculating Heater Chiller |
|---|---|
| Reservoir Capacity | 5L |
| Reservoir Dimensions | 8" x 8" |
| Cooling Range | -10°C to 38.5°C |
| Heating Range | -10°C to 99°C |
| Temperature Accuracy | 0.5°C |
| Refrigerating BTUs | 4,500 BTU - 1,000 BTU |
| Heating Element Wattage | 1000W |
| Circulating Pump Wattage | 100W |
| Pump Flow | 30L/Min |
| Pump Pressure | 2.2 bar, Lift/Height: 4m/12ft |
| Barb Size | 1/2" |
| Refrigerant | R-404A |
| Power Requirements | 110-120V 50-60Hz 30A Single Phase |
| Plug | NEMA 5-30P (cannot be modified, dedicated 5-30 outlet required) |
| Maximum Runtime | 16 Hours (not rated for 24-hour operation) |
| Dimensions (LxWxH) | 19" x 14" x 29" |
| Weight | 100 lbs |
What's in the Box
| Item | Quantity |
|---|---|
| USA Lab HC-5/10 Heater Chiller | 1 PC |
| 19" Metal Rod Stand | 1 PC |
| Boss Clamp | 1 PC |
| Bent 4 Prong Clamp | 1 PC |
| 1/2" Insulated Tubing | 10 ft |
| 1/2" Barbed Valve | 1 PC |
| PTFE Sealing Tape | 1 PC |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help with product availability and bulk order support.
FAQ
What outlet does the USA Lab HC-5/10 Heater Chiller require?
The HC-5/10 requires a dedicated NEMA 5-30 outlet (30A, 110-120V, single phase). The unit ships with a factory 5-30P plug that cannot be modified. If you do not have a 5-30 outlet, have one installed by a licensed electrician before your chiller arrives.
Can the HC-5/10 run 24 hours a day?
No. The HC-5/10 is not rated for 24-hour continuous operation. Maximum runtime is 16 hours per session. If your process requires round-the-clock chilling, contact our team and we will help you select a continuous duty chiller.
What temperature range does the HC-5/10 cover?
The HC-5/10 both heats and chills, with a cooling range of -10°C to 38.5°C and a heating range up to 99°C. Temperature accuracy is 0.5°C, making it well suited for condenser cooling and heated circulation in a single unit.
Does the HC-5/10 work with rotary evaporators and short path systems?
Yes. The HC-5/10 was designed with USA Lab rotary evaporators and short path distillation systems in mind. Its 30L/min pump flow and 4,500 BTU cooling capacity keep condensers cold under real distillation loads.
What comes with the USA Lab HC-5/10 Heater Chiller?
Each HC-5/10 includes the heater chiller, a 19" metal rod stand, boss clamp, bent 4 prong clamp, 10ft of 1/2" insulated tubing, a 1/2" barbed valve, and PTFE sealing tape. Everything you need to connect to your equipment is in the box.
