Description
UHC-720 7L Desktop Recirculating Heater Chiller, -20°C to 180°C (220–240V) | USA Lab

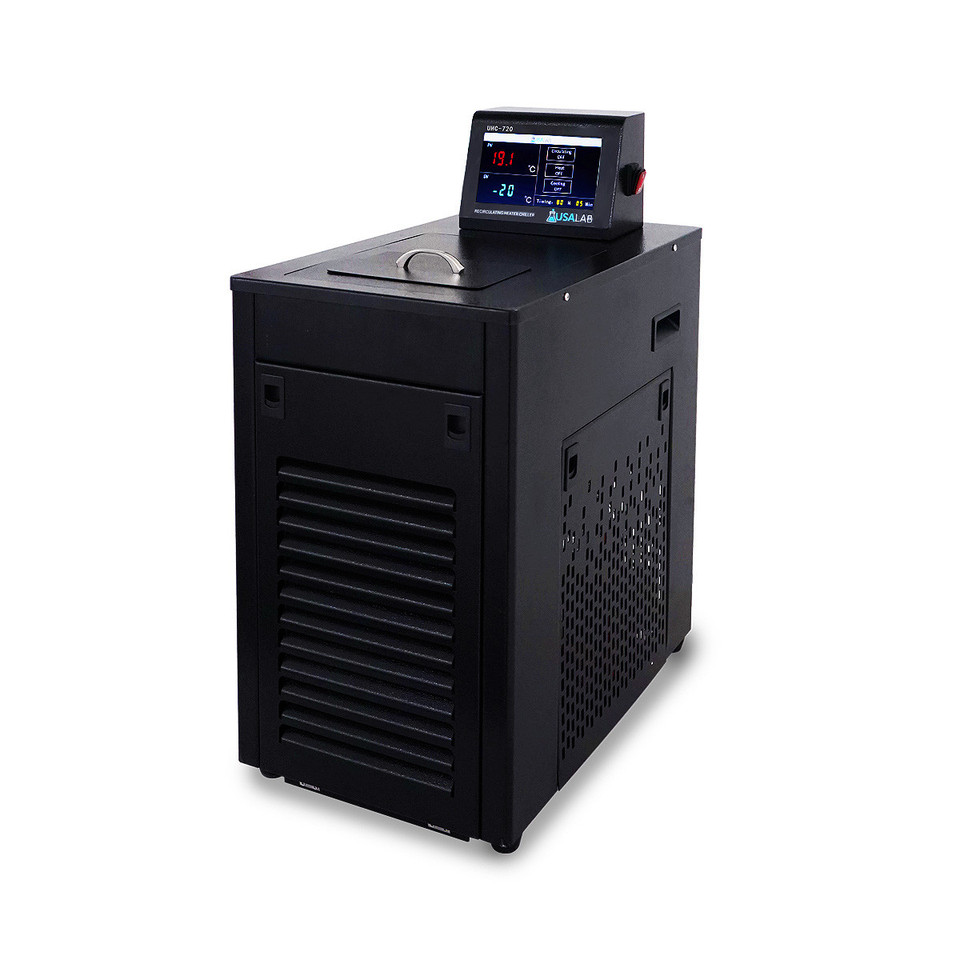

Our USA Lab 7L –20°C to 180°C Desktop Recirculating Heater Chiller (UHC-720) delivers fast heating and cooling with tight temperature control in a compact footprint. A powerful circulation motor ensures excellent temperature distribution and uniformity throughout the bath, while the LCD touchscreen controller provides accurate, simple operation.
Equipped with a high-performance refrigeration system and 2500W heating element, the UHC-720 rapidly reaches setpoints and maintains stability within ±2°C. Ideal for jackets, coils, reactors, condensers, and benchtop R&D requiring reliable thermal management.
Not compatible with 208V input (acceptable range 219–253V)
Not intended for 24-hour continuous operation; maximum recommended runtime is 16 hours. Above 100°C, use silicone oil as the bath fluid.
-20°C to 180°C 7L SS304 Tank LCD Touchscreen ±2°C Control
Wide Range: Heat or chill from –20°C to 100°C (up to 180°C with silicone oil) for versatile lab workflows.
Accurate Control: LCD touchscreen controller with ±2°C accuracy for consistent results.
Strong Circulation: 20 L/min flow, 8 PSI pressure, and 5.6 m lift for steady temperature uniformity.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this desktop recirculating heater chiller?
- Rapid heat & chill — High-performance refrigeration plus 2500W heating for fast ramping.
- Stable & uniform — Strong circulation (20 L/min, 8 PSI) delivers excellent temperature uniformity.
- Precise control — LCD touchscreen controller with PT100 probe and ±2°C accuracy.
- Compact & capable — 7L SS304 bath with cover, ideal for coils, jackets, glassware, and reactors.
- Lab-ready power — 220–240V, 6-20P; note: not for 208V input; max 16 hr operation per session.
Talk to an expert
Get sizing help, fluid selection, and integration tips for your setup.
Technical Specifications
| Model | UHC-720 — USA Lab 7L Desktop Recirculating Heater Chiller |
|---|---|
| Operation Range | –20°C to 100°C (up to 180°C with silicone oil) |
| Power Requirements | 220–240V | 60 Hz | 11.36–10.42 A | NEMA 6-20P |
| 208V Compatibility | Not compatible (acceptable range 219–253V) |
| Cooling Capacity | +10°C: 450 W | 0°C: 350 W | –10°C: 250 W |
| Controller Accuracy | ±2°C |
| Circulation Type | Open loop with bath cover |
| Circulation Capacity | Flow: 20 L/min | Pressure: 8 PSI | Lift: 5.6 m (18.3 ft) |
| Circulation Wattage | 100 W |

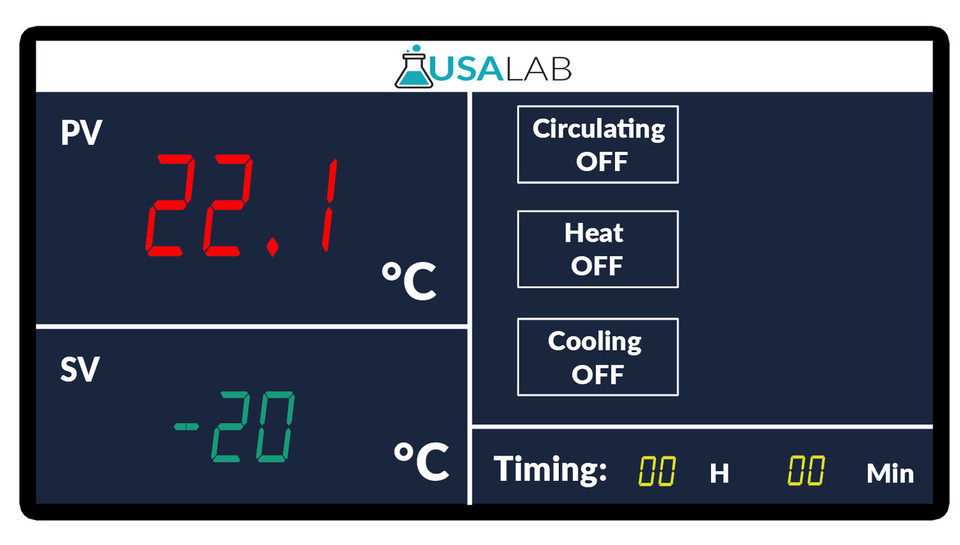

| Display | LCD touchscreen with timer |
| Temperature Probe | PT100 |
| Compressor | Piston style, rated 735 W |
| Refrigerant | R-134a |
| Heating Element | 2500 W |
| Condenser Fans | 2 × 38 W (76 W total) |
| Tank Capacity | 7 L, SS304 |
| Tank Size (W×D×H) | 11.8" × 8.7" × 5.1" |
| Cooling Exchanger | Chromium-coated copper |
| Hose Connections | 1/2" NPT |
| Overall Size (W×D×H) | 12.6" × 21.7" × 27.2" |
| Weight | 35 kg (77 lb) |
| Recommended Fluids | Water/glycol within range; silicone oil required above 100°C |
| Duty Cycle | Not intended for 24/7 operation; max 16 hours per run |
| Plug Option | Can be changed to NEMA 6-15P if desired |
| Packing List | Qty |
|---|---|
| UHC-720 Unit | 1 |

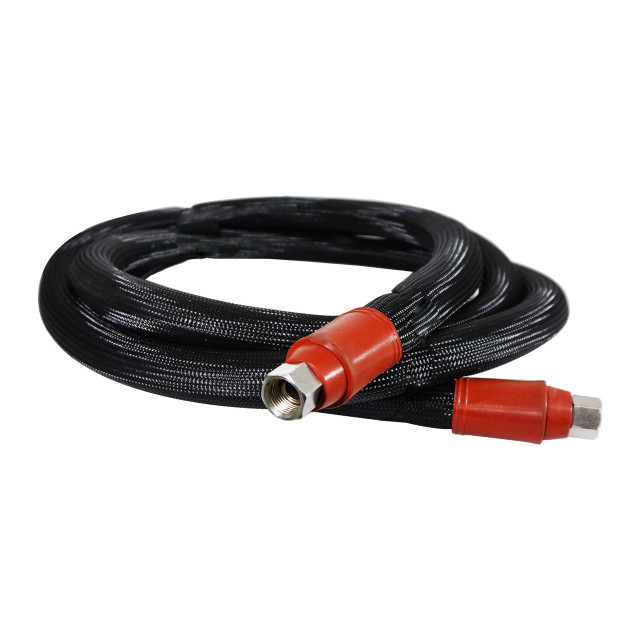

| 1/2" FNPT Insulated Heater Hose – 6 ft | 2 |
| 1/2" MNPT Union Fitting | 2 |
| Manual | 1 |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the operating range of the USA Lab UHC-720?
The USA Lab UHC-720 7L Desktop Recirculating Heater Chiller operates from –20°C to 100°C with water/glycol. Using silicone oil, the USA Lab UHC-720 can operate up to 180°C.
Is the USA Lab UHC-720 compatible with 208V power?
No. The USA Lab UHC-720 requires 220–240V (acceptable range 219–253V) and is not compatible with 208V.
Can I run the USA Lab UHC-720 24/7?
The USA Lab UHC-720 is not intended for 24-hour continuous operation. Maximum recommended runtime is 16 hours per session.
What bath fluid should I use with the USA Lab UHC-720?
Use water or water/glycol within the specified range. Above 100°C, the USA Lab UHC-720 requires silicone oil only.
What are the pump specs on the USA Lab UHC-720?
The USA Lab UHC-720 provides 20 L/min flow, 8 PSI pressure, and 5.6 m (18.3 ft) lift for strong circulation and temperature uniformity.
Important Shipping Notice!
DISCLAIMER:
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
×
Email Sales & Support
We usually reply same business day.
×
Technical Support
Share details and our techs will follow up.
×
Request a Quote
Tell us what you need and we’ll respond quickly.
Our USA Lab 7L -20°C to 180°C Desktop Recirculating Heater Chiller is a top of the line product compared to others that are currently on the market while maintaining an affordable price. This chiller comes standard with a digital display for ease of use and accurate control. Our compact chiller contains a powerful circulation motor allowing for excellent temperature distribution as well as extremely accurate temperature uniformity.
The compact chiller unit is equipped with a powerful refrigeration system and high-performance heating element, allowing it to rapidly cool or heat up to the set temperature. It is also equipped with precise temperature control, ensuring that the temperature stays within a tight tolerance range.
This UHC-720 is a versatile and reliable choice for temperature control in a wide range of applications.
** Notice **
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT Compatible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
*Any temperature above 100°C requires the use of Silicone Oil ONLY*
*Click here for recommended Silicone Oil*
(The plug can be changed to NEMA 6-15p if desired)
|
UHC-720 Specifications |
|
|
Operation Range |
-20°C to 100°C (up to 180°C with silicone oil) |
|
Power Requirements |
220V -240V | 60hz | 11.36A - 10.42A | 6-20p |
|
Cooling Capacity |
+10°C - 450W | 0°C - 350W | -10°C 250W |
|
Controller Accuracy |
±2°C |
|
Circulation Type |
Open loop with bath cover |
|
Circulation Capacity |
Lift: 5.6m/18.3ft. | Flow: 20L/min | PSI: 8 |
|
Circulation Wattage |
100W |
|
Display Type |
LCD Touchscreen with Timer |
|
Temperature Probe Type |
PT100 |
|
Compressor |
Piston style rated for 735W |
|
Refrigerant |
R-134a |
|
Heating Element Rating |
2500W |
|
Condenser Fans |
2X 38W (76W Total) |
|
Tank Capacity |
7L SS304 |
|
Tank Size WxDxH |
11.8" X 8.7" X 5.1" |
|
Cooling Exchanger |
Chromium Coated Copper |
|
Hose Connection |
1/2" NPT |
|
Overall Size WxDxH |
12.6" X 21.7" X 27.2" |
|
Overall Weight |
35kg | 77lbs. |
|
Packing List |
|
|
UHC-720 |
1 |
|
1/2" FNPT Insulated Heater Hose - 6FT |
2 |
|
1/2" MNPT Union Fitting |
2 |
|
Manual |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
