Name: USA Lab -20°C 7L Compact Recirculating Chiller 220V UC-720
Brand: USA Lab
SKU: UC-720
Price: 2499.0 USD
Availability: InStock

Description

USA Lab -20°C 7L Compact Recirculating Chiller 220V UC-720

The USA Lab -20°C 7L Compact Recirculating Chiller 220V UC-720 is a compact temperature-control solution designed for laboratory applications requiring reliable circulation and cooling. Its powerful refrigeration system, circulation motor, digital display, and precise temperature controls provide excellent temperature distribution and temperature uniformity.

The UC-720 provides an operating range from ambient temperature down to -20°C, with a 7L SS304 tank and circulation flow of 20L/min. The digital LCD touchscreen with timer and PT100 temperature probe provide convenient control and monitoring for laboratory workflows.

This 220V chiller provides cooling capacities of 450W at +10°C, 350W at 0°C, and 250W at -10°C. The unit uses an R-134a refrigerant system, a piston-style compressor rated for 735W, and an open-loop circulation design with bath cover. The UC-720 is not compatible with 208V power input and is intended for a maximum operation time of 16 hours.

-20°C Operating Range 7L SS304 Tank 20L/min Flow 220V-240V, 60Hz

Temperature Range: Ambient to -20°C — supports controlled low-temperature circulation for laboratory applications.

Circulation: 20L/min flow with 5.6m lift and 8 PSI — provides strong fluid circulation and temperature distribution.

Cooling Capacity: 450W at +10°C, 350W at 0°C, and 250W at -10°C — provides staged cooling performance across the operating range.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab UC-720 Recirculating Chiller?

-20°C operating range — provides low-temperature circulation from ambient temperature down to -20°C.
Powerful circulation system — delivers 20L/min flow with 5.6m lift and 8 PSI for effective fluid circulation.

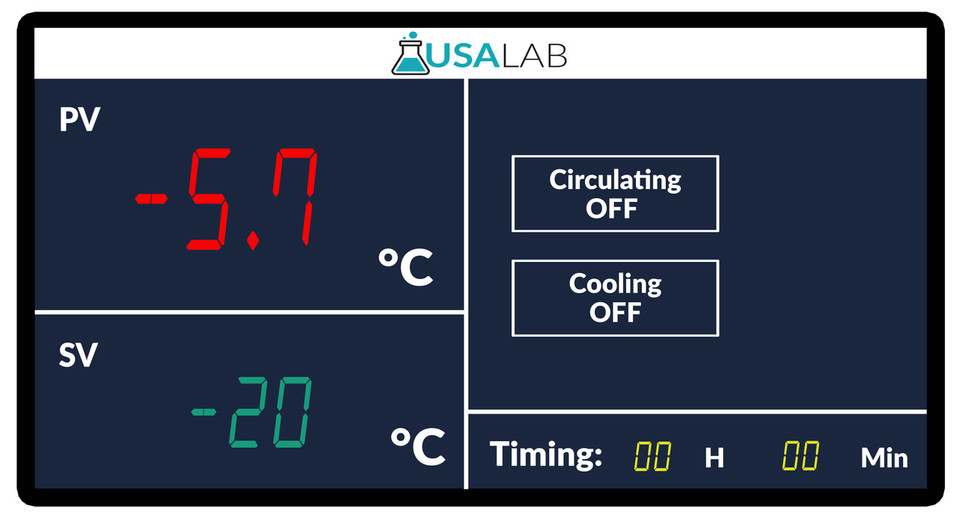

Precise temperature control — digital LCD touchscreen, PT100 temperature probe, and controller accuracy of ±2°C support convenient temperature monitoring.
7L SS304 tank — provides a stainless-steel reservoir with a tank size of 11.8" × 8.7" × 5.1".
Compact laboratory design — combines refrigeration, circulation, and temperature control in a compact 12.6" × 21.7" × 27.2" unit.

Talk to an expert

Get product guidance, application support, and compatibility information for your laboratory workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Model	UC-720
Product Name	-20°C 7L Compact Recirculating Chiller 220V
Brand	USA Lab
Operating Range	Ambient to -20°C
Power Requirements	220V-240V, 60Hz, 11.36A-10.42A, 6-20P
Cooling Capacity	+10°C: 450W; 0°C: 350W; -10°C: 250W
Controller Accuracy	±2°C
Circulation Type	Open loop with bath cover
Circulation Capacity	Lift: 5.6m/18.3ft; Flow: 20L/min; PSI: 8
Circulation Wattage	100W
Display Type	LCD Touchscreen with Timer
Temperature Probe Type	PT100
Compressor	Piston style rated for 735W
Refrigerant	R-134a
Condenser Fans	2 × 38W (76W total)
Tank Capacity	7L SS304
Packing List	UHC-720; 1/2" FNPT Insulated Heater Hose - 6FT; 1/2" MNPT Union Fitting; Manual
Hose Connection	1/2" NPT
Overall Size & Weight	12.6" × 21.7" × 27.2"; 35kg (77lbs.)

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the operating temperature range of the USA Lab UC-720 Recirculating Chiller?

The USA Lab UC-720 has an operating range from ambient temperature down to -20°C.

What cooling capacity does the USA Lab UC-720 provide?

The USA Lab UC-720 provides 450W of cooling capacity at +10°C, 350W at 0°C, and 250W at -10°C.

What are the power requirements for the USA Lab UC-720?

The USA Lab UC-720 requires 220V-240V power at 60Hz, with a current range of 11.36A-10.42A and a 6-20P plug. It is not compatible with 208V power input. The acceptable voltage range is 219V-253V.

Is the USA Lab UC-720 intended for continuous 24-hour operation?

No. The USA Lab UC-720 is not intended for 24-hour operation and has a maximum operation time of 16 hours.
