** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**
Easily control your vacuum process and venting with the touch of a button or the twist of a knob. Mission control at your fingertips with the SNAP (Simple, Nimble, Automatic Process Controller).
Description

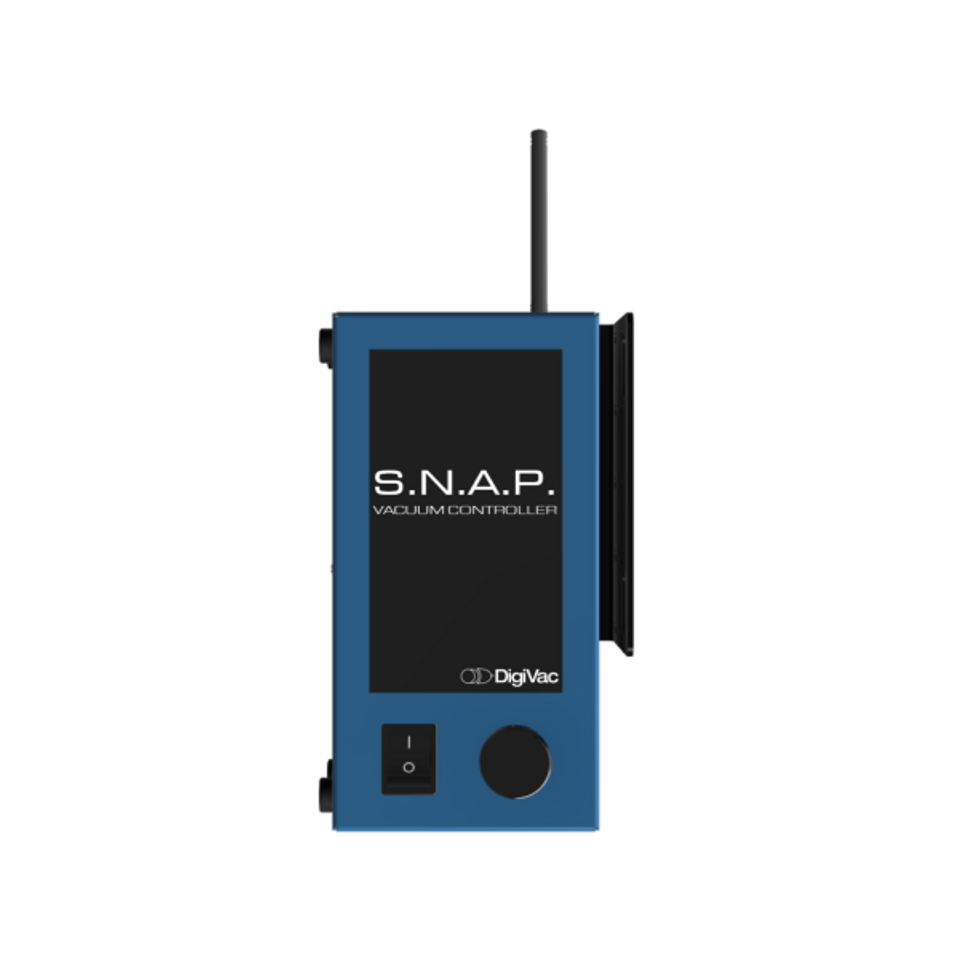

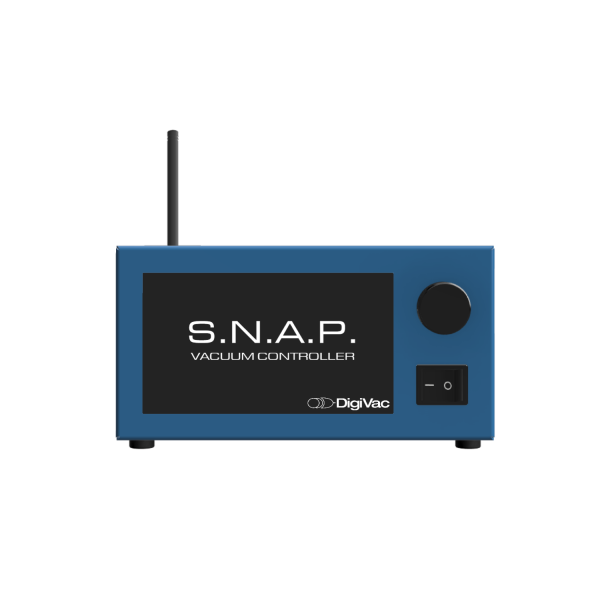

SNAP Vacuum Controller | Simple, Nimble, Automatic Process Controller with up to 8 Recipes
SNAP: Automatic Vacuum Process Controller | Vacuum control and venting with the touch of a button or twist of a dial
- Vent your vacuum chamber or equalize your system with the touch of a button instead of pulling hoses or turning valves
- Treat material in chamber more gently by implementing kinder ramp rate controls which is ideal for freeze drying, vacuum drying or lyophilization applications
- Vacuum Controller with onboard ramp rate recipe control. Set up to 8 recipes based on time and pressure setpoints.
- Dashboard pushbutton control for START, STOP functionality for each channel allows you to automatically vent or isolate your system with a push of a button
Ideal for automating and simplifying vacuum chamber pressure control.
SIMPLE – SIMPLIFY YOUR LAB & CONTROL MORE WITH LESS
- Applications: vacuum chamber (from 1 liter to 1000 liters) research, vacuum ovens/vacuum drying, vacuum furnaces, large scale food processing, microwave drying, composites, rotary evaporators, falling film systems
- Fine control of target vacuum pressure for more precise processing and research
- Enables using reliable and long lasting rotary vane pumps & dry scroll pumps in applications where diaphragm
pumps were previously required - Keeps vacuum pumps near their base pressure resulting in greater longevity
NIMBLE – MAXIMIZES THROUGHPUT & PUMPDOWN SPEED
- Largest flow paths available to insure maximum flow for faster evaporation
- Maximize throughput and pump down speed with a 20 mm vacuum path (almost full KF25 orifice)
AUTOMATIC PROCESS – PRECISION CONTROL & INTUITIVE DESIGN
- Automatic Vacuum Process Controller | precise automated control with programmable recipes and graphing of vacuum levels
- Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
- The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing

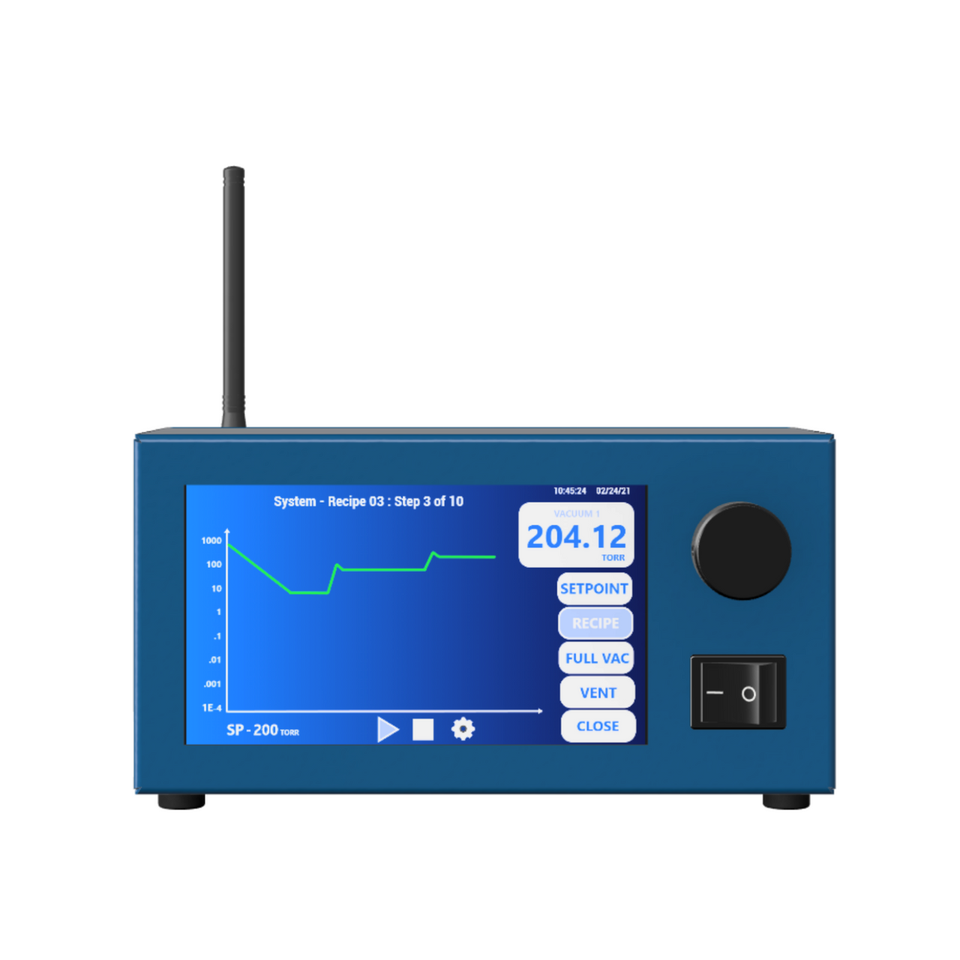

- Numerical readings right on the LCD screen and one touch buttons: VENT, CLOSE (isolate, close all valves) and FULL VAC (fully opens the valve for vacuum pump and closes the vent valve)
- Analog out, 0-10 volts DC Analog in
- Onboard Recipe Control: The SNAP can have up to 8 individual steps in the recipe screen, time in any step can be up to 999 minutes in duration. We can ramp or hold….Ramp is work our way up to the setpoint gradually, hold is just “get there” and stay.
SNAP Vacuum Controller Wetted Material:
- Stainless steel (304) wetted surfaces
- Vacuum Flange: KF25
- Measurement and Control Range: 1 Torr to 775 Torr (standard)
- Need millitorr range?: SNAP has a RJ45 Port for adding an additional sensor to extend the measurement range. We recommend the addition of the DCP Quantum to be able to monitor and control from 0.01 Torr to 1000 Torr.
Product Demonstration Videos
SNAP Controller Hardware
- How to Connect our SNAP Vacuum Controller
- DigiVac SNAP Controller on an Ai Vacuum Oven
- How to Set Up the DigiVac SNAP Controller to a Vacuum Oven
- Vacuum Drying: Polymers
- SNAP Controller Overview
SNAP Controller Software
- DigiVac Snap Controller Homescreen Feature Overview
- How Recipes Work on the SNAP Controller
- Setting Up a Recipe on the SNAP Controller
- The Five Modes on the DigiVac SNAP Controller
Downloads
- User Manual
- Data Sheet
- Quick Start Guide
- Cleaning Guide
- Drying Recipes
- SNAP| Vacuum Oven QS
- DV Cup Cheat Sheet
- SNAP| External Sensor QS
- SNAP| Analog in/out Demo sheet
Technical Specifications
Range of Control: 2 Torr to 760 Torr
Accuracy/ Control:+/- 5% of reading
Time to Convergence Within 5% after disturbance: <30 seconds
Integral Sensor: Isolated Piezo sensor | SEN-775i
- Integral Sensor Accuracy:+/- 2 Torr
- Integral Sensor range: 1-775 Torr
- Integral Sensor wetted materials: 316 Stainless steel, Isolated
Vacuum Path Orifice: Minimum orifice of 20 mm
Minimum Bleed Valve Orifice: 10 mm
Set-Points: Quickly dial in set-points with control knob, START, STOP, Vent or Isolate the System

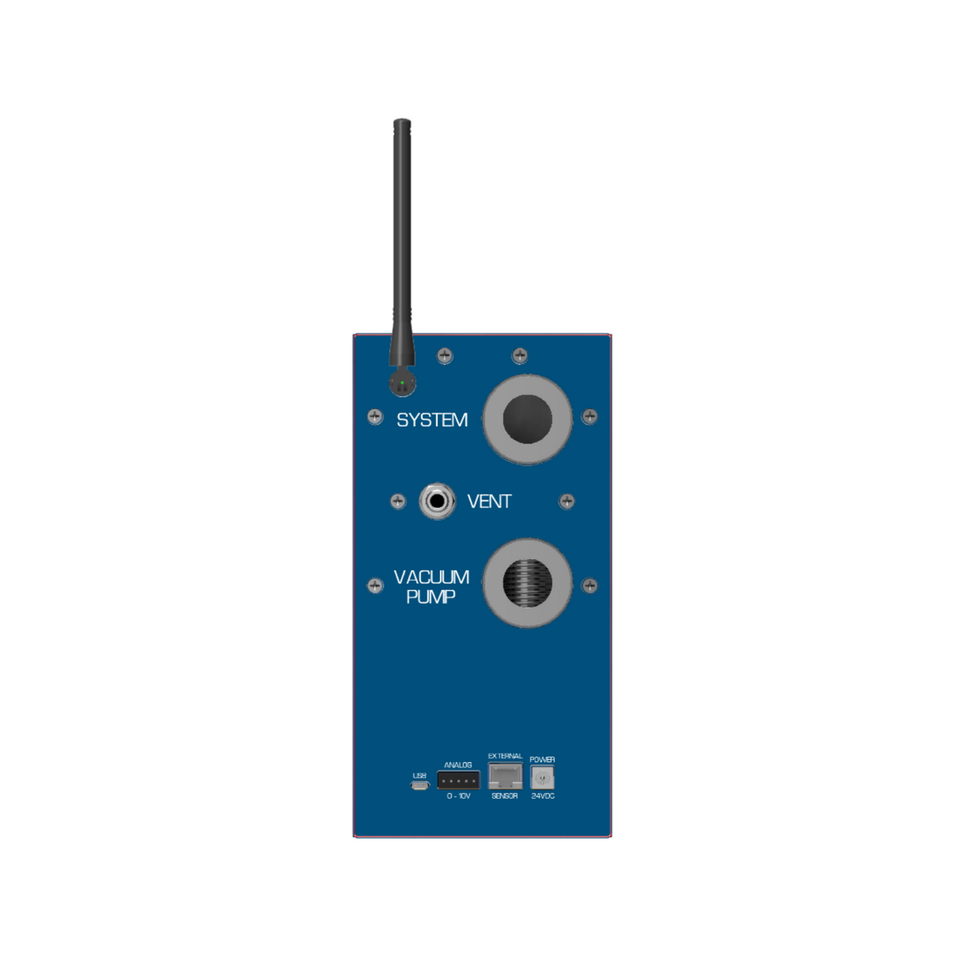

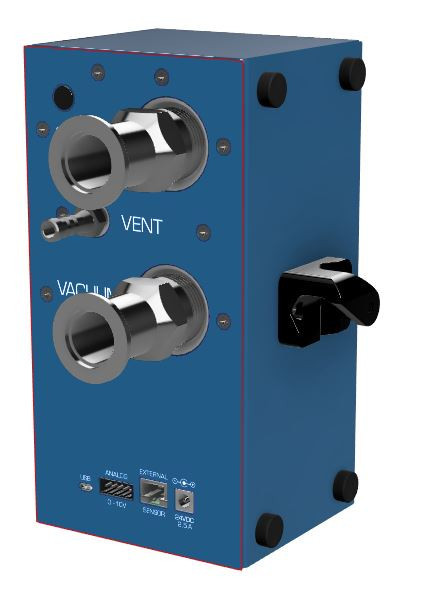

Vacuum Fittings: KF25 (NW25)
Power: Auto sensing 110 V / 220 V 50/60 Hz power supply
Novel Vacuum Control: proportional throttle and proportional bleed control (vent to atmosphere) delivered from an integral dual valve module
Output: Ability to be controlled remotely via USB for integration into larger systems
Recipes: Ramp Vacuum Controller: Program ramps and holds vacuum at different a duration and vacuum level
Enclosure: 12″ deep x 10.25″ wide x 5.25″ high
Weight: SS; 13 pounds, Al; 9 pounds
Certifications: Built to CE standards, RoHS
