Description

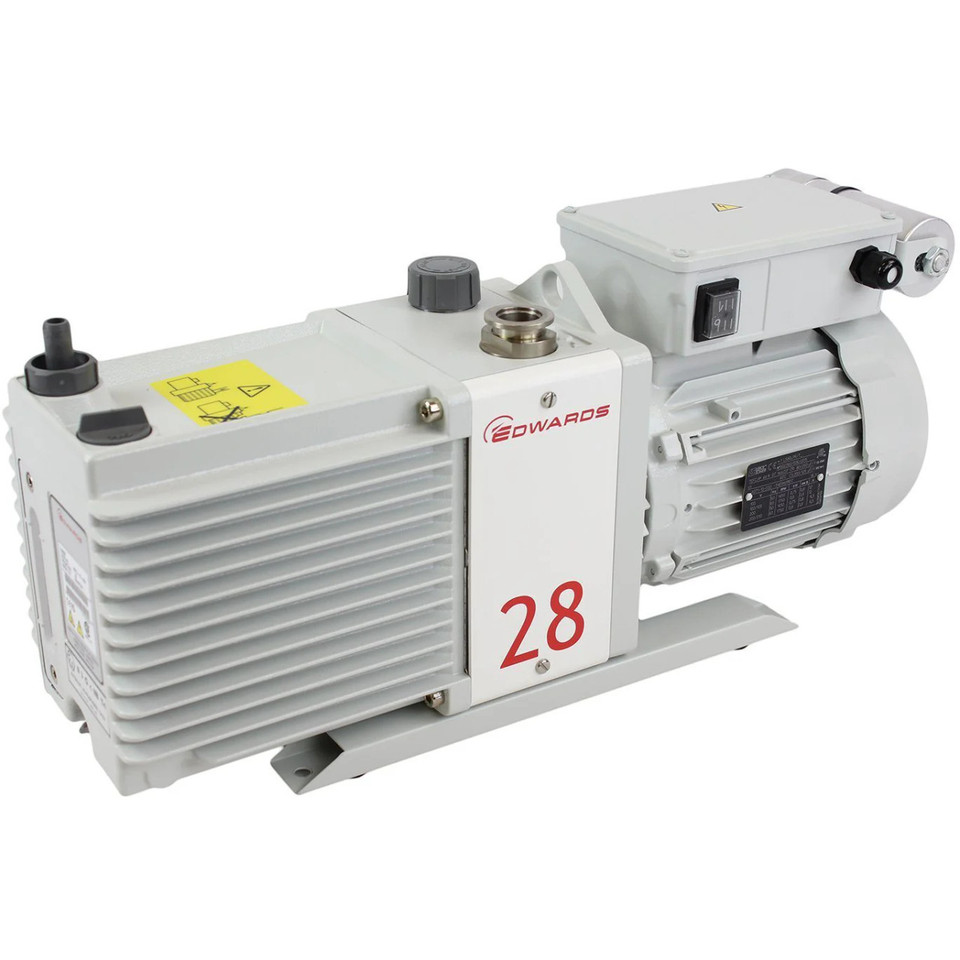

E2M28 Two-Stage Rotary Vane Vacuum Pump | 21 CFM, 0.75 mTorr

The E2M series is a family of rugged, oil-sealed two-stage rotary vane pumps engineered for reliability and quiet operation. With speeds from 0.7 to 275 m³/hr (30–206 CFM), these compact pumps feature advanced lubrication circuits, wide-voltage motors, and a comprehensive range of accessories to fit scientific and industrial workflows.

Ideal for laboratory and R&D use, models such as E2M0.7–2.5 and E2M28 pair perfectly with turbomolecular pumps. For industrial duty, E2M18/28, E2M40/80, and E2M175/275 deliver robust, continuous performance in demanding applications.

This configuration offers up to 21 CFM (60 Hz), 0.75 mTorr ultimate vacuum, and simple integration via DN25 ISO-KF inlet and 15 mm / 3/4" BSPP outlet. Forced-air cooling keeps noise to just 57 dB(A).

Some variants require hard-wiring in the electrical box. Verify regional mains requirements before installation.

21 CFM @ 60 Hz Ultimate 0.75 mTorr IP44 • IE2 Motor DN25 ISO-KF Inlet

High performance: Up to 19.42 CFM with deep 0.75 mTorr ultimate vacuum for consistent results.

Built-in reliability: Advanced oil circuit, gas ballast for vapor handling, and low 57 dB(A) noise.

Plug-and-play I/O: DN25 KF inlet, 15 mm / 3/4" BSPP outlet, wide-voltage 1-Ph 100/200V motor.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Setup & Maintenance Guide Maintenance Kit

Why this E2M28 rotary vane pump?

Large vapor handling — integrated gas ballast and optimized exhaust reduce oil contamination.
Wide-voltage motor — 1-Ph 100/200V, 50/60 Hz operation covers all major regions.
Easy service — O-ring sealed sight glass for quick oil checks; forced-air cooling ensures low surface temps.
Quiet, compact power — up to 19.42 CFM with just 57 dB(A) noise in a small footprint.
Ready for lab & industry — DN25 KF inlet, 15 mm / 3/4" BSPP outlet, IP44, IE2 motor class.

Talk to an expert

Get sizing help, oil volume guidance, and gas-ballast configuration for your process.

Call 734-855-4890

Technical Specifications

Model	E2M28 Two-Stage Oil Rotary Vane Vacuum Pump
Inlet / Outlet	DN 25 ISO-KF (NW25) inlet / Hose Nozzle 15 mm, 3/4" BSPP (G 3/4") female outlet
Power / Phase	1-Ph 100/200V, 50/60 Hz; 900 W @ 60 Hz, 750 W @ 50 Hz
Electrical Connection	Hard-wiring in pump electrical box (regional mains cable not included)
Pumping Speed (60 Hz)	21 CFM (Air/N₂)
Pumping Speed (50 Hz)	16.19 CFM (Air/N₂)
Displacement Max (60 Hz)	22.90 CFM
Displacement Max (50 Hz)	18.95 CFM
Ultimate Pressure	0.750 mTorr (11.25 mTorr with gas ballast)
Water Vapor Handling	Capacity 1.944 × 10⁻⁴ kg/s; Water vapor pressure max 22501.85 mTorr
Nominal Rotational Speed	24.00 Hz (50 Hz), 28.67 Hz (60 Hz)
Cooling / Noise	Air Cooling (forced fan) / 57.00 dB(A)
Protection / Motor	IP44 enclosure; IE2 motor efficiency; Certifications: UL, CSA
Size & Weight	0.611 m (L) × 0.180 m (W) × 0.271 m (H); 44.00 kg
Ambient / Storage	Operation 286.15–313.15 K; Storage 243.15–343.15 K; Altitude ≤ 2000 m
Oil Type / Capacity	ULTRAGRADE™ Performance 19; Oil capacity 1.200×10⁻³–1.500×10⁻³ m³ (≈1.2–1.5 L)
Materials (Vacuum-Wetted)	High grade cast iron (rotor/stator), cast aluminium, fluorocarbon & nitrile elastomers, silicon, chemically resistant polymers, nickel, stainless steel
Accessories / Scope	Mains cable not included; some variants must be hard-wired; choose gas ballast & exhaust filters to match application

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What connections does the pump use?

It features a DN25 ISO-KF (NW25) inlet and a 15 mm hose nozzle with 3/4" BSPP female outlet for easy integration.

What oil is recommended and how much?

Use ULTRAGRADE™ Performance 19. Typical capacity is about 1.2–1.5 L depending on operating conditions.

How loud is the E2M28 pump?

Rated noise level is approximately 57 dB(A) with forced-air cooling for low surface temperatures.

What are the operating limits?

Ambient operating range is 286.15–313.15 K (approx. 13–40 °C), storage 243.15–343.15 K, and altitude up to 2000 m.
