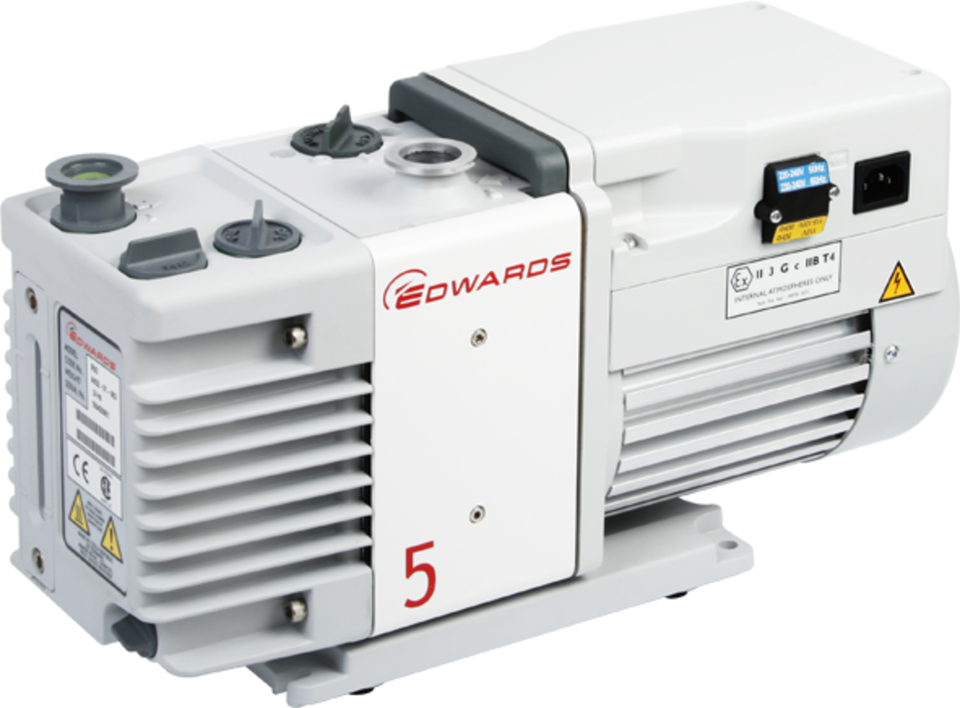

Name: Edwards RV5 3.6 CFM Two-Stage Rotary Vane Vacuum Pump, 115/230V, 1-Ph, - Factory Set 115V
Brand: Edwards
SKU: ED-A65301906
Price: 4999.0 USD
Availability: InStock

Description

Edwards RV5 3.6 CFM Two-Stage Rotary Vane Vacuum Pump, 115/230V 1-Ph | USA Lab

The Edwards RV5 is a compact, oil-sealed two-stage rotary vane vacuum pump delivering up to 3.6 CFM at 60 Hz for reliable rough vacuum and backing applications. Built on decades of Edwards vacuum engineering, the RV5 combines strong pumping performance, excellent ultimate pressure, and effective vapor handling for demanding laboratory and industrial workflows.

The Edwards RV5 features a fast-acting automatic inlet valve for anti-suckback protection, a universal 115/230V single-phase motor factory set to 115V, and a two-position gas ballast system. These features help protect connected equipment while allowing users to optimize pump operation for different vapor loads and process conditions.

Each Edwards RV5 ships with an initial charge of ULTRAGRADE™ Performance 19 oil. Polymer blades, self-aligning components, and serviceable shaft seals support straightforward maintenance and reduced downtime across applications such as mass spectrometry, electron microscopy, rotary evaporation, glove boxes, R&D chambers, and turbomolecular pump backing.

Two-Stage Rotary Vane 3.6 CFM @ 60 Hz 1.5 × 10^-3 Torr Ultimate Pressure 115/230V 1-Phase

Performance: Up to 3.6 CFM at 60 Hz with strong ultimate pressure for reliable roughing and backing.

Vapor Handling: Two-position gas ballast and high water-vapor tolerance support wet-load applications and process throughput.

Protection: Fast-acting automatic inlet valve provides anti-suckback protection to help safeguard connected instruments and systems.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why choose the Edwards RV5?

High vacuum performance — two-stage rotary vane construction delivers strong ultimate pressure for rough vacuum applications and backing duties.
Automatic anti-suckback protection — the fast-acting inlet valve helps protect connected equipment when the pump is stopped.
Optimized vapor handling — two-position gas ballast helps manage vapor loads and reduce condensation in the pump oil.
Universal electrical compatibility — 115/230V single-phase operation supports flexible installation, with this unit factory set to 115V.
Service-friendly construction — polymer blades, self-aligning components, and serviceable shaft seals simplify routine maintenance.

Talk to an expert

Get sizing help, application guidance, and integration support for mass spectrometry, electron microscopy, coating, rotary evaporation, turbo backing, and other vacuum applications.

Call 734-855-4890

Technical Specifications

Specification	Details
Model	Edwards RV5
Pump Type	Two-Stage Oil-Sealed Rotary Vane Vacuum Pump
Peak Pumping Speed at 60 Hz	3.6 CFM
Peak Pumping Speed at 50 Hz	5.1 m³/h
Ultimate Pressure at 60 Hz	1.5 × 10^-3 Torr
Ultimate Pressure at 50 Hz	2.0 × 10^-3 mbar
Ultimate Pressure with Fomblin	1.5 × 10^-2 Torr at 60 Hz; 2.0 × 10^-2 mbar at 50 Hz
Gas Ballast I Ultimate Pressure	2.3 × 10^-2 Torr; 3.0 × 10^-2 mbar
Gas Ballast II Ultimate Pressure	9.1 × 10^-2 Torr; 1.2 × 10^-1 mbar
Water Vapor Tolerance	38 Torr (50 mbar)
Water Vapor Capacity GB I	60 g/h
Water Vapor Capacity GB II	220 g/h
Motor Rating	550 W nominal, 1-phase at 60 Hz; 450 W at 50 Hz
Nominal Rotation Speed	1,800 RPM at 60 Hz; 1,500 RPM at 50 Hz
Power Supply	115/230V, 1-phase, 50/60 Hz; factory set to 115V
Inlet Flange	NW25
Exhaust Flange	NW25
Weight	55 lb (25 kg)
Oil Capacity and Type	0.7 L; ULTRAGRADE™ Performance 19

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right vacuum equipment for your application.

Call 734-855-4890 Email Sales/Support

FAQ

What is the pumping speed of the Edwards RV5?

The Edwards RV5 delivers a peak pumping speed of 3.6 CFM at 60 Hz and 5.1 m³/h at 50 Hz, making it suitable for roughing and vacuum backing applications.

Does the Edwards RV5 include vacuum pump oil?

Yes. The Edwards RV5 ships with an initial charge of ULTRAGRADE™ Performance 19 oil. The pump has an oil capacity of approximately 0.7 L.

Can the Edwards RV5 be operated with gas ballast?

Yes. The RV5 features a two-position gas ballast system with GB I and GB II settings. Gas ballast helps improve vapor handling and reduce condensation during wet-load applications.

What voltage does the Edwards RV5 require?

The Edwards RV5 uses a 115/230V single-phase, 50/60 Hz motor. This unit is factory set to 115V and should be configured appropriately for the intended electrical supply before operation.
