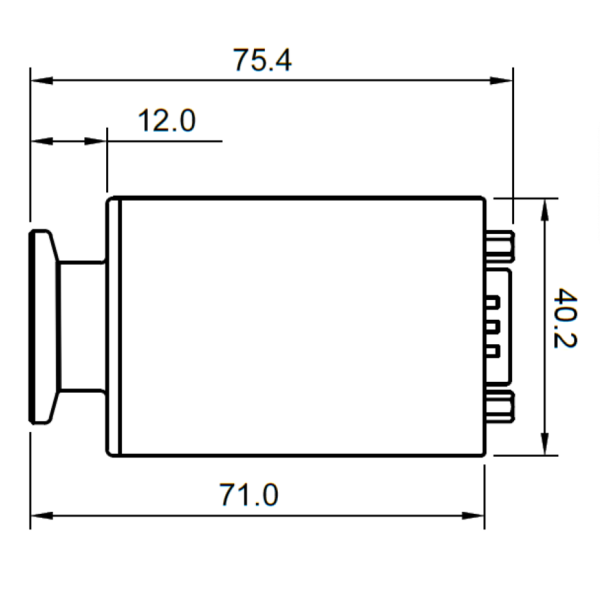

Name: DPCP Quantum | TriSENS Vacuum Sensor, Pirani & Capacitive Piezo 7.5x10-6 to 1000 Torr
Brand: Digivac
SKU: DIGI-SEN-DPCP-14301127-CER
Price: 1429.09 USD
Availability: InStock

Description

** THIS ITEM IS DROP SHIPPED FROM OUR SUPPLIER, PLEASE CALL FOR LEAD TIME**

The Digivac TriSENS vacuum sensor delivers deep and wide vacuum measurement + process control + overpressure indication all in one gauge where multiple gauges were required before. Range: 7.5×10-6 to 1000 Torr

DPCP Quantum | TriSENS Vacuum Sensor

The Digivac TriSENS Vacuum Sensor Delivers High Vacuum Measurement + Process Control + Overpressure Indication All in One

Deep & Wide Vacuum Measurement

Highly accurate direct pressure measurement down to 10 microns (.01 Torr) combined with high vacuum measurement down to 10-6

Measurement range: 7.5×10-6 to 1000 Torr

Accuracy Specifications:

1000 Torr to .001 Torr = +/- 3%

.0001 Torr to 10-6 Torr = +/- 20%

Contamination Containment

Integrated baffle helps protect sensor elements from particulate contamination and increase its longevity

Visual Process Indicator

Multi-color LEDs to indicate pressure range. Includes a bright yellow overpressure indicator to help you avoid system damage. This is very useful when not using a display controller

The DPCP Quantum | TriSENS Vacuum Sensor establishes new standards with an all-in-one wide range measurement solution for a wide selection of vacuum applications. This transducer is an overall cost-effective solution with an ultra-wide 9 decade range that includes 5 decades of gas independent measurement. The Digivac TriSENS: Quantum Pirani, Capacitance, Piezo all-in-one gauge

Advantages

Deep & wide measuring range of 9 decades delivered by an all-in-one gauge that combines pirani,
capacitance manometer, and piezo technology
6 decades of gas independent measurement| 5×10^-3 to 1333 mbar
Reliable solid-state relay for process control
0-10V for PLC Input
LED Color Pressure Indicator
Robust ceramic capacitance diaphragm gauge
Mountable in any orientation without impact on performance

Applications

PVD Coating Equipment
Freeze Drying endpoint detection
Load lock control
Mass Spectrometry
Scanning electron microscopy
Semiconductor
Research
Vacuum pump service
Heat treatment, Vacuum furnaces

Why is the Quantum Gauge Series a Quantum Leap for Vacuum Measurement?

The Quantum Gauge Series is a quantum leap in simplicity and range for vacuum gauging. Smart pairings of sensor technologies that deliver what people really need.

All-in-one, highly accurate wide range vacuum measurement at a cost-effective price point.

Other DigiVac Quantum Gauge Series Options: DPP SmartSENS, DCP DuoSENS

Vacuum Gauge comparison chart

Downloads

Data Sheet

Operation Manuel

Data
Measuring Range	1×10-5 to 1333 mbar (7.5×10-6 to 1000 Torr)
Measuring principle 1×10-6 to 1×10-3 mbar	MEMS Pirani thermal conductivity
Measuring principle 5×10-3 to 3.99 mbar	Capacitance manometer
Measuring principle 6 to 1333 mbar	MEMS piezo diaphragm
Measurement Accuracy (Torr)
From	To	Accuracy
7.5×10-6	7.5×10-5	50%
7.5×10-5	7.5×10-3	20%
7.5×10-3	1000 Torr	3%

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Specifications

Measurement range:	7.5×10-6 to 1000 Torr
Accuracy Specifications:	1000 Torr to .001 Torr = +/- 3%

Warranty

Warranty Policy

Every gauge that leaves DigiVac is tested under actual vacuum and calibrated against a NIST standard. We warranty all gauges for workmanship and function for 1 year.* Each vacuum instrument has a serial number, which allows us to track the age of the gauge. Any gauge will be repaired and returned free of charge for any defects in workmanship or function, FOB Morganville, NJ.

Any gauge that becomes damaged (for example: tube contaminated, flashback or physical damaged) may be returned to DigiVac for repair at a time and materials rate. Please contact Digivac with a request for Return and an RMA number will be issued. A decontamination form will also need to be filled out.

Note: Sensors (also known as tubes or probes) are not covered under this manufactures warranty. These are classified as consumables.

Customers are responsible for handling shipping charges to and from our facility in New Jersey.
