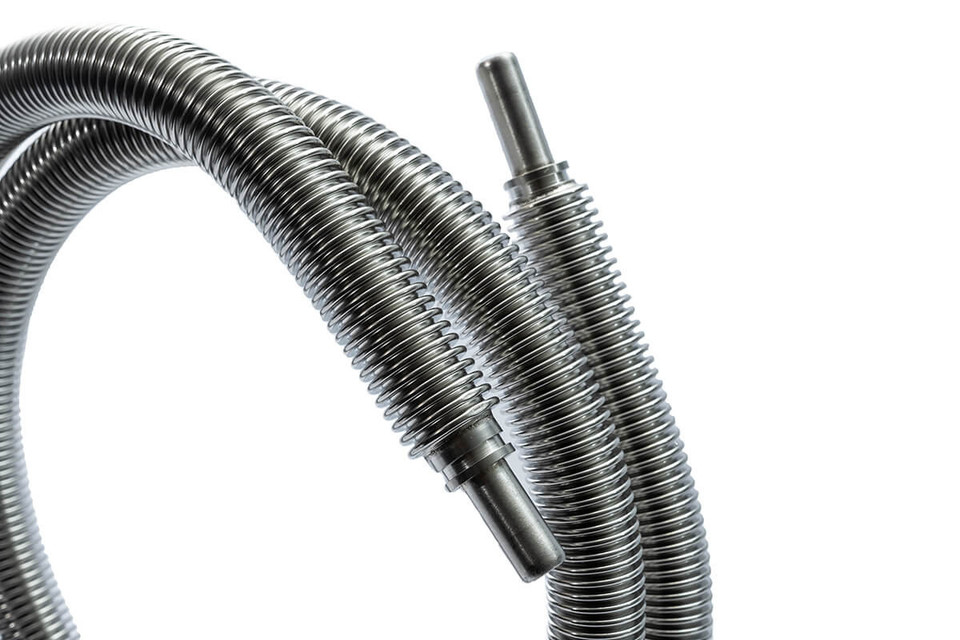

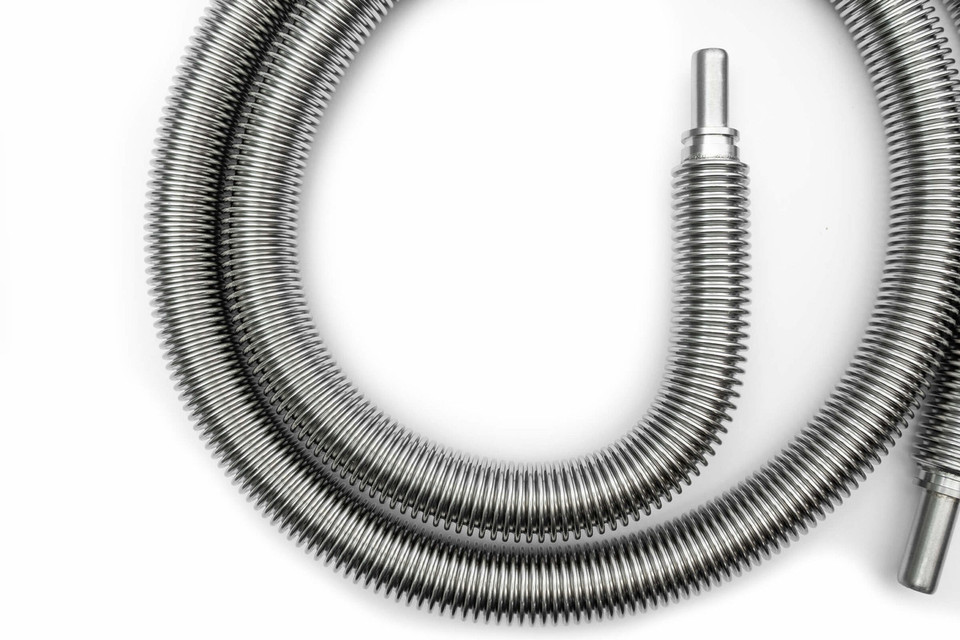

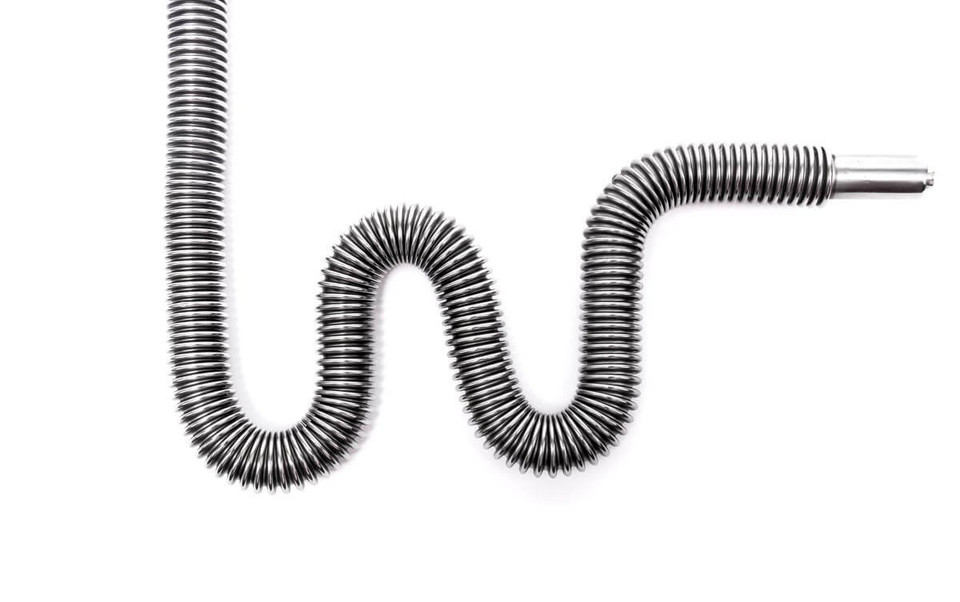

USA Made 3/8" Vacuum Jacketed Hose for Cryogenic and High Temperature Applications - Insulon

The USA Made 3/8" Vacuum Jacketed Hose by Insulon is designed for low-pressure cryogenic and high-temperature fluid transfer applications where thermal insulation and flexible connections are important. Its vacuum-jacketed construction helps improve thermal performance across demanding temperature ranges.

The Insulon Hose LP 3/8" ID operates from -270°C to 815°C (-454°F to 1500°F) and has a 72 psi maximum allowable working pressure at 23°C (73°F). This combination makes it suitable for low-pressure transfer systems that require insulation across extremely cold and high-temperature operating conditions.

Available in 36", 48", 60", 72", and 96" lengths, this hose provides flexible installation options for laboratory, processing, cryogenic, and high-temperature fluid-transfer systems. The hose uses 316L stainless steel construction with a corrugated bore and a 3/8" tube fitting outer diameter.

3/8" ID -270°C to 815°C 316L Stainless Steel 72 PSI MAWP

Wide Temperature Range: -270°C to 815°C (-454°F to 1500°F) — supports both cryogenic and high-temperature transfer applications.

Vacuum-Jacketed Design: Insulon Hose LP construction — helps improve thermal performance and reduce unwanted heat transfer during fluid transfer.

Low-Pressure Operation: 72 psi MAWP at 23°C (73°F) — designed for low-pressure applications where insulated transfer is required.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Insulon 3/8" Vacuum Jacketed Hose?

Vacuum-jacketed insulation — supports thermally efficient transfer for cryogenic and high-temperature fluids.
Extremely broad operating range — rated from -270°C to 815°C (-454°F to 1500°F).
Low-pressure configuration — 72 psi maximum allowable working pressure at 23°C (73°F).
316L stainless steel construction — provides a durable material for demanding fluid-transfer environments.
Flexible length selection — available in 36", 48", 60", 72", and 96" configurations.

Talk to an expert

Get product guidance, application support, and compatibility information for your cryogenic or high-temperature fluid-transfer setup.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Made 3/8" Vacuum Jacketed Hoses for Cryogenic and High Temperature -Low Pressure - Insulon
SKU	IVJH-38
Brand	Insulon
Product Type	Vacuum Jacketed Hose
Hose Inner Diameter	3/8"
Fitting Outer Diameter	3/8" Tube
Available Lengths	36", 48", 60", 72", and 96"
Hose Outer Diameter	1.27 in.
Overall Wall Thickness	0.035 in.
Operating Temperature (°C)	-270°C to 815°C
Operating Temperature (°F)	-454°F to 1500°F
Material	316L Stainless Steel
Pressure Class	Low Pressure
Maximum Allowable Working Pressure	72 psi (4.96 bar) at 23°C (73°F)
Static Bend Radius	3.33 in.
Insulation Design	Vacuum Jacketed
Hose Design	Insulon Hose LP
Bore Type	Corrugated
Configuration	Made-to-Order Hose Assembly

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right hose configuration for your application.

Call 734-855-4890 Email Sales/Support

FAQ

What is the operating temperature range of the USA Made 3/8" Vacuum Jacketed Hose?

The USA Made 3/8" Vacuum Jacketed Hose by Insulon is rated for an operating temperature range of -270°C to 815°C (-454°F to 1500°F).

What is the maximum allowable working pressure of the 3/8" Insulon Hose LP?

The 3/8" Insulon Hose LP has a maximum allowable working pressure of 72 psi (4.96 bar) at 23°C (73°F). Pressure derating should be considered for operation at elevated temperatures.

What lengths are available for the USA Made 3/8" Vacuum Jacketed Hose?

The hose is available in 36", 48", 60", 72", and 96" length configurations, allowing users to select a length appropriate for their installation.

What is the construction of the USA Made 3/8" Vacuum Jacketed Hose?

The hose uses 316L stainless steel construction with a vacuum-jacketed design, a corrugated bore, a 1.27-inch hose outer diameter, and a 0.035-inch overall wall thickness.
