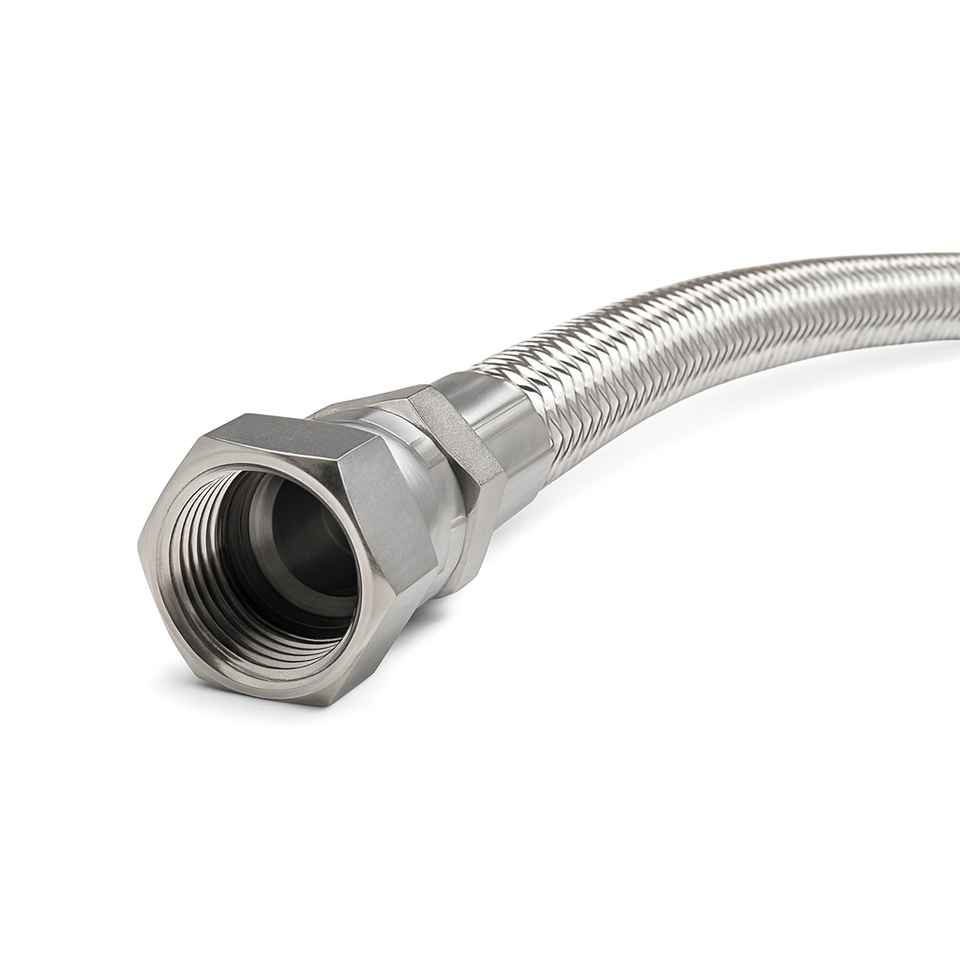

USA Made 3/8" 37° JIC Stainless Steel Hose




Brand :

$110.00 - $175.00
SKU:
USAJICHOSE38
Condition:
New
Model:
HOSE
MPN:
USAJICHOSE38
Brand:
USA Lab
Intended Use/Discipline:
Endodontics

Our USA Made 37° Degree Female hosing is made of high quality materials that are built to last. Our USA Made hosing is constructed of a black carbon static dissipate Teflon hose. The smooth bore hose is constructed of an extruded inner-core of carbon black static dissipative PTFE with type 304 stainless steel wire braid reinforcement. The braid acts as a pressure carrier and protective covering. This smooth bore hose is found in many of the toughest service applications, handling “problem” fluids such as acids, solvents, fuels, and chemicals of all types.



  Don't cheap out when it comes to hosing. Upgrade today and see the difference of our high quality USA Made hose.






3/8" Specification

Connection

3/8" 37° Female JIC Swivel

Liner Material

PTFE (Teflon)

Braid Material

304 Stainless Steel

Maximum Working Pressure

2500 PSI

Minimum Burst Pressure

10000 PSI

Minimum bend Radius

3.9"

Temperature Rating

-65° F (-54°C) to +450°F (+230°C)

Actual ID

.32"

Actual OD

.40"





Application

Chemical and Acid Transfer

Pharmaceuticals

Food Products

Steam Lines/Tire Presses

High Temperature Hydraulic/

Air Applications

Pulp and Paper

Fuel and Lubricant

Glass Manufacturing

Waste Water or Slurry 1




Benefits

High working and burst pressures.

Most economical of all hoses lined with PTFE

The low-friction surface of smooth bore

Hose provides for high flow rates

Easily drained and/or cleaned

Temperature Rating: 65° F (-54°C) to+450°F (+230°C)







For Technical Support, Questions, or Other Issues Please Email or Call Us!






Model:
HOSE
MPN:
USAJICHOSE38
Brand:
USA Lab
Intended Use/Discipline:
Endodontics
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
