USA Made 3/8" Vacuum Jacketed Hoses for Cryogenic and High Temperature -Low Pressure - Insulon
Insulon TechnologyIVJH-38$311.00 - $564.00 -
-
Description

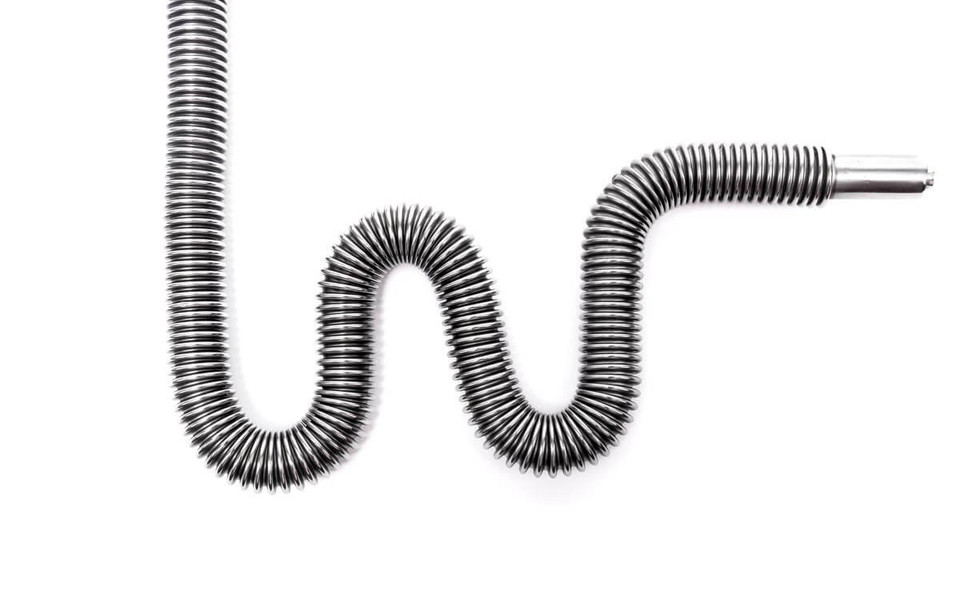

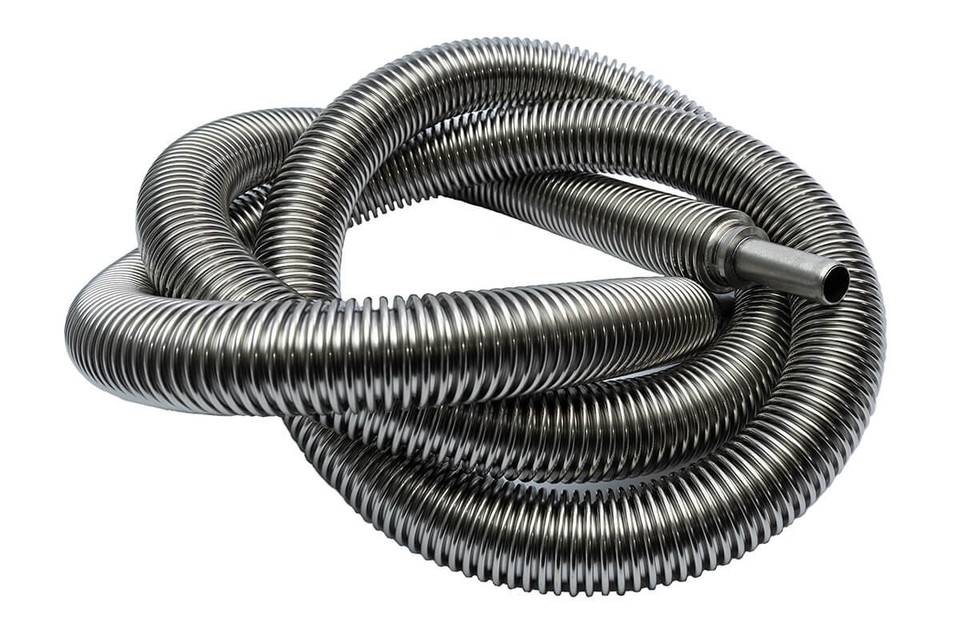

USA Made 1/2" Vacuum Jacketed Hoses for Cryogenic and High Temperature - Low Pressure - Insulon
The USA Made 1/2" Vacuum Jacketed Hose by Insulon is engineered for low-pressure cryogenic and high-temperature fluid transfer applications. Its vacuum-jacketed construction provides thermal insulation that can help reduce condensation in cryogenic service and minimize heat loss in high-temperature transfer systems.
Designed for demanding temperature environments from -270°C to 815°C (-454°F to 1500°F), the Insulon Hose LP provides a compact and flexible transfer solution for applications where thermal performance and controlled fluid transfer are important. The hose uses 316L stainless steel construction and is designed for low-pressure service.
The 1/2" Insulon Hose LP has a maximum allowable working pressure of 72 psi (4.96 bar) at 23°C (73°F). Available in 36", 48", 60", 72", and 96" lengths, the hose assembly can be configured with selected end fittings to suit the intended installation.
1/2" Tube -270°C to 815°C 316L Stainless Steel 72 PSI MAWP at 23°C
Wide Temperature Range: -270°C to 815°C (-454°F to 1500°F) — supports both cryogenic and high-temperature transfer applications.
Vacuum-Jacketed Insulation: Insulated hose construction — helps reduce condensation during cryogenic transfer and minimize heat loss during high-temperature operation.
Low-Pressure Design: 72 psi (4.96 bar) MAWP at 23°C (73°F) — provides a cost-conscious solution for compatible low-pressure fluid transfer systems.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this Insulon 1/2" Vacuum Jacketed Hose?
- Vacuum-jacketed design — provides thermal insulation for cryogenic and high-temperature fluid transfer applications.
- Extremely broad operating temperature range — engineered for applications from -270°C to 815°C (-454°F to 1500°F).
- Low-pressure configuration — the 1/2" hose has a 72 psi MAWP at 23°C (73°F), making it suitable for compatible low-pressure systems.
- 316L stainless steel construction — provides durable material construction for demanding fluid-transfer environments.
- Multiple standard lengths — available in 36", 48", 60", 72", and 96" configurations for different installation requirements.
Talk to an expert
Get product guidance, application support, pressure information, and end-fitting compatibility assistance for your fluid-transfer system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | USA Made 1/2" Vacuum Jacketed Hoses for Cryogenic and High Temperature - Low Pressure - Insulon |
| SKU | IVJH-12 |
| Brand | Insulon |
| Product Type | Vacuum Jacketed Hose |
| Hose Inner Diameter (ID) | 1/2" |
| Fitting Outer Diameter (OD) | 1/2" Tube |
| Available Lengths | 36", 48", 60", 72", 96" |
| Hose Outer Diameter (OD) | 1.27 in. |
| Overall Wall Thickness | 0.39 in. |
| Operating Temperature (°C) | -270°C to 815°C |
| Operating Temperature (°F) | -454°F to 1500°F |
| Material | 316L Stainless Steel |
| Pressure Class | Low Pressure |
| Maximum Allowable Working Pressure (MAWP) | 72 psi (4.96 bar) at 23°C (73°F) |
| Static Bend Radius | 5.00 in. |
| Insulation | Vacuum Jacketed |
| Hose Design | Insulon Hose LP |
| Bore Type | Corrugated |
| Manufacturing | Made-to-Order |
| Application | Details |
|---|---|
| Cryogenic Fluid Transfer | Vacuum-insulated transfer for compatible cryogenic fluids |
| High-Temperature Fluid Transfer | Thermally efficient transfer for compatible high-temperature applications |
| Pressure Derating | Contact sales for pressure derating information at elevated temperatures |
| End-Fitting Configuration | Select end fittings for the hose assembly |
| Final Sale | Yes |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help determine the appropriate hose configuration for your application.
FAQ
What is the operating temperature range of the USA Made 1/2" Vacuum Jacketed Hose?
The USA Made 1/2" Vacuum Jacketed Hose is engineered for operating temperatures from -270°C to 815°C (-454°F to 1500°F), making it suitable for compatible cryogenic and high-temperature fluid-transfer applications.
What is the maximum allowable working pressure of the 1/2" Insulon Hose LP?
The 1/2" Insulon Hose LP has a maximum allowable working pressure of 72 psi (4.96 bar) at 23°C (73°F). Pressure derating should be considered for elevated-temperature applications.
What lengths are available for the USA Made 1/2" Vacuum Jacketed Hose?
The available length options are 36", 48", 60", 72", and 96". The hose assembly can also be configured with selected end fittings according to the application requirements.
What is the material and construction of the 1/2" Insulon Hose LP?
The hose uses 316L stainless steel construction with a vacuum-jacketed design. The hose has a 1.27-inch outer diameter, 0.39-inch overall wall thickness, and corrugated bore.
