Description

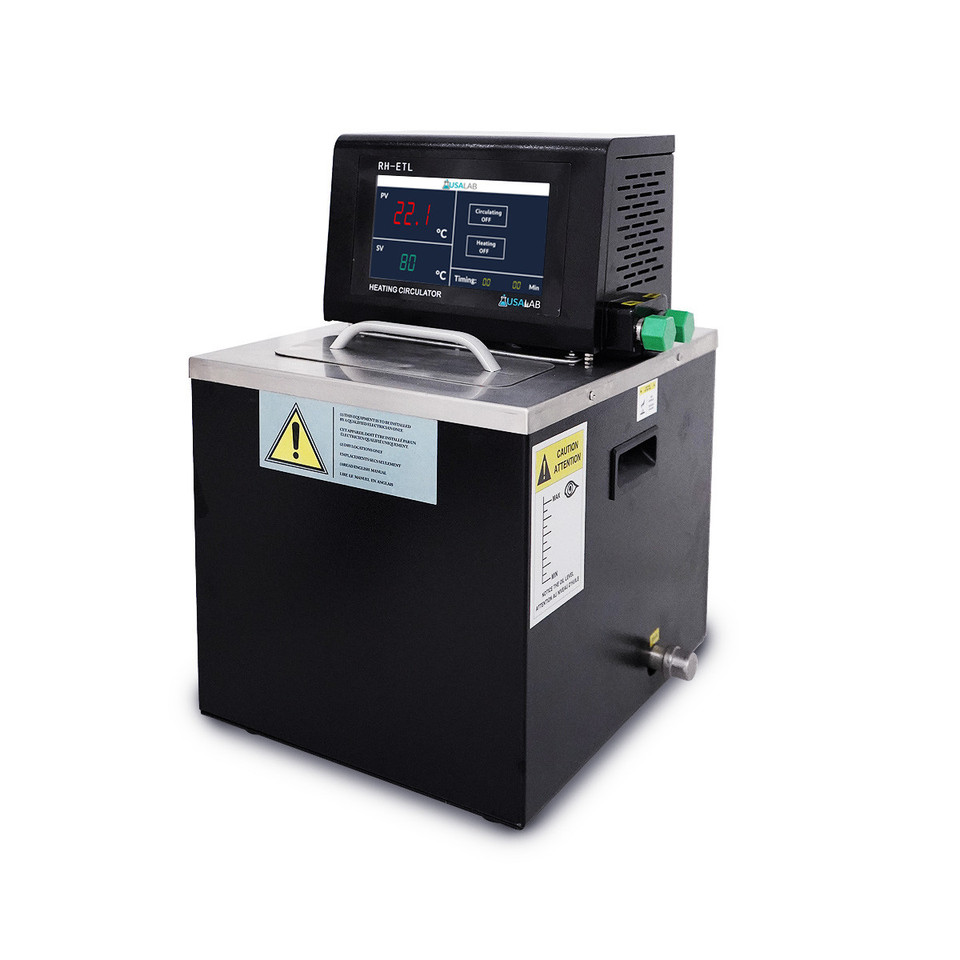

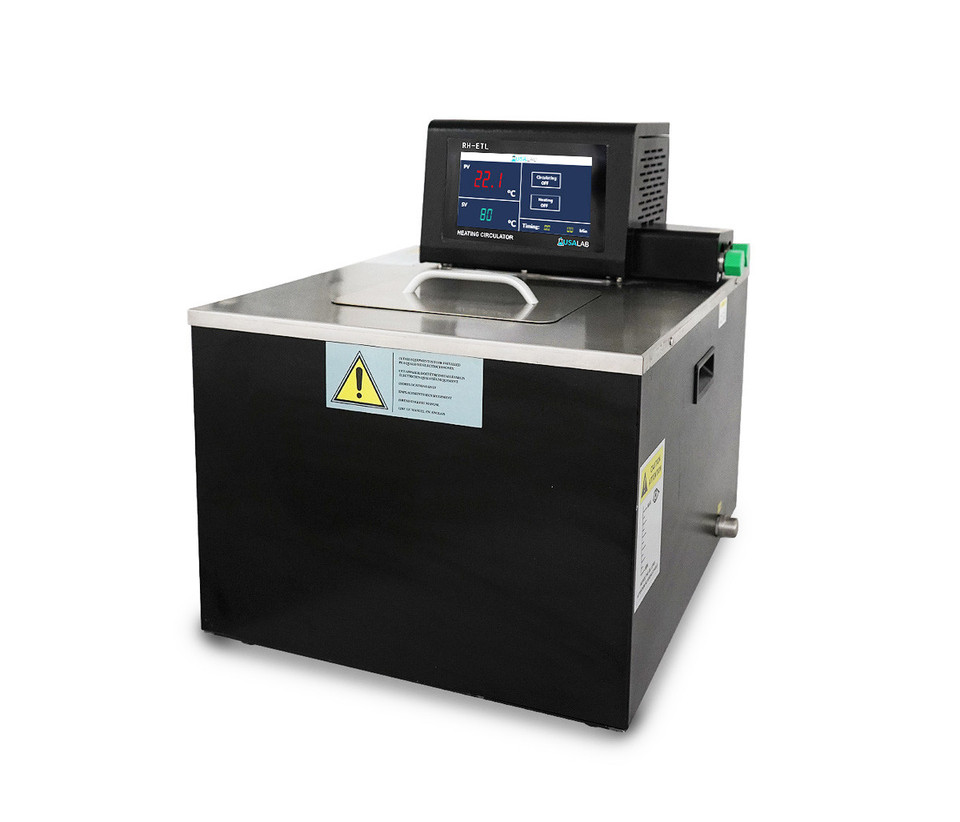

RH Series Recirculating Lab Heaters – ETL Certified | USA Lab
Our ETL certified RH Series Heaters are compact, air-cooled heating circulators engineered to heat bath fluids electrically and deliver precise, stable temperature control to reactors and process equipment. With PID control, a responsive touch screen, and a quiet DC brushless pump, the RH Series integrates seamlessly into pharmaceutical, chemical, and petrochemical workflows.
Choose from four capacities (10L, 20L, 34L, 48L) with heating power up to 8 kW and flow rates up to 68 L/min. Each unit features durable 304 stainless-steel tanks, rapid heat-up, and simple installation—no facility water loop required.
Designed for reliability and efficiency, the RH Series accelerates batch times, improves thermal uniformity, and reduces operating costs compared to water-cooled alternatives.
Notice: NOT compatible with 208V input (acceptable range 219–253 V, 60 Hz, single phase). Use appropriate heat-transfer fluids rated to the operating temperature; follow your SOPs and local codes.
ETL Certified PID Temperature Control Air-Cooled Design Max 200 °C Touch Screen UI DC Brushless Pump
Performance: Up to 200 °C setpoint with ±1 °C precision for consistent results.
Throughput: 20–68 L/min flow and 8–12 m lift to drive demanding circuits.
Power: 2–8 kW heater modules (model-dependent) for rapid heat-up.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why choose RH Series Heaters?
- ETL-certified safety — third-party tested for electrical and mechanical compliance.
- Air-cooled efficiency — no facility water loop required; lower install and operating cost.
- Accurate PID control — touchscreen interface with stable ±1 °C regulation to 200 °C.
- High flow & lift — DC brushless pump delivers 20–68 L/min and 8–12 m head for reactors and jackets.
- Built to last — 304 stainless tank, robust chassis, and serviceable components.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | RH5L-ETL | RH20L-ETL | RH30L-ETL | RH50L-ETL |
|---|---|---|---|---|
| Operating Ambient Temperature | 5–35 °C / 41–95 °F | 5–35 °C / 41–95 °F | 5–35 °C / 41–95 °F | 5–35 °C / 41–95 °F |
| Inner Tank Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Controller | Touch Screen | Touch Screen | Touch Screen | Touch Screen |
| Oil Pump Type / Power | DC Brushless · 60 W | DC Brushless · 100 W | DC Brushless · 150 W | DC Brushless · 180 W |
| Power (V/Hz) | 220 V, 60 Hz, Single Phase | 220 V, 60 Hz, Single Phase | 220 V, 60 Hz, Single Phase | 220 V, 60 Hz, Single Phase |
| Flow Setting | Knob Setting | Knob Setting | Knob Setting | Knob Setting |
| Current | 220 V / 10.0 A | 220 V / 14.2 A | 220 V / 23.9 A | 220 V / 34.6 A |
| Flow | 20 L/min | 30 L/min | 50 L/min | 68 L/min |
| Temp Range | RT–200 °C | RT–200 °C | RT–200 °C | RT–200 °C |
| Temp Precision | ±1 °C | ±1 °C | ±1 °C | ±1 °C |
| Temperature Control | PID Controller | PID Controller | PID Controller | PID Controller |
| Heating Power | 2 kW | 3 kW | 5 kW | 8 kW |
| Lift | 8–12 m | 8–12 m | 8–12 m | 8–12 m |
| Inlet and Outlet | 1/2" NPT | 1/2" NPT | 1/2" NPT | 3/4" NPT |
| Tank Capacity | 10 L / 2.64 gal | 20 L / 5.28 gal | 34 L / 8.98 gal | 48 L / 12.68 gal |
| Tank Size (L×W×H) | 8.6" × 7.1" × 10.7" | 11" × 10.7" × 10.7" | 15" × 13" × 10.7" | 17" × 13" × 13.5" |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
Is the RH Series compatible with 208V power?
No. RH Series Heaters require 220 V single-phase power within 219–253 V. They are not compatible with 208 V.
What temperature range and accuracy can I expect?
The RH Series operates from room temperature up to 200 °C with PID control and ±1 °C precision (ambient-dependent).
Does it require facility water for cooling?
No. The RH Series is air-cooled, simplifying installation and reducing water usage and maintenance.
What are the pump specs for circulation?
DC brushless pump with model-dependent output: 20/30/50/68 L/min and 8–12 m lift to reliably drive jackets and coils.
Which heat-transfer fluid should I use?
Use fluids rated to your target temperature and compatible with your materials and SOPs (e.g., silicone or synthetic thermal oils). We Recommend Caldera 7
×
