Description

OmniCore™ ETFE Lined Vessel – ASME Rated to 250 PSI | USA Lab

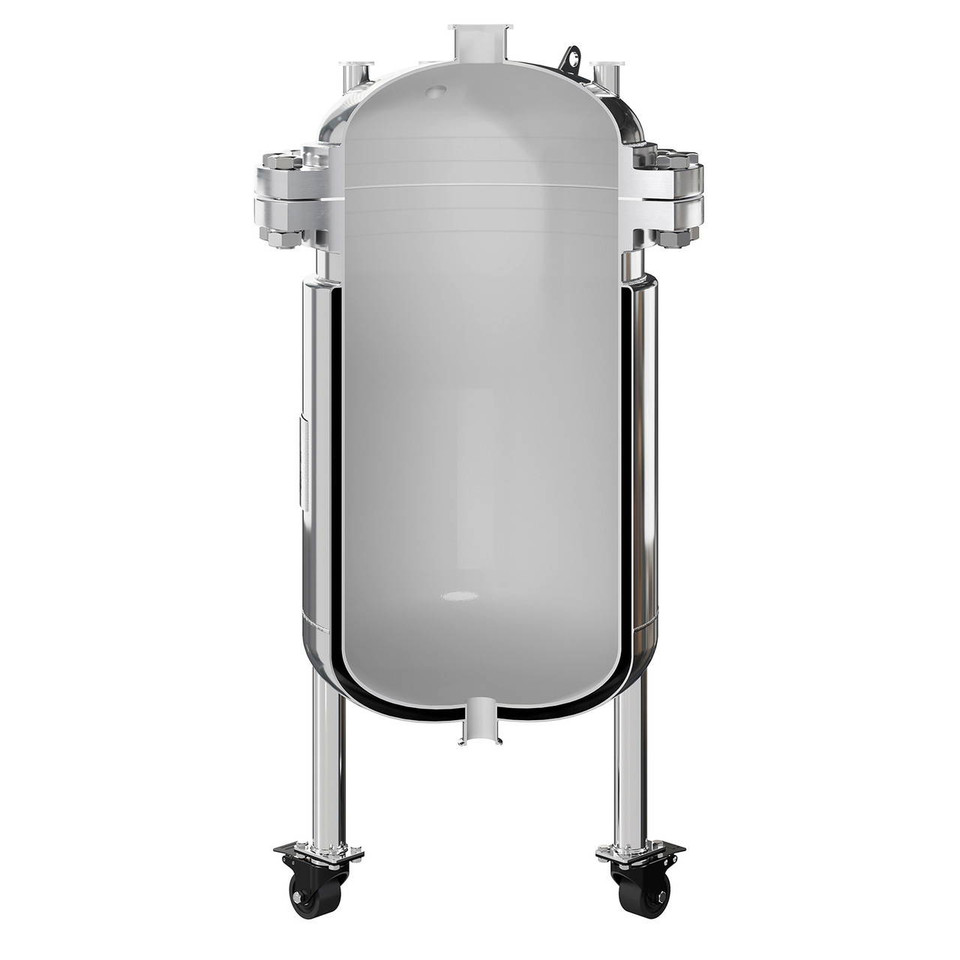

The USA Lab OmniCore™ ETFE Lined Vessel is a corrosion-resistant pressure vessel engineered for demanding chemical, solvent-heavy, and high-purity process applications. Its chemically bonded eTFE lining creates a non-stick, low-permeation barrier designed to protect the stainless-steel vessel from aggressive acids, oxidizers, chlorinated solvents, and other challenging process media.

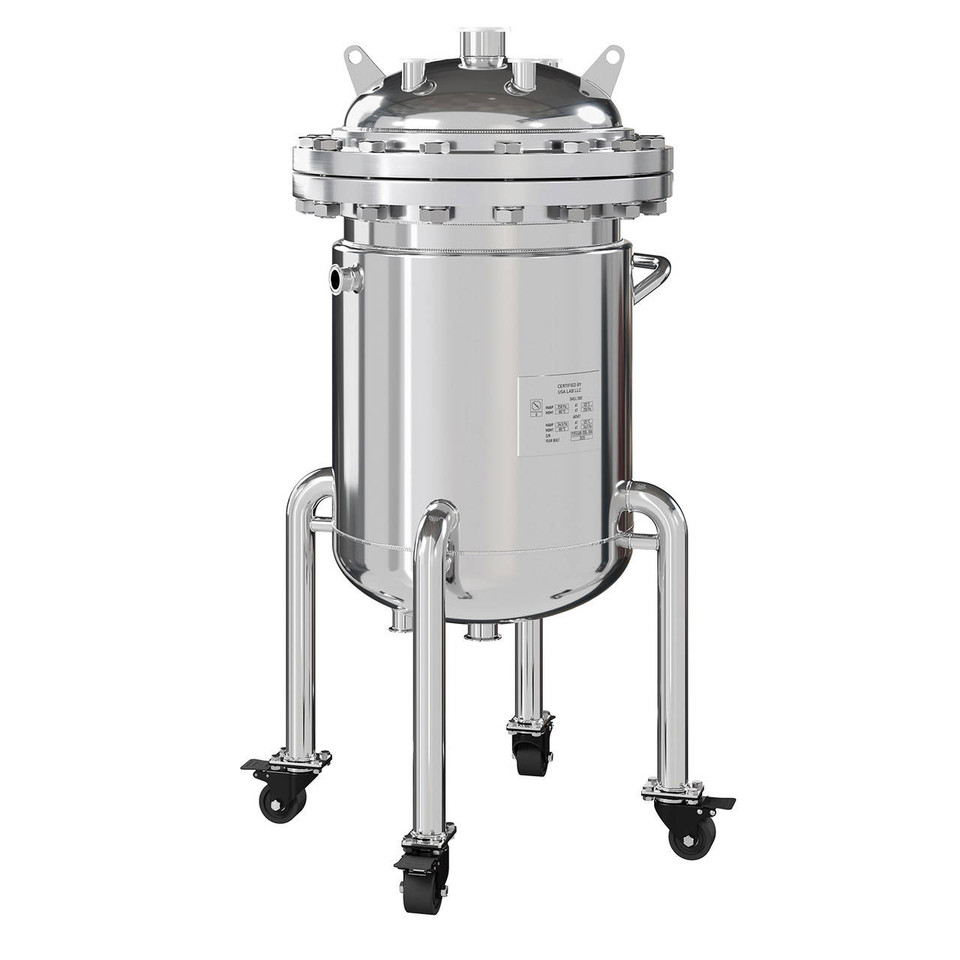

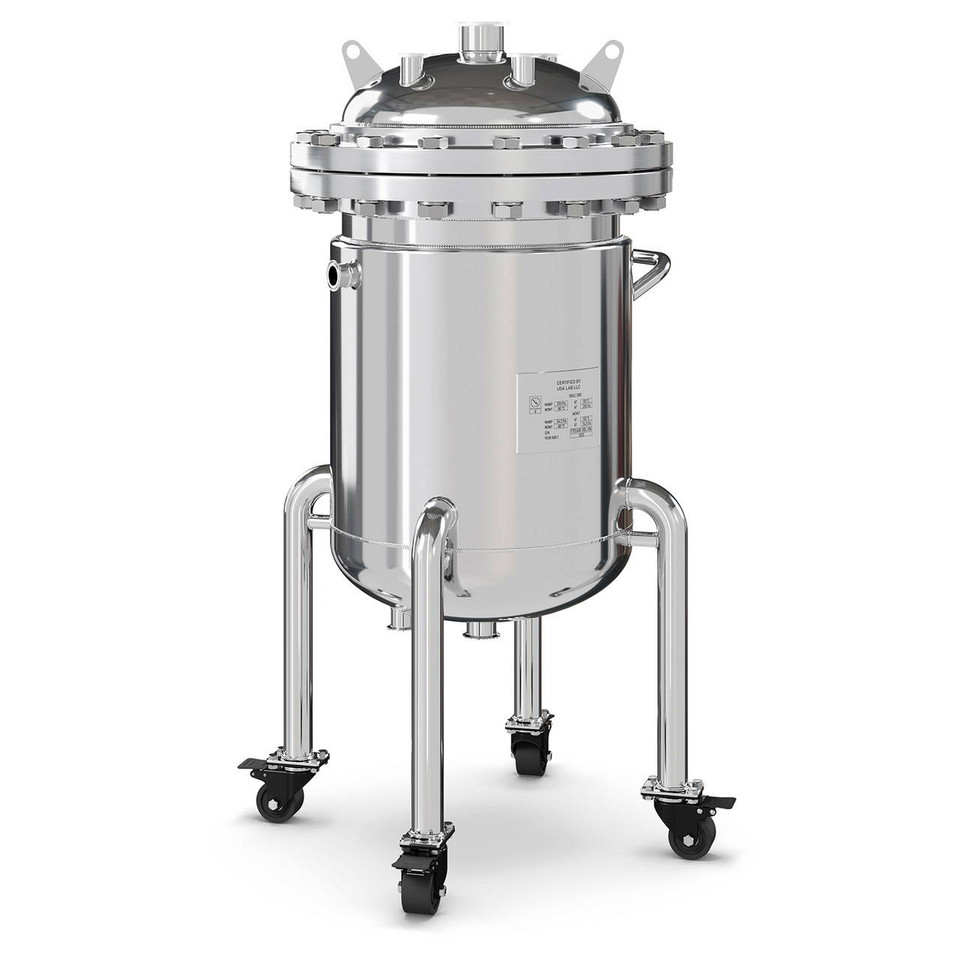

Constructed from 304 stainless steel and rated to 250 PSI at ambient temperature, the OmniCore™ vessel combines pressure capability with a smooth fluoropolymer process surface. The lined interior helps minimize product hold-up and supports efficient cleaning for applications where material purity and corrosion resistance are important.

Designed for chemical synthesis, polymerization, solvent recovery, acid handling, pilot-scale processing, and advanced R&D, the OmniCore™ ETFE Lined Vessel provides a durable containment solution for demanding process environments. Its design is compatible with CIP/SIP workflows and sanitary process requirements.

ASME Rated to 250 PSI eTFE Lined 304 Stainless Steel CIP/SIP Ready

Extreme Corrosion Resistance: Bonded eTFE lining provides inert, non-stick, low-permeation protection for aggressive process chemistries.

ASME Pressure Rating: Rated to 250 PSI at ambient temperature for demanding pressure-vessel applications.

Process Cleanliness: Smooth fluoropolymer surfaces help minimize hold-up and support efficient CIP/SIP cleaning workflows.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this OmniCore™ ETFE Lined Vessel?

Bonded eTFE barrier — provides a chemically resistant, non-stick interior for harsh acids, oxidizers, solvents, and other aggressive media.
ASME-rated pressure performance — designed and rated for reliable operation up to 250 PSI at ambient temperature.
304 stainless-steel construction — provides a durable structural body for demanding chemical processing and pilot-scale workflows.
Process purity — smooth fluoropolymer lining helps reduce product hold-up, buildup, and contamination concerns.
Serviceability — compatible with CIP/SIP cleaning workflows and sanitary process requirements.

Talk to an expert

Get sizing help, application guidance, SOP support, and integration information for your pressure-vessel workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Model	USA Lab OmniCore™ ETFE Lined Vessel
Product Name	OmniCore™ ETFE Lined Vessel – ASME Rated to 250 PSI
Vessel Type	Pressure Reaction Vessel
Body Material	304 Stainless Steel
Lining Material	eTFE (Ethylene Tetrafluoroethylene)
Lining Construction	Chemically Bonded / Thermally Fused Fluoropolymer Liner
ASME Certification	ASME Rated Construction
Pressure Rating	250 PSI at Ambient Temperature
Temperature Range	−20°F to 176°F (−29°C to 80°C)
Corrosion Resistance	Excellent Resistance to Strong Acids, Solvents, and Oxidizers
Seal Type	Chemically Resistant PTFE Gaskets or O-Rings
Lining Thickness	Typically 2–3 mm Uniform Bonded Layer
Internal Surface	Smooth eTFE Fluoropolymer
External Surface	Polished Stainless Steel
Design Purpose	Containment and Processing of Corrosive or High-Purity Materials
Cleaning Compatibility	CIP/SIP Compatible; Non-Stick Interior
Typical Applications	Chemical Synthesis, Polymerization, Solvent Recovery, Acid Handling, Pilot Plants, R&D
Process Environment	Corrosive, Solvent-Heavy, High-Purity Processing
Primary Advantages	Corrosion Resistance, Pressure Capability, Process Purity, Easy Cleaning

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right vessel for your pressure, chemistry, and throughput requirements.

Call 734-855-4890 Email Sales/Support

FAQ

What is the OmniCore™ ETFE Lined Vessel designed for?

The OmniCore™ ETFE Lined Vessel – ASME Rated to 250 PSI is designed for demanding chemical processing, including chemical synthesis, polymerization, solvent recovery, acid handling, pilot-scale processing, and advanced R&D applications where corrosion resistance and pressure capability are important.

What pressure and temperature ratings does the OmniCore™ ETFE Lined Vessel have?

The OmniCore™ ETFE Lined Vessel – ASME Rated to 250 PSI is rated to 250 PSI at ambient temperature. The supplied temperature range is −20°F to 176°F (−29°C to 80°C), subject to the applicable liner and process conditions.

What is the purpose of the eTFE lining?

The OmniCore™ ETFE Lined Vessel uses a chemically bonded and thermally fused eTFE fluoropolymer liner to provide a smooth, non-stick, low-permeation barrier against aggressive acids, oxidizers, chlorinated solvents, and other challenging process media.

Can the OmniCore™ ETFE Lined Vessel be used with CIP/SIP cleaning?

Yes. The OmniCore™ ETFE Lined Vessel is designed to support CIP/SIP cleaning workflows. Use cleaning agents and process conditions that are compatible with the eTFE lining, seals, and the complete vessel system, and verify chemical and pressure/temperature compatibility before operation.
