Description

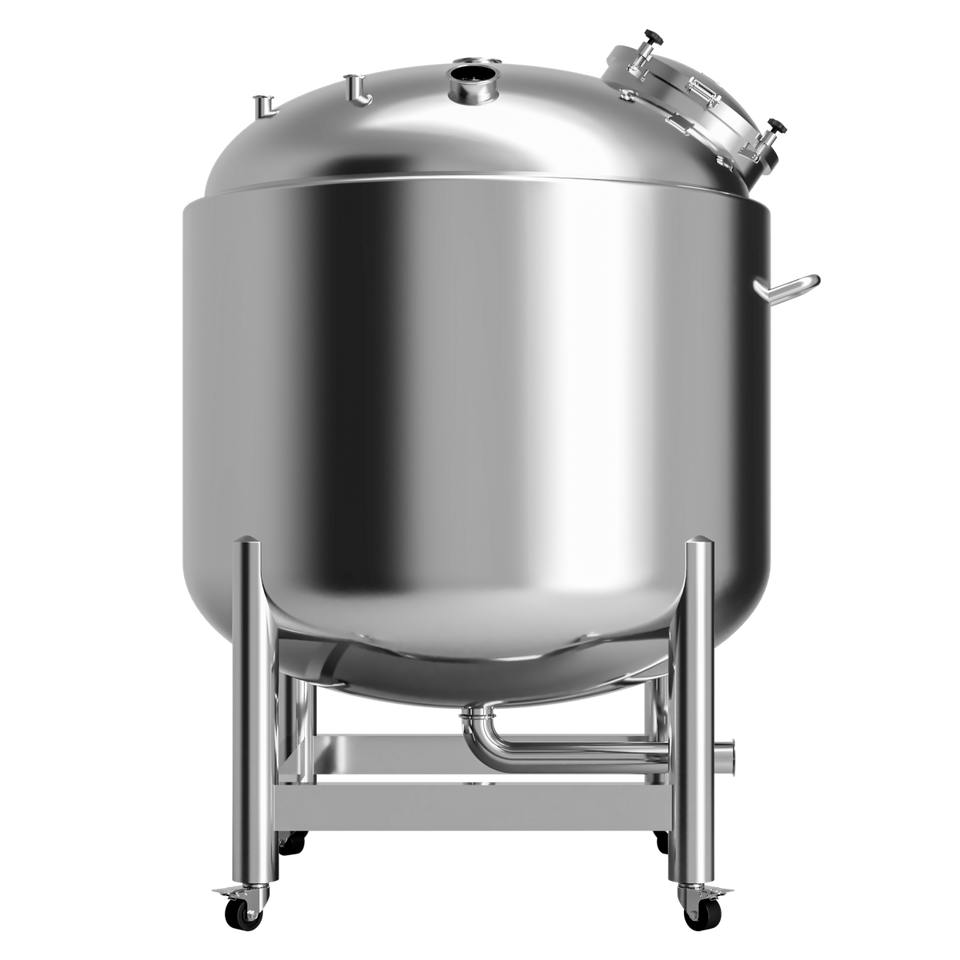

USA Lab 1000L Jacketed Stainless Steel Storage Vessel
The USA Lab 1000L Jacketed Stainless Steel Storage Vessel is engineered for solvent storage and general liquid handling across pharmaceutical, chemical, food and beverage, cosmetic, and industrial workflows. With a 1000L (264 gal) capacity, multiple Tri-Clamp process ports, a top viewing port, and a bottom 1.5" Tri-Clamp drain, this vessel supports efficient storage, transfer, inspection, and process integration.
The dedicated thermal jacket features two 1.5" Tri-Clamp connections for integration with compatible chillers or heaters and supports a temperature range of –40°C to 200°C. The vessel has a 15 psi design pressure and a recommended 10 psi operating pressure, providing controlled headspace management for applicable liquid-handling processes.
The current production vessel is the 3rd-generation design and includes four 1.5" Tri-Clamp top ports, three 3" Tri-Clamp top ports, a 10" manway with Buna-N gasket, and a bottom 1.5" Tri-Clamp drain. Always verify stored-media and gasket compatibility with your specific process and contact USA Lab for P&ID integration, port mapping, and jacket sizing guidance.
1000L / 264 Gal Capacity Jacketed –40°C to 200°C 15 PSI Design Pressure Tri-Clamp Connections
Process-Ready Ports: 4× 1.5" TC and 3× 3" TC top connections plus a 1.5" TC bottom drain support streamlined transfers and instrumentation.
Thermal Jacket: Two 1.5" TC jacket connections support integration with compatible chillers and heaters.
Pressure & Temperature: 15 psi design pressure, 10 psi recommended operating pressure, and –40°C to 200°C temperature rating support demanding process workflows.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this 1000L Jacketed Stainless Steel Storage Vessel?
- Large 1000L capacity — provides 264 gallons of vessel volume for solvent storage and general liquid-handling applications.
- Connection-rich design — includes four 1.5" Tri-Clamp ports and three 3" Tri-Clamp ports on the top for process integration, transfers, and instrumentation.
- Integrated thermal jacket — two 1.5" Tri-Clamp jacket connections support connection to compatible heating and cooling equipment.
- Controlled process operation — 15 psi design pressure and 10 psi recommended operating pressure support applicable headspace-control workflows.
- Serviceable vessel configuration — 10" manway with Buna-N gasket, top viewing port, and bottom 1.5" Tri-Clamp drain support inspection, access, and efficient emptying.
Talk to an expert
Get port mapping, jacket sizing, P&ID integration, and application guidance for your storage and process system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | USA Lab 1000L Jacketed Stainless Steel Storage Vessel |
| Brand | USA Lab |
| Product Type | Jacketed Stainless Steel Storage Vessel |
| Vessel Volume | 1000 L (264 gal) |
| Jacket Volume | 205 L (54 gal) |
| Material | Stainless Steel |
| Design Pressure | 15 psi |
| Recommended Operating Pressure | 10 psi |
| Temperature Rating | –40°C to 200°C |
| Top 1.5" Connections | 4 × 1.5" Tri-Clamp |
| Top 3" Connections | 3 × 3" Tri-Clamp |
| Bottom Drain | 1 × 1.5" Tri-Clamp |
| Jacket Connections | 2 × 1.5" Tri-Clamp |
| Viewing Port | Top Viewing Port |
| Manway | 10" Manway |
| Manway Gasket | Buna-N |
| Generation | Current 3rd-Generation Design |
| Primary Applications | Solvent Storage and General Liquid Handling |
| Integration Support | P&ID Integration, Port Mapping, and Jacket Sizing Guidance Available |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, port mapping, and process integration support.
Talk to Sales
We’ll help spec the right vessel, connections, jacket configuration, and integration requirements.
FAQ
What is the capacity of the USA Lab 1000L Jacketed Stainless Steel Storage Vessel?
The USA Lab 1000L Jacketed Stainless Steel Storage Vessel has a vessel capacity of 1000 L (264 gal) and a jacket volume of 205 L (54 gal).
What connections are included on the 1000L Jacketed Stainless Steel Storage Vessel?
The vessel includes four 1.5" Tri-Clamp top connections, three 3" Tri-Clamp top connections, a top viewing port, a 1.5" Tri-Clamp bottom drain, and two 1.5" Tri-Clamp jacket connections.
What are the pressure and temperature ratings of the 1000L vessel?
The USA Lab 1000L Jacketed Stainless Steel Storage Vessel has a 15 psi design pressure and a recommended 10 psi operating pressure. Its specified temperature range is –40°C to 200°C.
Can the vessel be integrated with heating and cooling equipment?
Yes. The integrated thermal jacket has two 1.5" Tri-Clamp connections designed to support integration with compatible chillers or heaters. USA Lab can also provide guidance for P&ID integration, port mapping, and jacket sizing.
