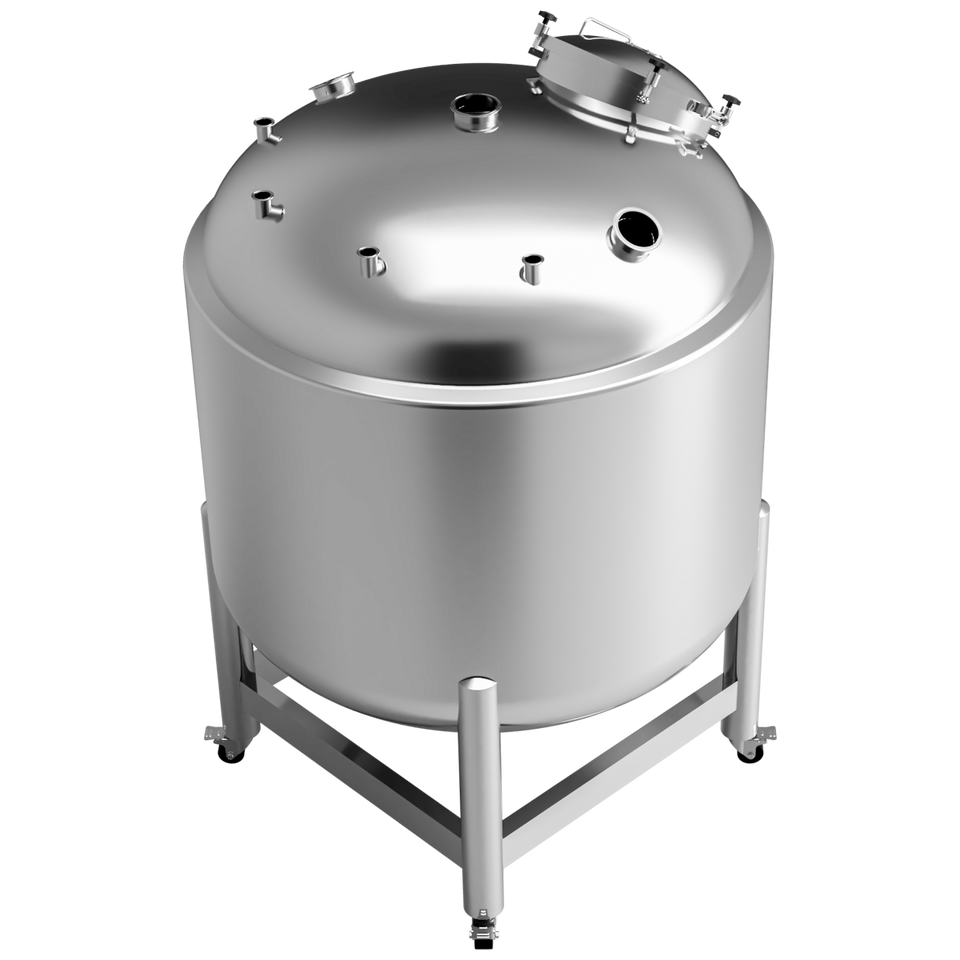

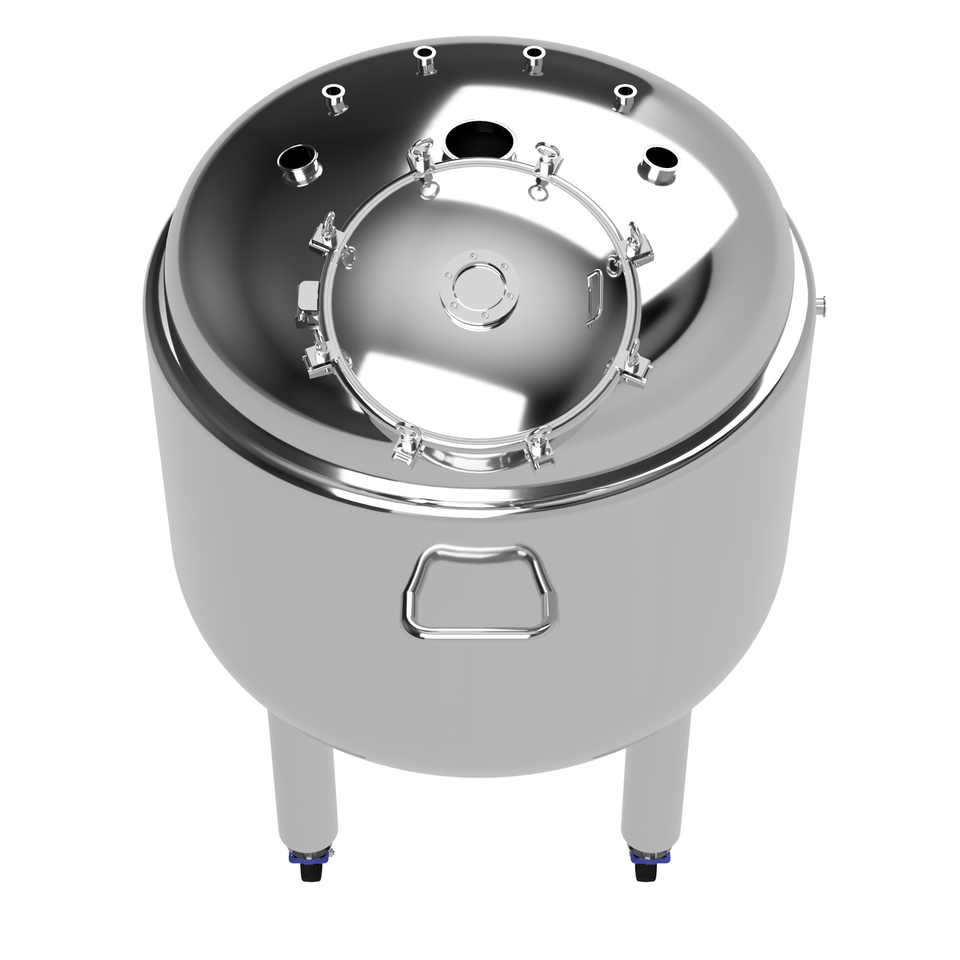

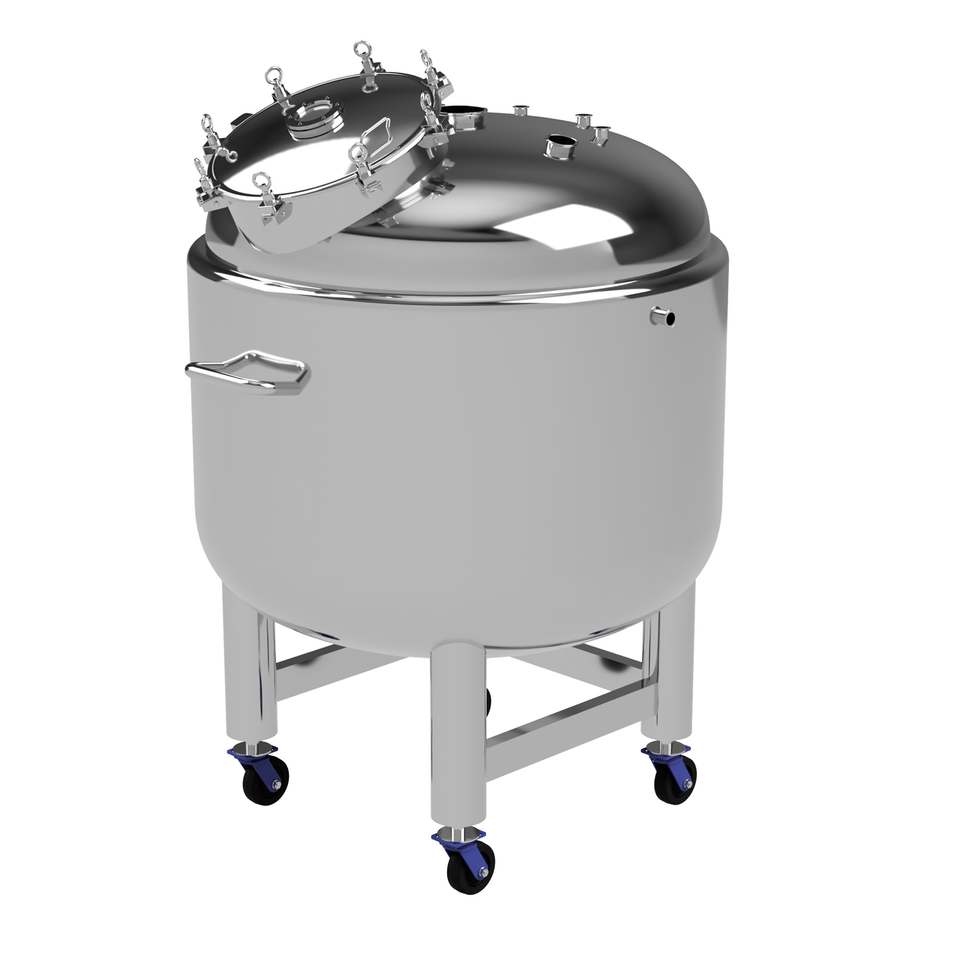

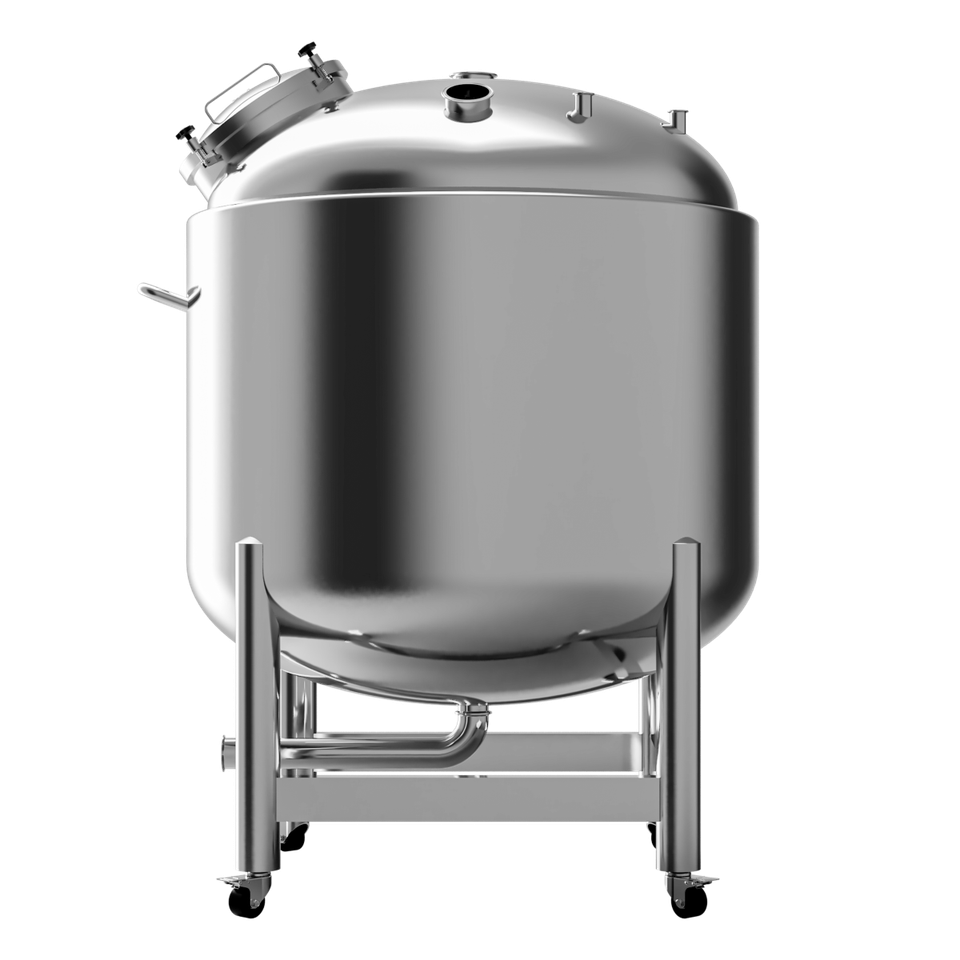

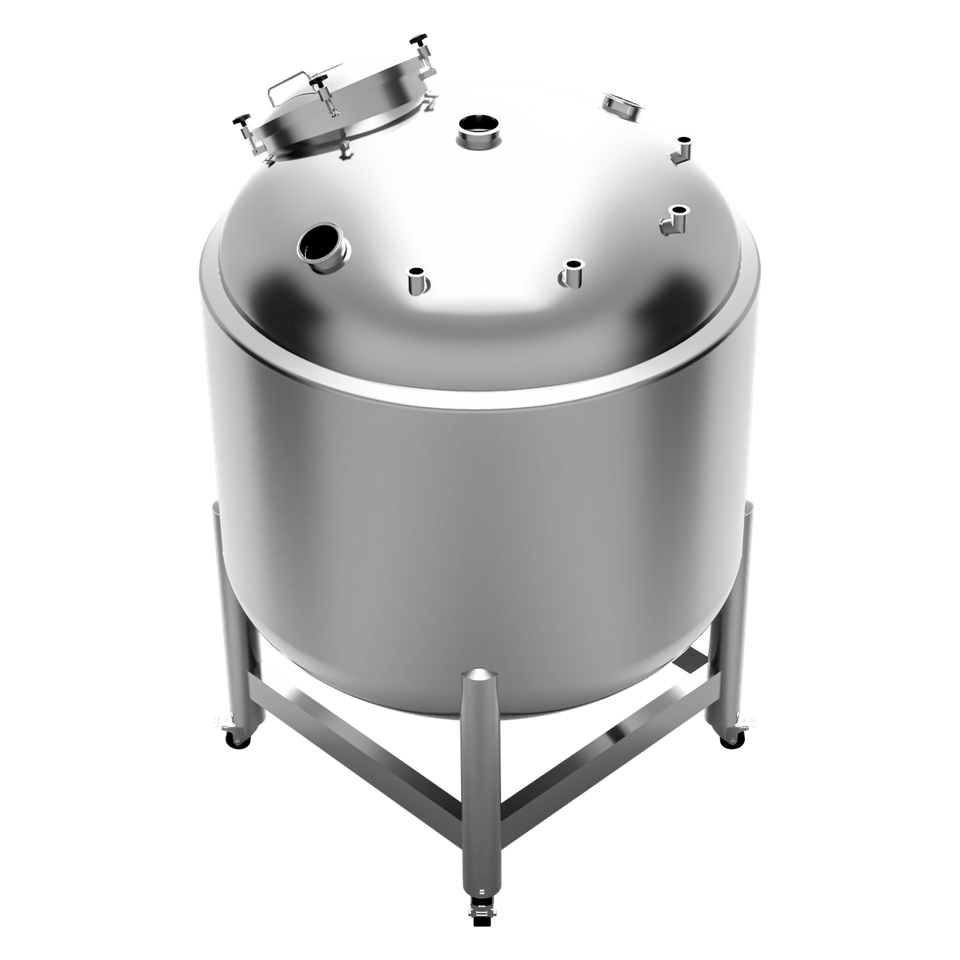

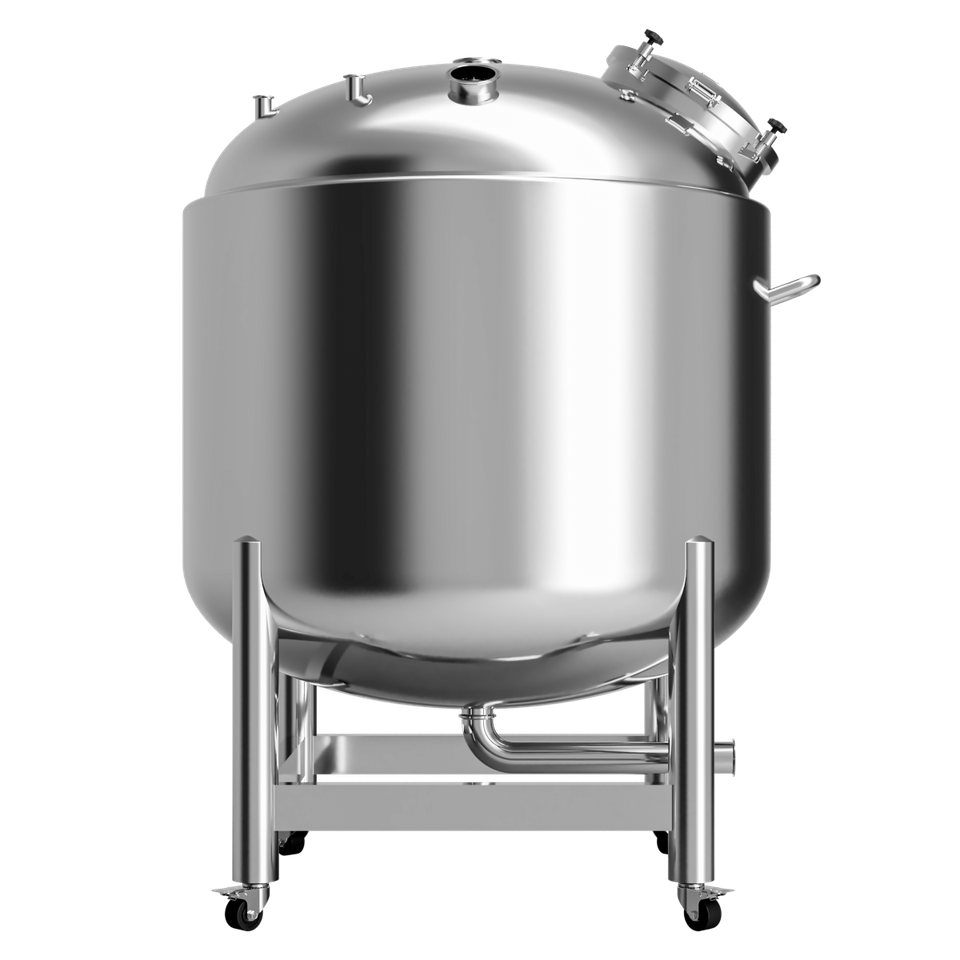

Name: USA Lab 1500L Stainless Steel Jacketed Storage Vessel
Brand: USA Lab
SKU: 1500L-JSSR
Price: 12999 USD
Availability: InStock

Description

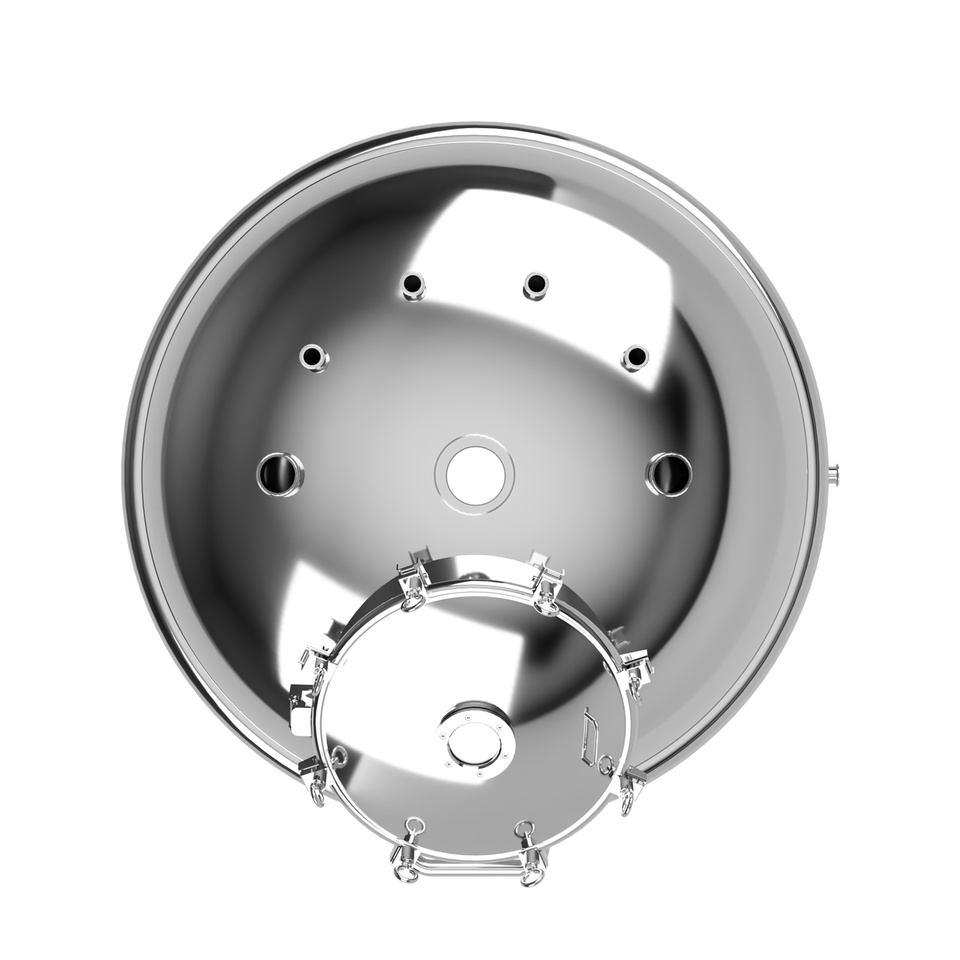

This 1500L Stainless Steel Storage Vessel is expertly designed to meet the diverse needs of multiple industries. It features 4x 1.5" TC ports, 2 x 3" TC ports, a 6" TC center Port, and a viewing port on the top, providing easy access and excellent monitoring capabilities. The bottom includes a 6" TC drain for swift and efficient draining, and the jacket is equipped with 2x 1.5" TC connections.

Ideal for storing solvents, this versatile tank is perfect for use in pharmaceuticals, chemicals, food and beverage, cosmetics, and more. Its robust construction and multiple access points ensure efficient, safe handling and storage of various liquids, making it a reliable choice for your operational needs.

Specifications
Working Volume	1500L \| 396 Gallons
Full Volume (100%)	1809L \| 477 Gallons
Jacket Volume	224L \| 59 Gallons
Design Pressure	15PSI
Operating Pressure	10PSI
Temperature Rating	-40°C to 200°C
Top Connections	4x 1.5" TC \| 2x 3" TC \| 1x 6"TC
Bottom Connection	6" TC
Jacket Connection'	1.5" TC
Manway	24 (IN) \| Buna- N Gasket

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Specifications

Brand:	USA Lab
Material:	304 Stainless Steel
Volume:	1500L
PSI:	15
Inner Dimension:	1400(MM) \| 55(in)
Outer Dimension:	1500(MM) \| 59(in)

Warranty

Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
