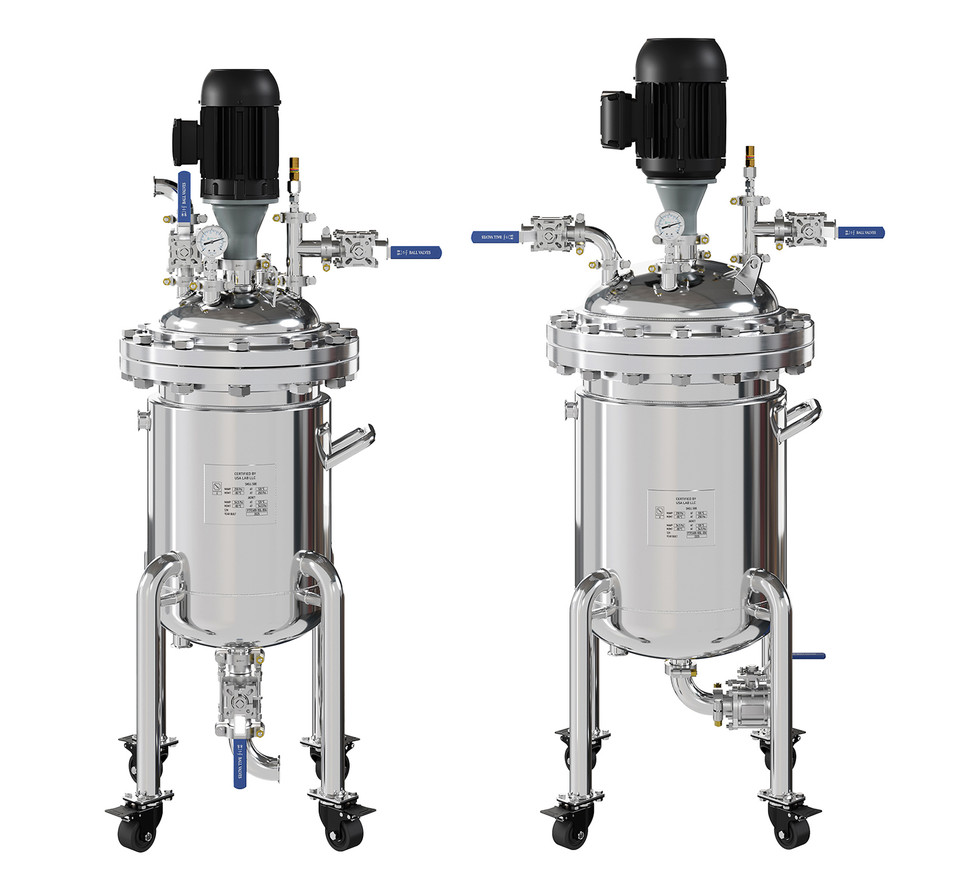

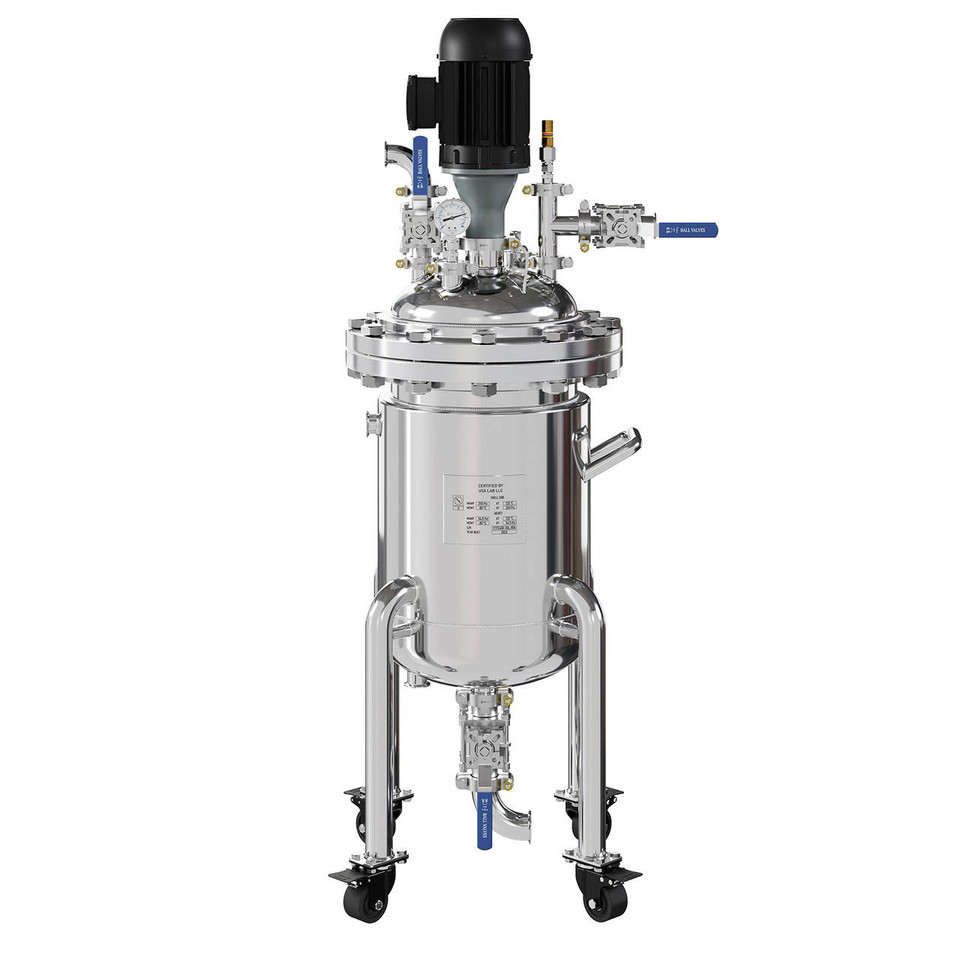

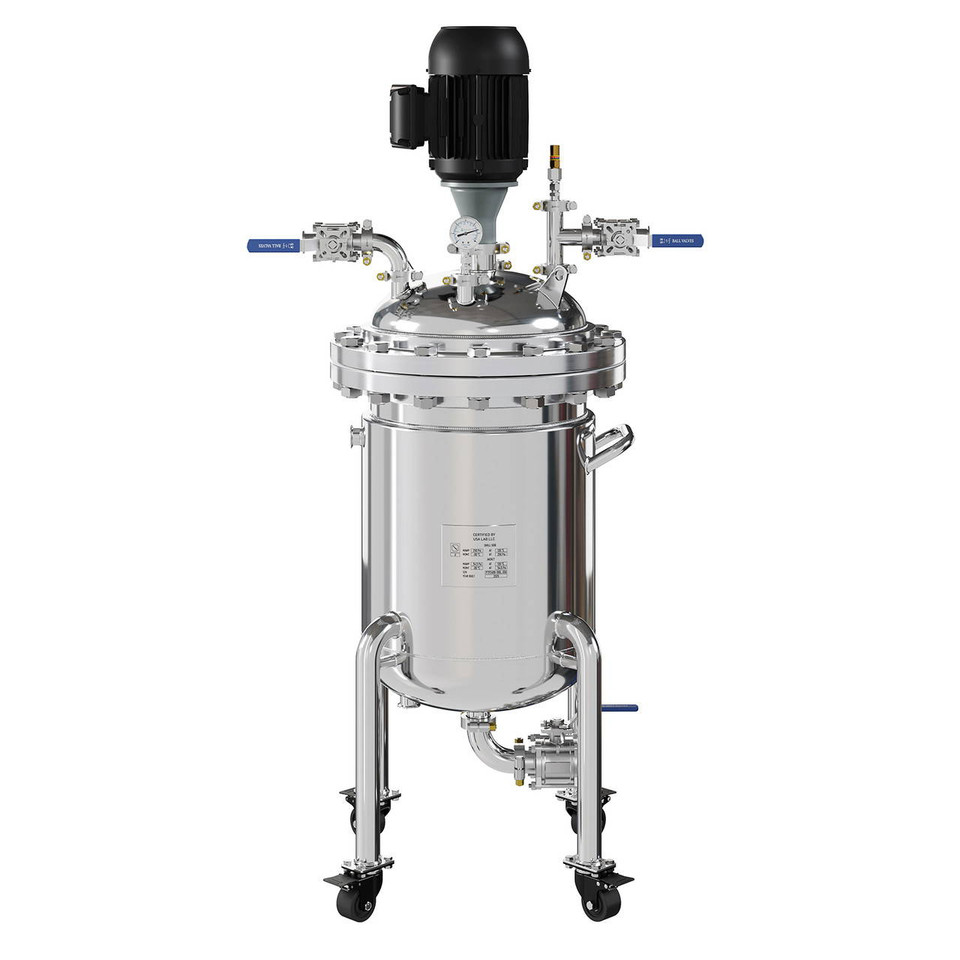

USA Lab 50L & 100L OmniCore™ eTFE Teflon Lined Vessel Reactor Assembly - ASME Certified - 250 PSI

The USA Lab 50L & 100L OmniCore™ eTFE Lined Turnkey Reactor Assembly is a fully integrated pressure reaction system engineered for demanding chemical, pharmaceutical, and industrial processing applications. Built around the OmniCore™ eTFE lined vessel platform, this turnkey assembly arrives fully assembled and ready for operation, helping streamline installation and process integration.

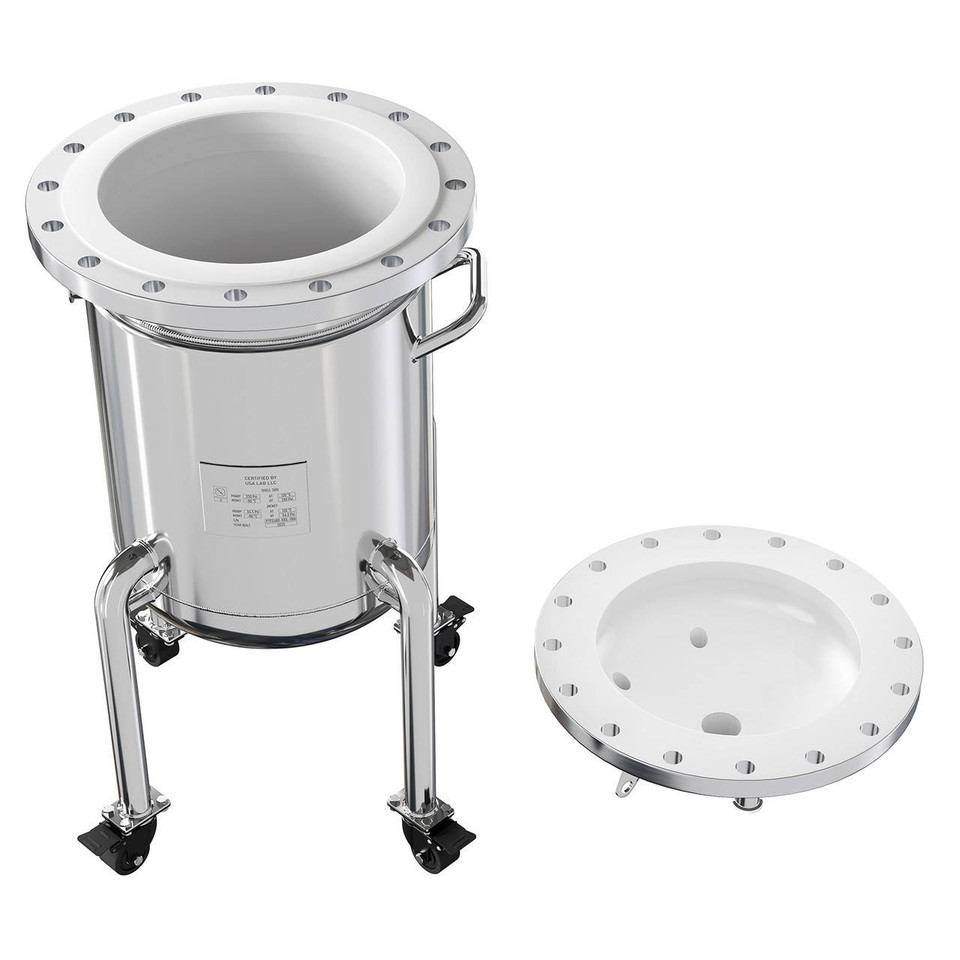

Each assembly incorporates a PTFE-coated mixer shaft and fully lined wetted components, including the vessel interior, fittings, gaskets, dip tubes, and agitator hardware. The eTFE fluoropolymer lining provides a smooth, non-stick, low-permeation barrier that helps protect against corrosion, pitting, adsorption, and cross-contamination when processing aggressive solvents, acids, oxidizers, and other demanding chemistries.

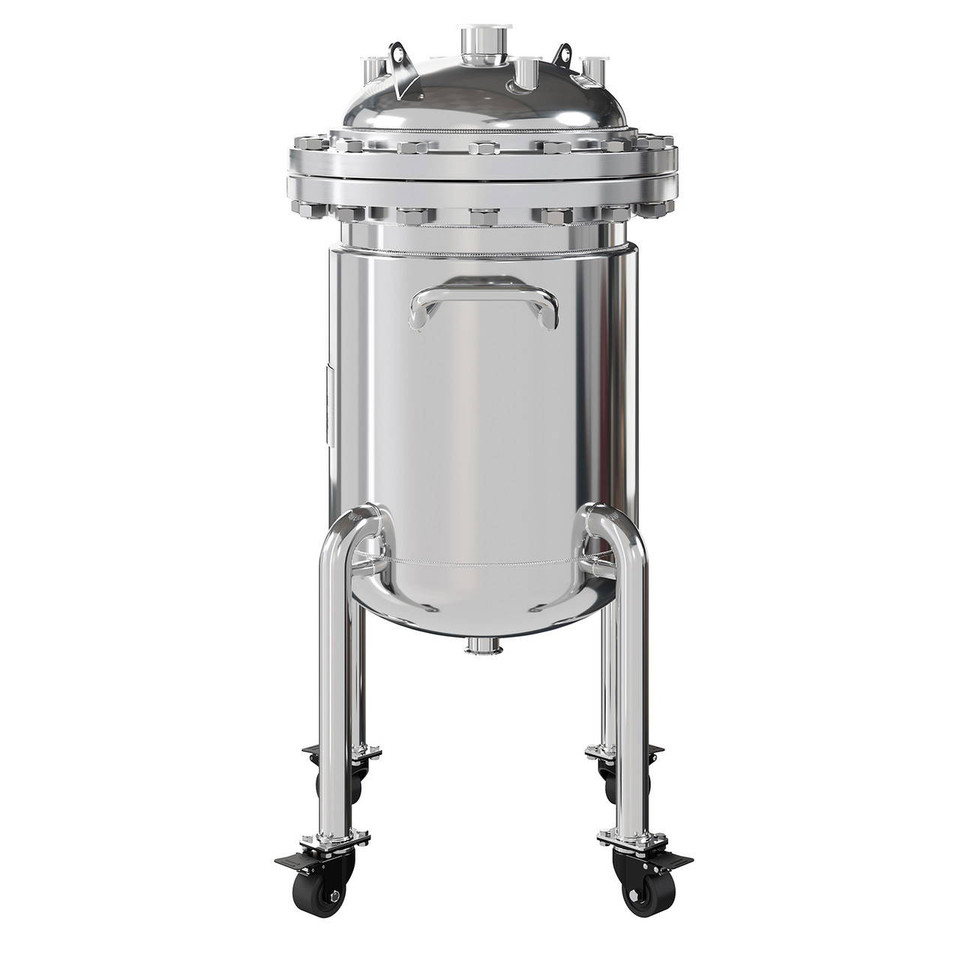

Constructed from 304 stainless steel and ASME certified for operation up to 250 PSI, the OmniCore™ reactor assembly combines pressure capability with chemical resistance and process cleanliness. Available in 50L and 100L configurations, with ancillary equipment options including USA Lab UHC-5040, Huber CC508, and Huber Unistat 510 systems, it supports closed-loop processing, CIP/SIP workflows, pilot-scale development, and advanced R&D applications.

ASME 250 PSI eTFE Lined 304 Stainless 50L & 100L CIP/SIP Ready

Corrosion Protection: Bonded eTFE lining provides inert, non-stick, low-permeation protection against aggressive acids, solvents, and oxidizers.

Pressure Capability: ASME-certified construction supports operation up to 250 PSI at ambient temperature.

Turnkey Integration: Fully assembled reactor configurations simplify installation and support closed-loop, CIP/SIP, and pilot-scale workflows.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab OmniCore™ eTFE Lined Reactor Assembly?

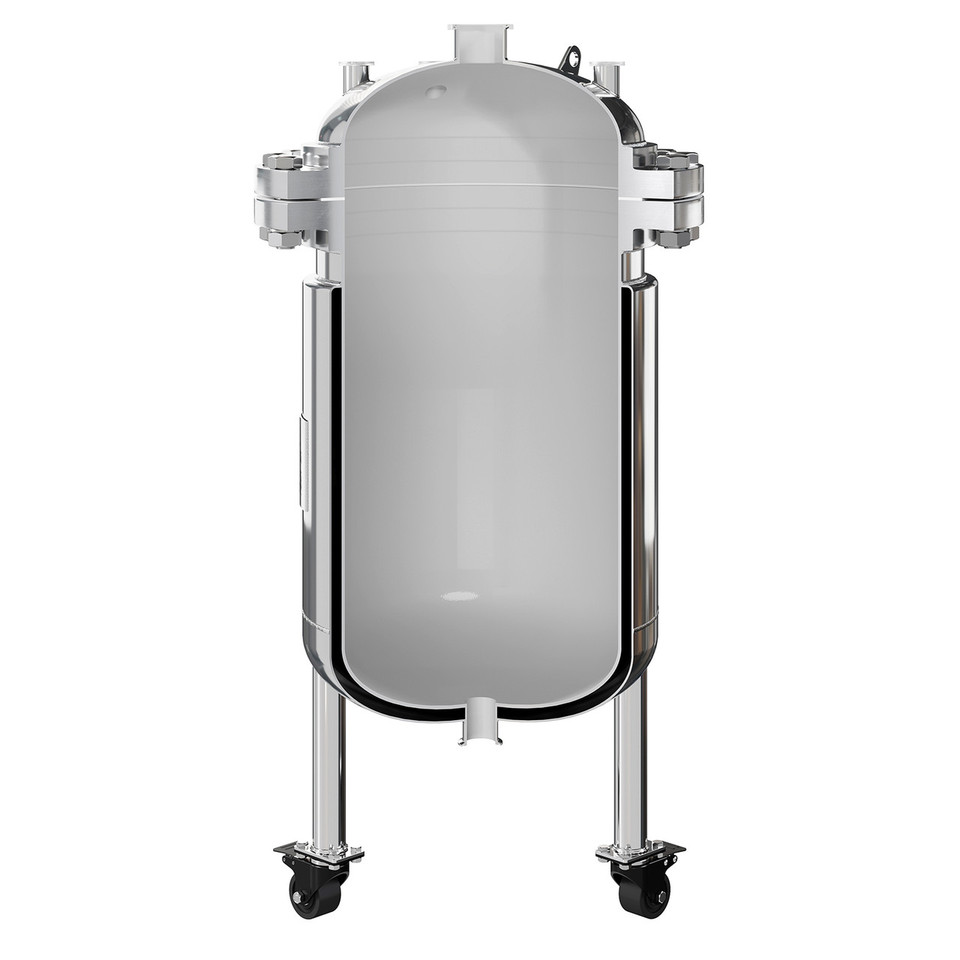

Bonded eTFE barrier — thermally fused and chemically bonded fluoropolymer lining provides strong resistance to acids, oxidizers, solvents, and other aggressive process media.
ASME 250 PSI pressure capability — certified vessel construction supports dependable pressure performance for demanding reaction and processing workflows.
Process purity — smooth, non-stick lined wetted surfaces help minimize material hold-up, adsorption, buildup, and cross-contamination.
Integrated agitation — PTFE-coated mixer shaft supports efficient mixing while helping reduce the risk of metal contact with process media.
Turnkey configuration — fully assembled reactor packages simplify system setup and can be configured with compatible heater/chiller equipment for 50L and 100L applications.
Serviceability — designed to support inspection, cleaning, and CIP/SIP workflows for repeatable process operation.

Talk to an expert

Get sizing help, configuration guidance, SOP recommendations, and integration support for your OmniCore™ reactor system.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab OMNI Core eTFE Lined Vessel Reactor Assembly
Available Sizes	50L and 100L
Vessel Type	Pressure Reaction Vessel / Turnkey Reactor Assembly
Body Material	304 Stainless Steel
Lining Material	eTFE (Ethylene Tetrafluoroethylene) Fluoropolymer
Lining Construction	Chemically Bonded / Thermally Fused
ASME Certification	Yes — Certified for 250 PSI
Pressure Rating	250 PSI at Ambient Temperature
Temperature Range	−20°F to 176°F (−29°C to 80°C)
Corrosion Resistance	Excellent — Resistant to Strong Acids, Solvents, and Oxidizers
Seal Type	Chemically Resistant PTFE Gaskets or O-Rings
Lining Thickness	Typically 2–3 mm Uniform Bonded Layer
Surface Finish	Internal Smooth eTFE; External Polished Stainless Steel
Interior Surface	Smooth, Non-Stick eTFE
Exterior Construction	Polished 304 Stainless Steel
Design Purpose	Safe Containment and Reaction of Corrosive or High-Purity Materials
Process Compatibility	Corrosive, Solvent-Heavy, High-Purity, and Closed-Loop Processes
Cleaning & Maintenance	Smooth Non-Stick Interior; CIP/SIP Compatible
Typical Applications	Chemical Synthesis, Solvent Recovery, Acid Handling, R&D Reactors, Pilot Plants

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored reactor configurations, ancillary equipment, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right reactor assembly and supporting equipment for your process.

Call 734-855-4890 Email Sales/Support

FAQ

What is the eTFE lining used in the USA Lab OmniCore™ reactor assembly?

The USA Lab OmniCore™ eTFE Lined Turnkey Reactor Assembly uses a bonded, thermally fused eTFE fluoropolymer lining throughout wetted areas. The lining provides a smooth, non-stick, low-permeation barrier designed to resist aggressive acids, solvents, oxidizers, and other corrosive process media.

Is the USA Lab OmniCore™ reactor assembly ASME rated?

Yes. The USA Lab OmniCore™ eTFE Lined Vessel Reactor Assembly is ASME certified and rated for operation up to 250 PSI at ambient temperature. Users should verify process-specific pressure and temperature limits before operation.

What applications are suitable for the 50L and 100L OmniCore™ reactor assembly?

The USA Lab OmniCore™ reactor assembly is designed for demanding applications including chemical synthesis, solvent recovery, acid handling, polymerization, advanced R&D, pilot plants, and other corrosive or high-purity processing workflows.

How should the OmniCore™ eTFE lined reactor be maintained?

The smooth non-stick interior is designed to simplify cleaning and supports CIP/SIP workflows. Maintain gasket integrity, use chemically compatible cleaning procedures, and routinely inspect the eTFE lining and sanitary surfaces to help preserve system integrity.
