Description

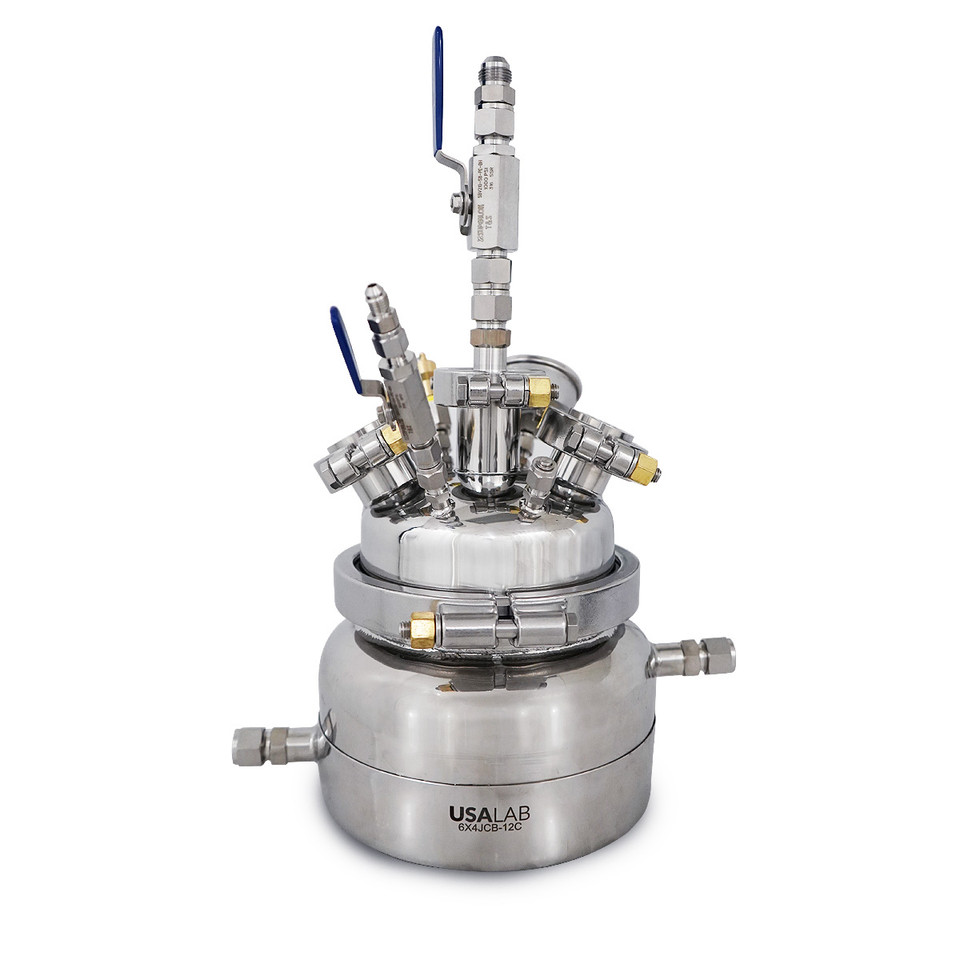

Jacketed Diamond Miner – 6" & 12" SS304 | USA Lab
The Jacketed Diamond Miner is purpose-built for crystallizing botanical extracts into live resin, terpene-rich sauce. Constructed from SS304 stainless steel with a premium extractor lid, it replaces glass jars with a safer, pressure-ready vessel for controlled crystallization and degassing.
Diamond mining occurs when target compounds are held in solution at specific temperatures and pressures. Our pre-assembled, nitrogen leak-tested lid, glycerin-filled compound gauge, and integrated ball valves make dialing in parameters straightforward and repeatable.
Available in 6" and 12" models, the jacketed design accepts circulating hot or cold fluid for precise thermal control. The removable splatter platter simplifies harvest—lift out and separate diamonds from the sauce with minimal mess.
Ships pressure-tested and ready to integrate with your existing extraction system.
SS304 Stainless Jacketed Thermal Control -30 °F to 250 °F MAWP 50 PSI
Precision: Jacketed body enables tight temperature control for consistent crystal growth.
Safety: Nitrogen leak-tested premium lid with relief valve and glycerin gauge for confident operation.
Throughput: 6" (1.5 L optimal) or 12" (10.5 L optimal) with easy harvest via removable platter.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this Jacketed Diamond Miner?
- Purpose-built crystallization — optimized for live resin sauce and diamond formation under controlled temp/pressure.
- Thermal jacket — circulate hot/cold fluid for repeatable nucleation and growth rates.
- Premium, leak-tested lid — nitrogen-tested assembly with relief valve, compound gauge, and compression ports.
- Clean harvest — removable splatter platter makes separating diamonds from mother liquor simple.
- Built from SS304 — sanitary, durable construction with MAWP 50 PSI and wide -30 °F to 250 °F range.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | 6" | 12" |
|---|---|---|
| Material | 304 Stainless Steel (SS304) | 304 Stainless Steel (SS304) |
| Optimal Capacity | 1.5 L | 10.5 L |
| Maximum Capacity | 2 L | 12 L |
| Maximum Allowable Working Pressure (MAWP) | 50 PSI | 50 PSI |
| ASME Safety Pressure Relief Valve | 50 PSI | 50 PSI |
| Temperature Range | -30 °F to 250 °F | -30 °F to 250 °F |
| Compound Pressure Gauge | -30 PSI to 150 PSI (glycerin filled) | -30 PSI to 150 PSI (glycerin filled) |
| Ball Valve Ports | 1/2" & 1/4" Superlok Compression | 1/2" & 1/4" Superlok Compression |
| Lid Port Connections (6") | (4) 1/4" Compression Superlok | (3) 1.5" TC | (4) 1/2" Compression | (2) 2" TC | (1) 3" TC |
| Lid Hose Connections | (1) 1/4" MJIC | (1) 1/2" MJIC | (1) 1/4" MJIC | (1) 1/2" MJIC |
| Jacket Connections | (2) 1/2" Compression | (2) 1/2" FNPT |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the Jacketed Diamond Miner used for?
The Jacketed Diamond Miner is designed to crystallize target compounds into diamonds while preserving terpene-rich sauce. Jacketed temperature control and a compound gauge help you maintain ideal conditions.
What capacities are available for the Jacketed Diamond Miner?
The Jacketed Diamond Miner comes in 6" (1.5 L optimal / 2 L max) and 12" (10.5 L optimal / 12 L max) sizes to match small-batch and higher-throughput workflows.
Is the Jacketed Diamond Miner pressure-rated and safety equipped?
Yes. The Jacketed Diamond Miner carries a 50 PSI MAWP and includes an ASME 50 PSI relief valve, glycerin-filled compound gauge (-30 to 150 PSI), and nitrogen leak-tested lid assembly.
How do I integrate the Jacketed Diamond Miner into my system?
The Jacketed Diamond Miner provides compression, TC, and MJIC ports for flexible plumbing. The jacket accepts circulating hot/cold fluid; refer to the manual for recommended hose routing.
