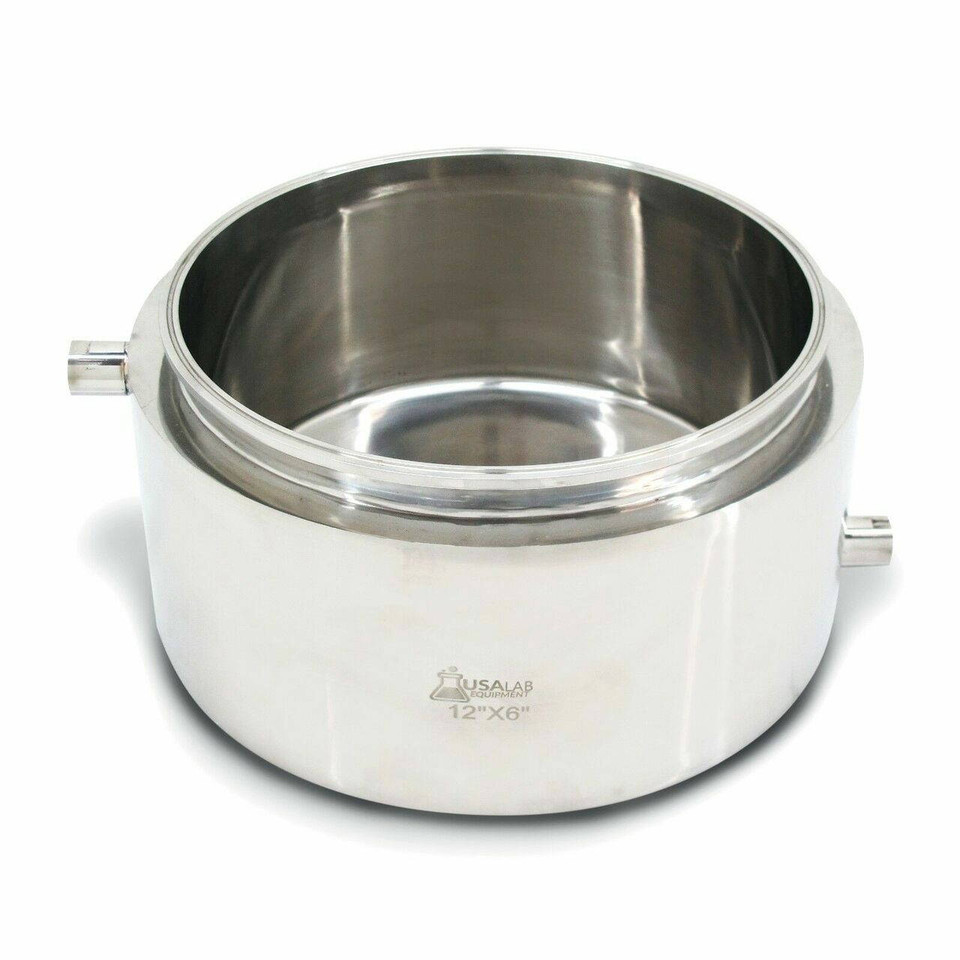

USA Lab 12" Jacketed Collection Base - 1/2" FNPT Jacket

The USA Lab 12" Jacketed Collection Base is designed to provide a sanitary connection point between a 12" Tri-Clamp collection vessel and its jacketed layer. With two 1/2" FNPT jacket connections, this collection base allows users to connect compatible jacket ports for process applications requiring jacketed vessel functionality.

Constructed from 304 stainless steel, the USA Lab 12" Jacketed Collection Base provides a durable stainless-steel platform for collection and jacketed processing equipment. The 12" Tri-Clamp connection is designed for compatibility with matching sanitary vessel components.

The USA Lab 12" Jacketed Collection Base is available in two listed exterior height configurations and is suitable for laboratory, processing, and sanitary equipment setups where 1/2" FNPT jacket connections are required.

304 Stainless Steel 12" Tri-Clamp 2x 1/2" FNPT Jacket Connections 31 lb.

304 Stainless Steel: Provides a durable stainless-steel construction for collection and processing equipment.

Jacket Connections: Two 1/2" FNPT connections allow users to connect compatible jacketed-layer ports.

12" Tri-Clamp: Designed for connection with compatible 12" sanitary Tri-Clamp components.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab 12" Jacketed Collection Base?

304 stainless-steel construction — provides a durable material for collection and processing equipment.
12" Tri-Clamp connection — designed for use with compatible 12" sanitary Tri-Clamp components.
Two 1/2" FNPT jacket connections — provides connection points to the jacketed layer.
Multiple listed height configurations — available with exterior dimensions of 16" L x 14" W x 5" H or 16" L x 14" W x 7" H.
Collection and processing applications — suitable for equipment setups requiring a 12" jacketed collection base with FNPT jacket connections.

Talk to an expert

Get product guidance, application support, and compatibility information for your jacketed collection equipment.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab 12" Jacketed Collection Base
Product Type	Jacketed Collection Base
Material	304 Stainless Steel
TC Connection	12" Tri-Clamp
Jacket Connection Quantity	2
Jacket Connection Size	1/2"
Jacket Connection Type	FNPT
Jacket Connection Configuration	2x 1/2" FNPT
Application	Jacketed collection and processing equipment
Collection Connection	12" Tri-Clamp
Construction	Stainless Steel
Exterior Length	16"
Exterior Width	14"
Exterior Height Configuration 1	5"
Exterior Height Configuration 2	7"
Exterior Dimensions	16" L x 14" W x 5" H / 16" L x 14" W x 7" H
Weight	31 lb.
Jacketed Layer Access	Two 1/2" FNPT ports
Connection Purpose	Connect 1/2" ports to the jacketed layer

Popular Industries & Use Cases

Laboratory Processing Pharmaceutical Processing Chemical Processing Sanitary Collection Systems

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your jacketed collection workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What material is the USA Lab 12" Jacketed Collection Base made from?

The USA Lab 12" Jacketed Collection Base is constructed from 304 stainless steel.

What connections are included on the USA Lab 12" Jacketed Collection Base?

The USA Lab 12" Jacketed Collection Base features a 12" Tri-Clamp connection and two 1/2" FNPT jacket connections for connecting to the jacketed layer.

What are the exterior dimensions of the USA Lab 12" Jacketed Collection Base?

The listed exterior dimensions are 16" L x 14" W x 5" H and 16" L x 14" W x 7" H.

How much does the USA Lab 12" Jacketed Collection Base weigh?

The USA Lab 12" Jacketed Collection Base weighs 31 lb.
