10L Full Bore 110mm Short Path Distillation Head – EZ Path | USA Lab

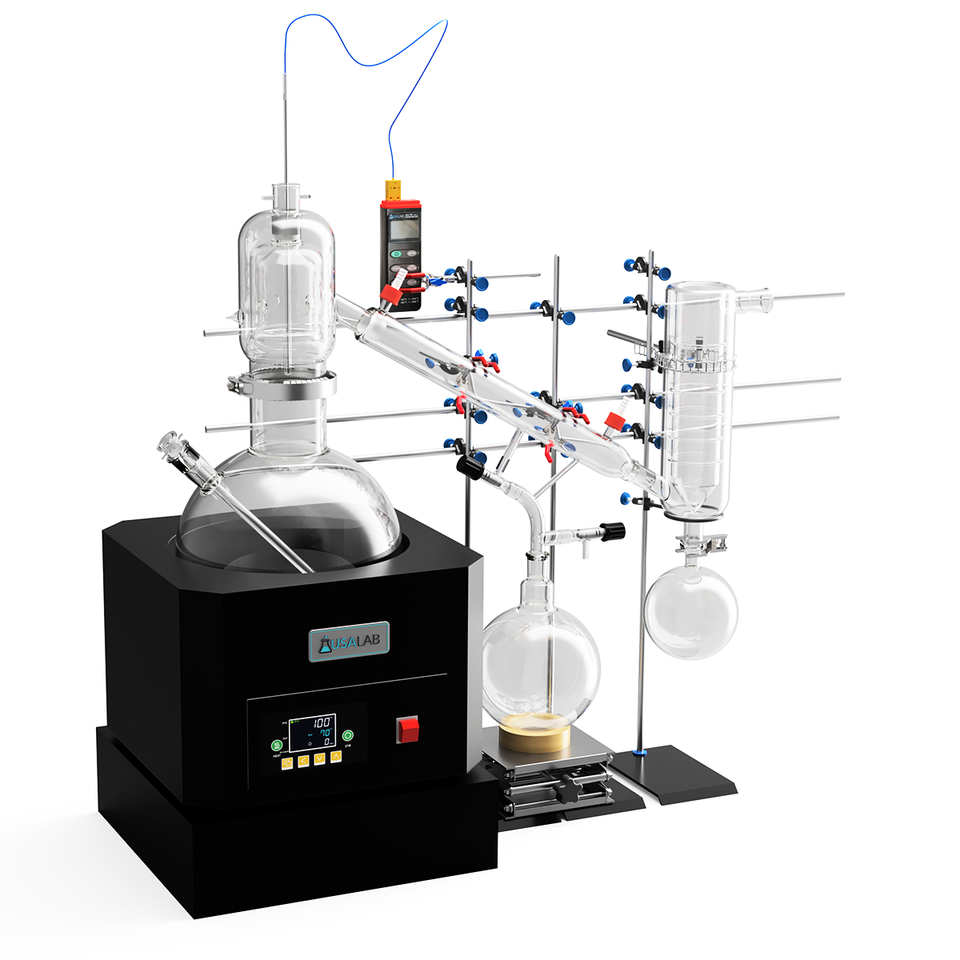

Maximize efficiency and streamline your distillation process with our 10 L Full Bore 110 mm Short Path Distillation Head. EZ Path technology delivers fast flow rates with minimal resistance while reducing the number of glass components for a simpler, more cost-effective setup.
With its 110 mm full-bore design, the head enhances vapor flow and separation efficiency—ideal for botanical extractions, research laboratories, and industrial applications that demand speed, precision, and durability.
Upgrade your line with a robust borosilicate head, matched utilities, and high-capacity vacuum support for dependable high-throughput performance.
Use appropriate PPE and follow vacuum glassware safety best practices. Confirm utilities and power requirements before installation. Glass components are consumables; inspect before each run and replace if damaged.
EZ Path Design 110 mm Full Bore High Throughput Borosilicate Glass
Faster runs: 110 mm full-bore pathway boosts vapor flow for 1,000–2,000 g/hr main-body rates.
Simplified setup: EZ Path head uses fewer glass pieces to reduce complexity, leaks, and cost.
Optimized capacity: Designed for 10 L flasks with 3,000–8,000 mL optimal batch volume.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this short path head?
- EZ Path design — fewer glass connections for faster assembly, less maintenance, and reliable seals.
- 110 mm full-bore — maximizes vapor throughput and separation efficiency on large batches.
- High-quality borosilicate — heat-resistant, durable, and chemically compatible for demanding runs.
- Optimized for 10 L — 3–8 L optimal capacity, typical batch time 4–10 hours with proper utilities.
- Complete workflow kit — includes jacketed head, isolation adapter, cold trap, thermowells, flasks, gauges, heater chiller, vacuum pump, and KF25 hardware.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
Motor Specifications
| Items | Specification |
|---|---|
| Flask Size | 10 L (10,000 mL) |
| Flask Joint Sizes | 110 mm Flange (main) | 24/40F (side) |
| Distillation Head Joint Sizes | 110 mm Flange (bottom) | 45/50F (top) | 34/45M (side) |
| Condenser Joint Sizes | 34/45F (inlet) | 34/45M (outlet) |
| Isolation Adapter Joint Sizes | 34/45F (inlet) | 34/45M (outlet) | 24/40M (bottom discharge) |
| Cold Trap Joint Sizes | 34/45F (inlet) | 34/45F (outlet) |
| Optimal Capacity | 3,000–8,000 mL |
| Batch Time | 4–10 hours (process dependent) |
| Main Body Flow Rate | 1,000–2,000 grams/hour |
| Foot Print (incl. pump/chiller) | 80 × 24 × 40 in |
| USA-XHM-20L Heating Mantle Specs | 300 °C | 2,500 RPM | 3,000 W |
| UHC-720 Heater Chiller Specs | −20 °C to 180 °C | 7 L | 450 W heat |
| UVP-21 Vacuum Pump Specs | 21 CFM | 0.3 Micron | UL Recognized |
| Heating Mantle Power | 220–240 V, 50/60 Hz, 15 A |
| Heater Chiller Requirements | 220 V, 50/60 Hz, 15 A |
| Vacuum Pump Requirements | 110–120 V, 50/60 Hz, 15 A |
| Warranty | 1 Year |
Packing List
| Items | Quantity |
|---|---|
| USA Lab 10L Digital Heating Mantle With Insulating Top USA-XHM-10L | 1 |
| 20mm x 64mm Rare Earth Magnet | 1 |
| USA Lab Black Powder Coated Mantle Stand - 16" x 14" x 6" | 1 |
| 10L 2 Neck Round Bottom Flask - 110MM Center - 24/40 Side | 1 |
| 10L 24/40 Thermowell for flask | 1 |
| 110MM FEP-Silicone O-ring | 1 |
| 110MM Stainless Steel Duran Flange | 1 |
| 110MM Jacketed Distillation Head - 45/50 Top - 34/45 Side | 1 |
| Single Jacketed Swing Arm Isolation Adapter w/ Valves 34/45 Sides - 24/40 Bottom | 1 |
| Angled Cold Trap - 34/45 | 1 |
| Cold Trap Lid | 1 |
| 45/50 Thermowell for EZP Distillation Head | 1 |
| 5L 1 Neck Round bottom Flask - 24/40 | 1 |
| 1L 1 Neck Round bottom Flask - S35/20 | 1 |
| DigiVac Bullseye Precision Vacuum Gauge | 1 |
| USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe | 1 |
| USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump | 1 |
| USA Lab -20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720 | 1 |
| KF-25 to KF-25 x 1/8" FNPT Adapter | 1 |
| USA LAB KF25 90 Degrees | 1 |
| USA Lab KF25 3-Way Tee | 1 |
| KF25 Pressure Release Valve Stainless Steel | 1 |
| USA LAB KF25 Right Angle Valve | 1 |
| Aluminum KF25 Vacuum Pump Flange Centering Ring | 6 |
| Vacuum Pump Clamp KF25 | 6 |
| KF25 Bellow Hose 36" | 1 |
| Lab Jack 8" | 1 |
| Lab Stands | 3 |
| Stainless Steel Rod for Lattice Supports | 3 |
| Boss Head Clamp | 15 |
| 3 Prong Clamp | 3 |
| Chain Clamp for Lab Stand | 1 |
| 100mm Diameter Extension Support Ring | 1 |
| Lab Cork Stand Ring | 3 |
| GL-14 Cap with Aperture | 4 |
| Inland 19 Vacuum Pump Oil 1 Gallon | 1 |
| USA Lab Propylene Glycol USP Kosher 100% Concentrate - 5 Gallons | 1 |
| USA Lab KF25 to 34/45 PTFE Adapter | 1 |
| USA Lab Stainless Steel S35 Pinch Clamp | 1 |
Item Links
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What makes the EZ Path head faster?
The 110 mm full-bore pathway reduces pressure drop and increases vapor velocity, enabling main-body rates of 1,000–2,000 g/hr with proper utilities.
What is the optimal batch size?
For a 10 L flask, we recommend 3–8 L optimal capacity. Typical batch times range from 4–10 hours depending on feed quality and targets.
What utilities do I need?
Heating mantle: 220–240 V 15 A | Heater chiller: 220 V 15 A | Vacuum pump: 110–120 V 15 A. Ensure adequate cooling fluid and ventilation.
What’s included in the kit?
Core components include the 110 mm jacketed head, mantle with stand, isolation adapter, angled cold trap with lid, thermowells, 5 L & 1 L flasks, DigiVac Bullseye gauge, USA TM thermometer, UVP-21 pump, UHC-720 heater chiller, KF25 hardware (elbows, tees, valves, centering rings, clamps, bellow hose), stands/clamps, glycol and pump oil. See spec sheet for full list.
