Description

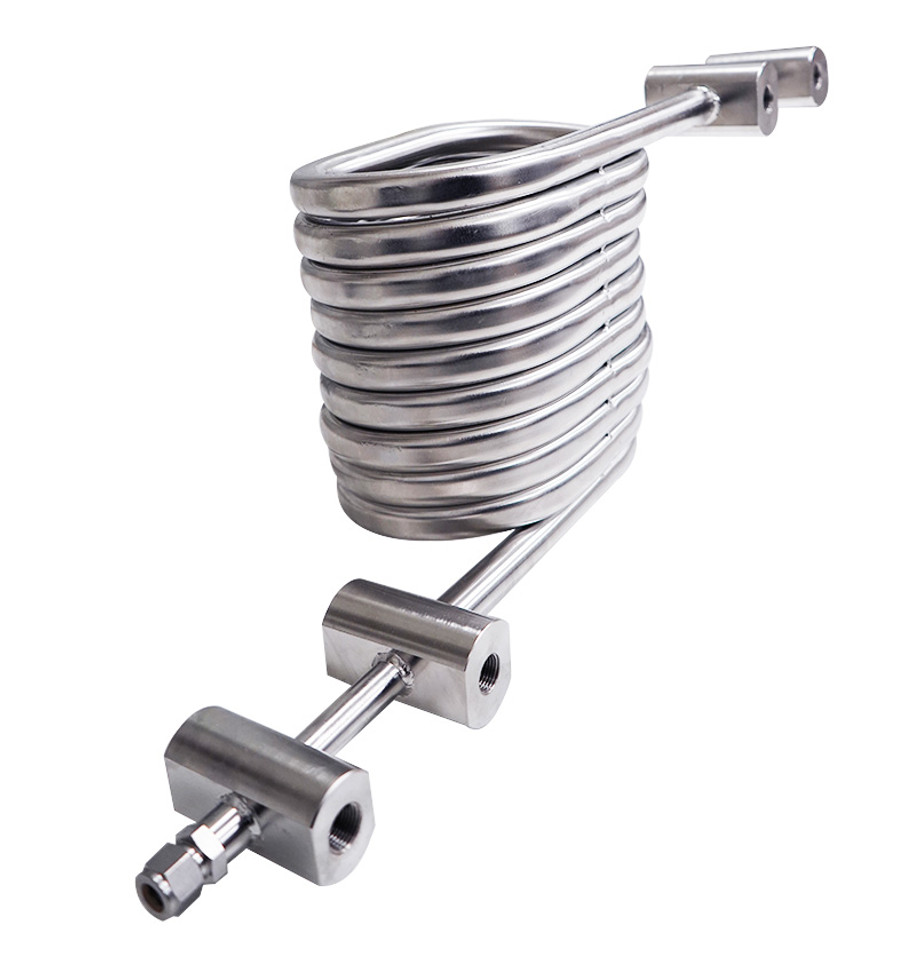

Introducing our Triple Coil in Coil Heat Exchanger, a remarkable innovation in thermal management. Unlike traditional heat exchangers, our triple coil design features three coiled tubes intricately intertwined, delivering superior performance and efficiency. This innovative configuration not only prevents thermal fatigue but also significantly reduces the overall size of the exchanger. It is specifically engineered for high-temperature, high-pressure, and low-flow applications, making it the ideal choice for demanding industrial environments where compactness, reliability, and precision are paramount. Elevate your thermal control solutions with our Triple Coil Lab Heat Exchanger and experience a new standard of efficiency and performance.
|
Specifications |
|
|
Material |
316L |
|
Inner Tube (mm) |
12.7mm |
|
Middle Tube (mm) |
19mm |
|
Outer Tube(mm) |
25.4mm |
|
Inner Tube Connection |
1/2" Compression |
|
Middle Tube Connection |
3/4" FNPT |
|
Outer Tube Connection |
1" FNPT |
|
Back Mounting Connection |
1/2" FNPT |
|
Coil Length |
6.5 Meters | 21.32 Ft |
|
Maximum Pressure |
200 PSI |
|
Dimensions (L x W x H) (mm) |
254mm X 216mm x 242mm |
|
Dimensions (L x W x H) (in) |
10" x 8.5" x 9.5" |
