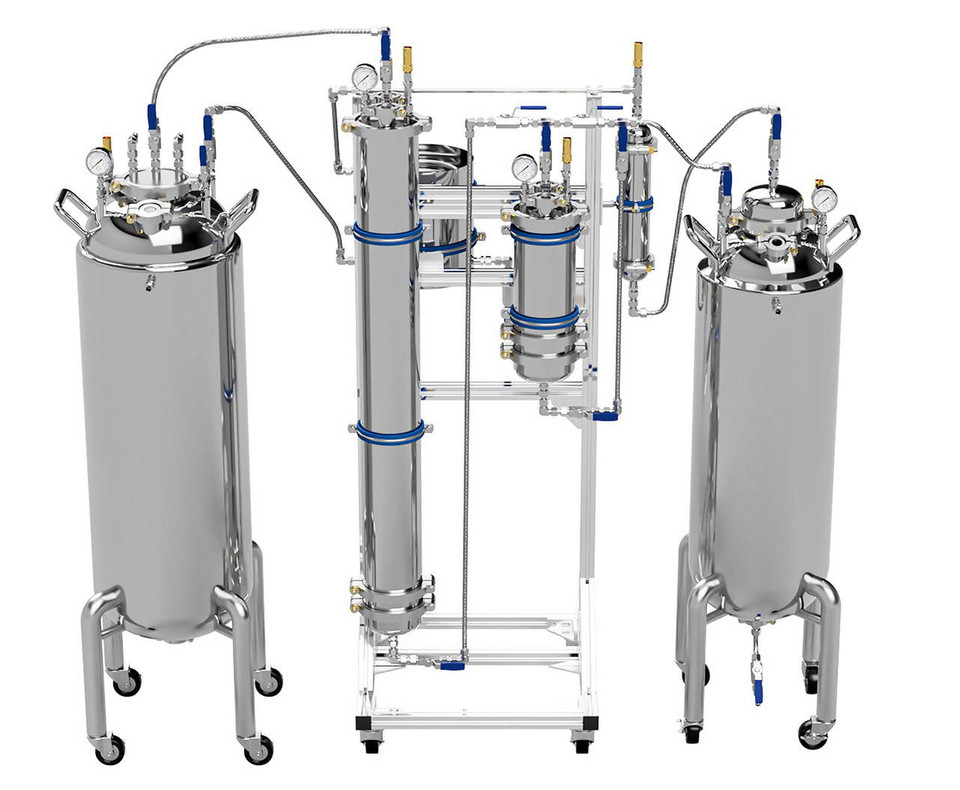

USA Lab Atlas Series 5lb Closed Loop Extractor - Optional Peer Review

Brand :

MSRP: $26,999.00
(You save $7,999.00 )
Material Capacity:
10-20 lbs
Solvent Tank:
ASME Certified
Solvent Tank Capacity:
200lb (96lb Butane)
CollectionTank Capacity:
100 Liters

** Designed for use with Pure Butane & 70/30 Propane Blend **
Contact us for upgrade options

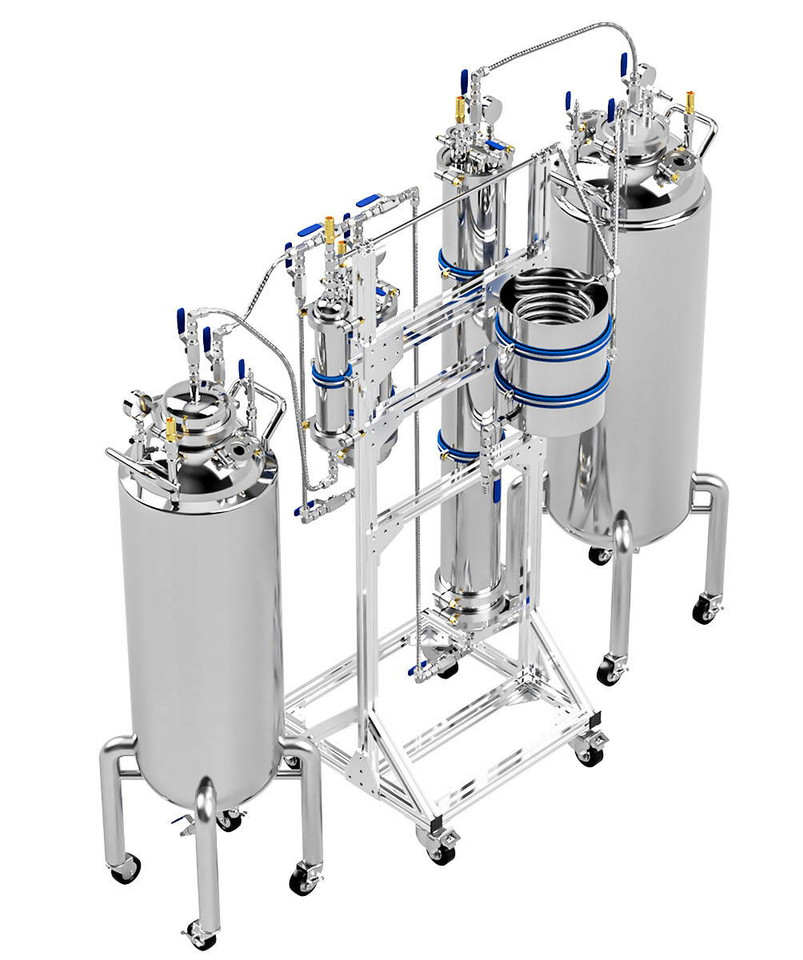

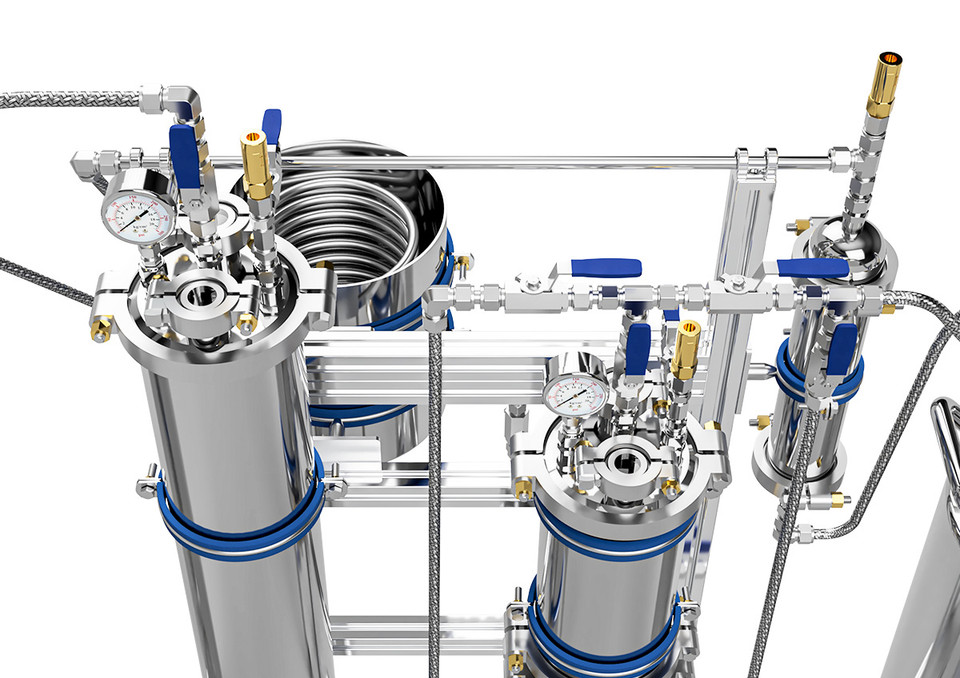

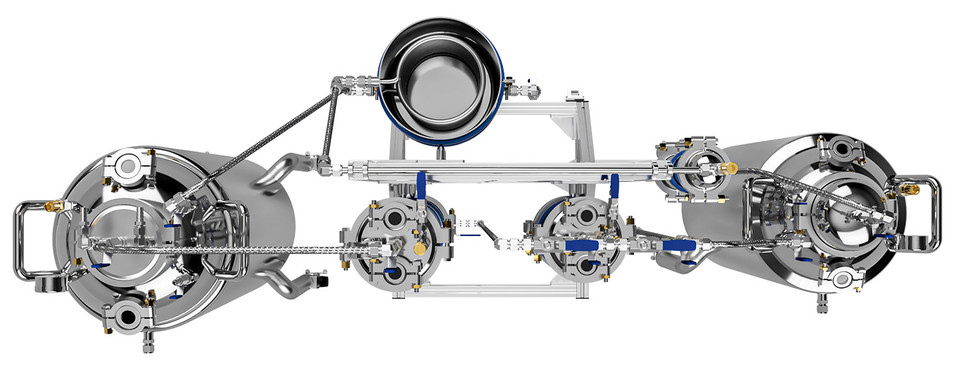

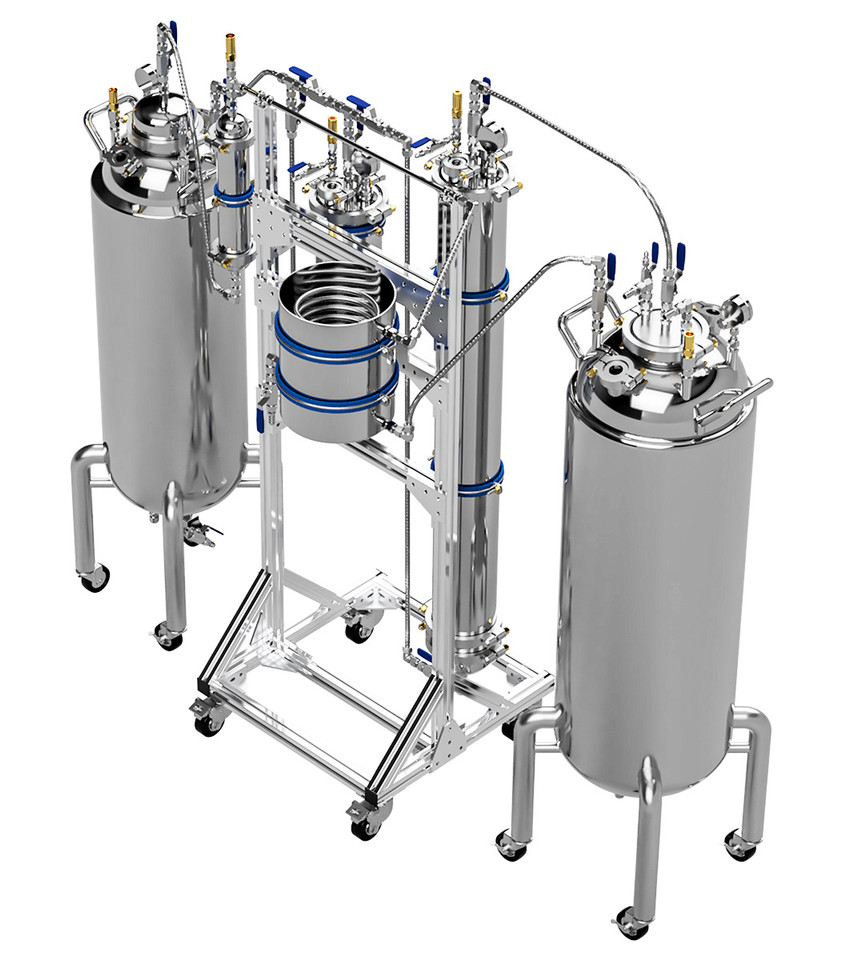

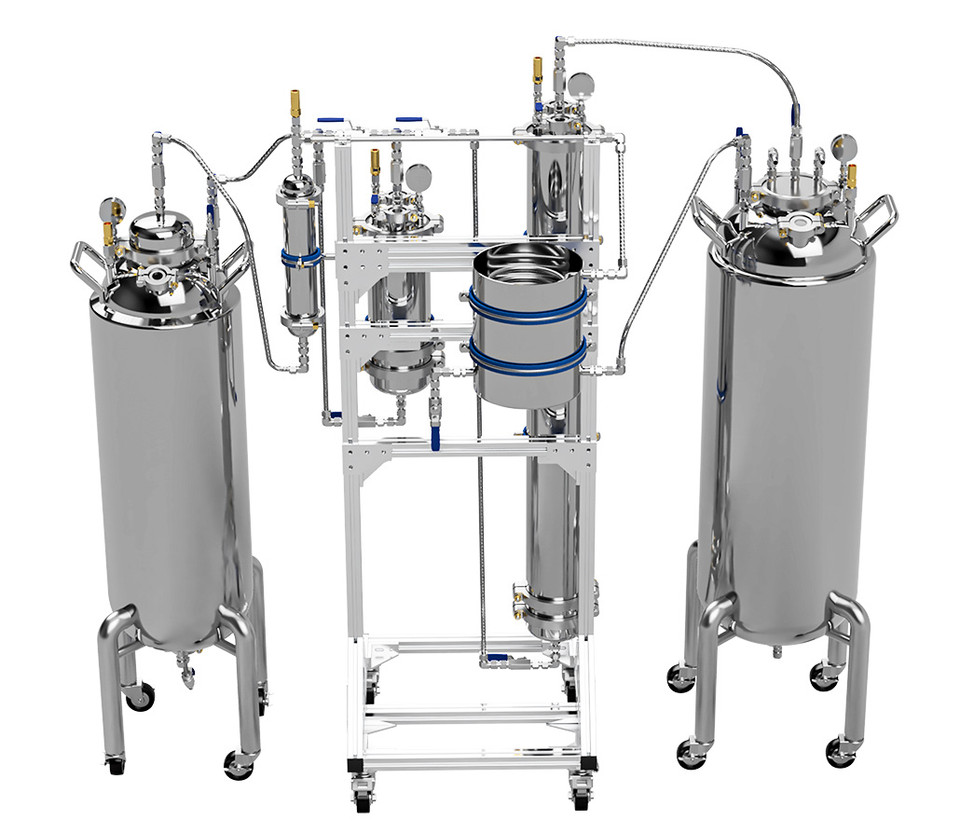

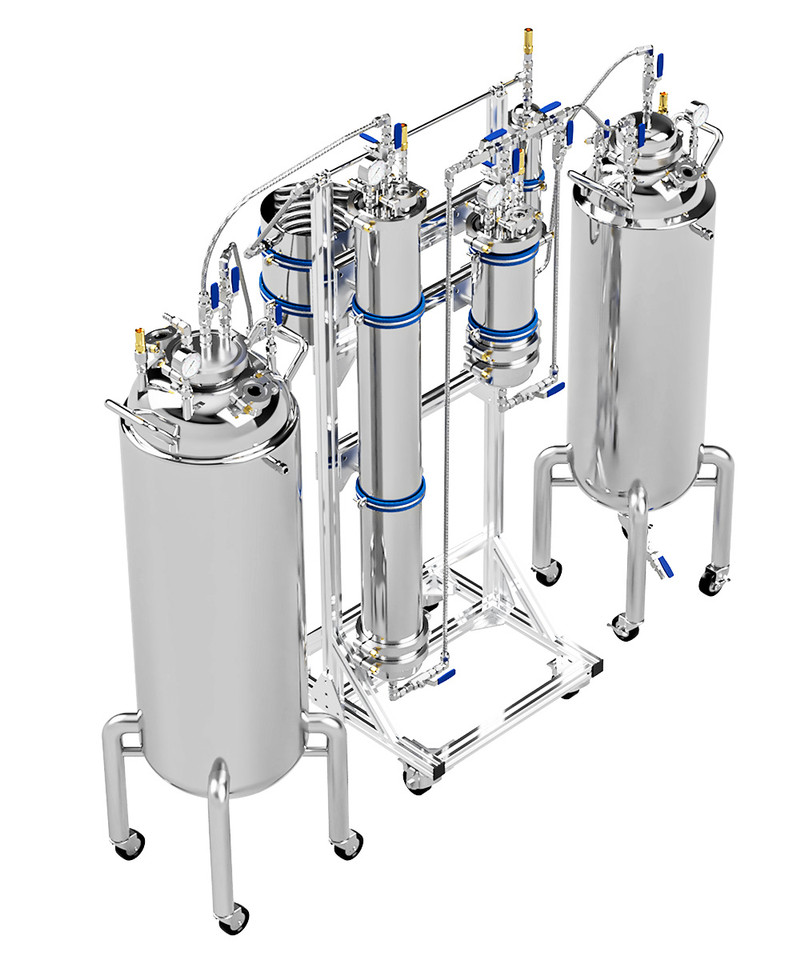

The ATLAS series is our way of bringing back quality, reliability, and accurate systems back to the market. The ATLAS series is all about maximizing your efficiency for every run. Equipped with a 6" x 48” spool that fits +5lbs  of material, an IRC with a 5 micron sintered disk, ASME certified solvent tank & Collection Vessel. And to top it off it is completely fitted with Superlok compression fittings and valves. Upgrade to the 5LB ATLAS closed loop system today and see the USA Lab Difference!

Want to customize?

Give us a call and well help design a custom system with you!

*Contact us for further customization and options!*


 Process up to 80 lbs of material in an 8 hour day with recovery pump

*Systems may have a lead time of 1-2 weeks*


*This System is peer reviewed in 49 states*


• The material columns are 6"x48" with sight glasses to allow for viewing of up to 10lbs of milled material.
• The CRC is 6"x12" and comes with a 5 micron sintered disc and sight glasses for clear viewing of the process.
• The CRC has a built in bypass to allow easy bypass of the CRC.

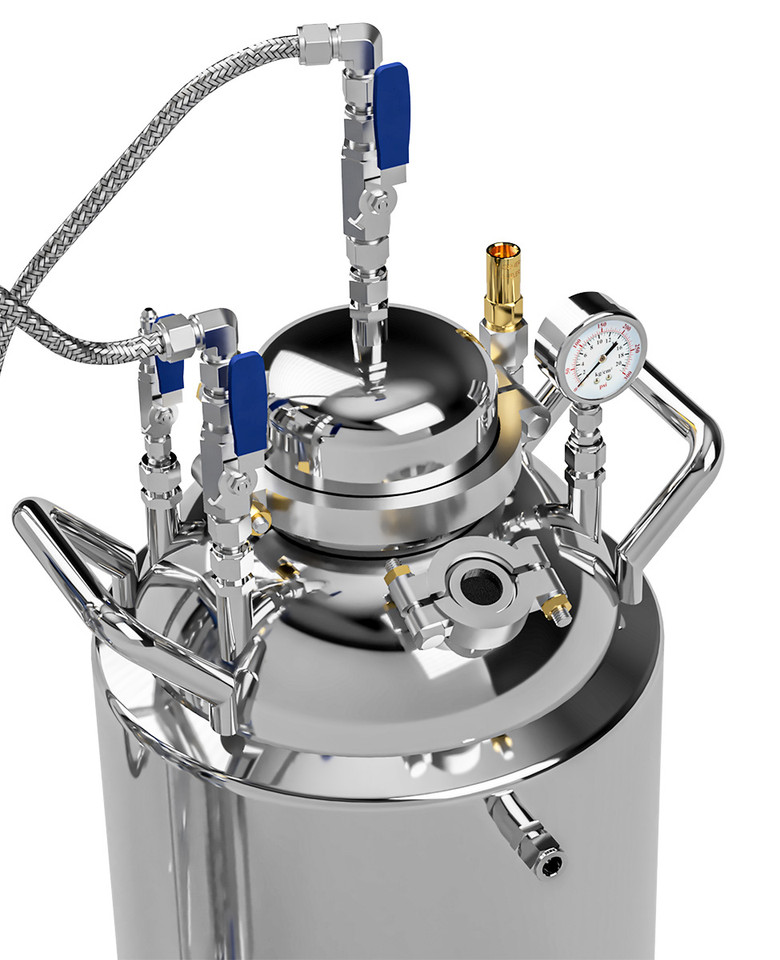

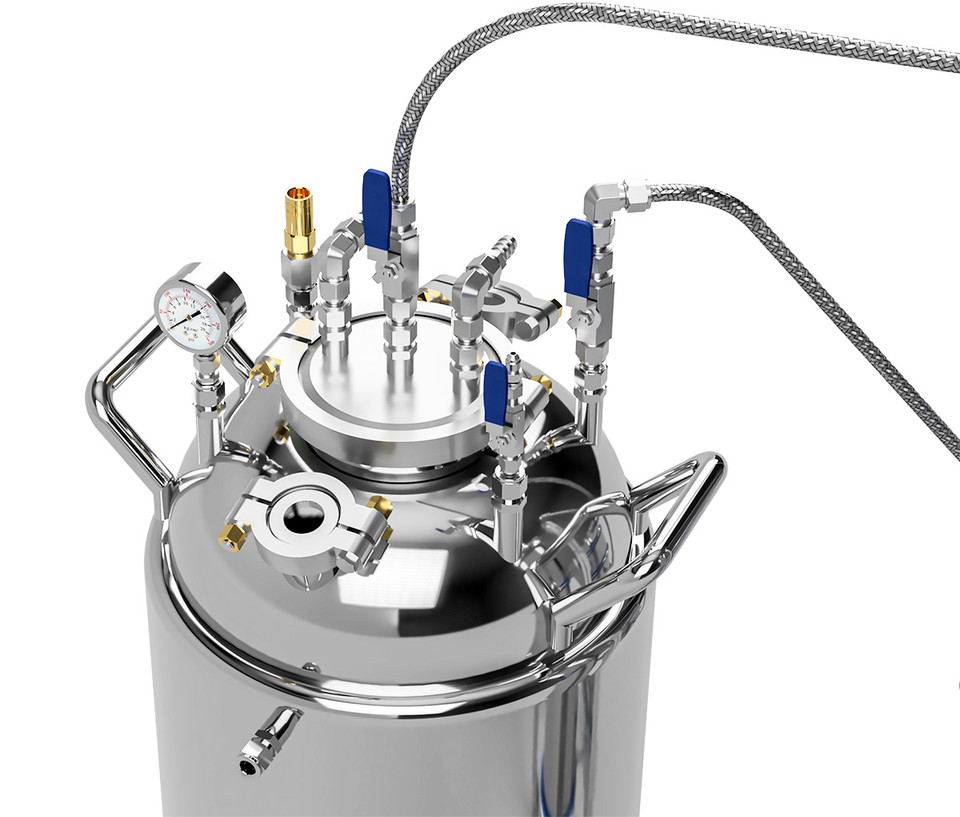

•  The collection is a Jacketed 100lb tank with a capacity of 50L
• The 3"x 18" sieve and 10"x10" coil allow for fast and easy recovery of solvent.
• Medium rack mounted footprint of  24" x 24" x 59"
• High quality 1/2" Compression fittings.
• Each vessel has a 1/4" MJIC Line for connecting nitrogen lines.
• 100psi Cryogenic Pressure relief valves for safe operation.
Model 10LB-TRU
Max Material 5LB Trim | 10LB of milled material
Material Column Size 6" x 48"
CRC Size 6" x 12" 5UM
Sieve Size 3" x 18"
Coil Size 10" x 10" Bucket
Solvent Tank Size 200LB | 96 lb of Butane
Collection Tank Size 100LB | 50 Liters
Foot print 78" x 24" x 66"
Weight 350lbs
Model Quantity
200LB ASME Solvent Tank 1
100LB ASME Solvent Tank 1
6"x 48" Material Column 1
6" x 12" CRC with 5 Micron Disc 1
3" x 18" Sieve 1
10" x 10" Condensing Coil 1
24" x 24" x 59" Aluminum Rack 1

Turnkey Packing List



ATLAS-5lb System


UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump


50L 200°C 9KW Closed Loop Heater CRH-50L


40ºC 50L Closed Loop Recirculating Chiller CLC-50/40


Recovery Pump (Included in Active System)



This product is mechanically cooled by a high-performance scroll compressor. The CLC Series differs by offering a faster way to transfer the thermal load. Instead of cooling passively. Our CLCs use heat exchangers to cool the fluid in line. Allowing for less loss and more ease of use.


Similarly to the UC Series, our CLC Series are compatible with all of your most demanding equipment. Contact us to today if you have more questions about our newest line of high-performance chillers.


*This product is tested before we ship it out. Please allow for a lead time of 1-3 business days.*










Usage Temperature Range

-40°C to Room temperature (40°C/70°F)

Environment Temperature

5°C to 40°C

Environment Humidity


Power Supply

Single phase 220V-240V/60HZ

Safety Protection

Delay, overcurrent, overheating, phase sequence, phase loss protection


LCD display, key operation

Temperature Control Accuracy




Total power












Cooling capacity








Circulation Pump









Air-Cooling Condenser

Heating exchange area



Air volume




Plate-Type Heat Exchanger

Heating exchange area 1.46m2

Equipment Material

Cold plate spray, anti-corrosion

Storage Tank Volume

~11L (300X300X120mm)

Outer Circulation Interface

Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment

Overall Dimension (W*D*H)

670×730×1100 mm

Packing Dimension

840×790×1290mm wooden package 0.86m³

Net Weight

124KG / 280lbs

Packing Weight

178KG / 400lbs


**New revision removes liquid cooling**

Replaced by an air to liquid heat exchanger.

The USA Lab CRH stainless steel closed cloop heater is a powerful 200°C heater with a 35L expansion tank. Our CRH 9kw heater comes with a high powered stainless steel heater, and a strong pump for constant flow and high performance. The closed loop system allows for higher thermal transfer performance than open loop heaters, and provides superior heating capabilities. This unit is a true lab heater that is ideal for applications involving vacuum systems, jacketed reactors, columns, solvent tanks, and even analytical instruments. This system is great for larger columns, tanks, and high heat applications.

The USA Lab CRH heater offers unbeatable performance, ease of use and high reliability. These closed loop heaters are the best on the market for demanding applications and precision heating.



• Powerful high wattage heating up to 200°C.

• Easy to read LCD digital display.

• Stainless steel heating elements.

• Strong oil pump.

• 12ft of insulated tubing included.

• 1 Year warranty with US based parts and support.

• Closed loop for higher thermal transfer performance.





CRH-50 9KW

Expansion Tank Capacity


Oil Tank Dimensions

450 x 300 x 200mm

Temperature Range

RT to 200°C

Power Requirements

220-240V 50-60hz 42A Single Phase - Hardwire ONLY

Control Type

LCD Digital Display

 Heating BTUs / Wattage

30709 BTU / 9000W

Total Power

9250W / 42A

Circulating Pump Wattage


Temperature Accuracy

+/- 1°C

Pump Flow


Lift / Pressure [H20]

25m / 26 psi

Inlet / Outlet Size

3/4" MNPT

External Dimensions

28" x 19.7" x 43.3"




1 Year






USA Lab CRH-50 Heater


3/4" FNPT Insulating Tubing - 6ft







Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.
• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.
Model UVP-5 UVP-11 UVP-21
Pumping Speed(60Hz) 5.5 cfm 11 cfm 21 cfm
Ultimate total pressure gas
 ballast close
4x10-2 Pa
 (3.0x10-4 torr) 0.3 Micron
Ultimate total pressure gas
 ballast open
8x10-1 Pa
 (6x10-3 torr) 6 Micron
Power supply 1 Phase (110V, 60Hz)
Power rating(kW) 0.4 0.75 1.1
Inlet/Exhaust Flange KF 25
Oil capacity(L) 0.6~1.0 0.9~1.5 1.3~2.0
Ambient temperature(℃) 10~40℃
Noise level(dB) ≤56 ≤60 ≤60
Weight(kg) 21 30 43
External Dimensions 440x144x217MM
Certification UL
Warranty 2 Year
Model UVP-5 UVP-11 UVP-21
Main Vacuum Pump 1 1 1
KF25 x 3/8" Barb 1 1 1
KF25 Clamp 2 2 2
KF25 O-ring 2 2 2
Oil Mist Trap 1 1 1
Quart of Oil 1 1 1
Manual 1 1 1



MVP-6CFM Explosion Proof Recovery Pump

Mastor Vapor Pumps MVP-6CFM Vapor Recovery Pump can recover a staggering 1lb of vapor per minute. Each system is certified and made in the USA for superior quality. This pump is 3rd party certifiable with your system, UL listed and FDA compliant. The mvp recovery pump uses no oil allowing for zero contamination of your product.

You can run this explosion proof diaphragm pump with 100% duty cycle, 24/7 without overheating or issue. The dual-diaphragm pump is electrically powered by an explosion-proof motor, and has a working pressure of 350psi.

Performance Factoids:

    • Recover LP-Gas vapor at over 6 CFM (cubic feet per minute)
    • Recover butane at up to 1 LB/Min (pounds per minute)
    • Recover and re-condense butane at over 12 GPH (gallons per hour)
    • Maximum pumping outlet pressure: 60 PSI (4.1 bar) continuous, 70 PSI (4.8 bar) intermittent
    • Maximum pumping inlet vacuum produced: 27 InHg (0.91 bar)
    • Maximum pumping speed: 190 CPM (cycles per minute)
    • Pump static withstand pressure rating: MAWP 350 PSI (24 bar)
    • Materials: pressure section: stainless steel; diaphragms: FKM; reed valves: stainless steel
    • Optional PTFE diaphragms kit available
    • Process gas temperature range: FKM -40-275F (-40-135C); PTFE +40-220F (4-104C)
    • Recommended FKM replacement schedule: every 1000 hours running time
    • Air temperature range for motor/gearbox operation: 32-104F(0-40C)


Pump Head Charge:

    • Motor is coupled to diaphragms with patented gas pressure charged chamber
    • Pumping outlet pressure runs about 10 PSI lower than the charge gas pressure level
    • Non-reactive CO2 gas is used to charge the pump head
    • CO2 gas is safer than air for driving the pump
    • CO2 gas is non-flammable and non-explosive with LPG (should a diaphragm ever leak)
    • CO2 gas regulator with gauges is provided with pump assembly
    • CO2 tank is operator provided (cannot ship filled tanks) - from any welding supply store
    • Pump charge gas supply: standard (#20) 5 LB tank of industrial CO2
    • Typical CO2 gas usage: <0.2 SCFH (very little); estimated life of charge gas tank: 1 year
    • Pump charge gas pressure range: continuous 5 to 70 PSI (1.4 to 5.5 bar); to 80 PSI intermittent


Electrical and Mechanical:

    • Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G
    • Electric motor: 1 HP, 1800 RPM, 60 Hz
    • Motor option: Model MVP-6CFM-1PH: Single-phase: 115/208-230V, 13.4/6.7 FLA (full load amps)
    • Motor option: Model MVP-6CFM-3PH: Three-phase: 208-230/460V, 3.3/1.65 FLA, Inverter-rated
    • Pump Speed: 190 CPM (cycles per minute) at 60 Hz
    • Noise: sound pressure measured 1 meter from pump: 80.5 dBa
    • Porting: process inlet and outlet: 1/2" JIC-male
    • Added ports for optional pressure gauges: inlet and outlet: 1/4" FNPT
    • Inlet & outlet ports at ideal equipment connections heights 46" and 41" above floor
    • Size: 17.0" x 19.9" x 46" tall; minimum use of valuable floor space
    • Weight: 182.5 lb (82.8 kg)


Data Sheet and Benefits

Operations Manual

Wiring Information


                  Master Vapor Pump MVP-6CFM Explosion Proof Recovery Pump
