USA Lab Atlas Series 10lb Closed Loop Extractor - Optional Peer Review




Brand :

MSRP: $26,999.00
$25,000.00
(You save $1,999.00 )
Brand:
USA Lab
Material Capacity:
10-20 lbs
Solvent Tank:
ASME Certified
Solvent Tank Capacity:
200lb (96lb Butane)
CollectionTank Capacity:
100 Liters

** Designed for use with Pure Butane & 70/30 Propane Blend **
Contact us for upgrade options

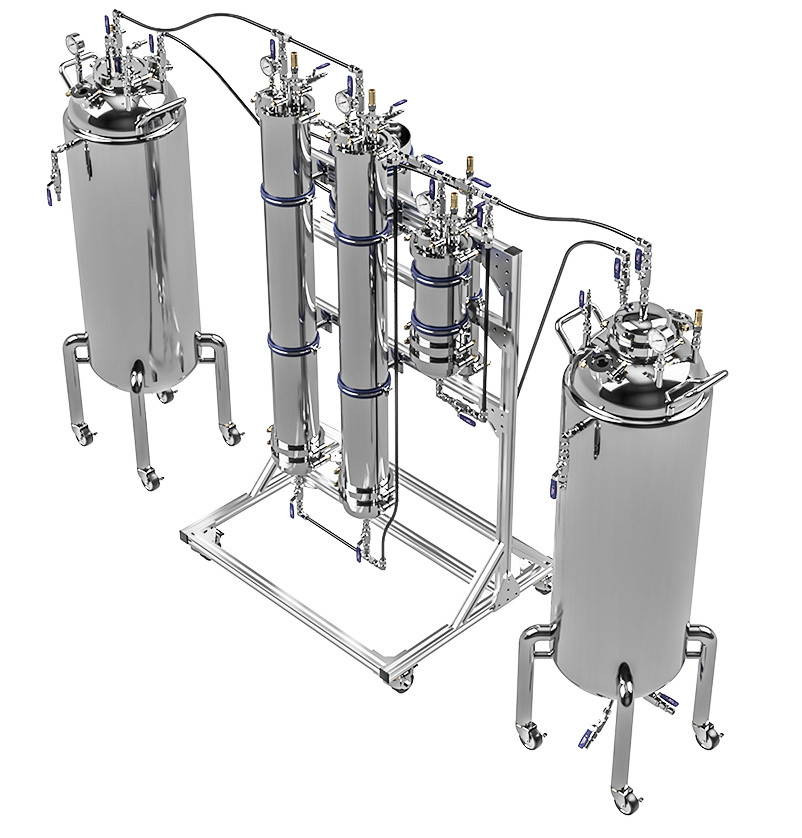

The ATLAS series is our way of bringing back quality, reliability, and accurate systems back to the market. The ATLAS series is all about maximizing your efficiency for every run. Equipped with 2 (6" x 48”) spools that fits +10lbs  of material, an IRC with a 5 micron sintered disk, ASME certified solvent tank & Collection Vessel. And to top it off it is completely fitted with Superlok compression fittings and valves. Upgrade to the ATLAS 10LB closed loop extractor system today and see the USA Lab Difference!

Want to customize?

Give us a call and well help design a custom system with you!

*Contact us for further customization and options!*



 Process up to 160lbs of material in an 8 hour day with recovery pump

*Systems may have a lead time of 1-2 weeks*



*This System is peer reviewed in 49 states*



FEATURES
• The material columns are 6"x48" with sight glasses to allow for viewing of up to 10lbs of milled material.
• The CRC is 6"x12" and comes with a 5 micron sintered disc and sight glasses for clear viewing of the process.
• The CRC has a built in bypass to allow easy bypass of the CRC.
•  The collection is a Jacketed 200lb tank with a capacity of 100L
• The 3"x 18" sieve and 10"x10" coil allow for fast and easy recovery of solvent.
• Large rack mounted footprint of 115" x 24" x 66.
• High quality 1/2" Compression fittings.
• Each vessel has a 1/4" MJIC Line for connecting nitrogen lines.
• 100psi Cryogenic Pressure relief valves for safe operation.

SPECIFICATIONS
Model 10LB-TRU
Max Material 10LB Trim | 20LB of milled material
Material Column Size 2 x 6" x 48"
CRC Size 6" x 12" 5UM
Sieve Size 3" x 18"
Coil Size 10" x 10" Bucket
Solvent Tank Size 200LB | 96 lb of Butane
Collection Tank Size 200LB | 100 Liters
Foot print 115" x 24" x 66"
Weight 550lbs

PACKING LIST
Model Quantity
200LB ASME Solvent Tank 2
6"x 48" Material Column 2
6" x 12" CRC with 5 Micron Disc 1
3" x 18" Sieve 1
10" x 10" Condensing Coil 1
39" x 30" x 59" Aluminum Rack 1







Turnkey Packing List

Model

QTY

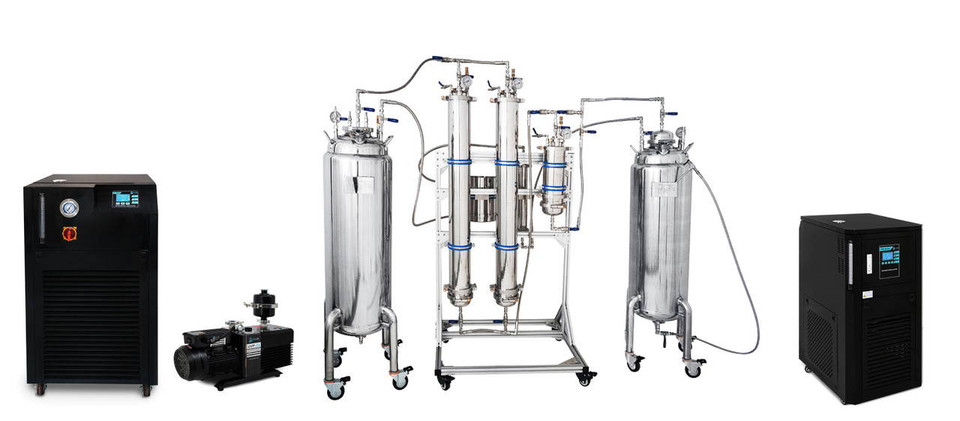

ATLAS-10lb System

1

UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump

1

50L 200°C 9KW Closed Loop Heater CRH-50L

1

40ºC 50L Closed Loop Recirculating Chiller CLC-50/40

1

Master Vapor Pump 6CFM Recovery Pump (Included in Active System)

1



This product is mechanically cooled by a high-performance scroll compressor. The CLC Series differs by offering a faster way to transfer the thermal load. Instead of cooling passively. Our CLCs use heat exchangers to cool the fluid in line. Allowing for less loss and more ease of use.



Similarly to the UC Series, our CLC Series are compatible with all of your most demanding equipment. Contact us to today if you have more questions about our newest line of high-performance chillers.



*This product is tested before we ship it out. Please allow for a lead time of 1-3 business days.*











CLC-50/40 SPECIFICATIONS

Model

CLC-50/40

Usage Temperature Range

-40°C to Room temperature (40°C/70°F)

Environment Temperature

5°C to 40°C

Environment Humidity

≤70%RH

Power Supply

Single phase 220V-240V/60HZ

Safety Protection

Delay, overcurrent, overheating, phase sequence, phase loss protection

Display

LCD display, key operation

Temperature Control Accuracy

±0.1

Sensor

PT100

Total power

4035W



Specification

5HP



Quantity

1

Compressor

Power

3675W



Cooling capacity

7569W-3640W



Power

100W



Lift

4-6M

Circulation Pump

Flow

20-40L/min



Pressure

≤0.4bar



Power

260W

Air-Cooling Condenser

Heating exchange area

21.2



Air volume

3400m³/h

Refrigerant

R404A

Plate-Type Heat Exchanger

Heating exchange area 1.46m2

Equipment Material

Cold plate spray, anti-corrosion

Storage Tank Volume

~11L (300X300X120mm)

Outer Circulation Interface

Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment

Overall Dimension (W*D*H)

670×730×1100 mm

Packing Dimension

840×790×1290mm wooden package 0.86m³

Net Weight

124KG / 280lbs

Packing Weight

178KG / 400lbs



**New revision removes liquid cooling**

Replaced by an air to liquid heat exchanger.

The USA Lab CRH stainless steel closed cloop heater is a powerful 200°C heater with a 35L expansion tank. Our CRH 9kw heater comes with a high powered stainless steel heater, and a strong pump for constant flow and high performance. The closed loop system allows for higher thermal transfer performance than open loop heaters, and provides superior heating capabilities. This unit is a true lab heater that is ideal for applications involving vacuum systems, jacketed reactors, columns, solvent tanks, and even analytical instruments. This system is great for larger columns, tanks, and high heat applications.

The USA Lab CRH heater offers unbeatable performance, ease of use and high reliability. These closed loop heaters are the best on the market for demanding applications and precision heating.



CRH-50 FEATURES

• Powerful high wattage heating up to 200°C.

• Easy to read LCD digital display.

• Stainless steel heating elements.

• Strong oil pump.

• 12ft of insulated tubing included.

• 1 Year warranty with US based parts and support.

• Closed loop for higher thermal transfer performance.





SPECIFICATIONS

Model

CRH-50 9KW

Expansion Tank Capacity

35L

Oil Tank Dimensions

450 x 300 x 200mm

Temperature Range

RT to 200°C

Power Requirements

220-240V 50-60hz 42A Single Phase - Hardwire ONLY

Control Type

LCD Digital Display

 Heating BTUs / Wattage

30709 BTU / 9000W

Total Power

9250W / 42A

Circulating Pump Wattage

250W

Temperature Accuracy

+/- 1°C

Pump Flow

35L/Min

Lift / Pressure [H20]

25m / 26 psi

Inlet / Outlet Size

3/4" MNPT

External Dimensions

28" x 19.7" x 43.3"

Weight

155lbs

Warranty

1 Year





PACKING LIST

Model

Quantity

USA Lab CRH-50 Heater

1

3/4" FNPT Insulating Tubing - 6ft

2

 Manual

1





Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.



SPECIFICATIONS
Model UVP-5 UVP-11 UVP-21
Pumping Speed(60Hz) 5.5 cfm 11 cfm 21 cfm
Ultimate total pressure gas
 ballast close
4x10-2 Pa
 (3.0x10-4 torr) 0.3 Micron
Ultimate total pressure gas
 ballast open
8x10-1 Pa
 (6x10-3 torr) 6 Micron
Power supply 1 Phase (110V, 60Hz)
Power rating(kW) 0.4 0.75 1.1
Inlet/Exhaust Flange KF 25
Oil capacity(L) 0.6~1.0 0.9~1.5 1.3~2.0
Ambient temperature(℃) 10~40℃
Noise level(dB) ≤56 ≤60 ≤60
Weight(kg) 21 30 43
External Dimensions 440x144x217MM
 17.3x5.6x8.5"
530x188x272MM
 20.8x7.4x10.7"
567x188x272MM
 22.3x7.4x10.7"
Certification UL
Warranty 2 Year

PACKING LIST
Model UVP-5 UVP-11 UVP-21
Main Vacuum Pump 1 1 1
KF25 x 3/8" Barb 1 1 1
KF25 Clamp 2 2 2
KF25 O-ring 2 2 2
Oil Mist Trap 1 1 1
Quart of Oil 1 1 1
Manual 1 1 1



Many factors go into the rate of recovery on an extraction system. Not only is the pump size important, but also the evaporation rate of the solvents.If the solvents aren’t able to evaporate fast enough there will be nothing for the pump to transfer.

Larger pumps have the capacity to transfer solvents faster, but only if the solvents are in an evaporated state. Because these pumps are so large they have a tendency to outpace the evaporation rate of most extraction systems.

This lowers the inlet pressure (and the collection vessel pressures) which aids in speeding up the evaporation rate. Propane weighs less per gallon than butane (4.2 vs 4.9),

however the vapor pressure is higher which generally results in a higher inlet pressure, and therefor a faster recovery per pound of gas used.

These pumps are sized large enough to recover on the largest extraction systems with the highest evaporation rates, or can be used on multiple extraction systems at one time. For example this pump was used to recover 5lbs of butane on a 6” vessel with 70° of temperature.

The process took ~12 minutes. However increasing the process to 3x 6” vessels with 5lbs of butane each(15lbs total), the process also took ~12 minutes. This is because the pump exceeds the evaporation rate of a single 6” column at 70° by more than 3x.

Because the pump exceeds the evaporation rate a vacuum is pulled against the collection vessel, which in turn speeds up the evaporation rate.

However once vacuum equilibrium is achieved, increasing the pump size will not speed up the process, but will allow for larger (or multiple) processes to be preformed in the same time frame.

The next tab shows a table of recovery capacity with regards to inlet pressures. Higher inlet pressures result in substantially faster recovery times.

Higher inlet pressures can be achieved by evaporating solvents faster by higher temperatures in collection vessels, or more surface area in collection vessels (larger diameter vessels, falling film, etc).



The STAR 150 Solvent Transfer And Recovery pump is the latest technology from PDX.Gold and is a potent addition to any processing lab. This powerful system pairs perfectly with the industry’s leading hydrocarbon extraction systems by decreasing your recovery times and increasing your profits instantly!





Features

• Certified by 3PCertz, licensed professional engineers

• Recovers solvent at pressures up to 150 PSI

• Certified to pressure of 250 PSI

• Displacement: 6.5 CFM free air flow

• Oilless compressor prevents lubricant contamination

• Belt drive - reliable & quiet

•  Durable and maintenance free with proper operation

• Piston driven compressor



Technical Specs

Certifications

UL & CSA listed, NEMA 7, 2 hp
C1D1 explosion proof motor

Recovery Rate

2+ lbs /  Minute*

Power

Single phase & 3 phase drive available

Voltage

1-Phase 115/208-230v & 3-Phase 208/230/460v

Free Load Amperage

13.4A (115v) / 6.7A (230v) & 3.8A (230v) / 1.9A (460v)

Max RPM

1750

Noise data

quiet at ~79 dBa

Inlet / Outlet

1/2: Tube Fittings

100% food grade materials



 For Technical Support, Questions, or Other Issues Please Email or Call Us!


Brand:
USA Lab
Material Capacity:
10-20 lbs
Solvent Tank:
ASME Certified
Solvent Tank Capacity:
200lb (96lb Butane)
CollectionTank Capacity:
100 Liters
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
