USA Lab 1LB Top Fill Closed Loop Extractor




Brand :

$999.00 - $2,699.00
UPC:
810047126003
Condition:
New
Brand:
USA Lab
Material Capacity:
1LB
***DISCLAIMER***
Our Closed Loop Systems are intended for legal uses only. They are to be used in well ventilated areas and in accordance with local laws and regulations.
** Designed for use with pure Butane **
Contact us for upgrade options for blended solvent or propane

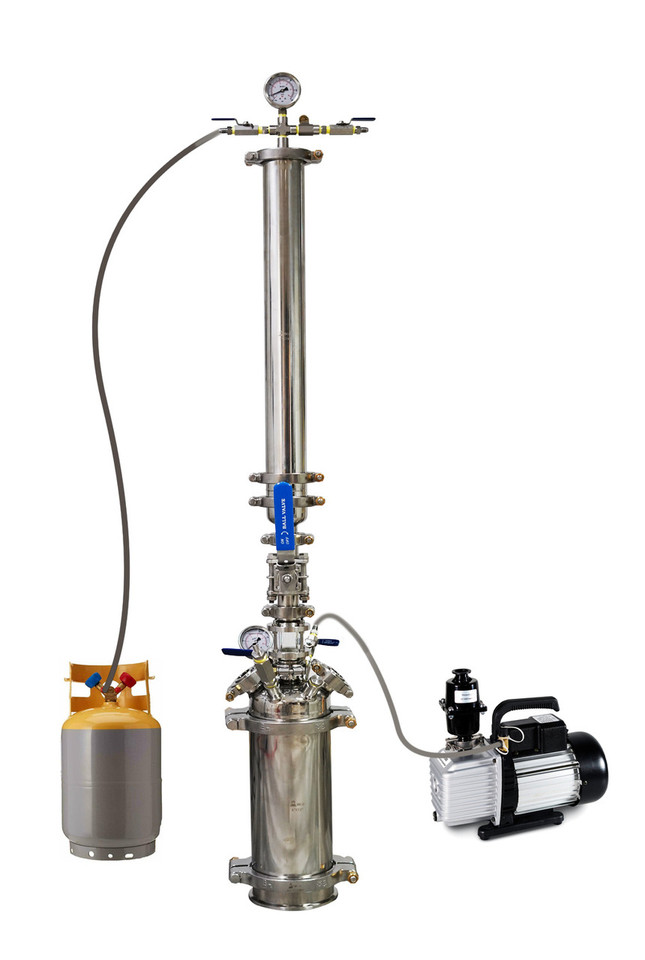

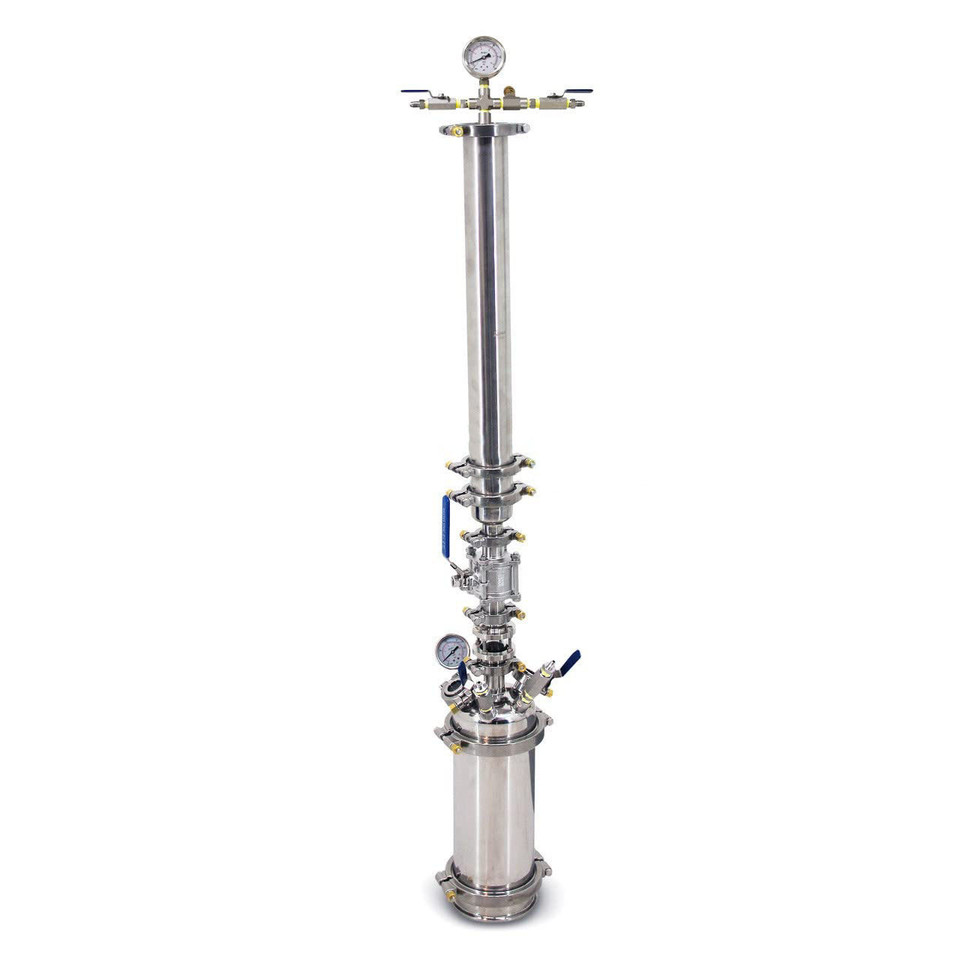

Our 1lb Closed Loop Extractor System is a fully sealed, fully closed system that allows users to perform botanical extraction while maintaining a closed loop system, exposing no solvents to the air. This system is a passive unit that allows users to change pressure in the system via temperature change. Our 1lb system has been fully upgraded with high quality polished 304 Stainless Steel parts, premium Superlok Ball Valves, 3.3 Borosilicate Sight Glass, and High Pressure Tri-Clamps. No expense has been spared with this stainless steel extractor system to provide high quality parts at an affordable price.




1LB-CLS Specifications

Material

304 Stainless Steel

Capacity

1lb (450G)

Gasket Type

Buna-N

PSI Rating

150psi

Lid Connections

(3x 1.5" Tri-Clamp) (2x 1/2" FNPT) (2x 1/4" FNPT)

Top Connections

(1x 1/2" FNPT)

Exterior Dimensions

8" L x 8" W x 63" H

Weight

31lbs

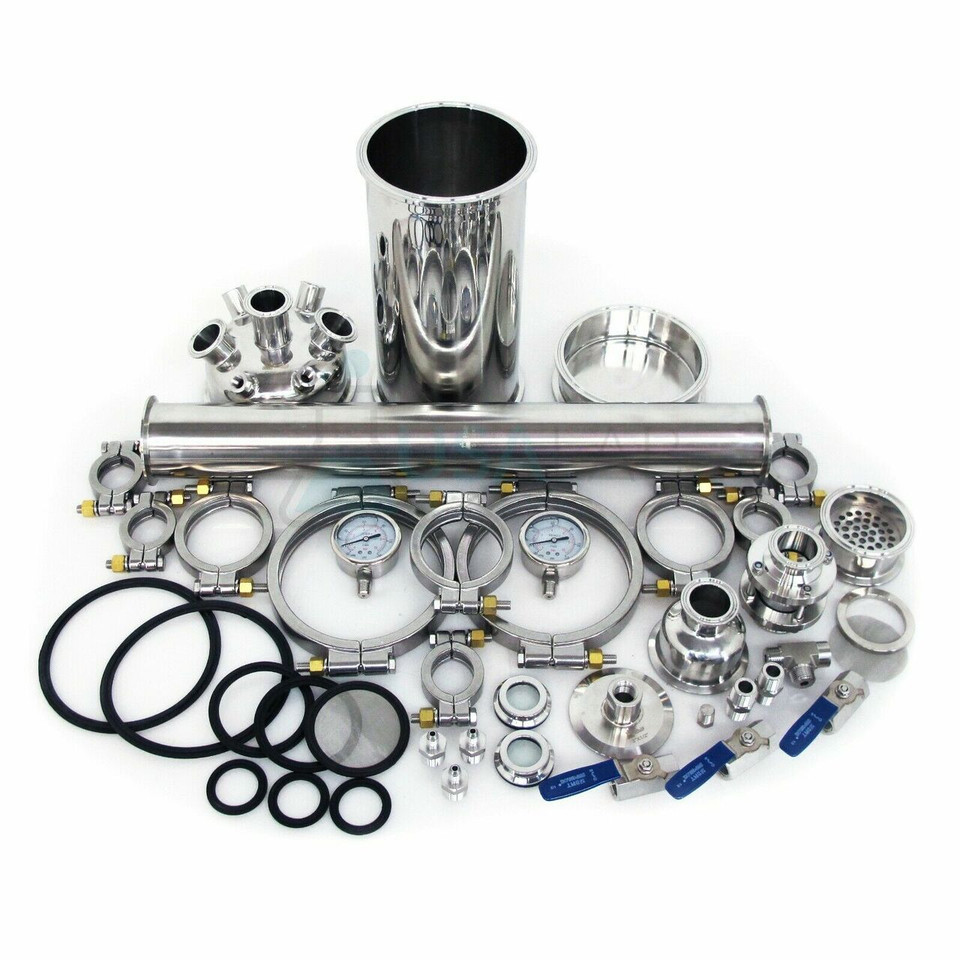

1LB CLS Packing List

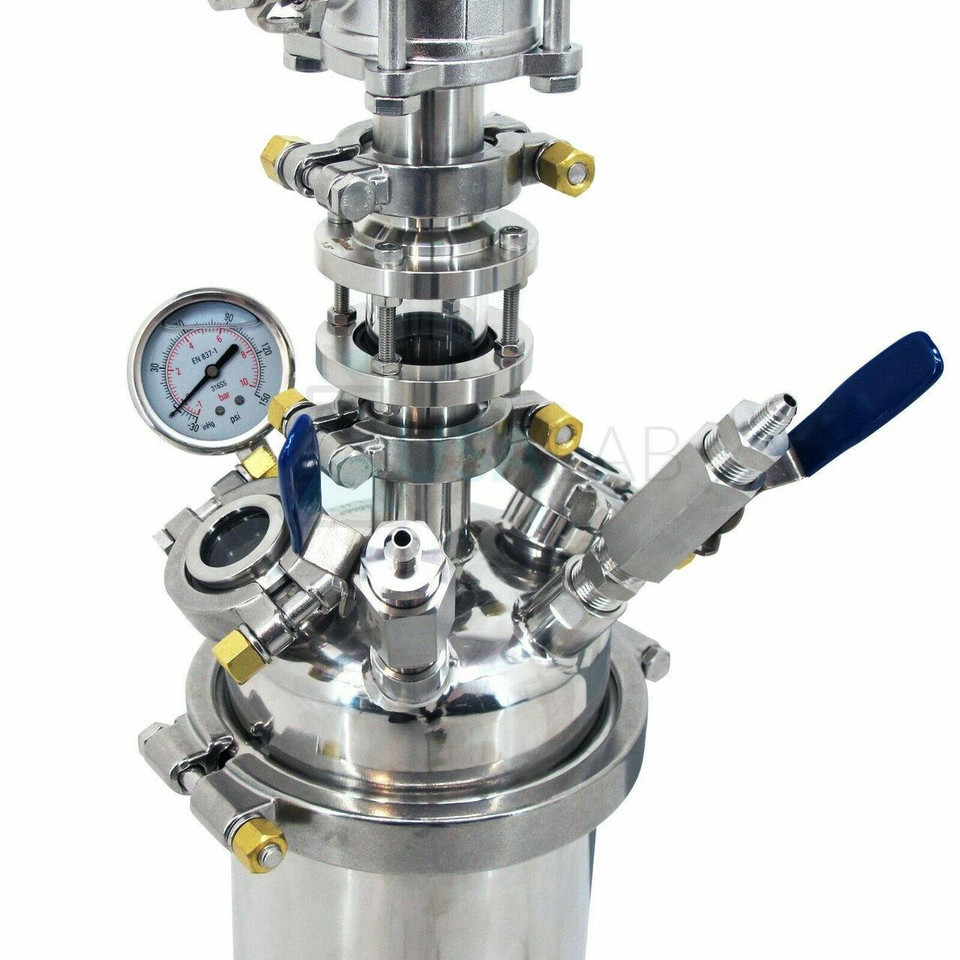

6" Hemi Lid (3x 1.5" TC) (2x 1/2 FNPT) (2x 1/4 FNPT)

1 pc

6" x 2" Splatter Platter

1 pc

6" x 12" Tri-Clamp Spool

1 pc

3"x 24" Tri-Clamp Spool

1 pc

1.5" Tri-Clamp Sight Glass W/ Buna-N Gaskets

1 pc

1.5" Tri-Clamp 1000PSI Ball Valve

1 pc

1.5" to 3" Tri-Clamp Reducer

1 pc

3" Tri-Clamp Filter Plate w/ Ring and 100 Micron Mesh

1 pc

3" Tri-Clamp Shower Head Lid w/ 1/4" FNPT

1 pc

MxFxF Street Tee 1/4" NPT

1 pc

1/4" Superlok Valve

2 pcs

1/4" MNPT to 1/4 MNPT

2 pcs

1/4" MNPT to 1/4 MJIC

2 pcs

1/2" Superlok Valve

2 pcs

1/2" MNPT to 1/4" MJIC

2 pcs

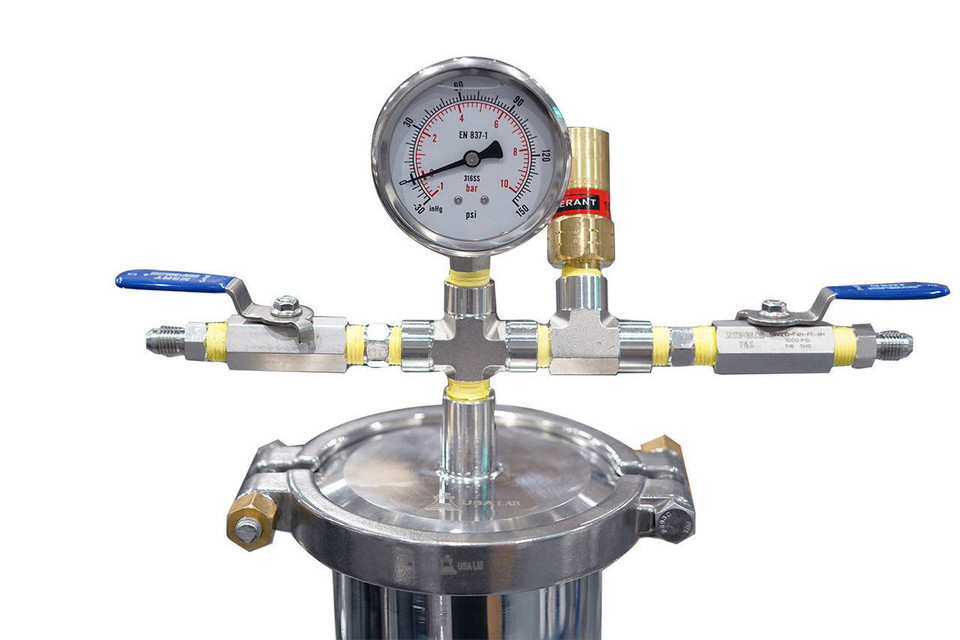

1/4" MNPT Pressure Gauge

2 pcs

1/4" MNPT 150PSI ASME Pressure Relief Valve

2 pcs

1.5" Tri-Clamp Sight Glass

2 pcs

1.5" High Pressure Tri-Clamp

5 pcs

3" High Pressure Tri-Clamp

3 pcs

6" High Pressure Tri-Clamp

2 pcs

1.5" Buna-N Gasket

3 pcs

3" Buna-N Gasket

3 pcs

6" Buna-N Gasket

2 pcs






Our USA Lab vacuum ovens are a top of the line product compared to others that are currently on the market while maintaining an affordable priceWe also provide an all stainless-steel tubing interioroil filled vacuum gauge, stainless steel vacuum vent & valve, and a 1-year warranty. Users can stack our ovens with ease and manifold vacuum lines together for ease of use. The bottom, back, left side, and right side are heated!

Our ovens provide superior quality and allow users to greatly reduce drying times by pulling a uniform vacuum level inside the oven. Safety features include a circuit breaker and an over temperature controller.

Our ovens come equipped with the highest quality parts to serve you better and to make your equipment last longer.

Upgrade today and see the USA Lab quality difference!

 This Oven comes with 4 individual shelves.



Specifications

Model

USA-VO-09

Capacity

25L / .9 cu ft

Input Power

700W

Power Requirements

110-120V | Single Phase | 60Hz

Temperature Range

RT+10°C to 200°C

Temperature Accuracy

± 1°C

Lowest Vacuum Depth

1 Torr / 1,000 Microns / 1 mmHg(a)

Vacuum Port Size

KF25 / NW25

Wattage

500W

Plug Type

NEMA 5-15p

Heated Walls

Back, Bottom, L Side, R Side

Shelves Included

4 Shelves

Shelving Configurations (max)

8 Shelves

Light Strip

White LED

Interior Material

SS304

Chamber Dimensions (in)

11.9" X 11.7" X 10.9"

Exterior Dimensions (in)

23.8"x 19.3" x 17.7"





Packing List

Model

USA-VO-09

USA-VO-09 Oven

1

Shelves

4 (+4 available with USA-VO-09-WS)

KF25 TO 1/4" Male JIC

1

KF25 Clamp

1

KF25 O-ring

1

Manual

1

VPD-265 Vacuum Pump w/ Oil

0

1/4" 37° JIC Stainless Steel Hose 24"

0








VPD 265 Specifications

Model

VPD-265

Power

110-120V - 60hz - 15A - 5-15 Plug

Motor Wattage

550W

Flow Rate

6.5CFM

Ultimate Vacuum

2pa - 15 Microns

Oil Capacity

380mL

Exterior Dimensions

13" L x 6" W x 13" H

Weight

23lbs







VPD 265 Packing List

Item

Quantity

USA Lab VPD-265 Vacuum Pump

1

16oz. Vacuum Pump Oil

2

USA Lab VPD-Filter

1

KF25 Centering Ring

1

KF25 Clamp

1



For Technical Support, Questions, or Other Issues Please Email or Call Us!


Brand:
USA Lab
Material Capacity:
1LB
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
