Description

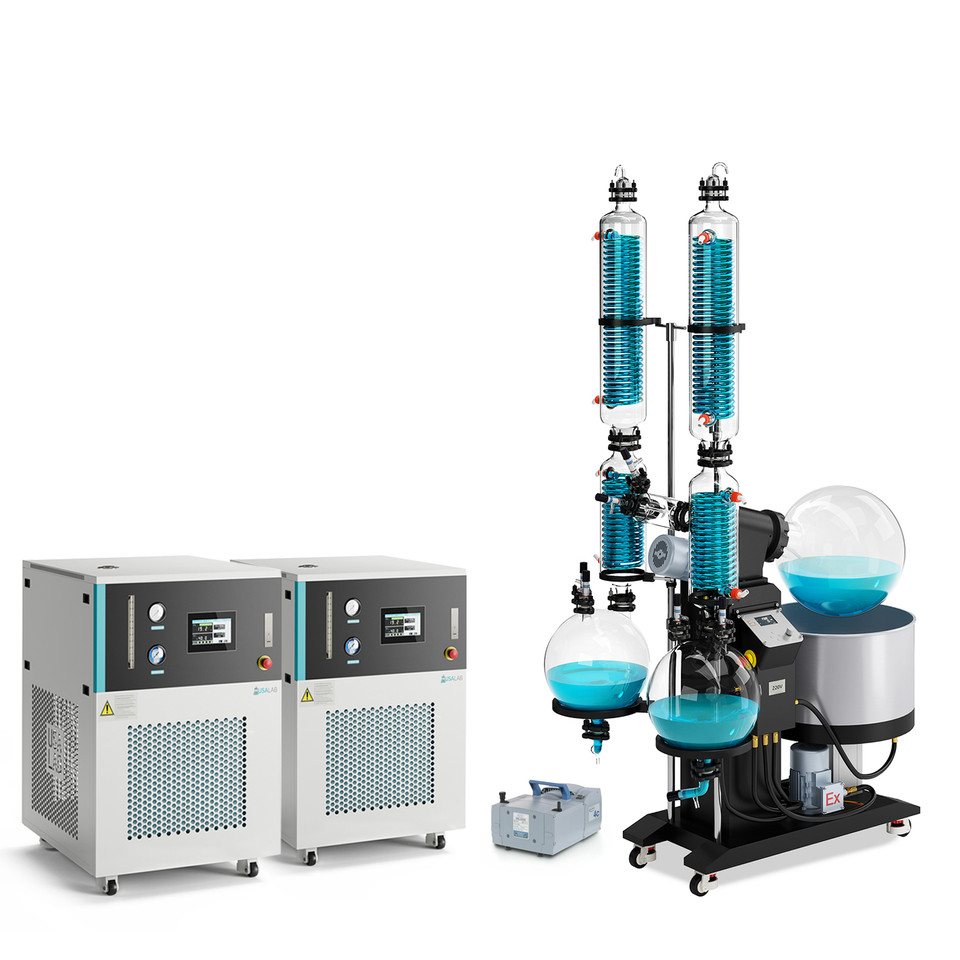

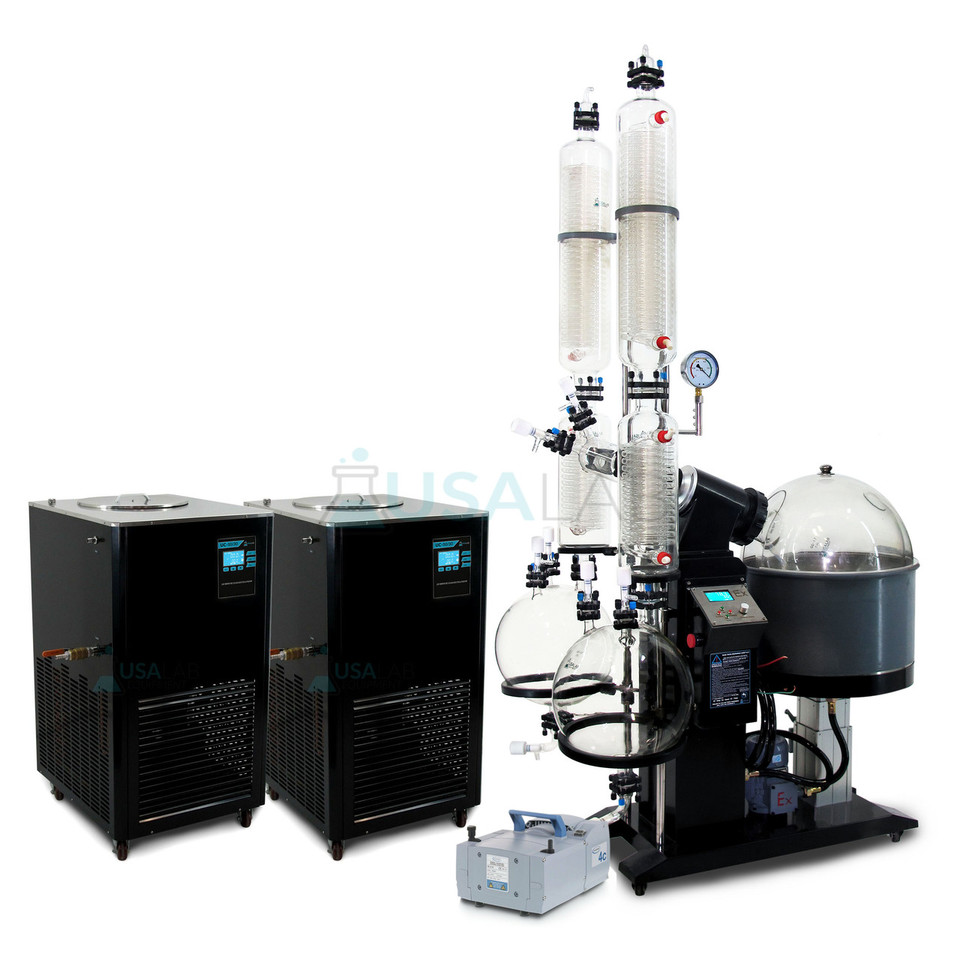

USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers

This explosion-proof rotary evaporator delivers consistent, repeatable performance at an affordable price. Featuring dual condensers and dual receiving flasks constructed from GG-17 high borosilicate glass, every component is engineered to maximize surface area, increase capacity, and improve recovery rates for faster solvent recovery without compromising quality.

Built-in safety features such as over-temperature shutoff and dry-run protection ensure reliable operation, while high-efficiency valves and ports allow for continuous feeding and draining without breaking vacuum. This 50L rotary evaporator system comes standard with two 50L UC-50/30 -30°C chillers for strong flow rates and efficient condenser performance.

For customers requiring certified equipment and deeper cooling capability, upgraded ETL-listed chiller options are also available, including the USA Lab CLC-50L -40°C mechanical chillers. Paired with a Vacuubrand MD 4C NT 2.2CFM chemistry diaphragm vacuum pump, this turnkey system provides stable, oil-free vacuum performance for demanding evaporation workflows.

Each system is backed by fantastic customer service, local product support, and a 1 year warranty—making the USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers one of the best values on the market.

HARDWIRE ONLY
Notice: NOT Compatible With 208V Power Input (acceptable range: 219V–253V).
Duty Cycle: NOT intended for 24-hour operation; maximum operation time is 16 hours.

Explosion Proof Design Dual Condenser Setup Optional ETL Chiller UpgradeGG-17 Borosilicate Glass Continuous Feed & Drain 1 Year Warranty

Capacity: 50L evaporation flask with dual condensers and dual receiving flasks.

Cooling: Standard with two 50L UC-50/30 -30°C chillers and optional ETL CLC-50L -40°C upgrades.

Vacuum: Includes Vacuubrand MD 4C NT 2.2CFM oil-free chemistry diaphragm pump.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Request a Quote Ask About ETL Chiller Upgrades Pump & System Configuration Help Technical Support

Why this 50L explosion proof rotary evaporator system?

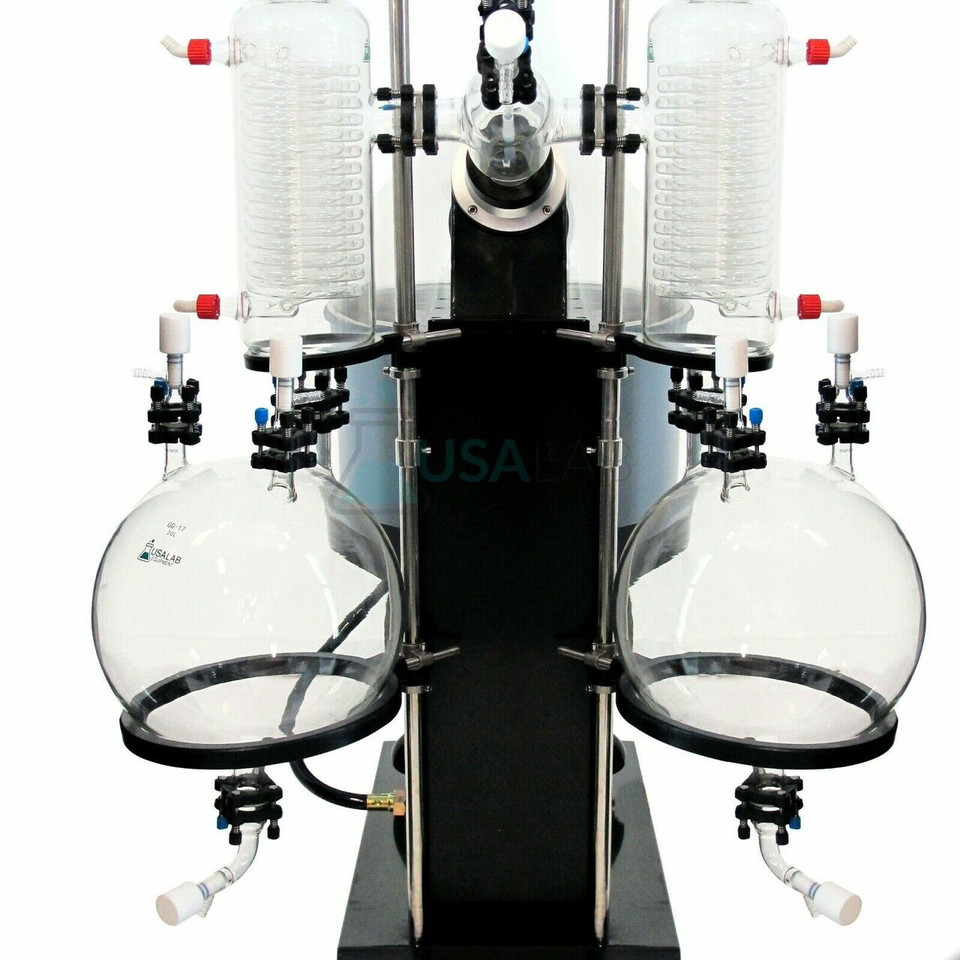

Efficient solvent recovery — dual condensers and dual receiving flasks increase condensing surface area and throughput.
Turnkey system design — includes evaporator, chillers, chemistry vacuum pump, glycol, vacuum hose, and insulated chiller lines.

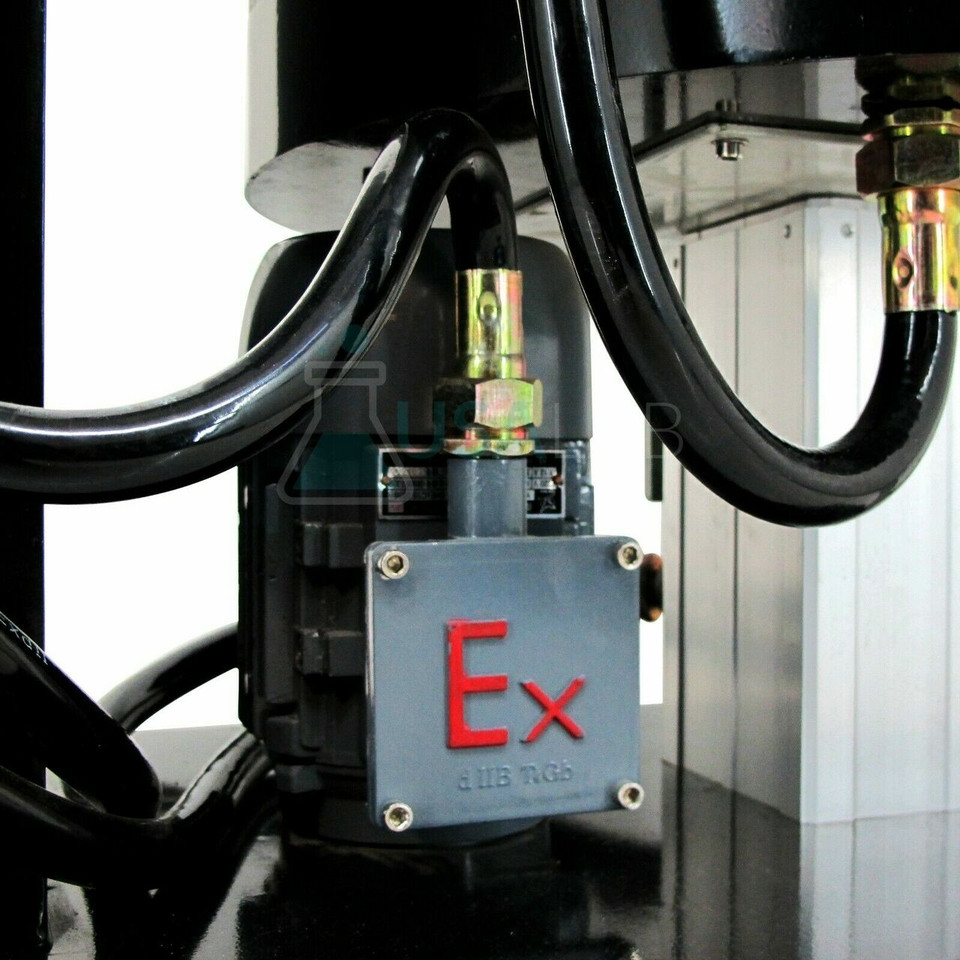

Explosion-proof construction — designed for demanding solvent recovery and evaporation workflows.
Flexible cooling options — standard UC-50/30 chillers or upgraded ETL-listed USA Lab CLC-50L -40°C chillers.
Reliable vacuum performance — Vacuubrand MD 4C NT delivers oil-free, corrosion-resistant operation rated for up to 15,000 maintenance-free hours.

Talk to an expert

Get sizing help, ETL upgrade guidance, and integration tips for your USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers.

Call 734-855-4890

Technical Specifications

Model	EXR-1050 Dual Setup
Glass Material	GG-17 Borosilicate Glass
Evaporation Flask Capacity	50L
Collection Flask Capacity	20L
Rotary Speed	20-120RPM
Bath Temperature Range	Room Temp to 180°C / 356°F
Lifting Mechanism	Electric
Power Requirements	220V 60Hz 30A Single Phase
Installation	Hard Wired Only
Temperature Control Accuracy	±1°C
Motor Wattage	250W
Heater BTUs	22,000 BTU
Achievable Vacuum	399.9Pa
Evaporating Capability	Water ≥13L/H; Alcohol ≥27L/H

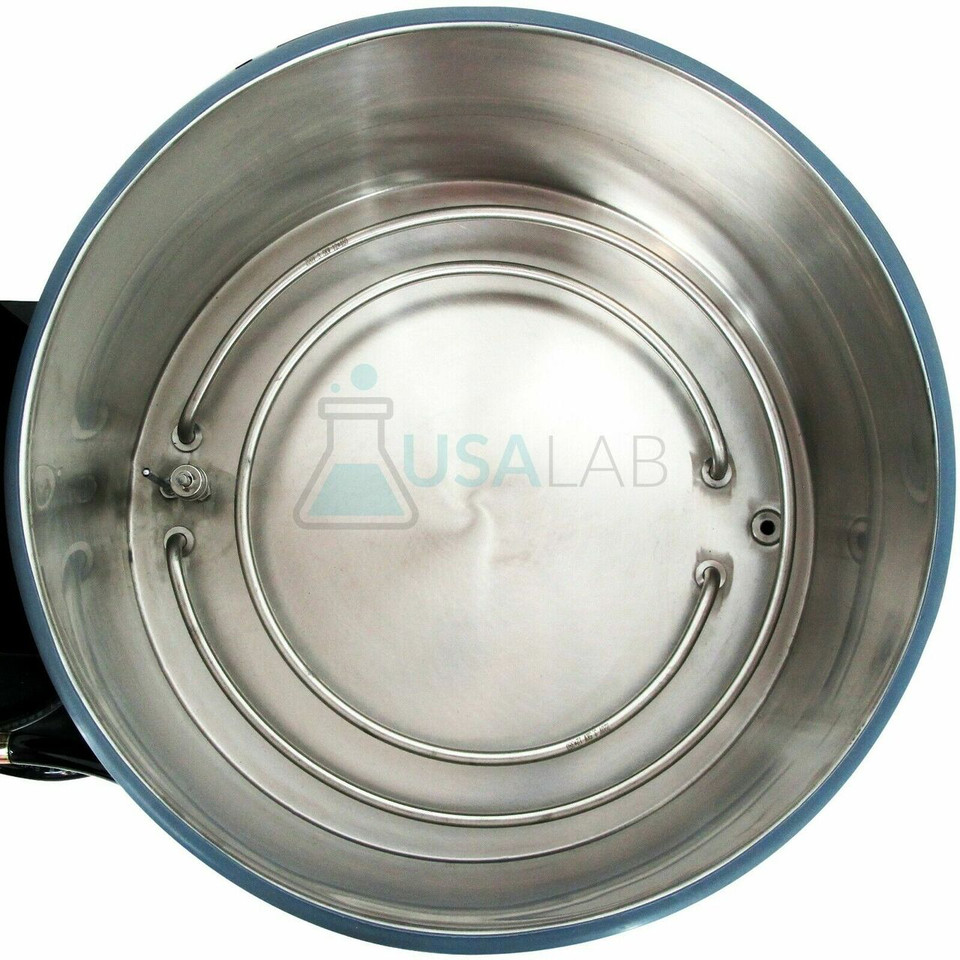

Water Bath Volume	77L
Dimensions	52"L x 45"W x 84"H
Condensing Surface Area: Main	0.91m² x2
Condensing Surface Area: Aux	0.52m² x2
Speed Regulation	Digital Step-Less
Vacuum Barb	13.3mm
Condenser Barb	15.5mm
Included Components	EXRDS-1050 Rotary Evaporator, 2 x UC-50/30 Chillers, Vacuubrand MD 4C NT Pump, 2 x 5 Gal Propylene Glycol USP, 2 x 10ft Vacuum Hose, 2 x 11ft Insulated Chiller Line

Turnkey Packing List

Item	Quantity
EXRDS-1050 50L Explosion Proof Rotary Evaporator with Dual Condenser Set-up	1 unit
Recirculating Chillers (UC-50/30 or CLC-5040-ETL)	2 units
Diaphragm Vacuum Pump -110V (Vacuubrand or USA Lab)	1 unit
5 Gallons of Propylene Glycol USP	2 pcs
10ft Vacuum Hose	2 pcs
11ft Insulated Chiller Line	2 pcs

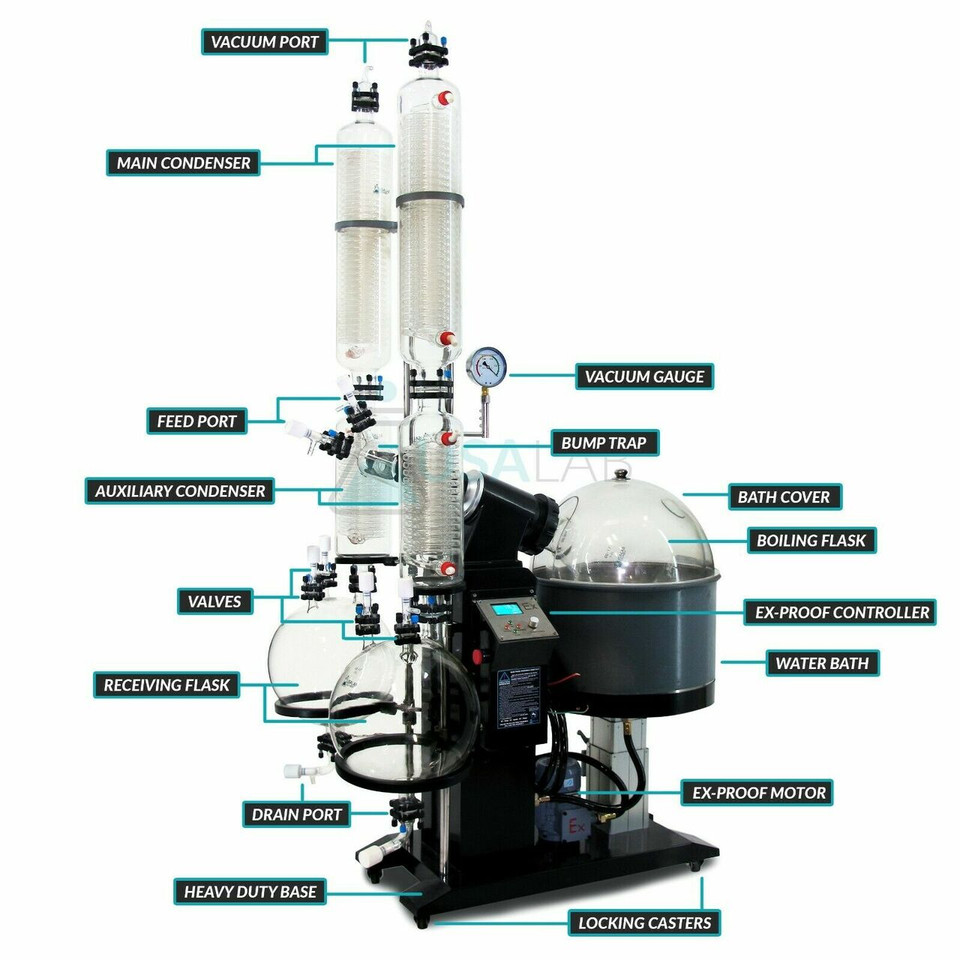

Rotovap Packing List

Item	Quantity
USA Lab 50L EXR-1050 Rotary Base	1 set
50L Bath Cover	1 pc
Main Condenser	2 pcs
Auxiliary Condenser	2 pcs
50L Boiling Flask	1 pc
20L Receiving Flask	2 pcs
50L Flask Cover	1 pc
Four-Way Bump Trap	1 pc
Vapor Duct with Seal (Pre-Installed)	1 set
PTFE Vacuum Sealing Kit (Pre-Installed)	1 set
Glass Vacuum Port with PTFE Valve	6 sets
Glass Feeding Tube with PTFE Valve	2 sets
PTFE Feeding Tube Extension Hose	1 pc
Vertical Stand	2 pcs
Vacuum Gauge	1 pc
Support Ring	4 pcs
Rubber Strap for Condenser	2 pc
Clamp with PTFE Gasket	16 sets
Evaporating Flask Screw Aid	1 pc
Allen Key	2 pcs
63A Fuse	1 pc
Screw Nuts for Clamps	2 pcs
Springs for Clamps	2 pcs
Gasket for Clamps	4 sets
DuPont Molykote High Vacuum Grease	1 pc
Vacuum Hose	10ft

Turnkey Packing List Items

Image	Model
	USA Lab Closed Loop Recirculating Chiller 50/40 - ETL Certified *Only in chiller upgrade option
	USA Lab -30°C 50L Recirculating Chiller UC-50/30 42L/Min

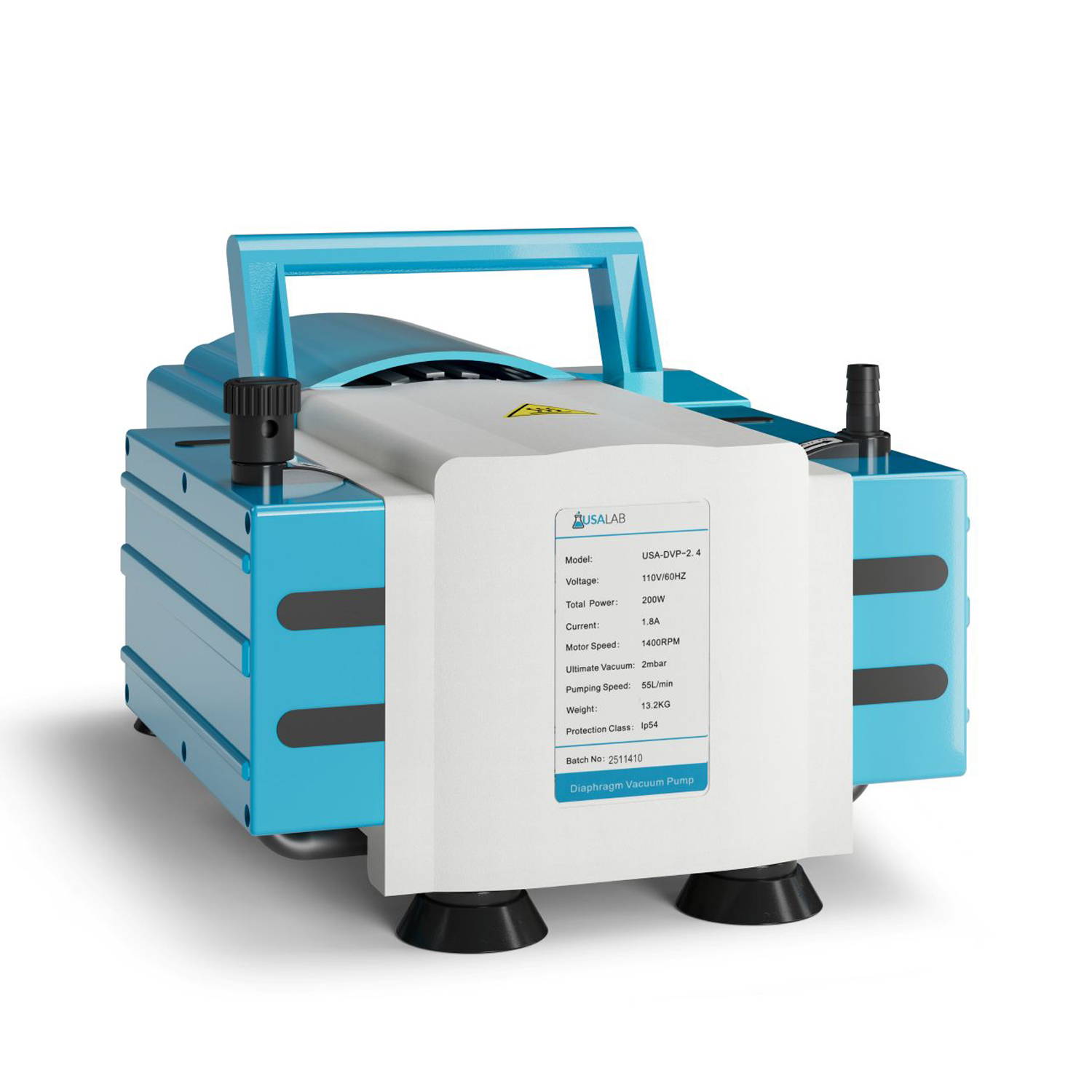

	2.4 CFM 110V Laboratory Pump *Only in chiller upgrade option
	Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Pump 110V

Popular Industries & Use Cases

Botanical Extraction Chemical Processing Pharmaceutical Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored integration, configuration, and process support.

Custom Request Consulting

Talk to Sales

We’ll help spec the right USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is included with the USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers?

The USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers includes the EXRDS-1050 50L explosion proof rotary evaporator with dual condenser setup, two UC-50/30 -30°C 50L recirculating chillers, one Vacuubrand MD 4C NT 2.2CFM chemistry diaphragm vacuum pump, two 5-gallon quantities of propylene glycol USP, two 10ft vacuum hoses, and two 11ft insulated chiller lines.

Can I upgrade the chillers on the USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers?

Yes. The USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers comes standard with two UC-50/30 -30°C chillers, and upgraded ETL-listed USA Lab CLC-50L -40°C mechanical chillers are also available for customers who need certified equipment and deeper cooling performance.

What are the advantages of the dual condenser setup?

The USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers is designed to improve recovery rates by increasing condensing surface area and allowing each condenser to be supported by its own dedicated chiller. This configuration can outperform single condenser systems or shared chiller setups in demanding solvent recovery applications.

What type of vacuum pump comes with the USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers?

The system includes a Vacuubrand MD 4C NT 2.2CFM chemistry diaphragm vacuum pump. This pump is oil-free, corrosion-resistant, and rated for up to 15,000 hours of maintenance-free operation, making it a reliable match for the USA Lab 50L Explosion Proof Rotary Evaporator System with Dual Condensers.
