Description

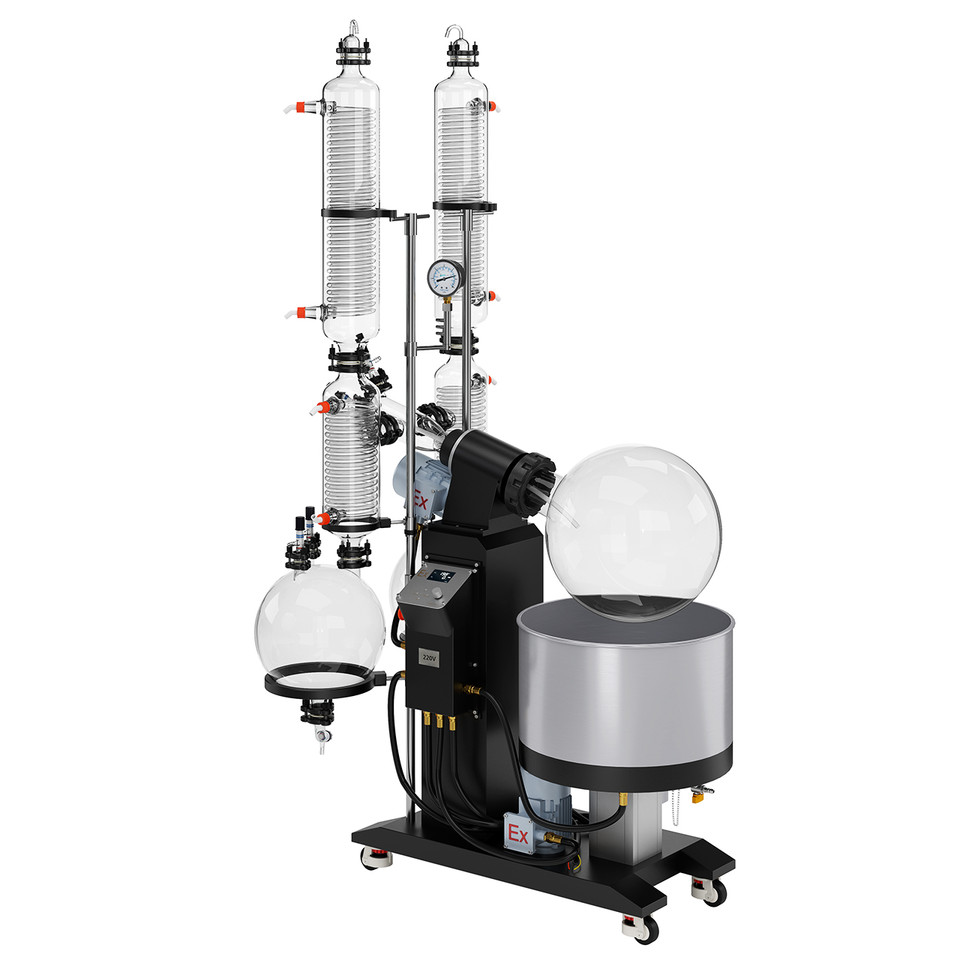

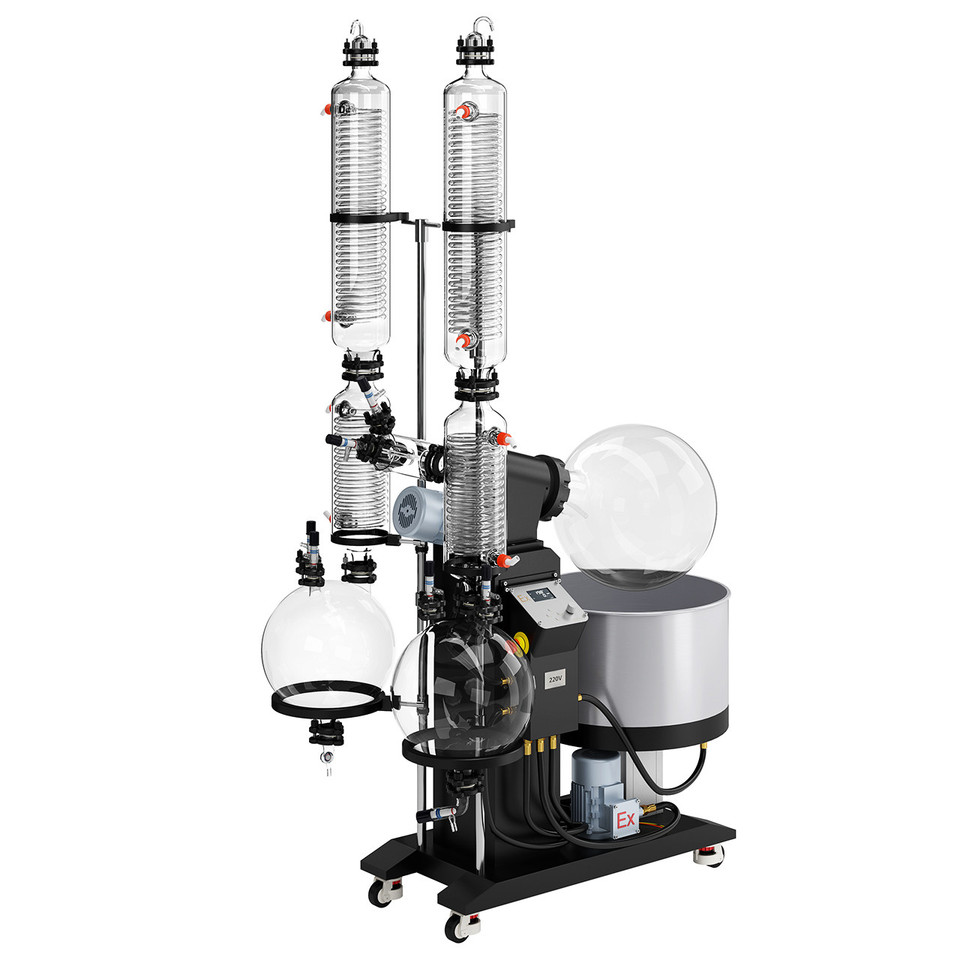

USA Lab 50L Dual Explosion Proof Rotary Evaporator | Electric Lift, 180°C Bath, 220–240V
The USA Lab 50L Rotary Evaporator is designed for large-scale solvent recovery, concentration, and purification processes in laboratories and production facilities. With a 50L evaporation flask and 20L receiving flask, this rotary evaporator is ideal for botanical extraction, pharmaceutical development, chemical processing, and research applications that require consistent performance at scale.
A 77L water/oil bath powered by a 22,000 BTU heating system provides rapid heat-up and stable temperatures up to 180 °C (356 °F), controlled with digital precision at ±1 °C. The 20–120 RPM variable-speed motor and electric lift mechanism make operation smooth and repeatable, while the use of GG-17 high-borosilicate glassware ensures excellent thermal stability and chemical resistance.
Engineered for reliability and safety, the system operates on 220–240V, 50–60Hz, 30A single-phase power and is designed to be hardwired to a quick-disconnect panel. The optimized condenser design, with multiple surface areas, supports fast evaporation rates of ≥13 L/h for water and ≥27 L/h for alcohol, helping laboratories process more in less time.
This 50L rotary evaporator is built to deliver high throughput, efficient solvent recovery, and reproducible results for demanding workflows, making it one of the best values on the market for professional laboratory evaporation equipment.
NOT Compaible With 208V Power Input (Acceptable range: 219V - 253V) NOT intended for 24-hour operation, maximum operation time is 16 hours.
50L Evap Flask Explosion Proof Electric Lift 20–120 RPM
High Capacity: 50L evaporation flask with 20L collection for production-scale recovery.
Thermal Power: 22,000 BTU bath heats to 180°C (356°F) with ±1°C accuracy.
Explosion Proof: Brushless motor and enclosed internals.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this 50L rotary evaporator?
- Production throughput — high surface area condensers and 50L/20L glassware drive rapid recovery.
- Stable temperature control — 22,000 BTU bath to 180°C with precise ±1°C regulation.

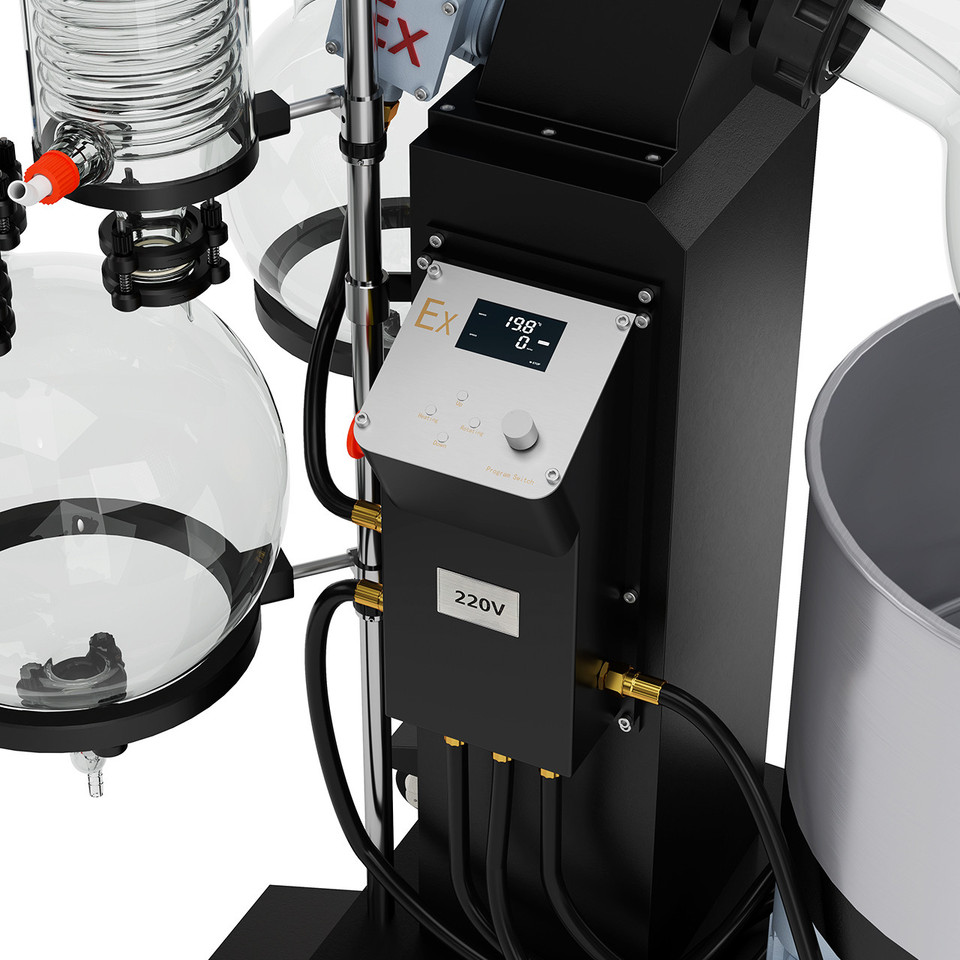

- Operator friendly — electric lift and digital step-less 20–120 RPM for fine tuning.
- Robust construction — GG-17 borosilicate glass with optimized barb sizes for secure connections.
- Explosion-proof — brushless motors and enclosed internals to prevent flammable liquids from reaching internal components via seals.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | EXRDS-1050 |
|---|---|
| Glass Material | GG-17 Borosilicate Glass |
| Rotary Speed | 20–120 RPM (digital step-less) |
| Bath Temperature Range | Room Temp to 180°C / 356°F |
| Lifting Mechanism | Electric lift |
| Temperature Control Accuracy | ±1°C |
| Power Requirements | 220–240V 50–60Hz 30A Single Phase (hardwired to quick disconnect panel) |
| Glassware Capacity | Evaporation Flask 50L; Collection Flask 20L |
| Achievable Vacuum | 399.9 Pa |
| Evaporating Capability | Water ≥ 13 L/h; Alcohol ≥ 27 L/h |
| Heating & Drive | Heater 22,000 BTU; Motor 250 W |
| Water Bath Volume | 77 L |
| Dimensions (L×W×H) | 52" × 45" × 84" |
| Condensing Surface Area | Main: 0.91 m² × 2; Auxiliary: 0.52 m² × 2 |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What size glassware is included in the unit?
The USA Lab 50L Rotary Evaporator system is configured with a 50L evaporation flask and a 20L collection flask made from GG-17 borosilicate glass.
What is the heating performance of the USA Lab 50L Rotary Evaporator?
The USA Lab 50L Rotary Evaporator 77L water/oil bath delivers up to 22,000 BTU of heating power and reaches 180°C (356°F) with ±1°C control accuracy.
What vacuum level is achievable with the system?
Under proper system setup, the USA Lab 50L Rotary Evaporator can reach approximately 399.9 Pa. Actual performance depends on pump, seals, and operating conditions.
What are the throughput rates for the USA Lab 50L Rotary Evaporator?
The USA Lab 50L Rotary Evaporator Evaporation capability is rated at Water ≥ 13 L/h and Alcohol ≥ 27 L/h, subject to process variables.
