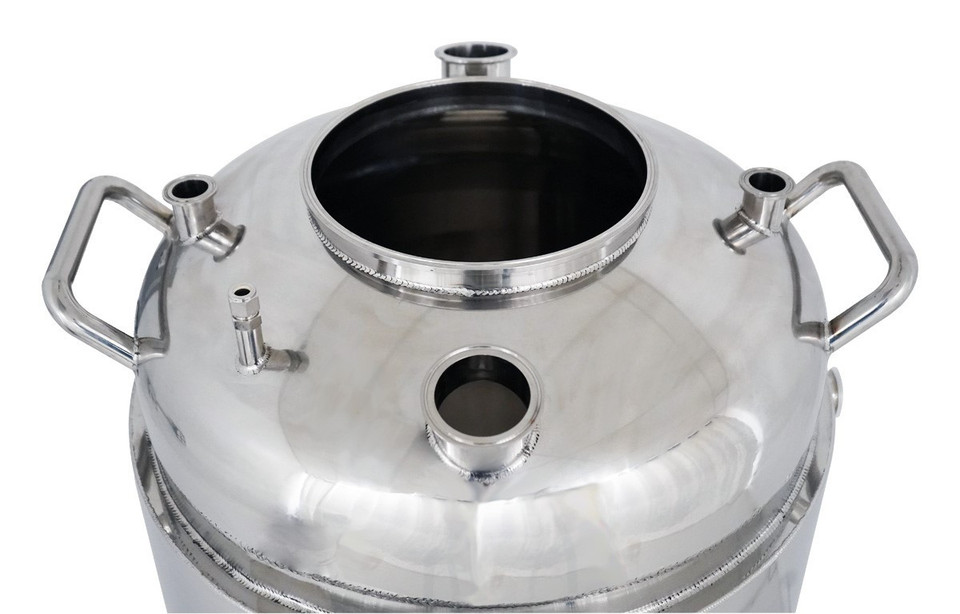

300L Stainless Steel Jacketed Storage Vessel - JSV-300L | USA Lab
Our 300L Stainless Steel Jacketed Storage Vessel comes with a 12" tri-clamp top opening and a 6" bottom outlet for maximum accessibility and ease of use. Fully jacketed with 1.5" TC ports, this vessel allows precise circulation of heating or cooling fluids. Ideal for filtration, solvent chilling, winterization, mixing, and ethanol extraction processes.
Built from durable 304 stainless steel and equipped with heavy-duty casters, the JSV-300L delivers reliable performance in demanding lab and production environments.
304 Stainless Steel Fully Jacketed 12" Top Opening 6" Bottom Outlet 150 PSI Vessel Rating
Large Capacity: 300 Liter working volume for high-throughput operations
Precise Temperature Control: Full jacket with 1.5" TC ports for glycol or fluid circulation
Easy Access & Drainage: 12" top and 6" bottom tri-clamp connections
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why choose the USA Lab 300L Jacketed Storage Vessel?
- Superior build quality — 304 stainless steel construction with fully welded jacket
- Versatile functionality — Perfect for winterization, solvent recovery, filtration, and storage
- Maximum accessibility — Large 12" top tri-clamp and 6" bottom outlet for easy loading and full drainage
- Precise thermal control — 44L jacket capacity with 1.5" TC ports for heating or chilling
- Mobility & durability — Heavy-duty casters rated to 440lbs per wheel (1,760lbs total)
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
<
| Specification | JSV-300L |
|---|---|
| Material | 304 Stainless Steel |
| Jacket Connections | 1.5" Tri-Clamp |
| Top Tri-Clamp Connection | 12" Tri-Clamp |
| Side Ports | (2) 1.5" TC | 1/2" Comp. | (2) 3" TC |
| Bottom Tri-Clamp Connection | 6" Tri-Clamp |
| Jacket Capacity | 44L |
| Dimensions | 30" × 30" × 68" |
| Weight | 300 lbs |
| Vessel Pressure (Max) | 150 PSI |
| Caster Weight Limit | 440 lbs per wheel (1,760 lbs total) |
| Height – 6" Tri-Clamp to Floor | 18" |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the USA Lab 300L Stainless Steel Jacketed Storage Vessel used for?
The USA Lab 300L Jacketed Storage Vessel (JSV-300L) is ideal for filtration, solvent chilling, winterization, mixing, storage, and ethanol extraction processes in botanical and pharmaceutical labs.
Is the JSV-300L fully jacketed?
Yes, the USA Lab 300L Jacketed Storage Vessel is fully jacketed with 1.5" tri-clamp ports and a 44L jacket capacity for precise temperature control via fluid circulation.
What size are the top and bottom openings on the 300L vessel?
The USA Lab 300L Jacketed Storage Vessel features a large 12" tri-clamp top opening and a 6" tri-clamp bottom outlet for easy access and complete drainage.
What is the maximum pressure rating?
The USA Lab 300L Jacketed Storage Vessel is rated for up to 150 PSI. Jacket pressure rating is available upon request.
