Description
The USA Lab 20L RE-1020 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.
The RE-1020 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum. This kit includes a Vacuubrand MD 4C NT 2.2CFM Diaphragm pump that is rated for 15,000 Hours of use before maintenance. This pump is made from the highest quality parts and will work great with a USA Lab 2L rotary evaporator system.
No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.
** Notice **
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V, excluding vacuum pump)
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V, excluding vacuum pump)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
|
RE-1020 Specifications |
|
|
Glass Material |
GG-17 Borosilicate Glass |
|
Evaporation Flask Capacity |
20L |
|
Collection Flask Capacity |
10L |
|
Rotary Speed |
20-120RPM |
|
Bath Temperature Range |
Room Temp to 180°C (356°F) |
|
Lifting Mechanism |
Electric |
|
Power Requirements |
220-240V 60Hz 30A Single Phase |
|
Temperature Control Accuracy |
+/-1°C |
|
Motor Wattage |
100W |
|
Heater BTUs |
17,000BTU |
|
Achievable Vacuum |
0.0033 Mpa | 25 Torr | 25,000 Micron |
|
Evaporating Capability |
Water≥5L/H |
|
Alcohol≥12L/H |
|
|
Water Bath Volume |
41L |
|
Dimensions |
43"L x 30"W x 80"H |
|
Condensing Surface Area |
Main: 0.8m² |
|
Auxiliary: 0.39m² |
|
|
Speed Regulation |
Digital Step-Less |
|
Vacuum Barb |
13.3mm |
|
Condenser Barb |
15.5mm |
|
RE-1020 Packing List |
|
|
Item |
Quantity |
|
20L RE-1020 Rotary Evaporator Base |
1 set |
|
Main Condenser |
1 pc |
|
Auxiliary Condenser |
1 pc |
|
20L Boiling Flask |
1 pc |
|
10L Receiving Flask |
1 pc |
|
Three-Way Bump Trap |
1 pc |
|
Vapor Duct with Seal (Pre-Installed) |
1 pc |
|
PTFE Vacuum Sealing Kit (Pre-Installed) |
1 pc |
|
Glass Vacuum Port with PTFE Valve |
4 sets |
|
Glass Feeding Tube with PTFE Valve |
2 sets |
|
PTFE Feeding Tube with Extension Hose |
1 pc |
|
Vertical Stand |
1 pc |
|
Vacuum Gauge |
1 pc |
|
Support Ring |
2 pcs |
|
Rubber Strap for Condenser |
1 pc |
|
Clamp with PTFE Gasket |
7 sets |
|
Evaporator Flask Screw Aid |
1 pc |
|
Allen Key |
2 pcs |
|
32A Fuse |
1 pc |
|
Screw Nuts for Clamps |
2pcs |
|
Spring for Clamps |
2 pcs |
|
Gasket for Clamps |
4 sets |
|
DuPont Molykote High Vacuum Grease |
1 pc |
|
Vacuum Hose |
10ft |
|

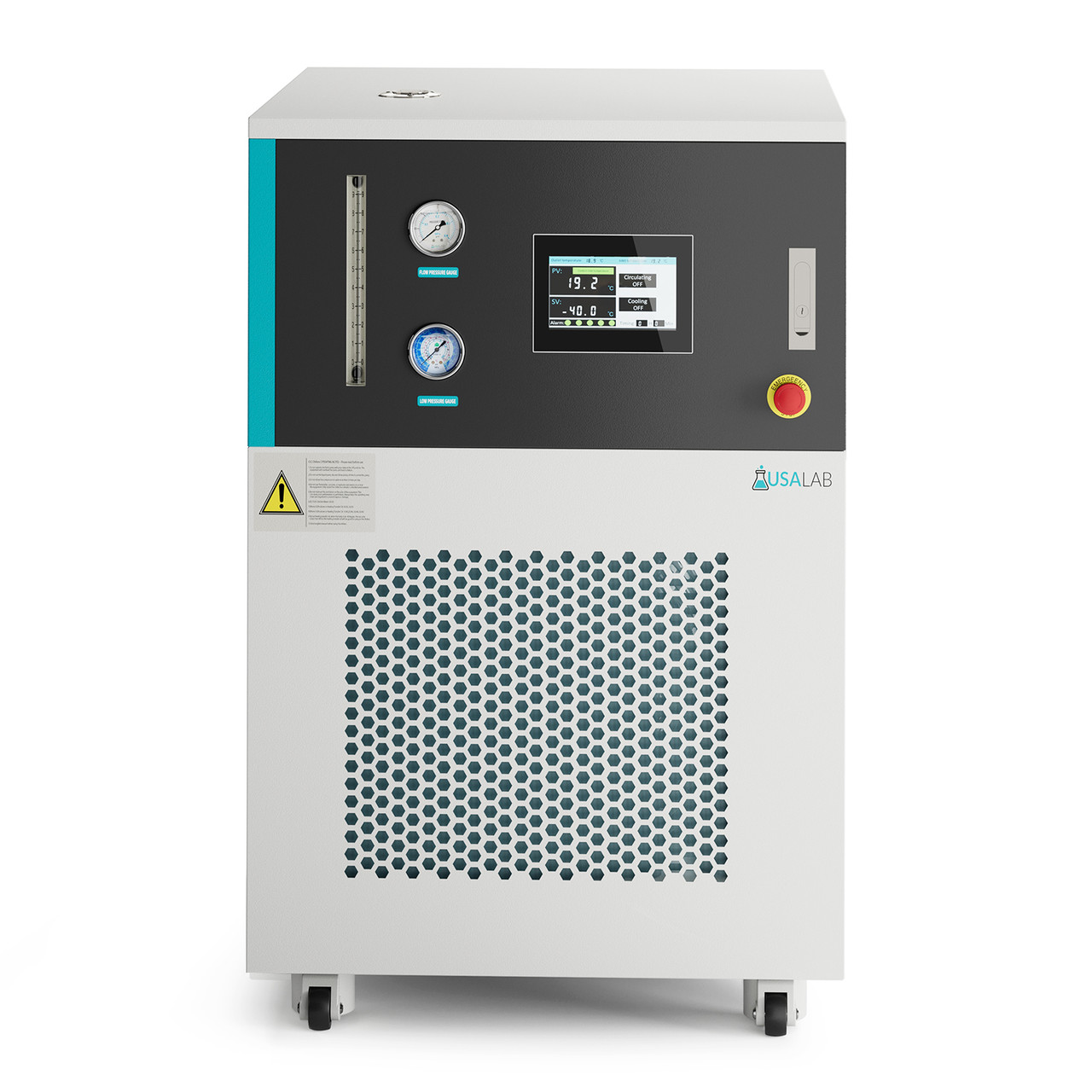

UC-30/30 SPECIFICATIONS |
|
|
Model |
UC-3030 |
|
Reservoir Capacity |
30L |
|
Reservoir Dimensions |
13.7" x 13.7" |
|
Temperature Range |
Room Temperature to -30°C / -22°F |
|
Power Requirements |
220-240V 60Hz 20A 1800W Single Phase |
|
Refrigerating BTUs |
4,000BTU - 13,500BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
30L/Min |
|
Pump Pressure |
2.2bar |
|
Barb Size |
5/8" |
|
Refrigerant |
R404 |
|
Dimensions |
30.3" x 25.5" x 39.7" |
|
Weight |
171lbs |
|
UC-30/30 Packing List |
|
|
USA Lab UC-30/30 Chiller |
1 pc |
|
5/8" Insulated Tubing |
11ft |
|
5/8" Barbed Valve |
1 pc |
|
PTFE Sealing Tape |
1 pc |

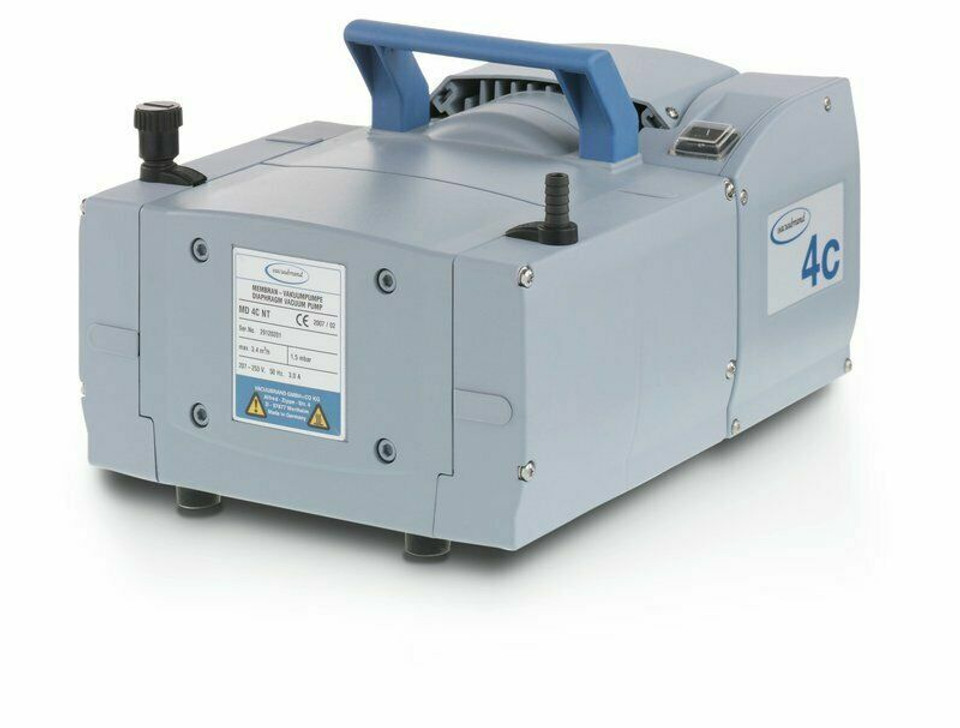

MD 4C NT
Three-Stage Chemistry-Design Diaphragm Pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.
Performance Features
Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Whisper quiet and very low vibration
- Long diaphragm life, maintenance-free drive system
- Technical Data
|
Technical data |
MD 4C NT |
|
Number Of Heads / Stages |
4 / 3 |
|
Max. Pumping Speed At 50/60 Hz |
3.4 / 3.8 m3/h |
|
Max. Pumping Speed At 50/60 Hz |
2.0 / 2.2 cfm |
|
Ultimate Vacuum (Abs.) |
1.5 / 1.1 mbar/torr |
|
Ultim. Vac. (Abs.) With Gas Ballast |
3 / 2.2 mbar/torr |
|
Ambient Temperature Range (Operation) |
(10°C) - (40°C) |
|
Ambient Temperature Range (Storage) |
(-10°C) - (60°C) |
|
Max. Back Pressure (Abs.) |
1.1 bar |
|
Inlet Connection |
Hose nozzle DN 8-10 mm |
|
Outlet Connection |
Hose nozzle DN 8-10 mm |
|
Rated Motor Power |
0.25 kW |
|
Rated Motor Speed At 50/60 Hz |
1500/1800 min-1 |
|
Degree Of Protection |
IP 40 |
|
Dimensions (L X W X H) |
325 x 243 x 198 mm |
|
Weight |
14.3kg |
|
Noise Level At 50 Hz, Typ. |
45 Dba |
|
NRTL Certification |
Canada and the USA |
|
Atex Conformity (Only 230V) |
II 3/- G IIC T3 X Internal Atm. only |
|
Items Supplied |
Pump completely mounted, ready for use, with manual |
|
Accessories |
Rubber Vacuum Tubing DN 8 mm (20686001) |
-
-
MD 4C NT - Pumping Speed Graph at 50 Hz
MD 4C NT - Pump Down Graph at 50 Hz (10L volume)
-
MD 4C NT - Pumping Speed Graph at 60 Hz
-
-
MD 4C NT - Pump Down Graph at 60 Hz (10L volume)
-
-
-Technical data are subject to change without notice-
MD 4C NT - Dimension Sheet
|
Extra Packing List |
|
|
USA Lab Propylene Glycol |
4 Gal |
|
3/8" Vacuum Hose |
10ft |
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days
of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
1 Year Parts and Labor Warranty Included, Glassware Not Included.
